Description

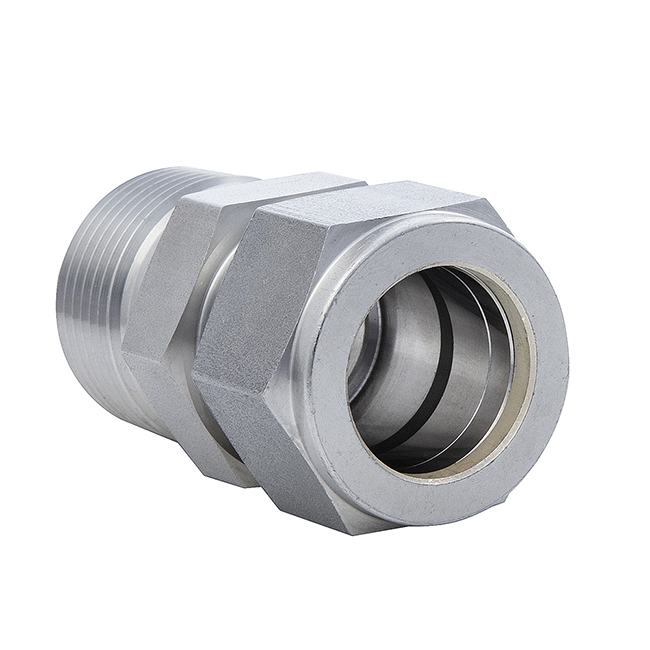

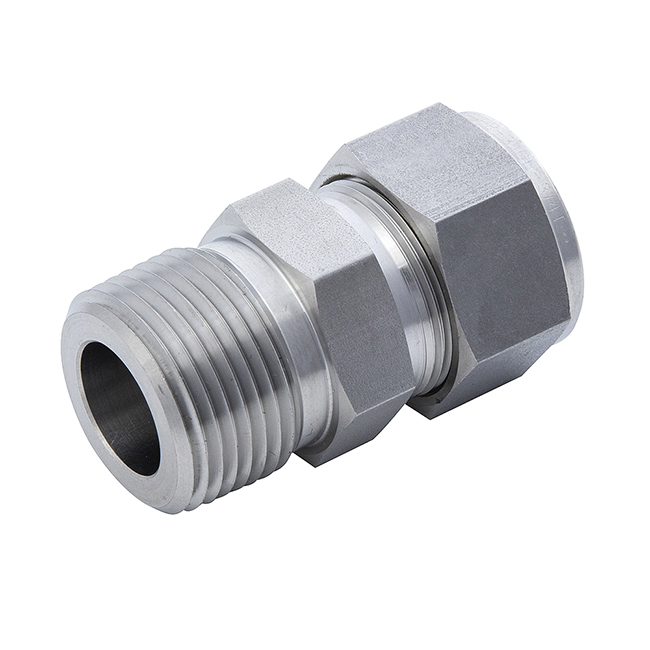

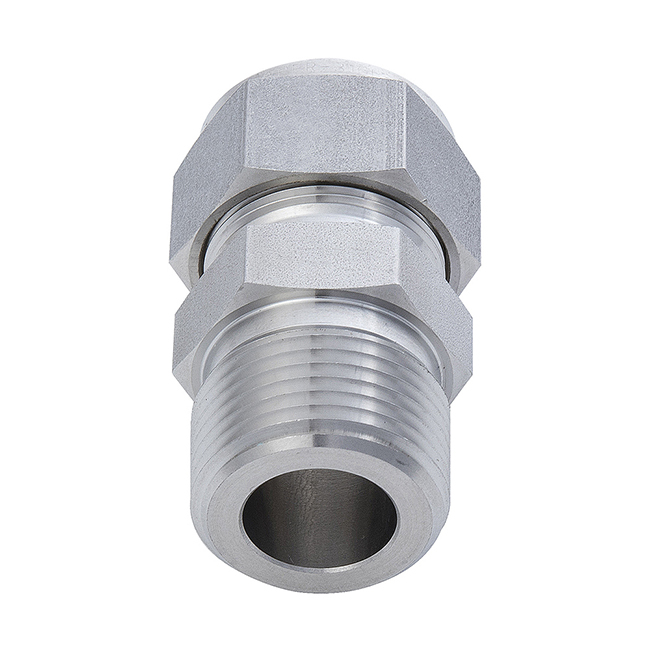

Double Ferrule Compression Fittings Tube Connector Adapter Joint Stainless Steel 316L NPT OD
- Compression ferrule fitting to connect two tubes with different end types Male NPT threads on one side and double ferrule fitting connection on the other
- With double ferrule construction to reduce the possibility of leakage
- High quality Stainless steel 316 is used with higher strength and greater corrosion resistance
- Maximum operating pressure rating of 800Bar,at a temperature range of -100 to +800 degrees F
- Many different size of NPT threads and Tube Diameters can be choosed, we can make special ferrule fitting according to customers’ requirement.
Product description
Compression double ferrule tube fitting is made of type 316 stainless steel, is for a fixed connection between tubing and pipe made of stainless steel. A double ferrule compression fitting connects to tubing on one end for a leak-resistant seal in high-pressure, high-vacuum, and high-vibration applications, and a male NPT connector on the other end connects to threaded pipe. our fittings use chemically hardened type 316 stainless steel and have higher strength and greater corrosion resistance than untreated stainless steel. It is commonly used in chemical, petroleum, power generation, laboratory, and medical device plants.
Check this article for More information about Double Ferrule Compression Fittings .
Compression fittings are used to create leak-free tube connections easily and quickly. Double ferrule compression fittings feature an outer nut, two deformable ferrules in soft alloy or non-ferrous metals and, a tube fitting body and are available for metric and fractional tube sizes. When the fitting nut is screwed on the tube, the ferrules get deformed to create a tight seal. Swagelok and Parker are the two main players in the compression fittings market.
Compression fittings allow the connection of two imperial tubes (or fractional tubes), two metric tubes or, also, the connection of a metric tube at one end and a fractional/imperial tube at the other end.
