Description

Features：
600mW output power
785nm wavelength
105µm fiber core diameter
Narrow Bandwidth △<0.12nm
0.22N.A.

Applications：
Laser Raman
Spectroscopy
Sensing
Medical
Military

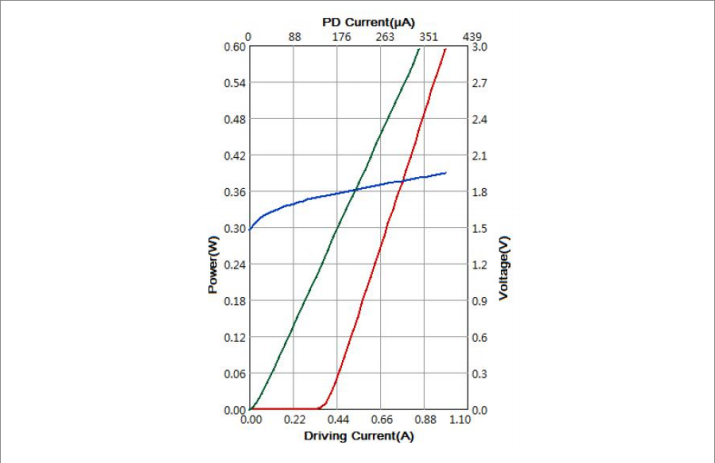

Parameter:

CW Output Power: 0.6mW

Threshold current: 0.4A

Operating current: 1.1~1.5A

Operating voltage: 1.9~2.2V

Reverse Voltage: 2.5V

Slope Efficiency: 0.9W/A

Electrical-to-Optical Efficiency: 30%

Center wavelength: 784.5nm~785.5nm

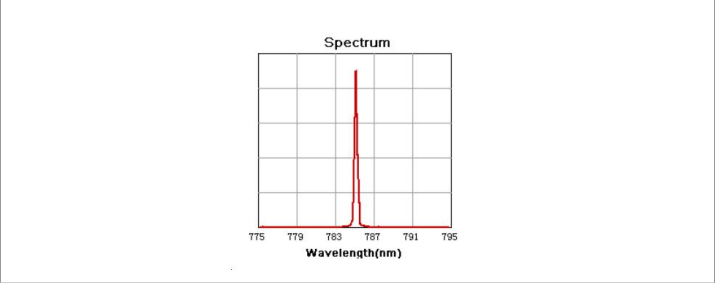

Spectral width(FWHM): 0.06~0.12nm



Wavelength Shift with Temperature: 0.01nm/℃

PD: 300-500μA

TEC Max. Current: 2.2A

TEC Max. Voltage: 8.75V

Fiber Data:

Buffer diameter: 250μm

Cladding diameter: 125μm

Core diameter: 105μm

Numeric aperture: 0.22

Fiber length: 1m

Fiber connector: FC

Fiber Bend Radius: 37.5mm

Others:

ESD:  500V

Storage Temperature（Non-operating）: -20~70

Lead Soldering Temp: 260℃

Lead Soldering Time: 10sec

Operating Case Temperature: 15~35℃

Relative Humidity: 15~75%

Please kindly check the datasheet:

785nm 600mW Wavelength-Stabilized Fiber Coupled Diode Laser
