Description

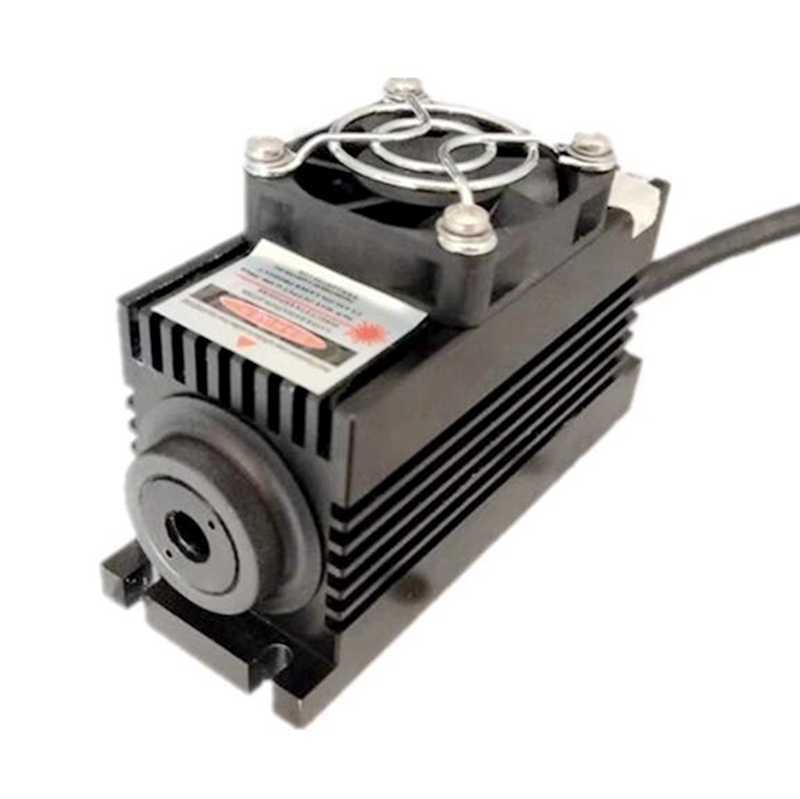

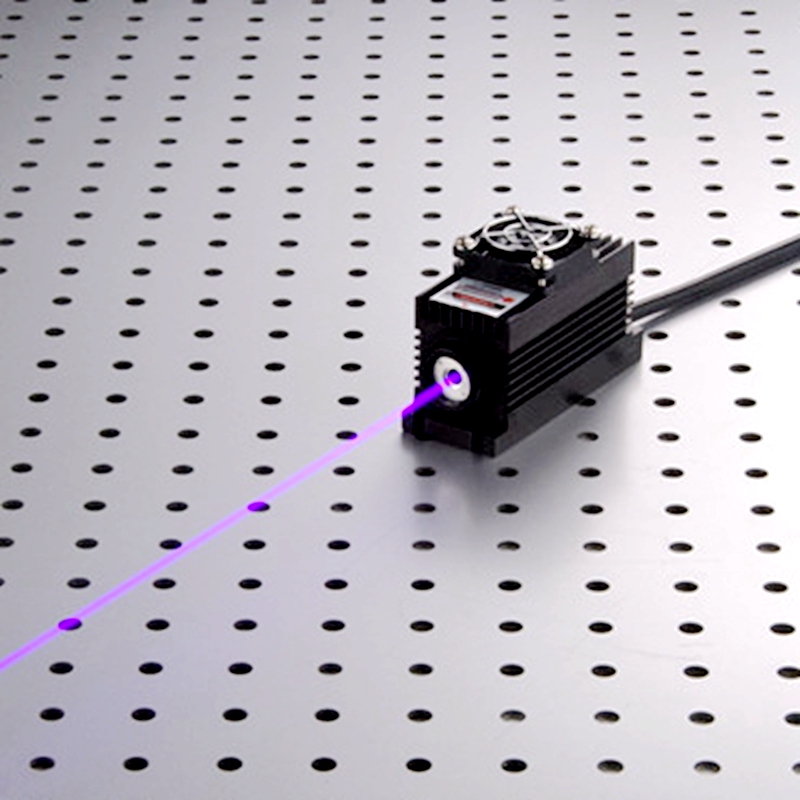

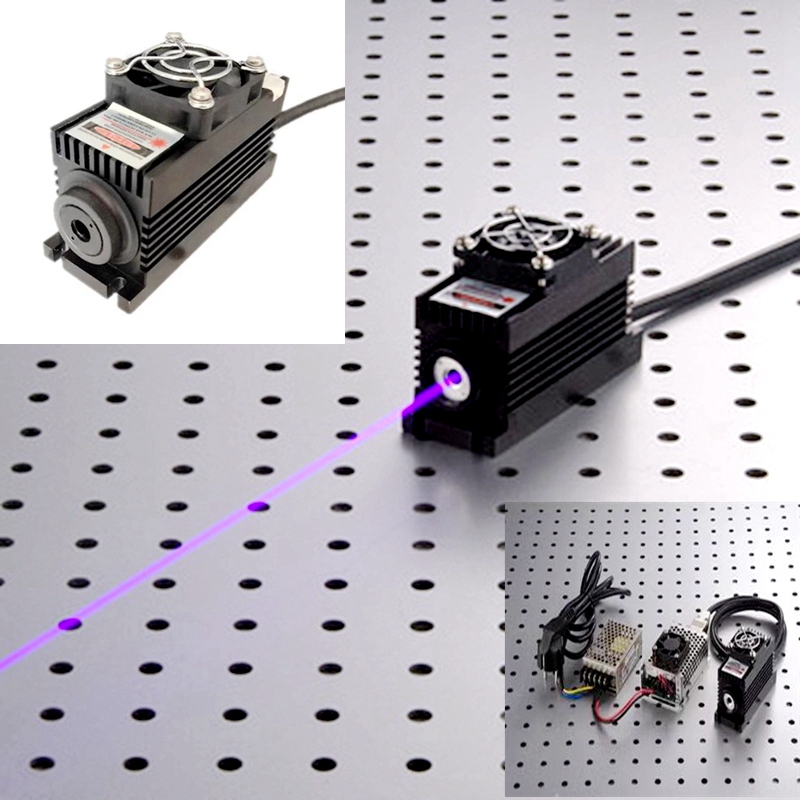

Solid State Laser 405nm Wavelength DPSS Light Color Blue Violet with High Reliability Analog or TTL modulation. The ouput power is optional for you to choose.

Features:

Longlife operation
Analog/TTL modulation
Collimated straight beam
High efficiency
High reliability

APPLICATIONS

Laser show, Display, Scanning Biochemistry
Material Inspection Lidar

Specifications

Wavelength:405+/-5 nm
Spatial Mode:Multi mode
Operation Mode CW or Modulation
Beam Height:34mm
Output Power:100mW, 200mW, 500mW
Beam Size:8x6mm
Beam Divergence(full angle):1.5mrad
Power Stability:<3% per 4 hrs
Warm Up Time:<1 minute
MTTF:10,000 hrs
Laser head dimensions:211(L)x151(W)x50.5(H)mm3
Power Supply:A. OEM type
LSR-PS-I3: 143(L)x40(W)x68(H)mm3
AC/DC PSU: 85~265V 50/60Hz input
B. Lab type
C. Adjustable type
Modulation 0~30khz Analog or TTL







•
