Description

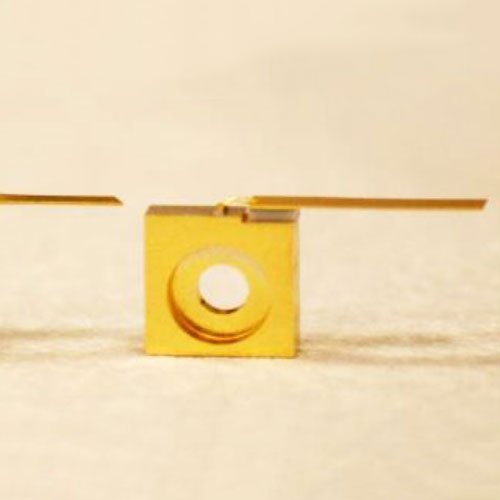

2450nm Single Transverse Mode Laser Diode
T=20 ℃，Continuous-wave operation
| Parameter | Unit. | Min. | Typ. | Max. |
| Resonator length | mm | 2 | ||
| Ridge width | um | 5 | 7 | 8 |
| Thershold current | mA | 100 | 150 | |
| Operating current | mA | 0 | 1300 | 1500 |
| Operating voltage @ 0.5 A | V | 1 | 1,2 | 2 |
| Peak output power | nW | 50 | 75 | 100 |
| Center wavelength @ 0.5 A | nm | 2410 | 2450 | 2470 |
| Spectral bandwidth | nm | 5 nm | ||
| Wavelength tuning | nm/mA | 0.1 | 0.15 | 0.2 |
