Description

Product Description

1. Rated voltage: DC12V
Outlet 20.3mm Inlet 20.3mm ( G1/2 thread)
2. Voltage: DC6V ~ DC12V
3. Current: 1050Ma
4. Head: 3.8m
5. Flow: 600L/H
6. Noise: (35dB 0.5M or less)
7. Fluid Temperaturee: 0 degrees to 100 degrees C
8. Pump motor: DC brushless motor, no spark;
9. Small start-up current, high efficiency, stable and reliable, low power consumption, energy saving, environmental protection
10. Pump motor shaft is of stainless steel shaft, continuous service life of 20,000 hours or more;
11. Can work above or under water. Waterproof Grade: IP68;
12. Pump head and flow can be customized according to customer requirements;
13. Weight 220 grams

Please pay attention:

1.The best operate way:if the temperature is higher than 70degrees, every working 1 hour please let it stop for 10 minutes..
2.It can’t be submerged under hot water,but can diving under normal temperature.
3.don’t use continuously for a long time during hot water and don’t idle it without water.
4.you’d better install the filter in the inlet of the pipeline.
5.the pump head is the perpendicular distance from the inlet to outlet.
6.the pump can’t draw water by itself above water,it should be installed under water.





Package

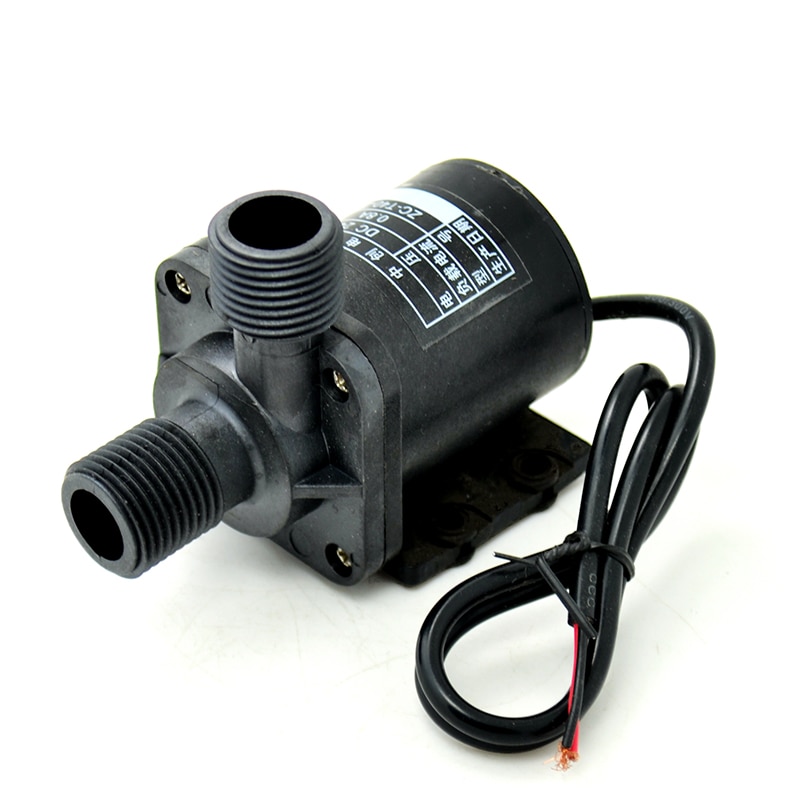

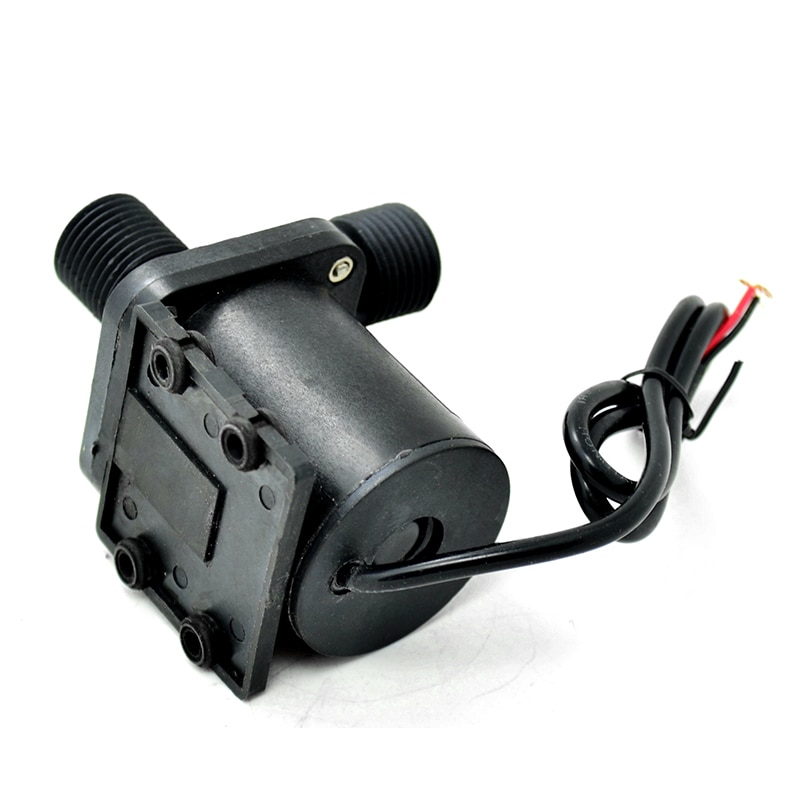

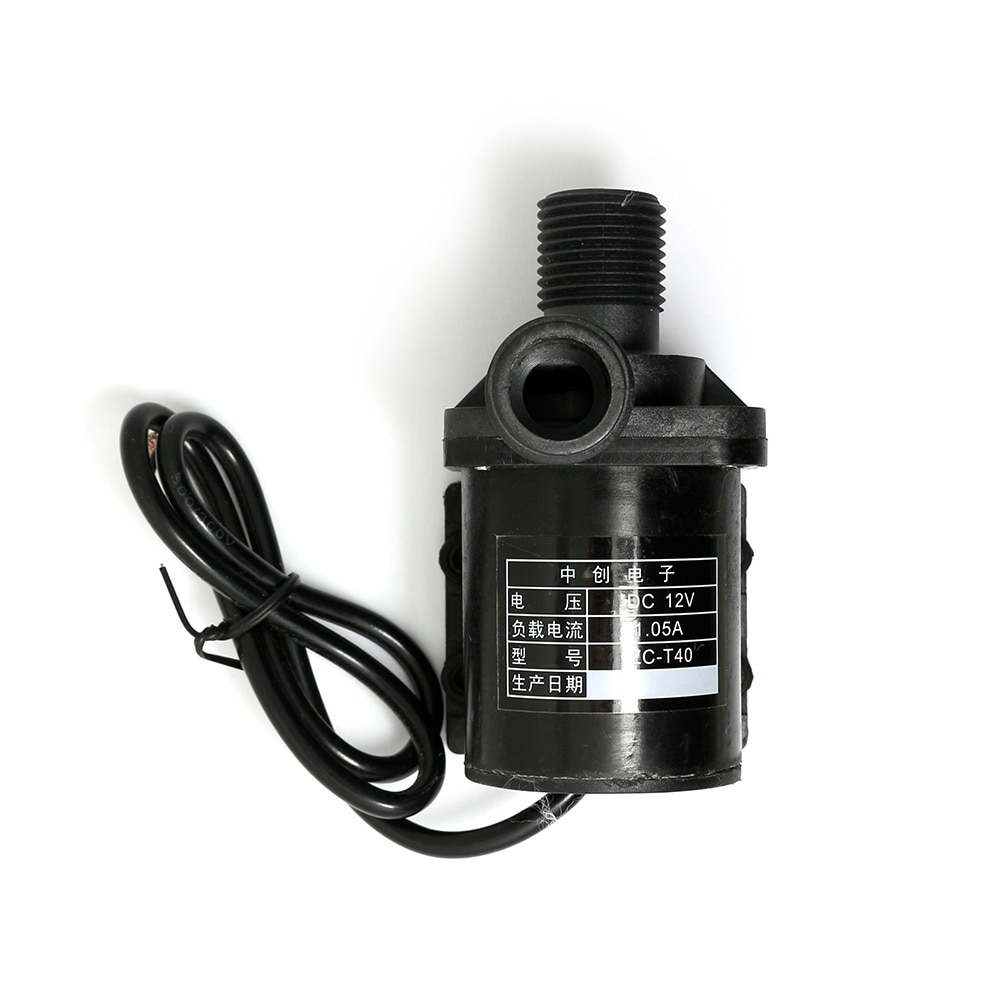

1x  12V DC Mini Brushless Magnetic Water Pump High Temp (0-100degrees) ZC-T40
