Description
ATTENTION :
1. DANGER! Don’t shine the beam to eyes!
2. Becauful the operating voltage! It will destroy the LD when the voltage is too high.
Specification
|
Technical Specs Name: |
XPL-M650R200 |
|
Wavelength: |
650nm nominal center |
|
Type: |
Diode Laser |
|
Lasing medium: |
GaAs Laser |
|
Transverse mode: |
TEM01 |
|
Min power: |
200mw |
|
Arctic series class: |
IIIA |
|
Beam Diameter: |
<Dia5.0mm |
|
Beam divergence: |
<1.2mrad |
|
Stability(at 25 ℃ ) |
<10% |
|
Preheating time (at 25 ℃ ) |
<10s |
|
Best working temperature |
25 ℃ |
|
Operating temperature |
-20-60 ℃ |
|
Temperature control |
Air-cooled |
|
Color of shell: |
silver |
|

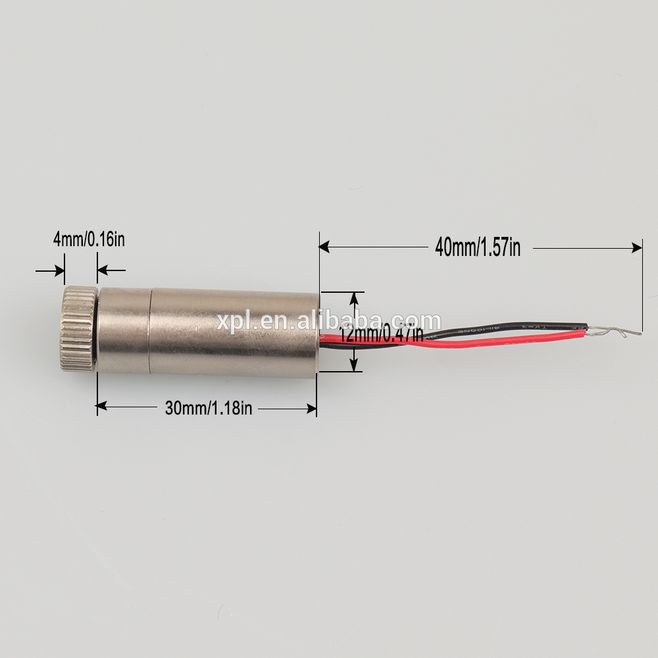

Size: |
Dia12 x36mm |
|
Weight: |
35g (laser + driver) |
|
Power consumption: |
3.0V @ <0.35A |
|
Power supply: |
DC3.0V |
|
Continuous expected lifetime: |
>10,000 hours |
|
Warranty: |
1 year |
