XPL-M520G1000 520nm 1000mw green diode laser module

$499.00

SKU: 32602740847 Category:

Description

ATTENTION :

1.   DANGER!  Don’t shine the beam to eyes!

2.   Becauful the operating voltage!  It will destroy the LD when the voltage is higher.

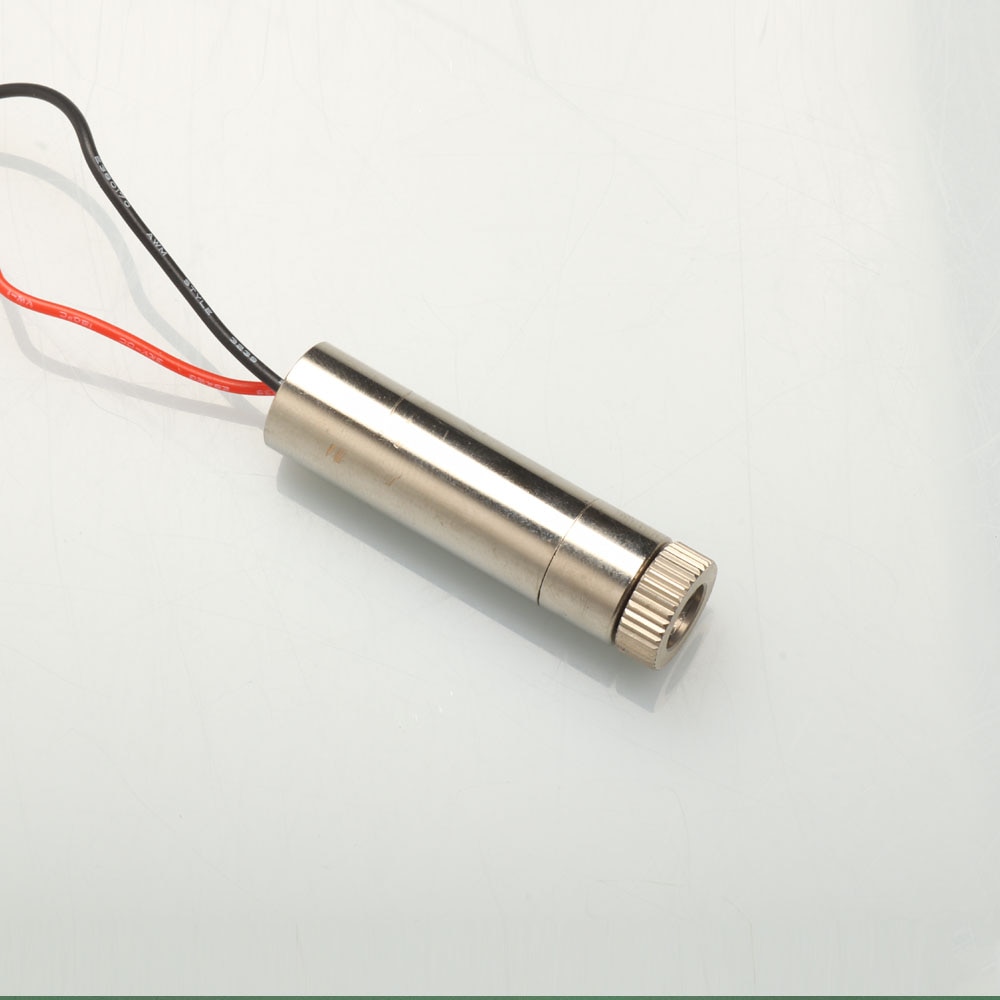

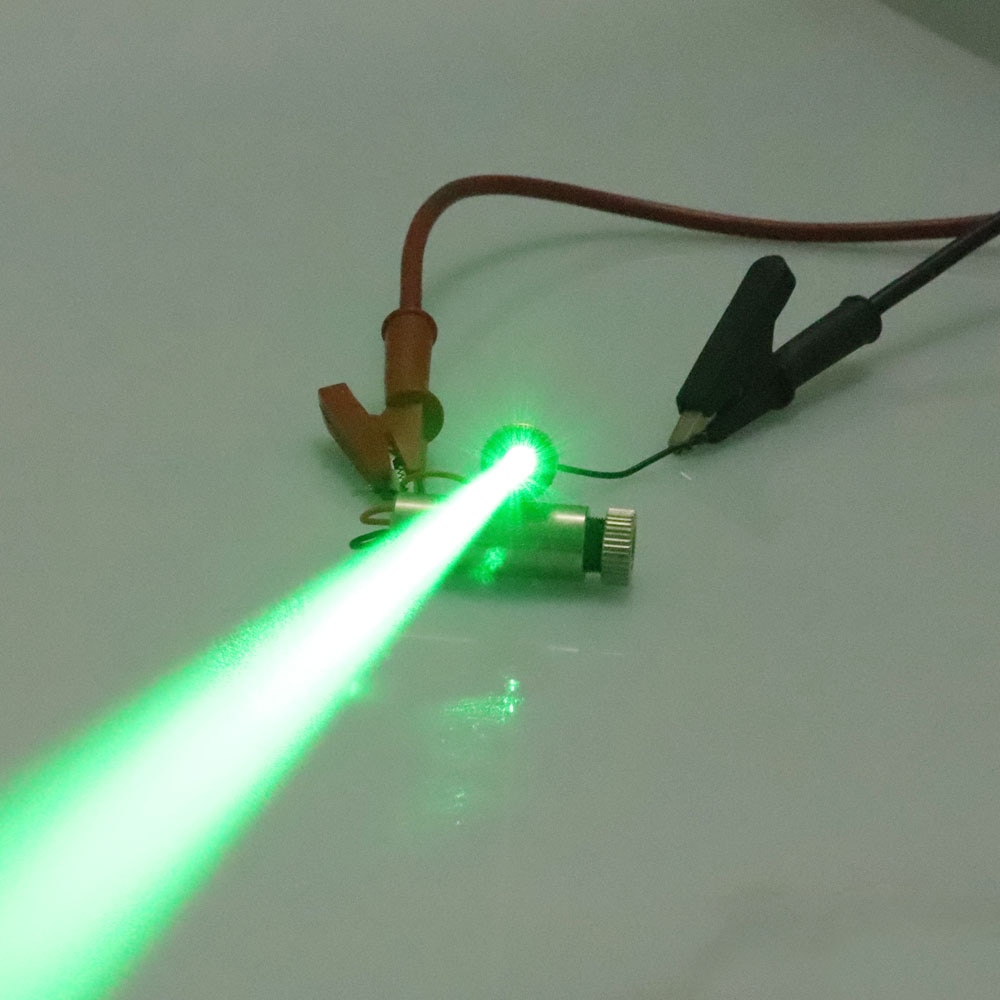

                    Round 520nm 1000mw green laser module

Specification

Technical Specs Name:

XPL-MR520G1000

Wavelength:

520nm nominal center

Type:

Diode Laser

Lasing medium:

GaAs Laser

Transverse mode:

TEM01

Min power:

>800mw

Arctic series class:

IV

Beam Diameter:

<Dia5.0mm

Beam divergence:

<1.2mrad

Stability(at 25  )

<10%

Preheating time

<10s

Best working temperature

25

Operating temperature

-20-60

Temperature control

Air-cooled

Color of shell:

aluminium

Size:

Dia12x46mm

Weight:

15g

Power consumption:

5.0V @ 1.7A

Power supply:

DC3.0V

Continuous expected lifetime:

>10,000 hours

Warranty:

1 Year (LD died is not included)

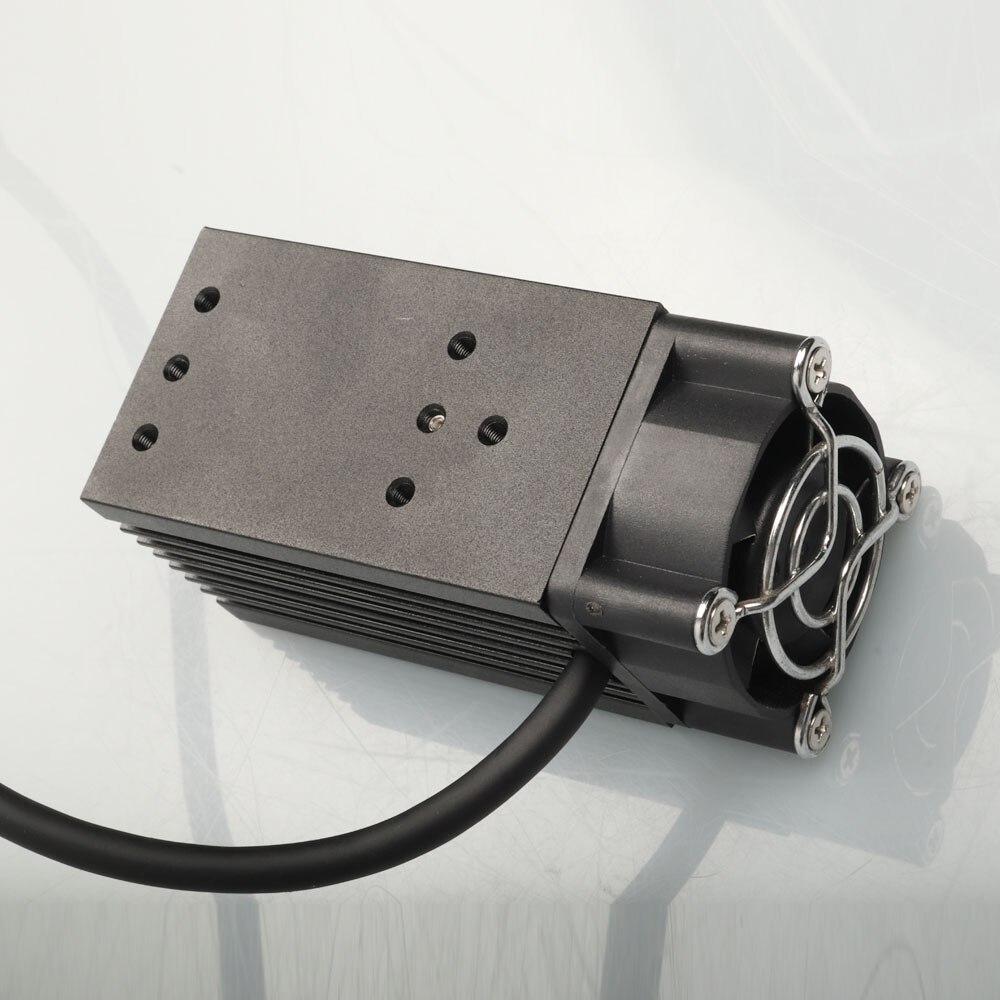

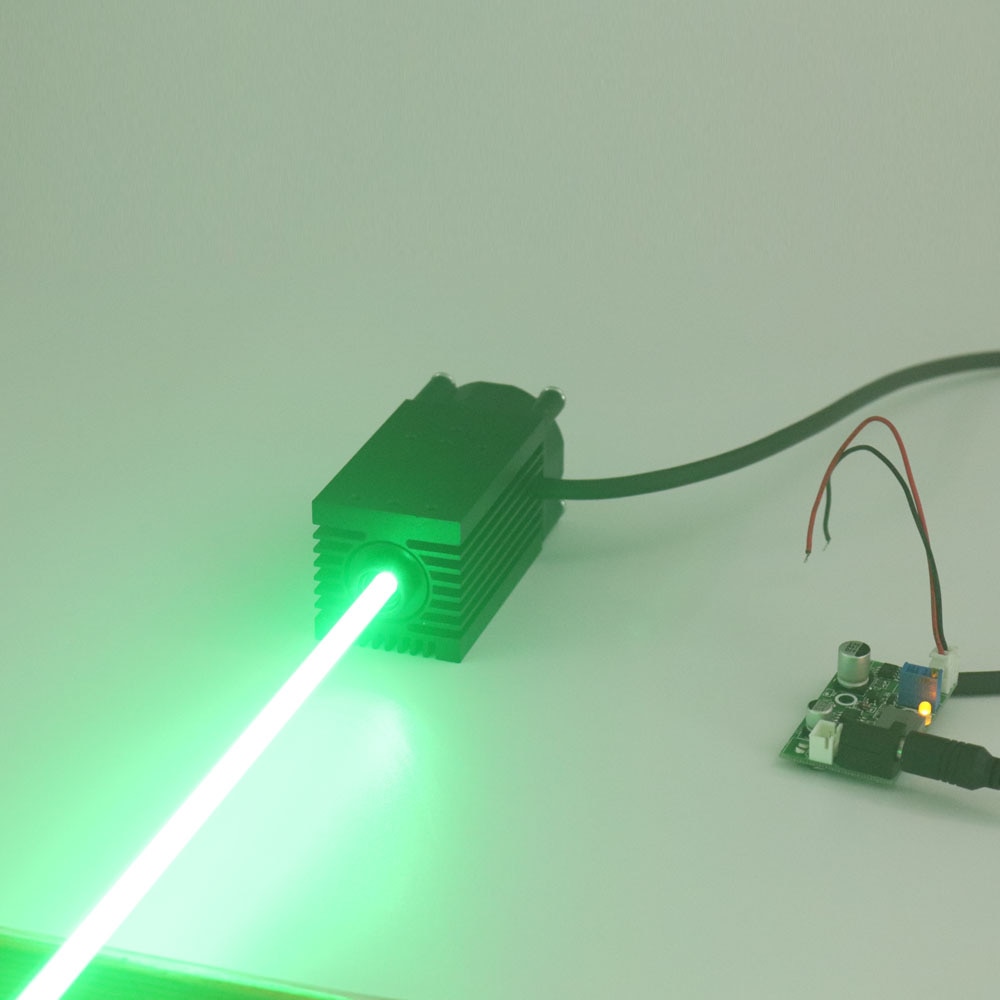

                 Square 520nm 1000mw green laser module

Specification



Technical Specs Name:

XPL-MS520G1000

Wavelength:

520nm nominal center

Type:

Diode Laser

Lasing medium:

GaAs Laser

Transverse mode:

TEM01

Min power:

>800mw

Arctic series class:

IV

Beam Diameter:

<Dia5.0mm

Beam divergence:

<1.0mrad

Stability(at 25  )

<10%

Preheating time

<10s

Best working temperature

25

Operating temperature

-20-60

Temperature control

Air-cooled

Color of shell:

aluminium

Size:

40mmx40mmx100mm

Weight:

300g

Power consumption:

5.0V @ 1.7A

Power supply:

DC12V

Continuous expected lifetime:

>10,000 hours

Warranty:

1 Year
