Technical Specs Name:

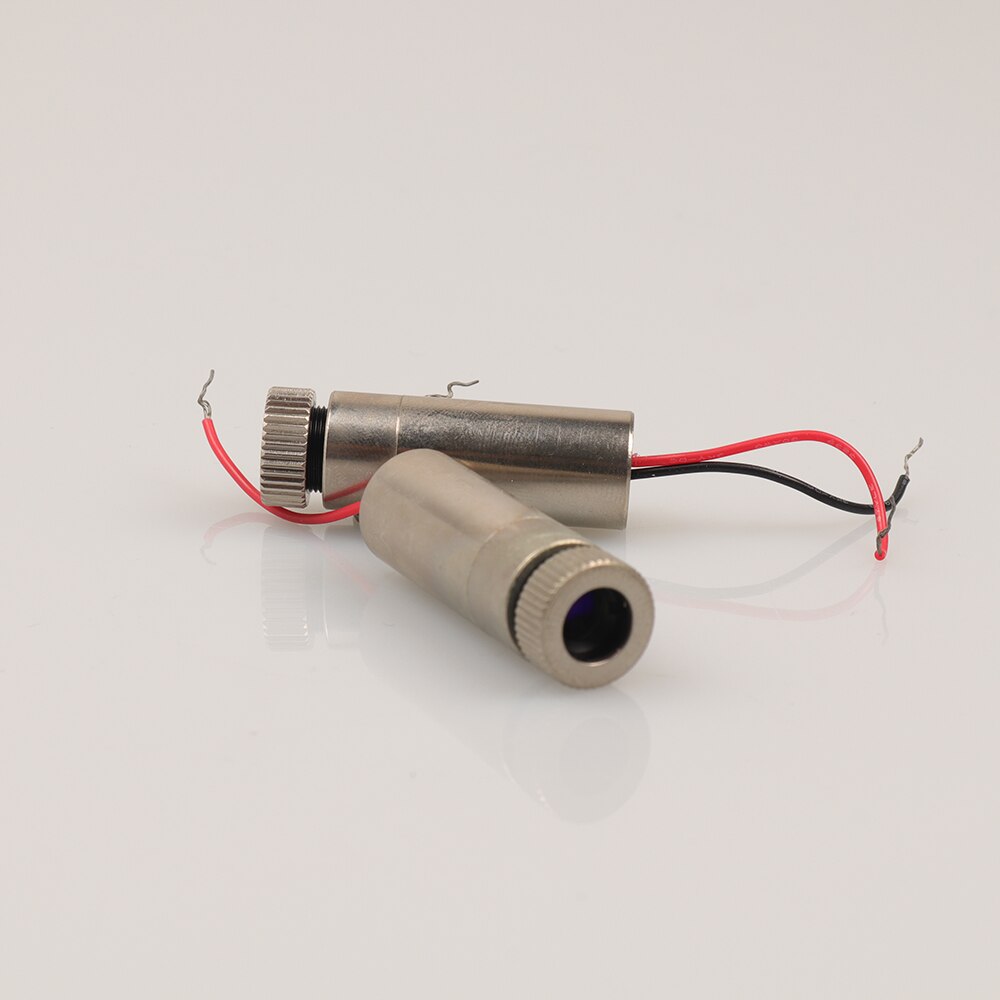

XPL-M405V1-10

Wavelength:

405nm nominal center

Type:

Diode Laser

Lasing medium:

GaAs Laser

Transverse mode:

Multi mode

Min power:

10mw

Arctic series class:

Class I,II,IIIA

Beam Diameter:

2x5mm

Beam divergence:

<3.5mrad

Stability(at 25 ℃ )

<10%

Preheating time

<1s

Best working temperature

25 ℃

Operating temperature

-25-60 ℃

Temperature control

Air-cooled

Color of shell:

Copper

Size:

Dia12 x 46mm

Weight:

30g (laser + inside driver + housing)

Power consumption:

5V @ <2.2A

Power supply:

DC5.0V

Continuous expected lifetime:

>10,000 hours

Warranty:

1 Year
