Description
- Brand Name: Eiechip
- Origin: CN(Origin)
- Condition: New
- Type: Relay
- Model Number: XH-M131
- Application: Universal
- Operating Temperature: standard
- Supply Voltage: 12V
- Dissipation Power: standard
- is_customized: Yes
- Keyword 1: XH-M131 Photoresistor Relay Module
- Keyword 2: 12V Light control relay
- Keyword 3: light switch Brightness automatic control module
- Keyword 4: Relay Module

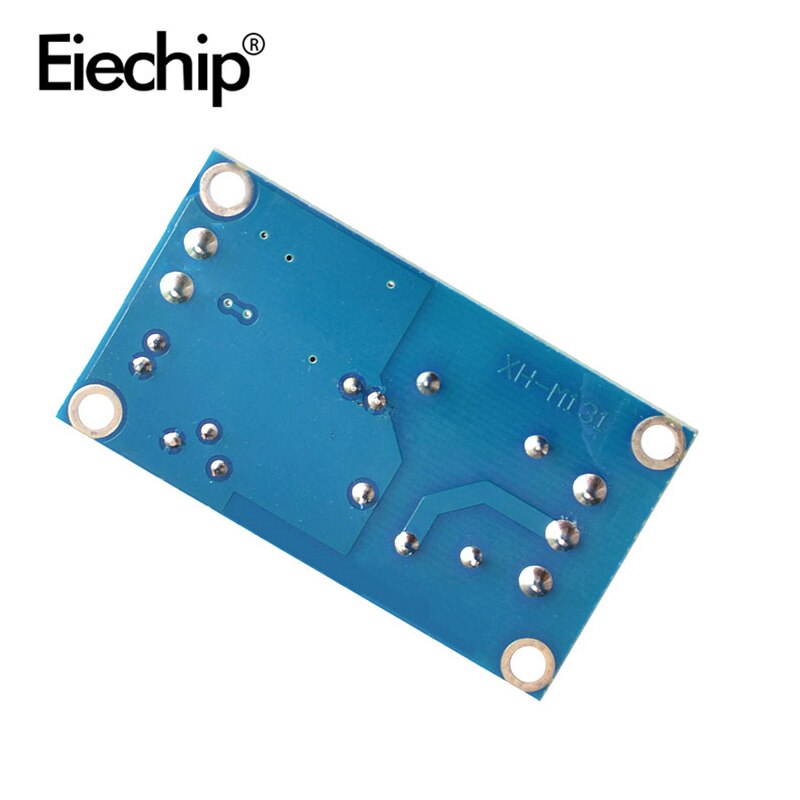

XH-M131 module size: 53*31*19mm

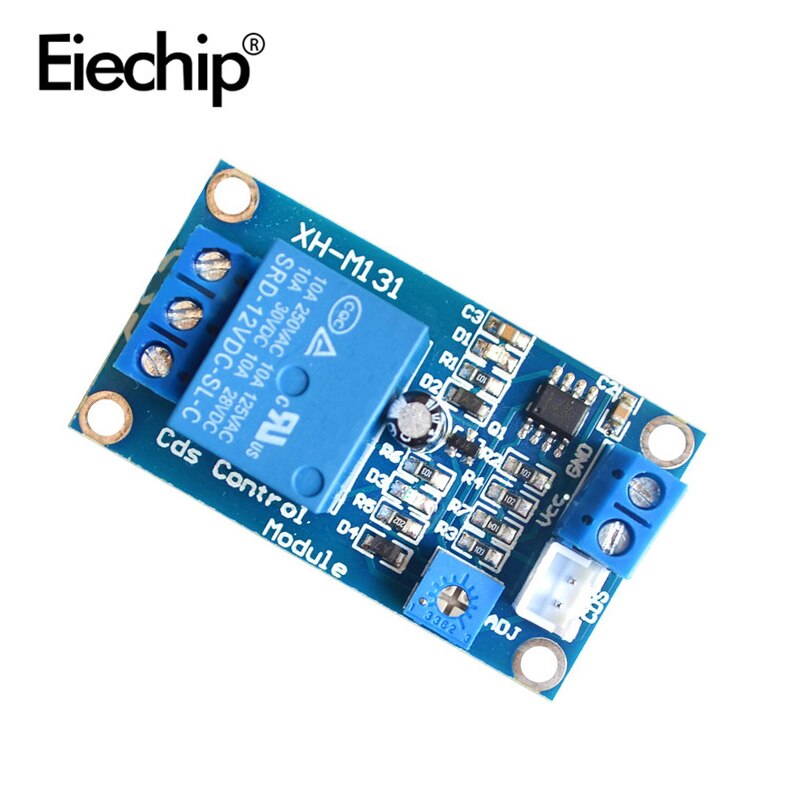

The module can be used for light detection and brightness detection. It has a power indicator (red) and a relay pull indicator (blue), and has four M3 screw mounting holes, which greatly facilitates the installation. The board can be adjusted by the potentiometer. Sensitivity, self-contained relay, can be used as a variety of brightness detection control switches, such as street lights, etc., automatically turn on at night, automatically turn off during the day, and other equipment that needs automation.
Board parameters
1. The module adopts 12V power supply and has the function of anti-reverse connection. Reverse connection of the power supply will not damage the module;
2. Load capacity of normally open interface: AC 0V-125V/20A, DC 0V–14V/20A; the module output terminal has three ports common (COM), normally open (CK), normally closed (CB), three The port is equivalent to a dual-control switch. When the relay coil is energized, the common terminal and the normally open terminal are connected; when there is no power, the common terminal and the normally closed terminal are connected; the COM terminal is generally connected to the negative pole of the power supply through the load, and the normally open terminal is connected to the positive pole of the power supply;
