Description

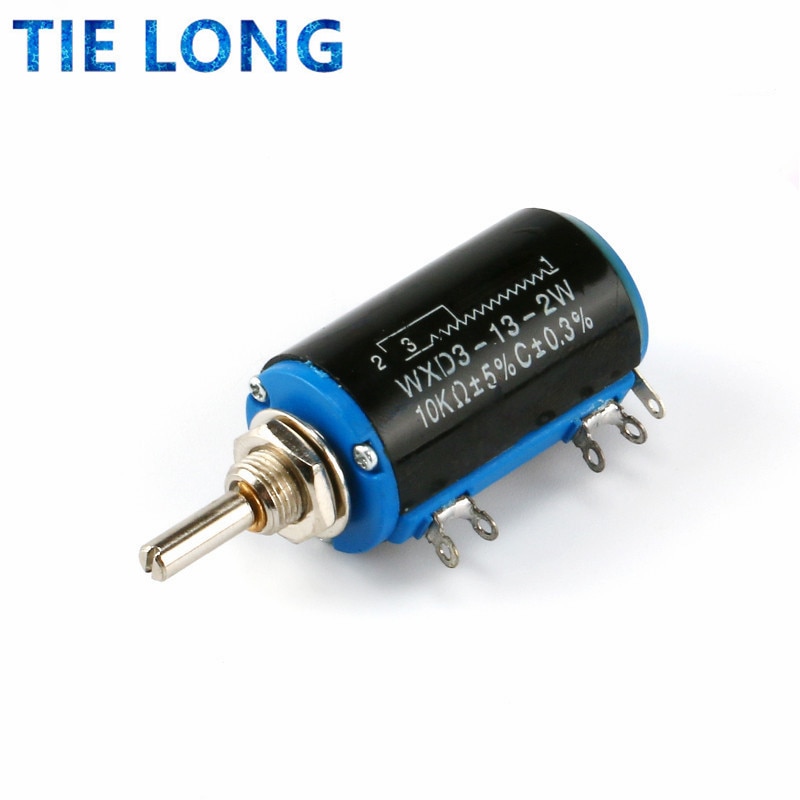

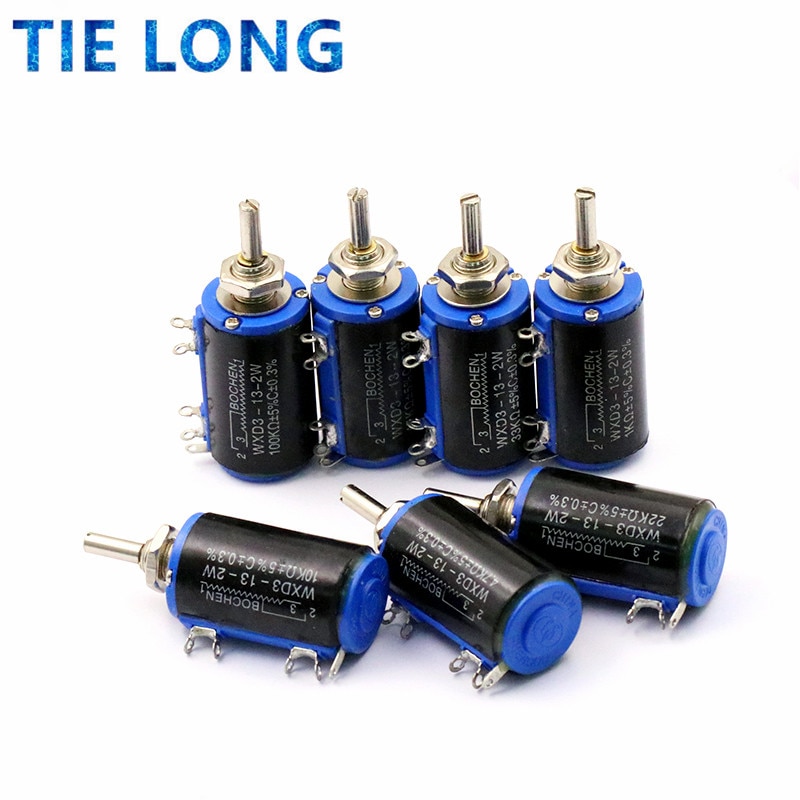

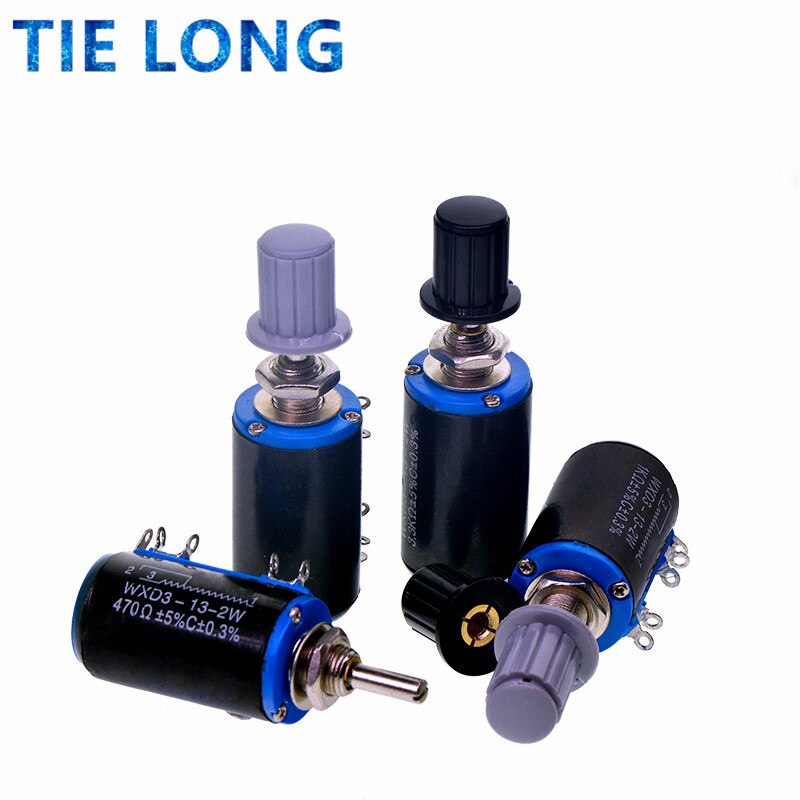

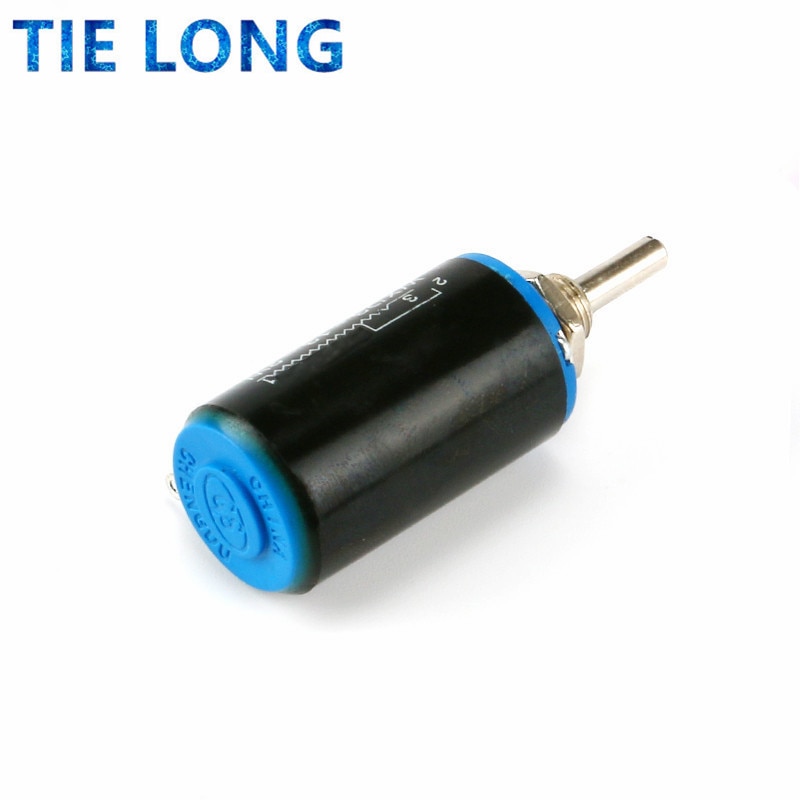

WXD3-13-2W Wirewound Potentiometer Resistance 100R 470R 1K 4.7K 10K 22K 47K 100KΩ Ohm Linear Rotary Potentiometer with Knob
- Condition: New
- Resistance Tolerance: 1%
- Type: Trimming Potentiometer
- Size: 3pin
- Model Number: WXD3-13-2W
Model: WXD3-13
Resistance: 100Ω, 200Ω, 220Ω, 470Ω, 680Ω, 1KΩ, 2.2KΩ, 3.3KΩ, 4.7KΩ, 5.6KΩ, 6.8KΩ, 10KΩ, 22KΩ, 33KΩ, 47KΩ, 68KΩ, 100KΩ
Tolerance of Total Resistance: ±5%
Angle of Rotation: 3600 ±20°
Voltage Rating: 160V
Torque: 3.5-100mN.m
Power Rating: 2W(85°)0W (125℃)
Type: Wire Wound Multi Turn Potentiometer
Rotary Linear Potentiometer Knob
