Description
- Condition: New
- Technology: Wirewound
- Model Number: WXD3-13
- Type: Wirewound Potentiometer
- Resistance Tolerance: ±5%
- Rated Power: 2W
- Max. Operating Voltage: 160V
- Operating Temperature: -55 -125℃
- is_customized: Yes
- Brand Name: diymore
Description:

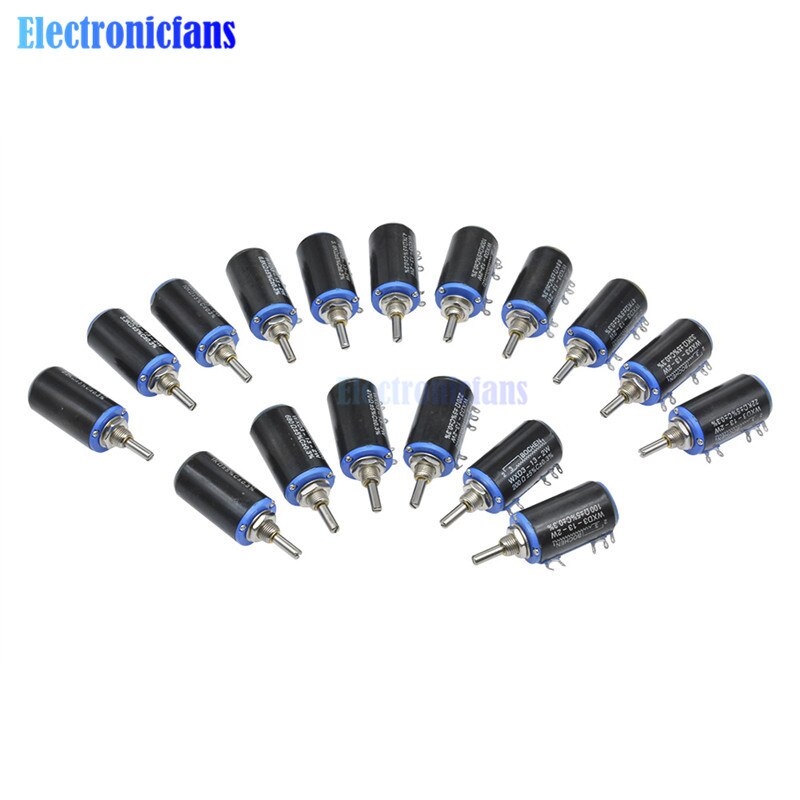

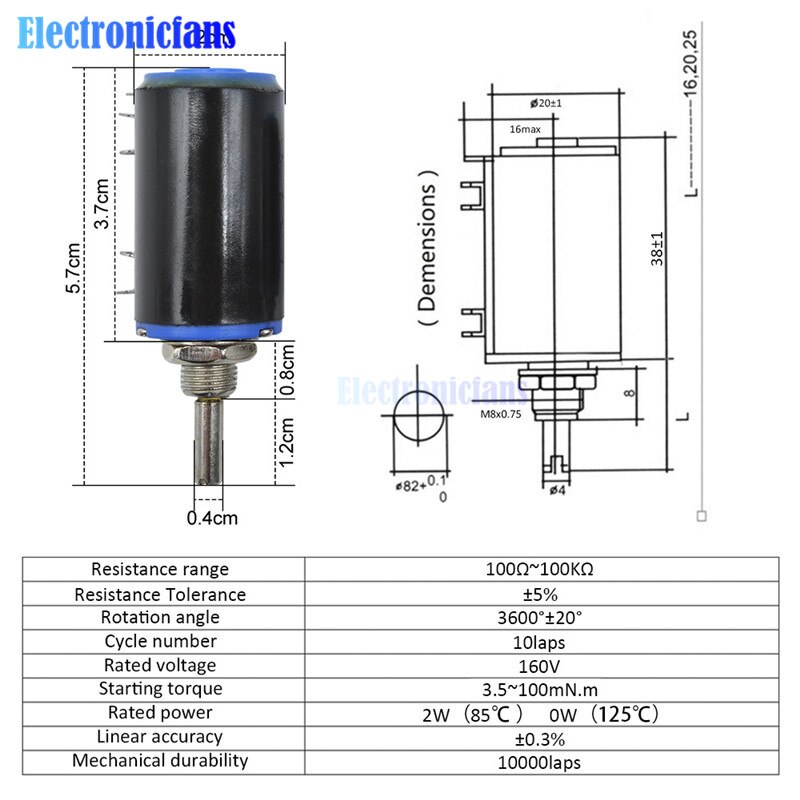

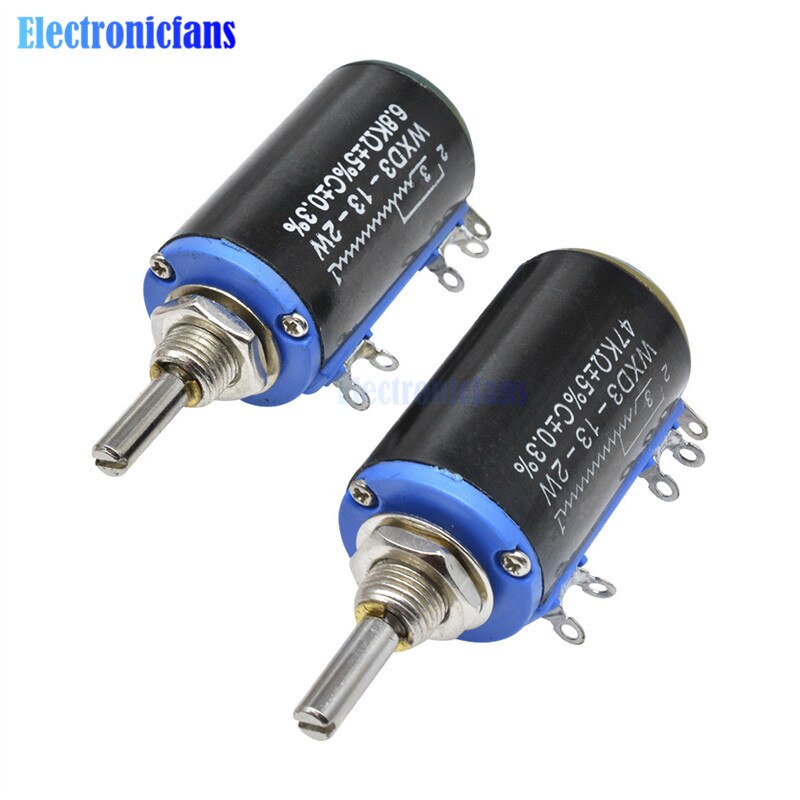

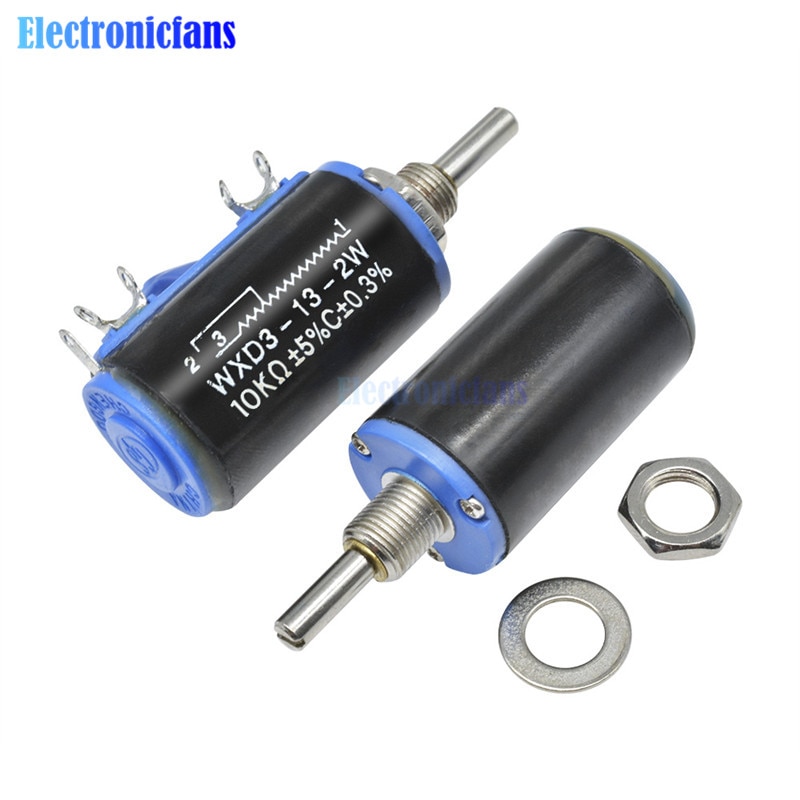

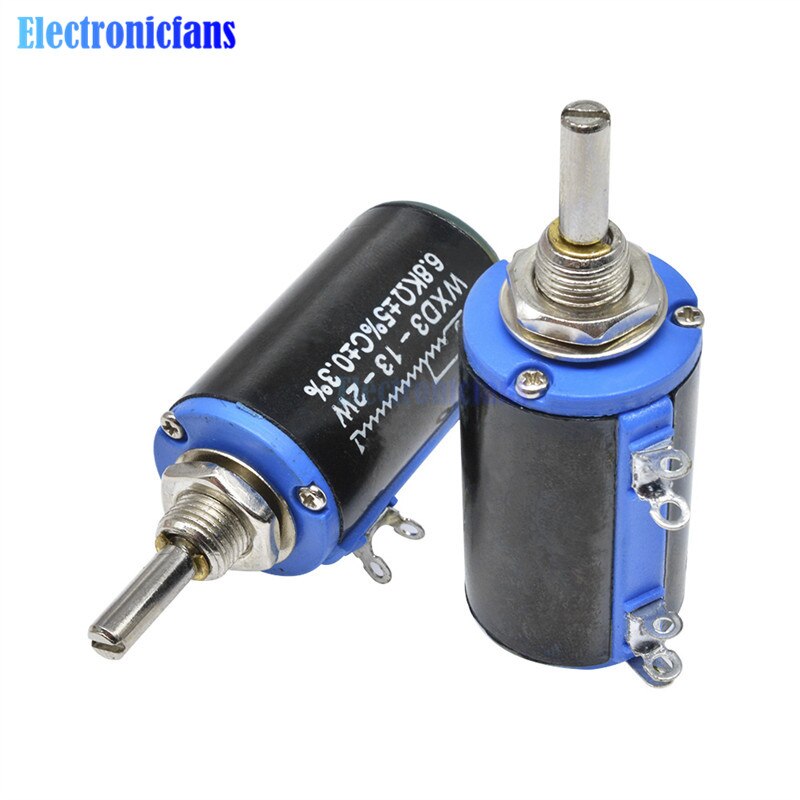

Model: WXD3-13
Type: Wire Wound Multi Turn Potentiometer
Tolerance of Total Resistance: ±5%
Angle of Rotation: 3600 ±20°
Voltage Rating: 160V
Torque: 3.5-100mN.m Power Rating: 2W(85°)0W (125°)
Resistance:
100Ω, 200Ω, 220Ω, 470Ω, 680Ω, 1KΩ, 2.2KΩ, 3.3KΩ, 4.7KΩ, 5.6KΩ, 6.8KΩ, 10KΩ, 22KΩ, 33KΩ, 47KΩ, 68KΩ, 100KΩ
Package include:
According your choice
