Description
- Brand Name: diymore
- Condition: New
- Origin: CN(Origin)
- Resistance Tolerance: ±5%
- Technology: Wirewound
- Type: Wirewound Potentiometer
- Operating Temperature: -55 -125℃
- is_customized: Yes
- Max. Operating Voltage: 160V
- Model Number: WXD3-12
- Rated Power: 1W

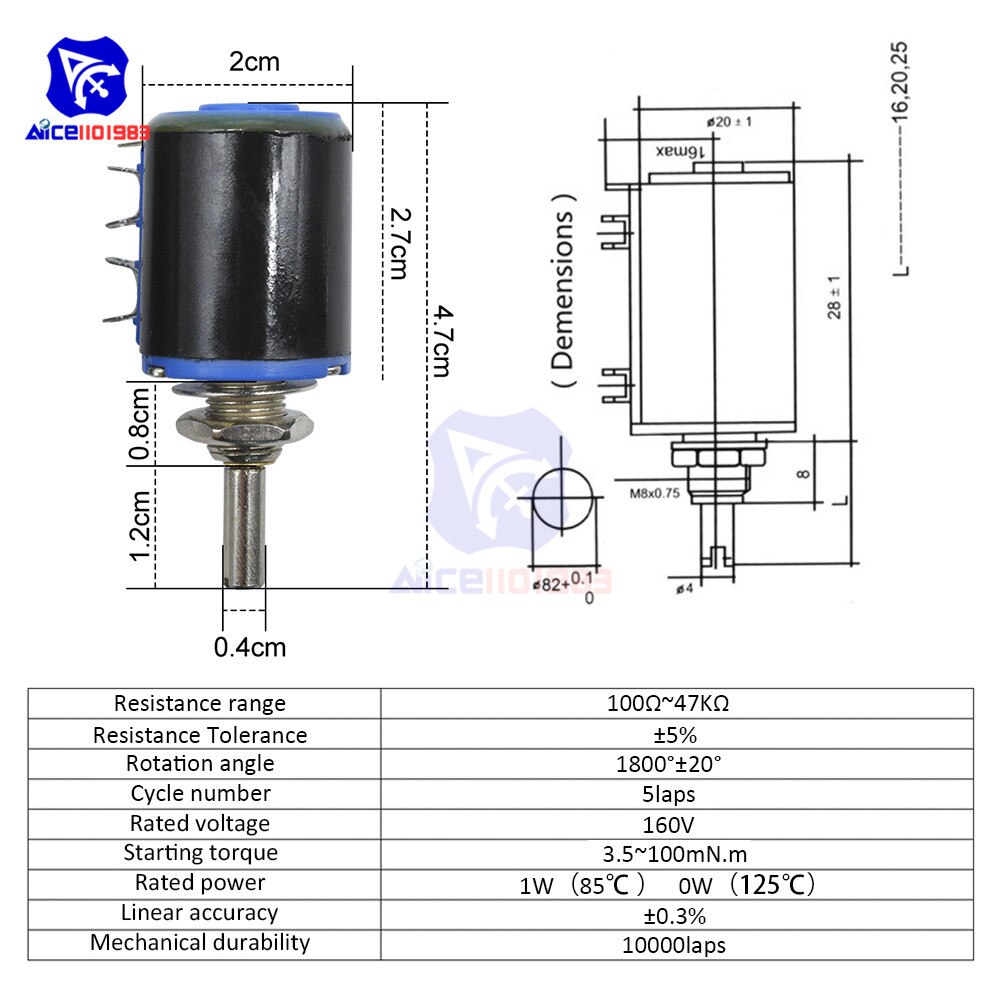

Specification:

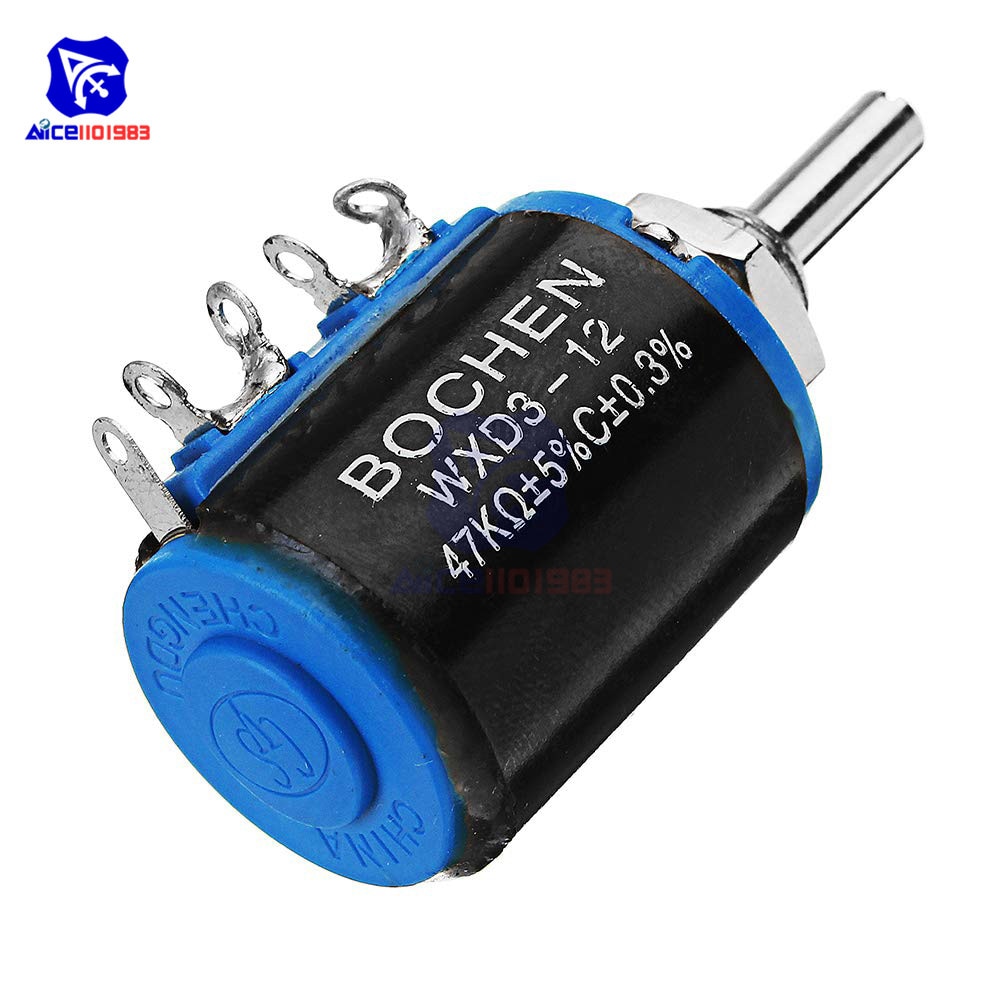

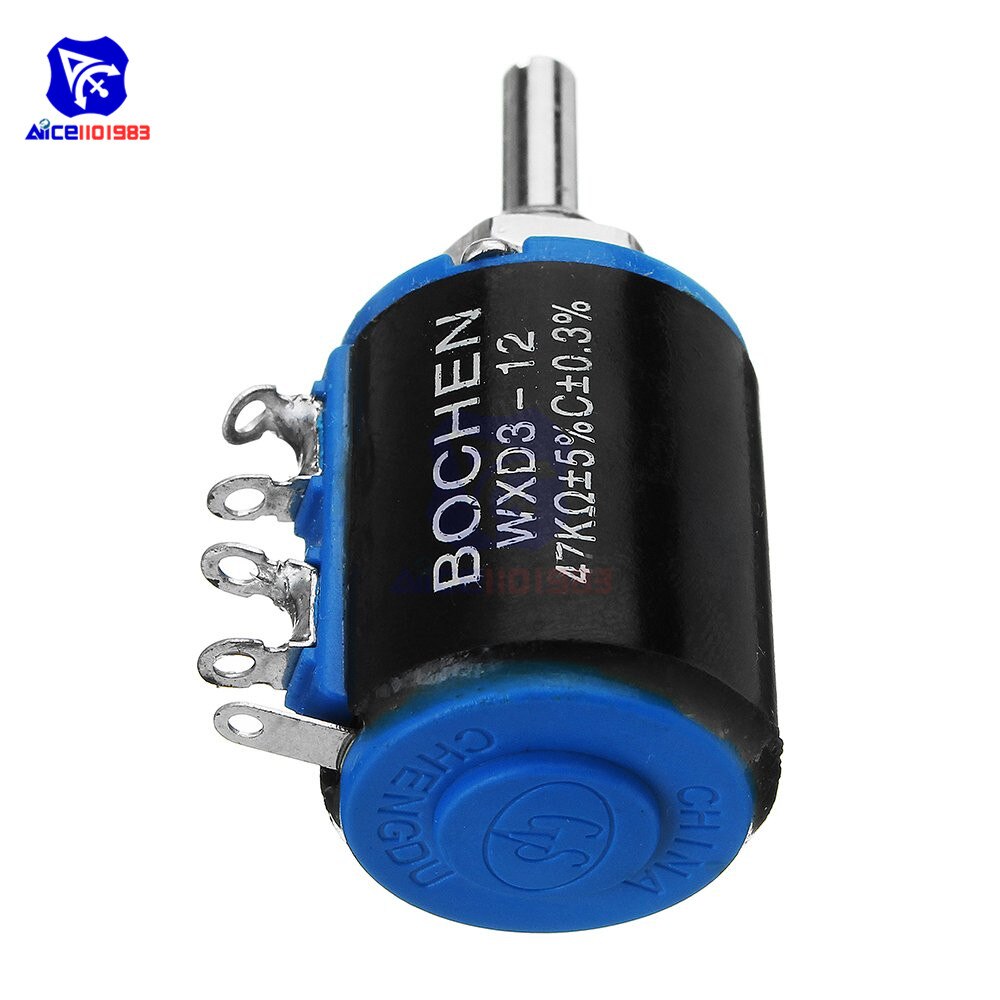

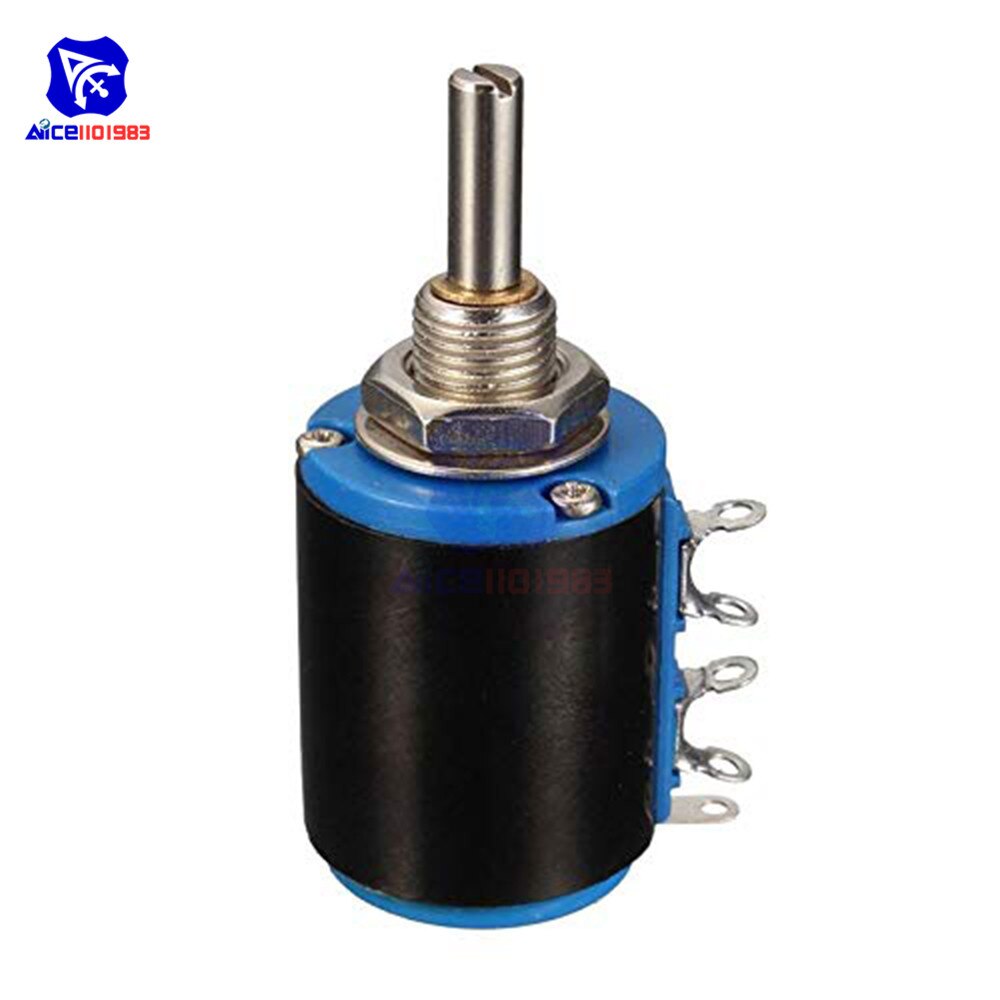

Model: WXD3-12
Resistance: 100Ω, 200Ω, 220Ω, 470Ω, 1KΩ, 2.2KΩ, 3.3KΩ, 4.7KΩ, 10KΩ, 22KΩ, 33KΩ, 47KΩ
Tolerance of Total Resistance: ±5%
Angle of Rotation: 1800 ±20°
Voltage Rating: 160V
Torque: 3.5-100mN.m
Power Rating: 1W(85°)0W (125℃)
Linear accuracy: ±0.3%
Mechanical durability: 10000 laps
Type: Wire Wound Multi Turn Potentiometer

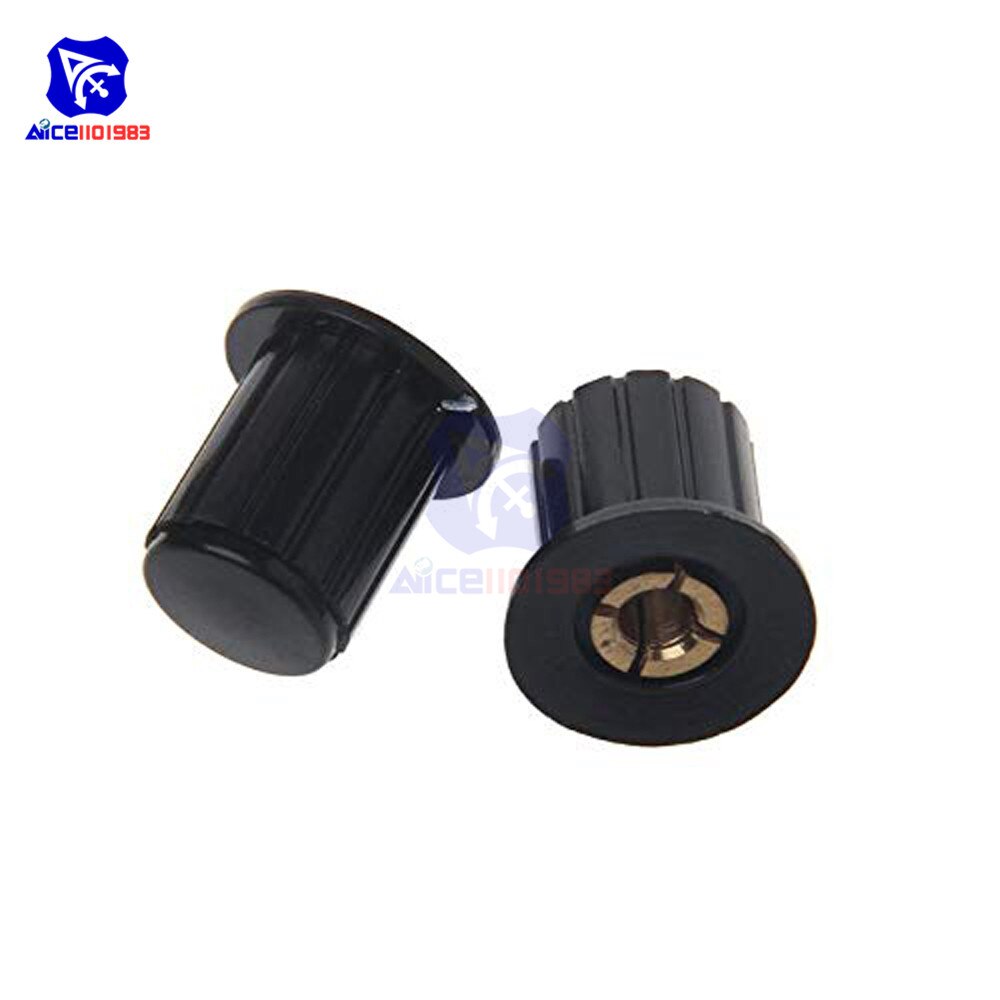

Rotary Linear Potentiometer Knob
