Description
- Brand Name: Hti
- Theory: Infrared Thermometer
- Certification: CE,FCC,RoHS
- Origin: Mainland China
- Model Number: HT-A9
- Max Measuring Temperature: 120°C & Above
- Display Type: DIGITAL
- Usage: Industrial
- Power Type: Charger
- Style: Handheld
- Display Size: 2.0 – 3.9 Inches
- Is Smart Device: YES
- Infrared Image Resolution: 320*240
- Temperature Range: -20°C~400°C(-4°F~752°F)
- Display Screen: 3.5″ full angle TFT display screen
- Thermal Sensitivity: 0.07℃
- Field angle/shortest focus length: 56°*42°/0.15m
- Frame Rate of Thermal Image: 9Hz
- Wavelength coverage: 8-14um

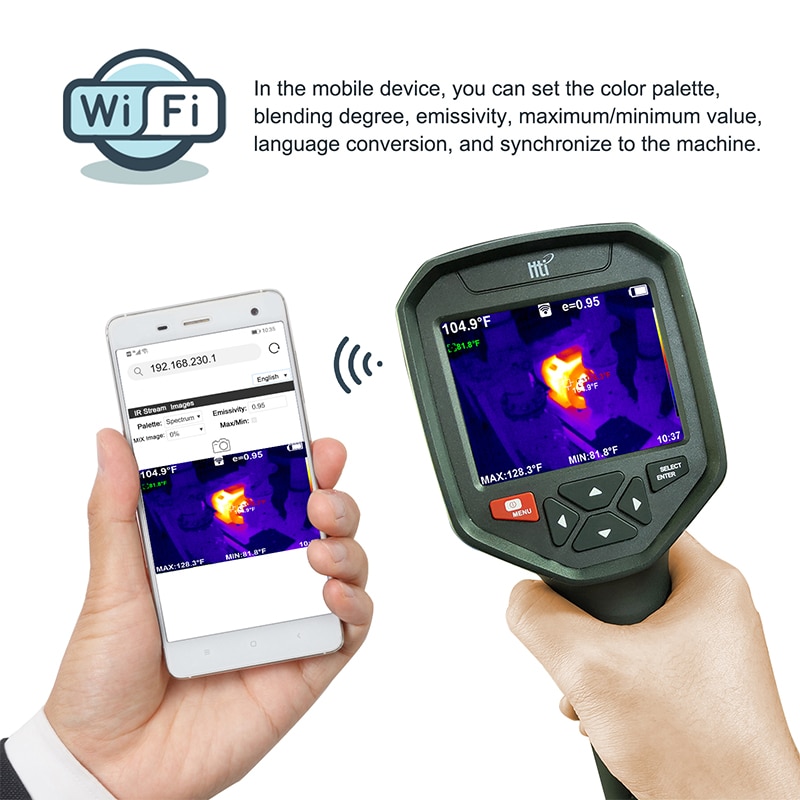

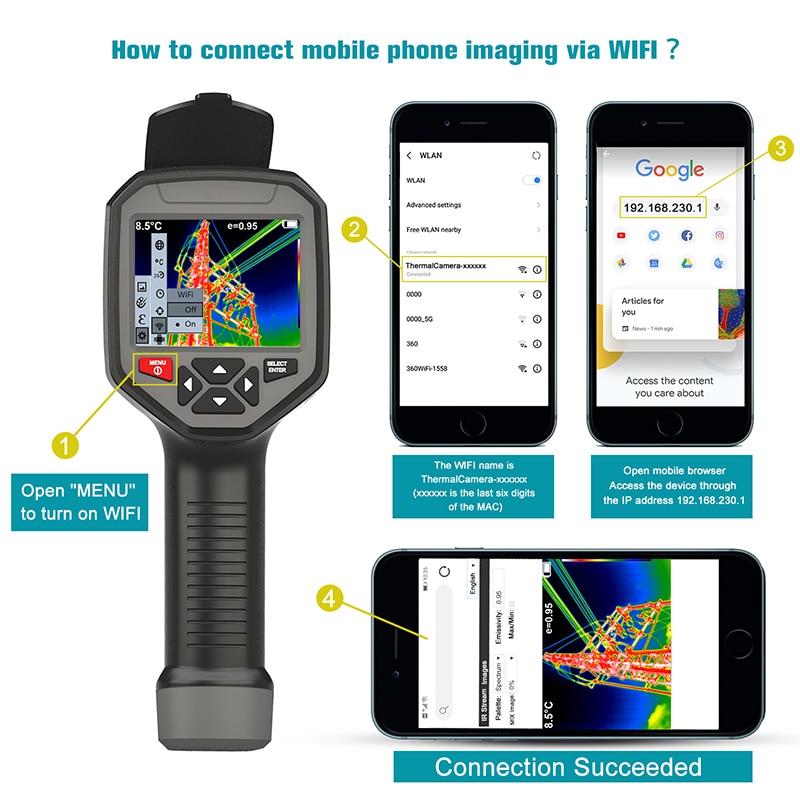

- WIFI: Support
- Power Supply: Built-in chargeable 26650 battery

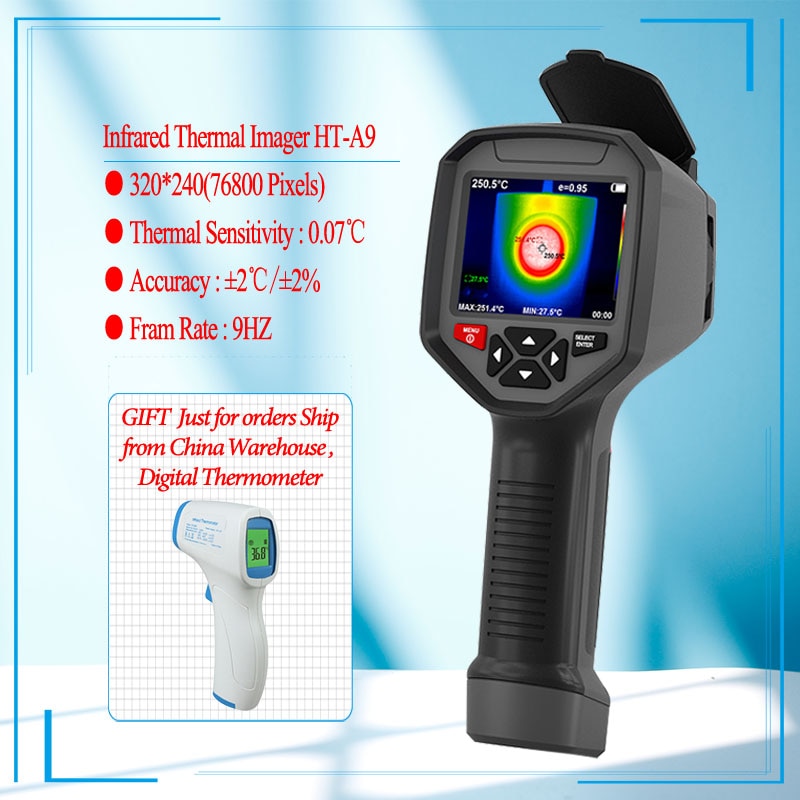

WIFI Infrared Thermal Imager IR HT-A9 USB Handheld
Rechargeable Imaging Camera Electrical Pipe Floor Test Temp
AutoTracking
Shining Points:
-
–3.5” full color screen, allows for detailed showing of infrared generated images;
-
–320×240 resolution and 0.3 million pixel visible image resolution, high definition of images;
-
—20~400°/-4°~752° temperature measurement range, 2.5° accuracy for better operation;
-

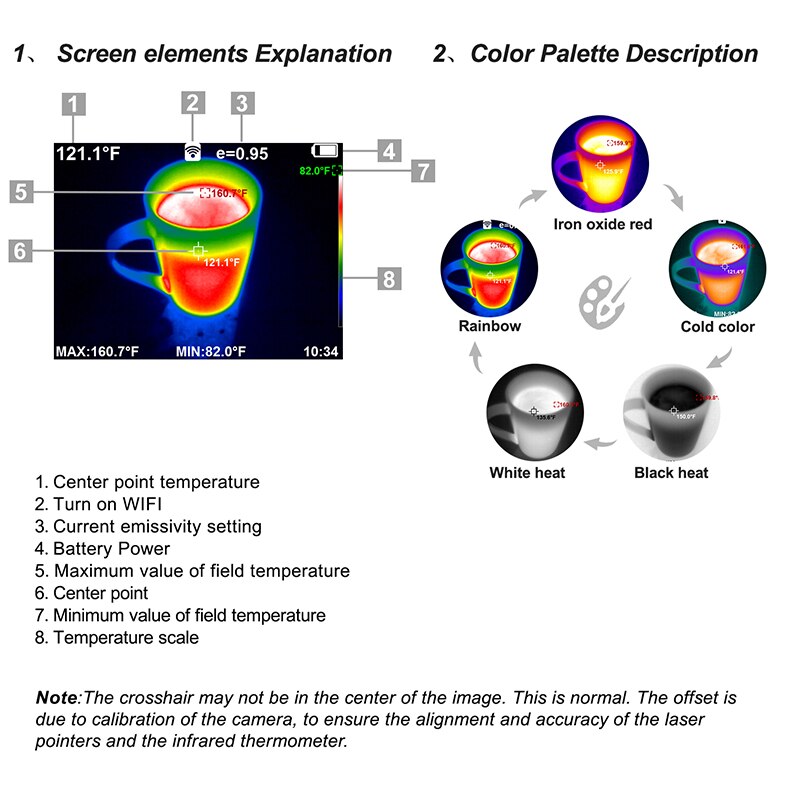

–5 kinds of palette for choice: rainbow, iron red, cold color, black & white and white & black;
-
–automatic setting: 5 mintues/20 minutes/ not power off automatically;
-
–built-in 8GB SD card for storage, the pics can be also transferred to television, computer or other devices for checking;
-
–wide application at fire-fighting, archaeology, traffic, farming, electronic manufacture and other fields;
-
–seperate button for specific function, which is quite easy for you to turn it on or off, delete or check pictures;
-
–mini and portable for 97×129×256mm size and 588g weight, attached pouch allows for more convenient carrying;
-
–ergonomic handle, which can be used and held comfortably
Specification:
Model |
HT-A9 |
Display screen |
3.5″ full angle TFT display screen |
Infrared image resolution |
320*240 |
visible image resolution |
300,000 pixel |
Field angle/shortest focus length |
56°*42°/0.15m |
Thermal sensitivity |
0.07℃ |
Temperature measurement range |
-20°C~400°C(-4°F~752°F) |
Measurement accuracy |
±≤100°C±2°C;100-300°C±2%; ≥300°C±3% |
Emissivity |
Adjustable from 0.01 to 1.0 |
Frame rate of thermal image |
9Hz |
Wavelength coverage |
8-14um |
Focus mode |
Fixed |
Color palette |
Rainbow, iron oxide red, cold color, black & white, white & black |
View option |
The integration of thermal image with 25% step length and visible image |
Storage medium |
Built-in 3G (above 20 thousand image stored) |
File format |
JPG |
USB |
Micro USD2.0 |
Power supply |
Built-in chargeable 26650 battery |
Automatic power-off time |
Selectable: 5 minutes/20 minutes/no power off automatically |
Product size(length*width*heigth) |
97*129*256mm |
Product weight |
588g |
Work temperature |
0℃ to 45℃ |
Storage temperature |
-20℃ to 60℃ |
Relative humidity |
<85%RH |
