Description

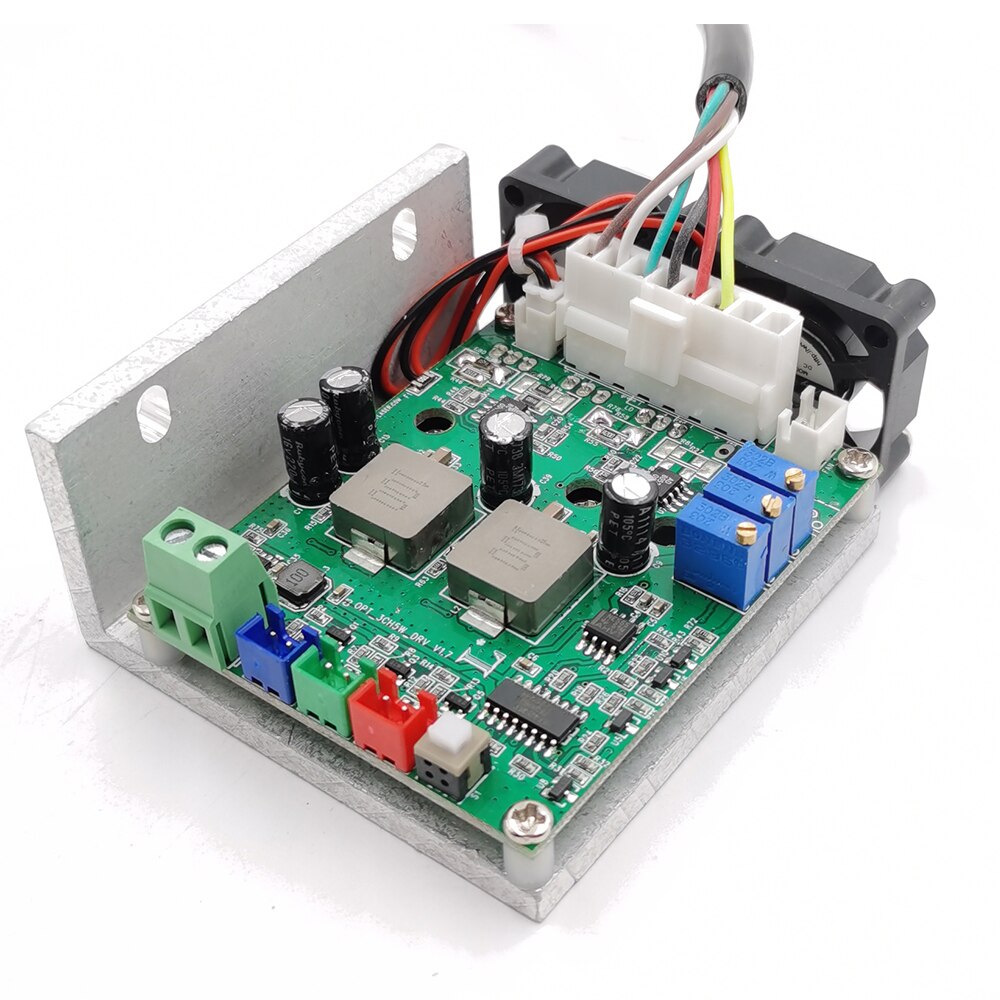

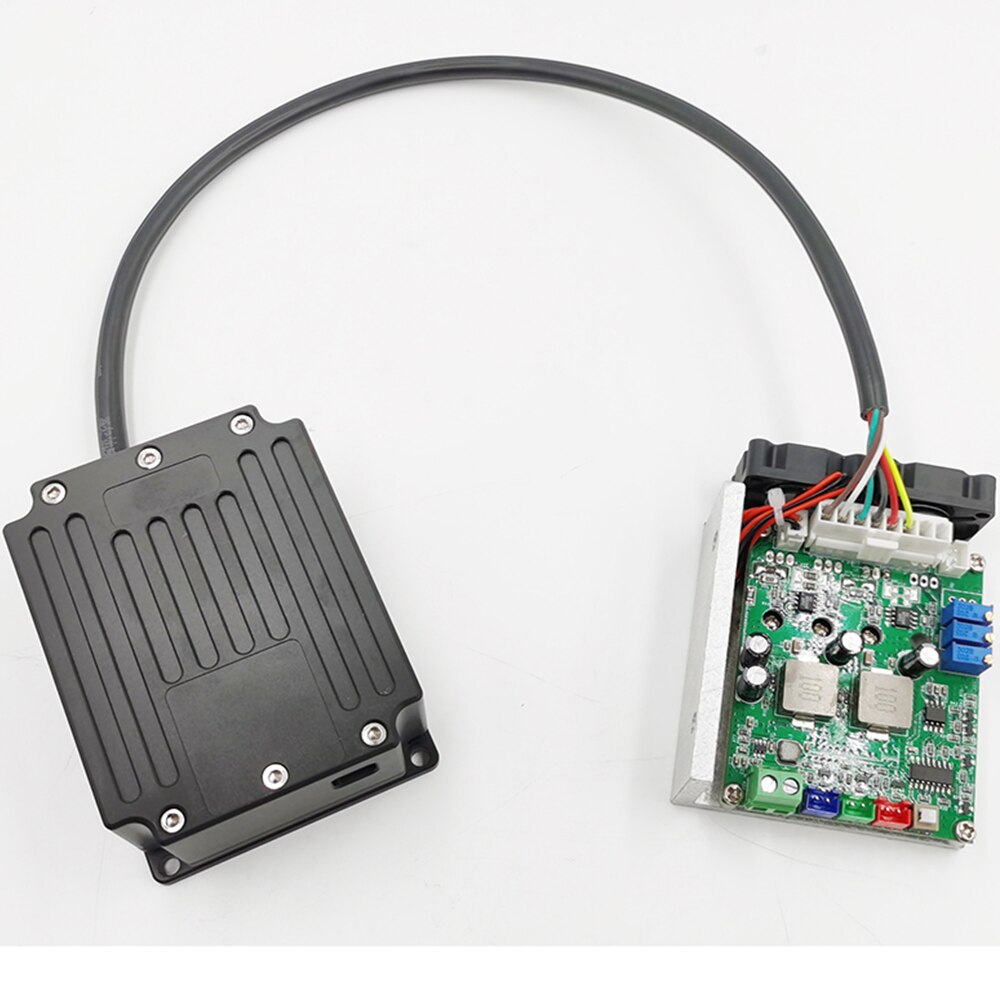

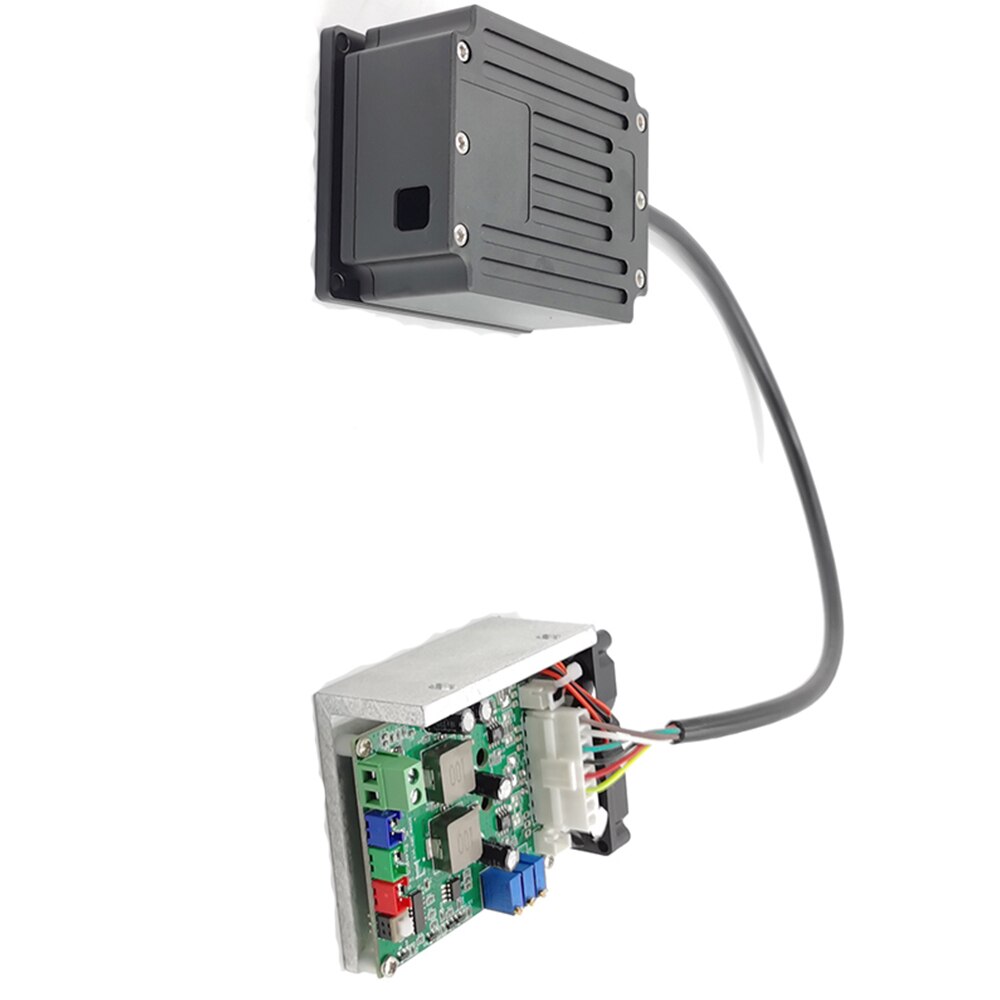

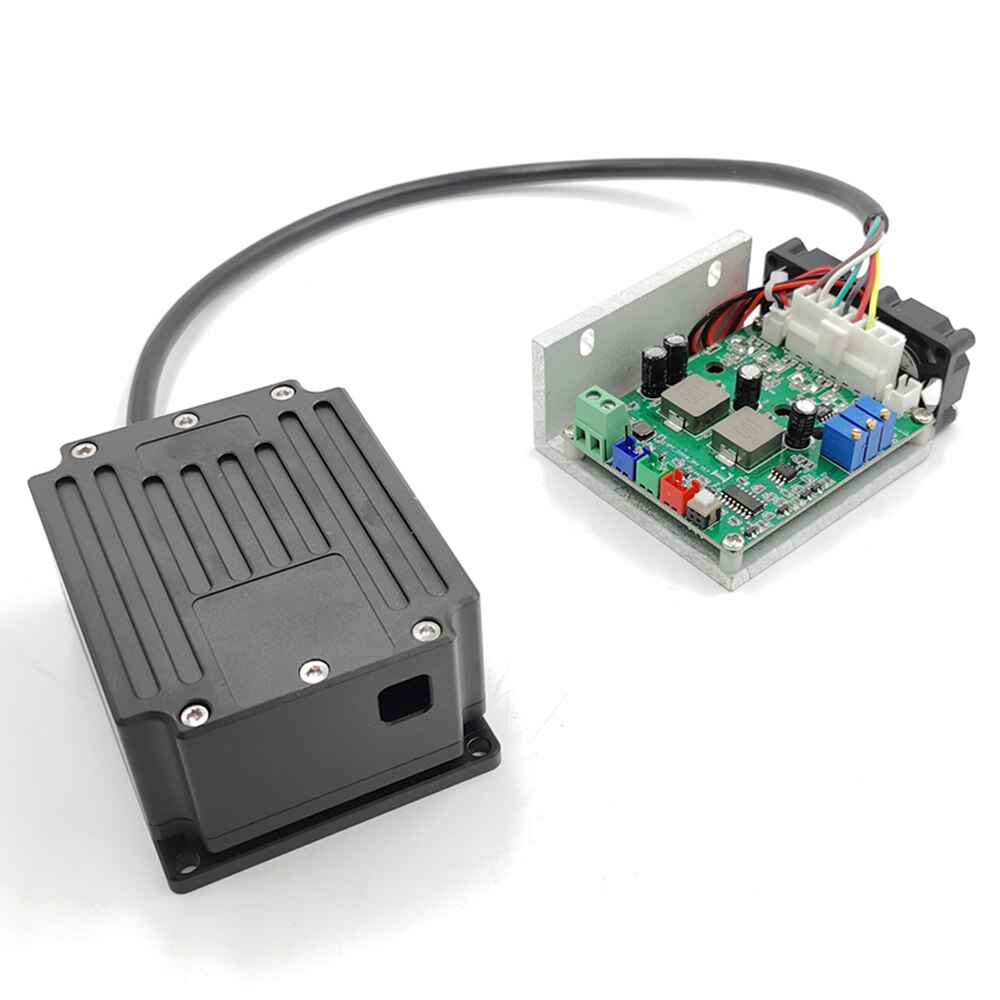

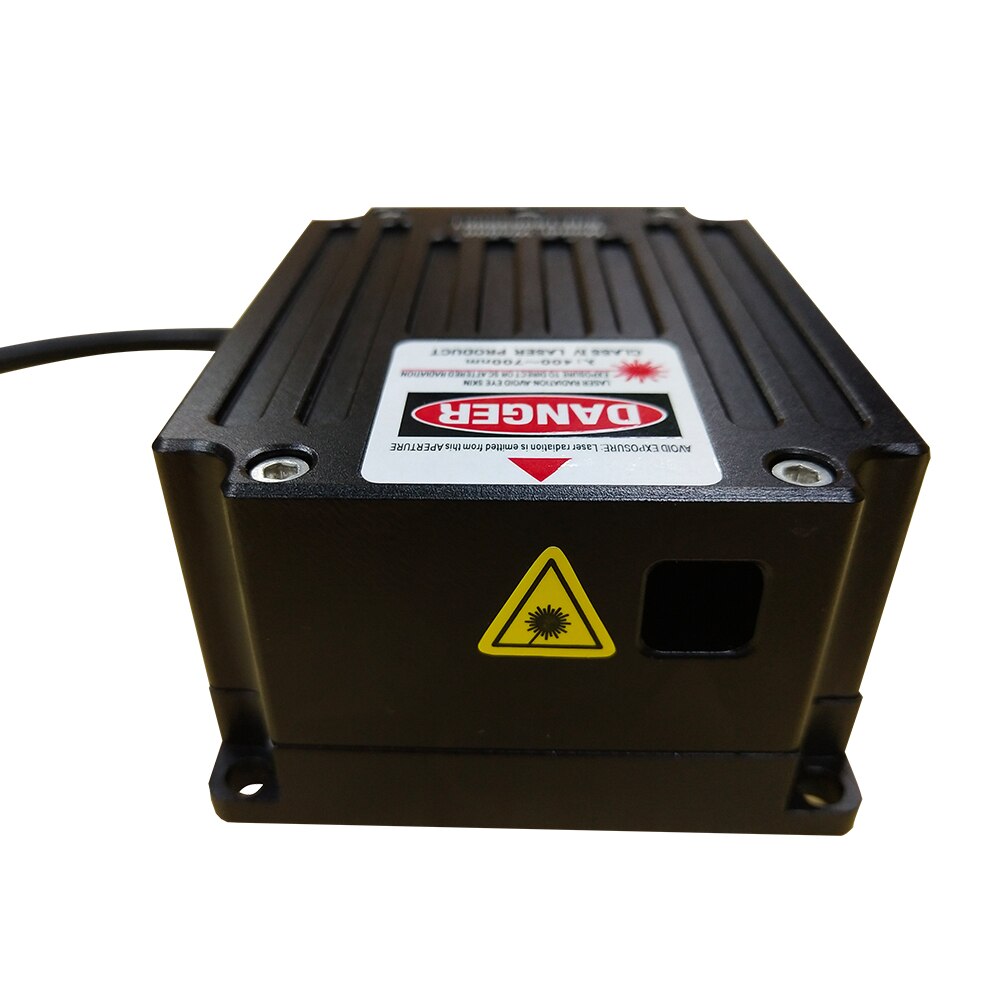

white laser diode 3W RGB module



1. RGB laser module
2. TTL/Analog modulation
3. 1 year warranty
4. High Quality Control & competitive price





SPECIFICATIONS:



Wavelength: 650nm 532nm 445nm
Transverse mode:  Near TEMoo
Power stavility(rms,8hours): <5%
Aperture position:  25 mm
Beam diameter at the aperture:~5*5 mm
Operating temperature:  10~35 °C
Modulationg repetition: 0~30KHz
Warranty period: 1 year Output power:  3000 mw
Operating mode:  CW
Warm-up time: <15 minutes
Beam divergence,full angel:<2.5 mard
Polarization ratio:  >50:1
External modulation:  TTL
Expected lifetime: 10000 hours
