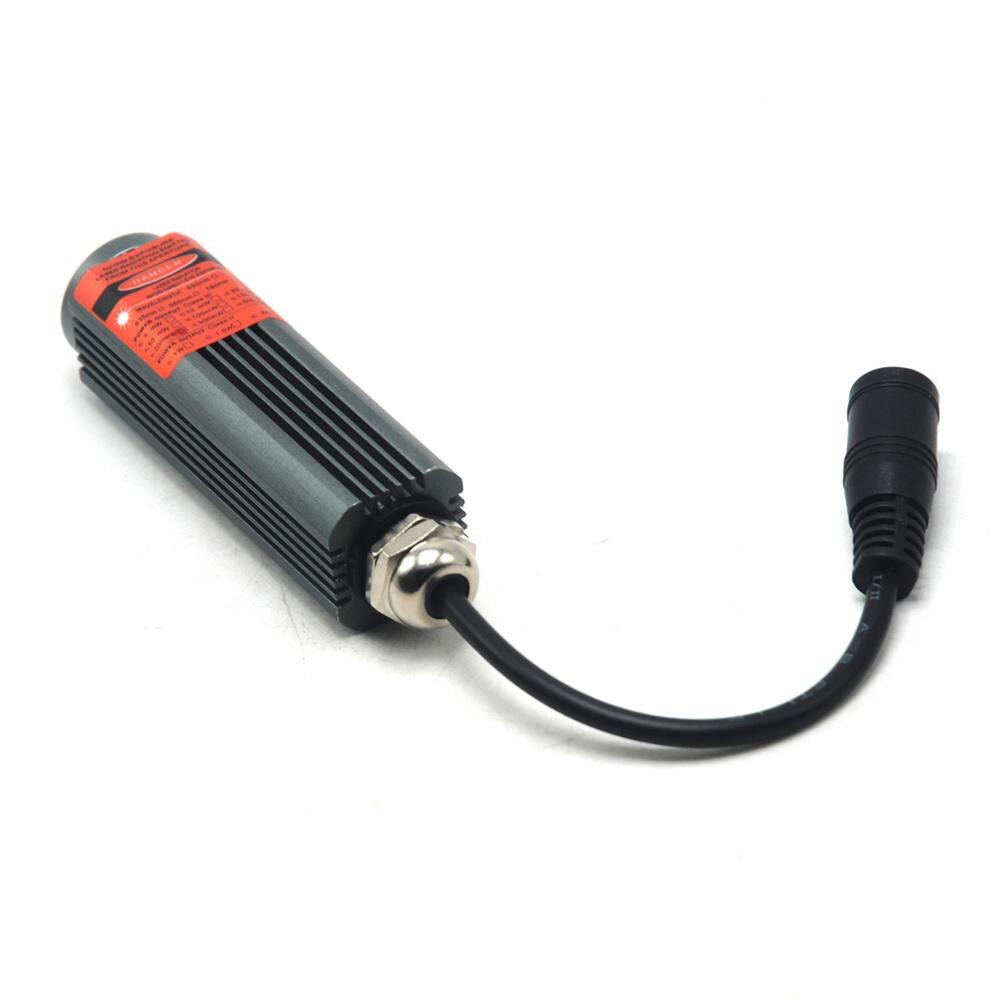

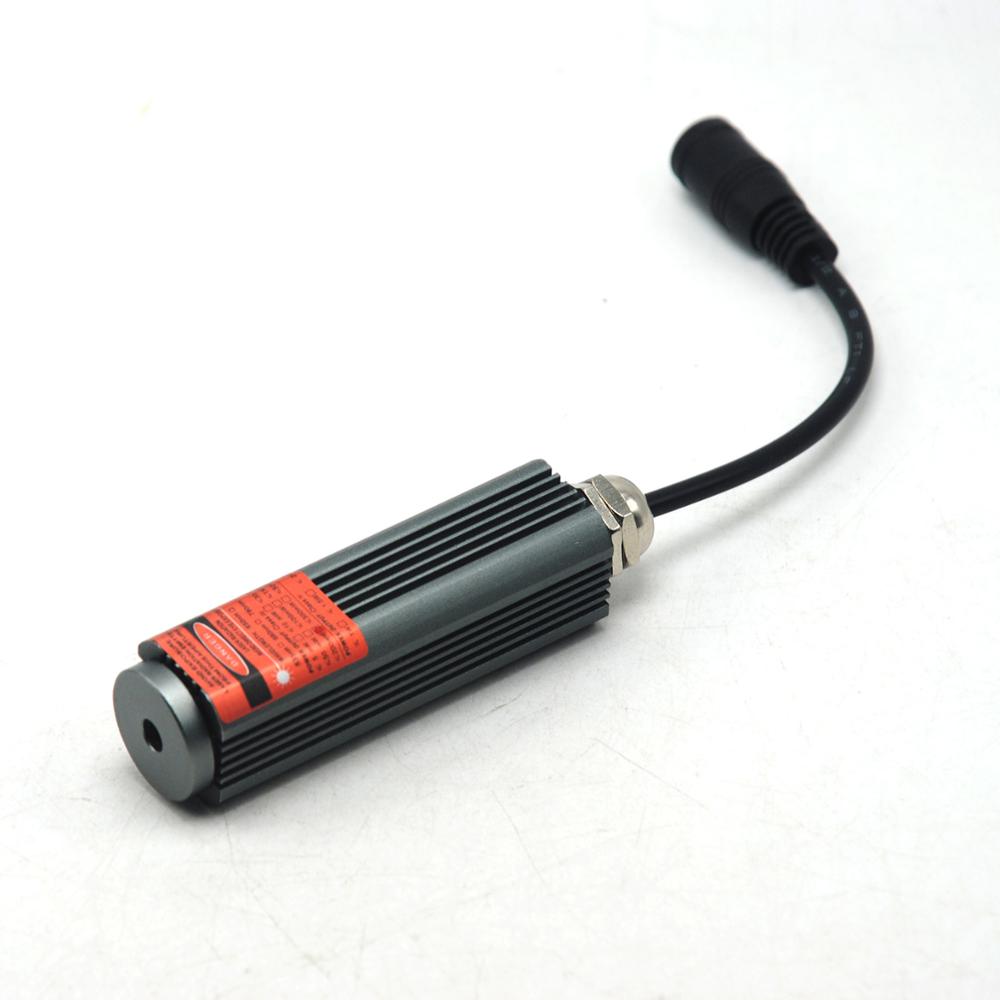

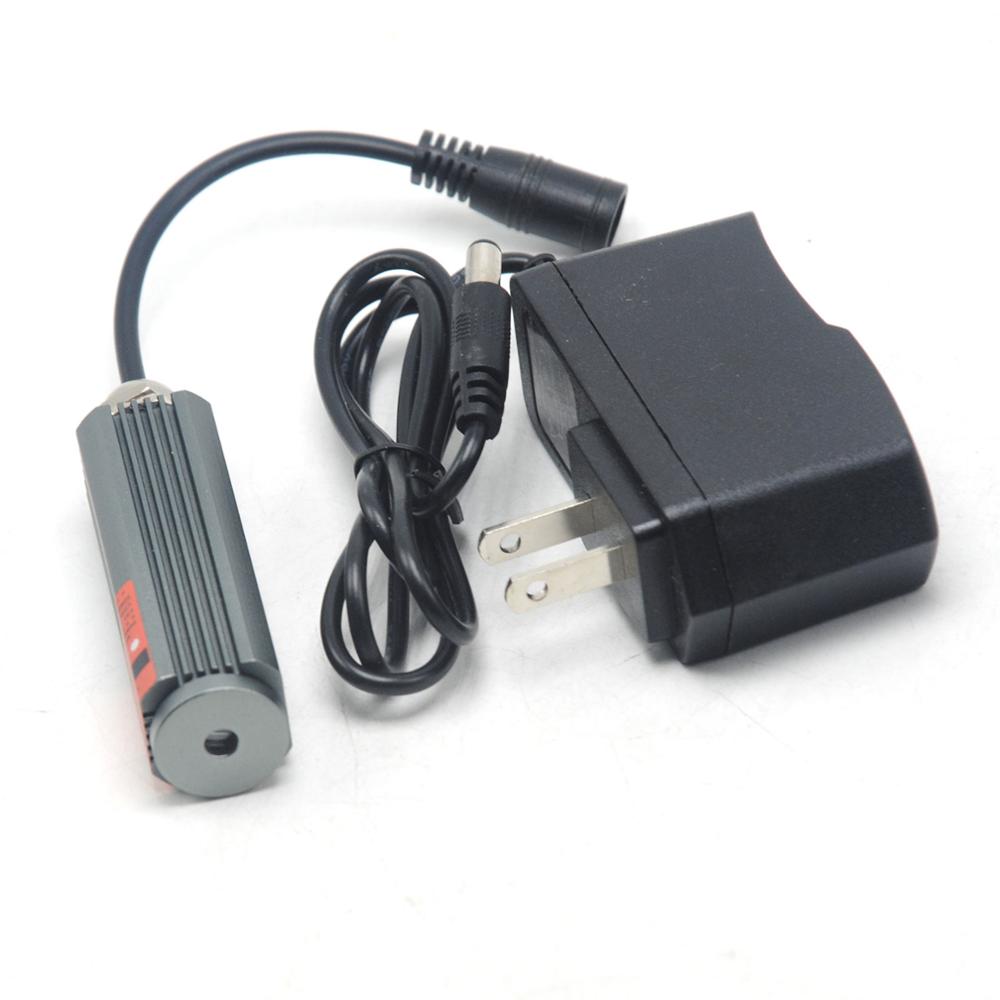

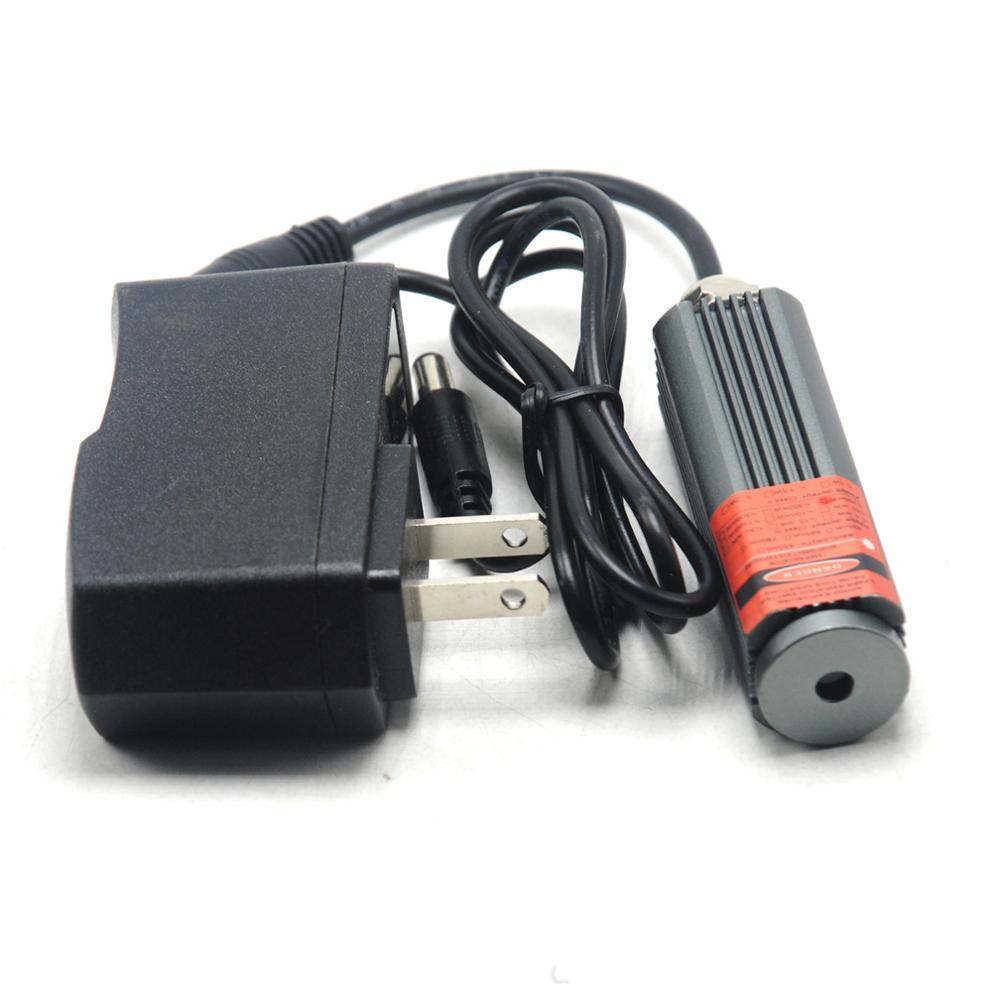

Waterproof 12V 660nm 200mw Red Laser Line Module RLG Vehicle Borne Laser AC with Cooling Shell and 12V Adapter

$59.00

SKU: 10000381639752 Category: Tag:

Description

Features:

Dimensions: As shown, the rectangular section size is 21mm
Output wavelength: 660nm±10nm
Output power: 190-210mW
Light shape: projection as a straight line
Light shape: the default is 110 degrees straight line
Surface treatment: anode gray/blue
Shell material: aviation aluminum
Circuit control: ACC line
Reverse protection: Yes
Working voltage: DC=6-30V
Working current: I<320mA
Warm-up time: none
Working temperature: -10℃~+40℃
Storage temperature: +10℃~+40℃
Structural features: laser tube + lens + cooling shell

Note:

This type of product is specially designed for the 12V wide voltage of the car power supply. It is universal for various motor vehicle power supplies and directly connected to the car power supply or the  lighter.

Features:

1. Unique waterproof structure design, no longer due to the wet weather will damage the laser optical system caused irreversible loss, so your work is not affected by the environment, outdoor rain and snow weather as usual work;

2. Out of shape design is different, taking into account the square of the product is more suitable for any plane on the precise fixed, so the design of a rectangular cross-section, of course, while retaining the characteristics of concentric circles, so that modules alone and or assembly to other The equipment becomes simple and precise.

3. With 12V input power, can match the voltage on the vehicle, designed for automotive power supply 12V wide voltage design, universal all kinds of motor vehicle power, directly connected to the car power supply, or lighter.

Package:

1pc Waterproof 12V 660nm 200 Red Laser Line Module RLG Vehicle Borne Laser AC with Cooling Shell
