Description
VS-MI-100-3-FL-A-808nm Laser Diode Stack 3 bars 300w Repair
About semiconductor laser hair removal parts
Do you want semiconductor laser hair removal parts repair?
Are you trying to assemble a semiconductor laser hair removal instrument?
Do you need to send a picture to us to view the parameters?
Do you need our more replacement parts data and methods?
Not only with operation video, but also maintenance and maintenance video, one- stop service, you can feel at home!

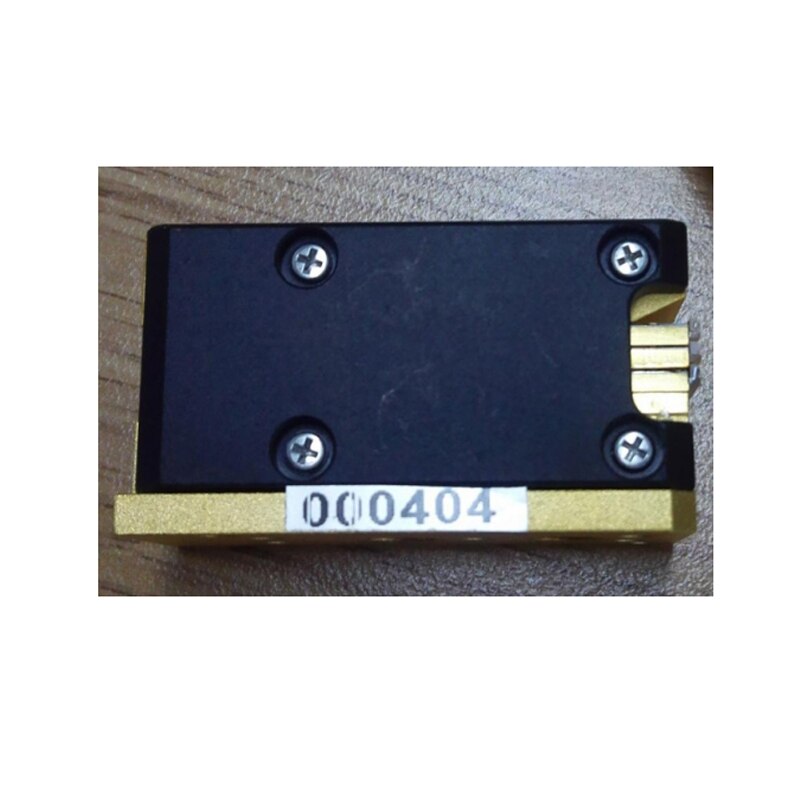

This VS-MI-100-3-FL-A is an 808nm diode laser stack, which has 3pcs 100w bars with black side plate. Electrodes are on the back of the stack.

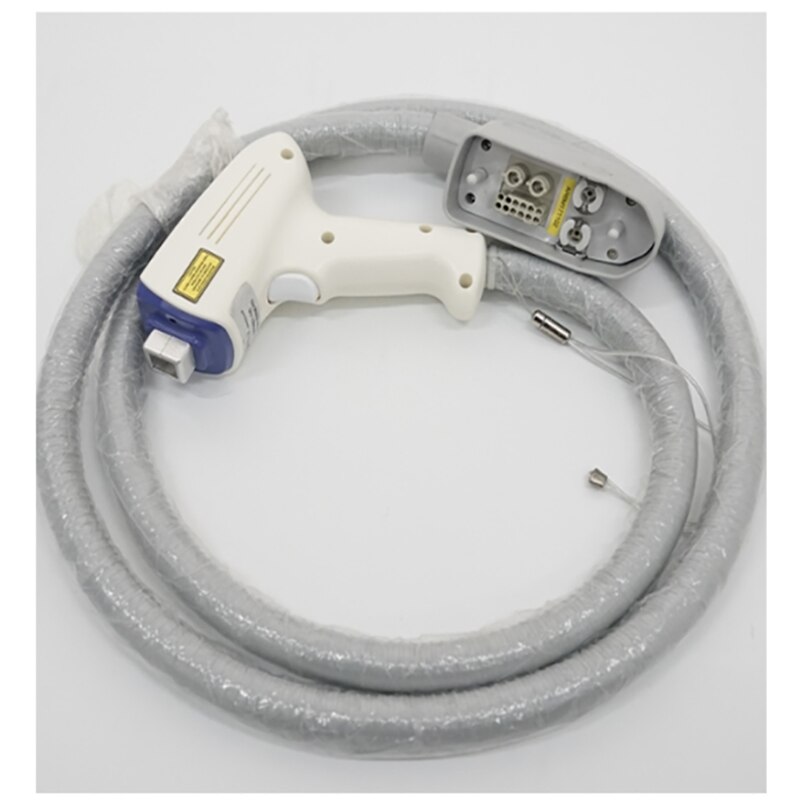

It is used for 808nm diode laser hair removal handpiece repairing and replacement. Exp: Aroma diode
Oriental-laser focused on diode laser bar assembling for more than 16 years and we have seen various alma soprano diode laser stacks.Also we can use the same Jenoptik bar like Alma used to recondition the power the laser soprano power.
| Repairing procedure | Advantages |
| >Chioce A: Send the old broken handpiece to our facatory. We will do the process of checking , repairing, cleanning and etc. Then send the fresh new handpiece back to you. | >Save Money. Replace the broken diode stack only. Low cost and convenient |
| >Chioce B: if you have basic assambly capacity, you can send the diode laser stack only to our factory. We remove the old bar and mount the new bar to recover the laser power of the stack. | >Long life time. we use diode laser bars from Germany. The newest Ausn mounting technology will be applied when repairing. After repair. The handpiece will be as a new one. life time is much longer than before |
| >Choice C: Measure your stack and comfrim the water pipe hole and screw hole position. Then press the button below to buy a ready-made stack which is match your old hadnpiece. | >All technical support available. We major in diode laser mounting, software, spare parts over 16 years. All the technologies about laser hair removal machine are open to you. |
In the past 10 years, we have repaired various brands and different types of lasers (such as alma, dilas, focus light etc.), which are used on laser hair removal handle pieces.
Generally, the main problem of these diode laser stacks is:
Some or all of diode laser bars were burned.
Followings are some reasons that cause burning the diode bar problem
Temperature
* Using machine for too long time. it causes that the temperature becomes too high.
* The water flow rate is low. It causes the bad heat dissipation.
* The room temperature is a bit higher than normal, when using the machine.
Humidity
* The environment for the machine is too humid.
Quality
* Using bad quality diode bar.
* laser diode bar mounting technology couldn’t reach the standard.
* The electronic control parameters don’t suit for the diode laser stack
Oriental-Laser Provide Service:
Professional Alma Laser Diode Stack Repair / replacement
OEM Alma Laser Diode Stack
Service Warranty:
Oriental-laser offers 6 months warranty for the micro channel cooled laser stack.
Specification
| Model No. | VS-MI-100-3-FL-A |
| Application | laser hair remova Handpiece Repair And Replacement exp: Aroma diode |
| Operation Mode | CW |
| Power per submounts | 100W |
| Number of submounts in one stack | 3bars |
| Central wavelength at 25℃ | 808 ± 5nm |
| Typical Operation current | 85A |
| Maximum Operating current | 100A |
| Typical Threshold current | 15A |
| Maximum Operating Voltage | <6V |
| Fast Axis Divergence (FWHM) | 39º |
| Slow Axis Divergence (FWHM) | 8º |
| Operation Condition | non-condemsing atmosphere, cleaning room |
| Expected lifetime | 10000hours |
| Typical pitch per bar | 1.8mm |
|
Cooling requirement |
|
| Flow rate | 1L/min +-10% |
| Water Temperature | 25+-3°C |
| Water Quality | Deionized 2-10 µs/cm, mixed bed ion exchanger,particle filter<25µm |
| cooling system | Do not use any material that combination |
If your diode laser stack belongs to the following types. Please choosing us, we will offer you the best solution,with low factory price，high quality services.
Laser Stack Repair & Refurbishment Services Process:
1.Provide the service information you need.
Firstly, you need send the laser diode head to us, if can not send old diode,need send to us structure design of the diode and dimension details stack. We will repair the old diode or design a new stack to replace the old one.
2.we disassemble the diode stack, and test the old laser stack. For the micro channel laser stack, Such as Alma laser, Lightsheer, Syneron. We will test each laser plate one by one to confirm whether there are any one bars still can work. If there have some good bars, the repairing charge will lower. For macro laser stack like most product made in China, we will test whole laser stack together.
3.We will mount diode bar to heat sink and assemble diode stack to old or structure in our cleaning lab Our bars and micro channel cooler are import from Germany manufacture. We strictly manage mounting, assembling and testing step during laser stack producing. Every stack will be fully tested and had 8 hours burning test.
4.The Fourth step:

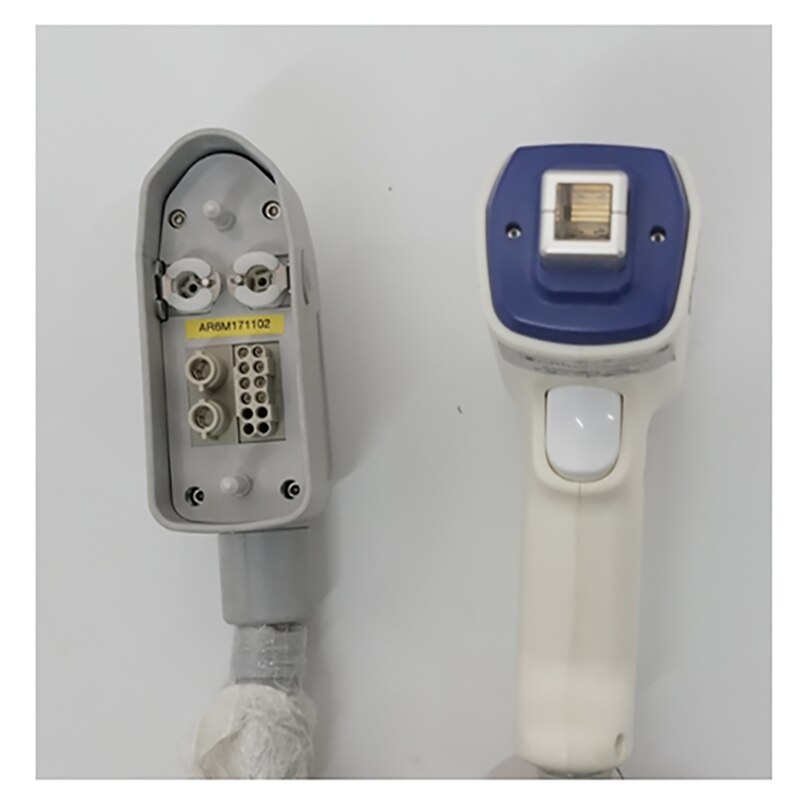

Our experienced technician will reassemble the handle piece. Which include:
a. Install the new laser stack into the handle piece.
b. Clean lens and check the TEC and other parts inside the handle piece
c. Test the power output of whole handle piece.
d. Clean the cover shell of handle piece and package it.
5.We send the finished good diode laser stack or hand piece to your address.
VS-MI-100-3-FL-A-808nm 3 Bars Laser Stack Dimension:
