Visible Laser JR31-20N Photoelectric Switch Sensor Diffuse Reflection Infrared Normally Open DC24V Adjustable



Product parameters:

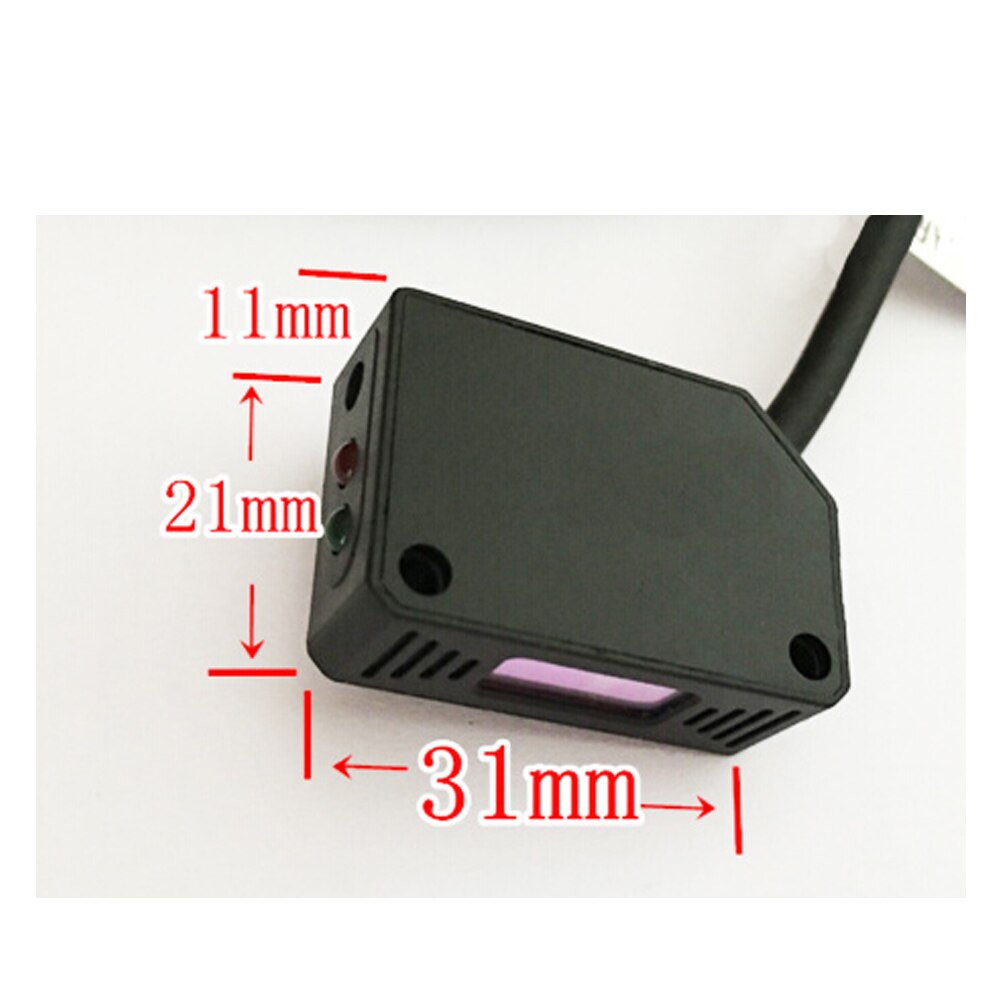

Dimensions: 31mm X 21mm X 11mm

Detection method: Inductive 200ma

Detection distance: 200  (mm)

Working voltage: 10-30VDC

Output form: NPN three lines normally open

Detecting objects: It can detect fast moving objects with a response time of 2ms.



Features:

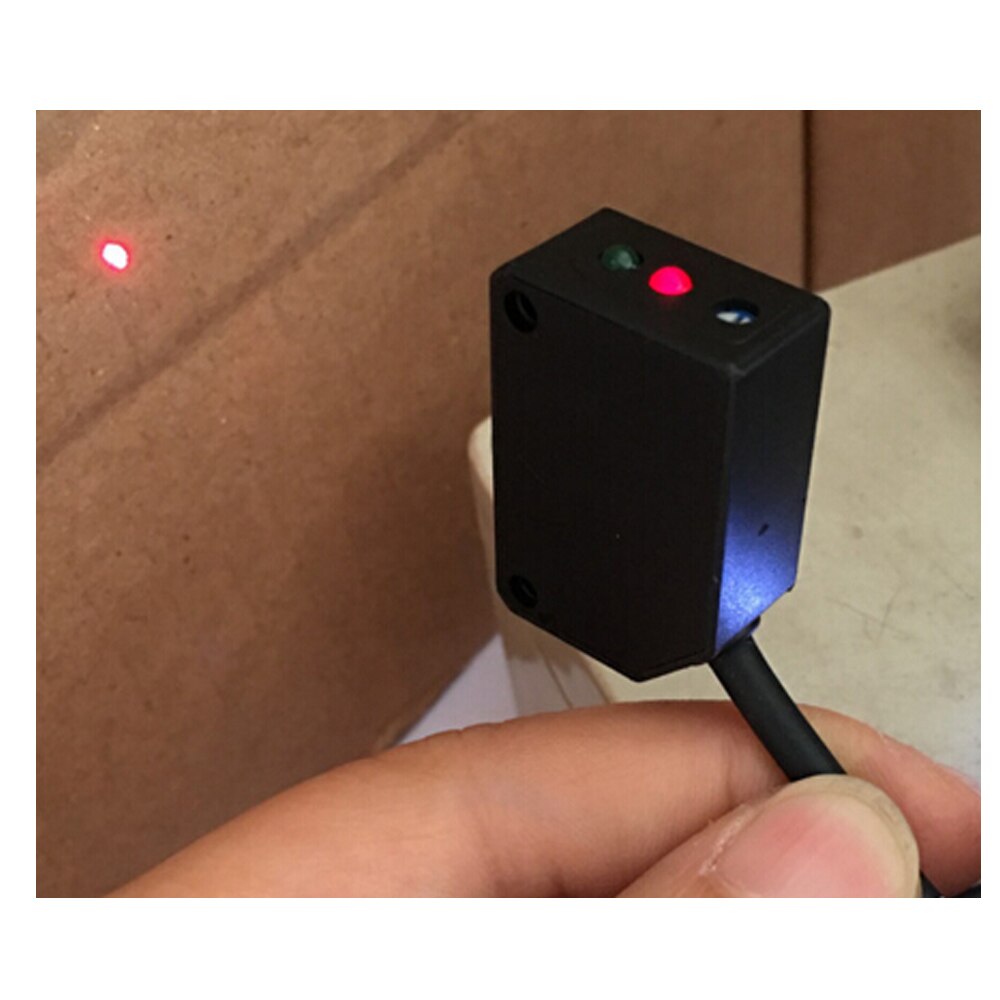

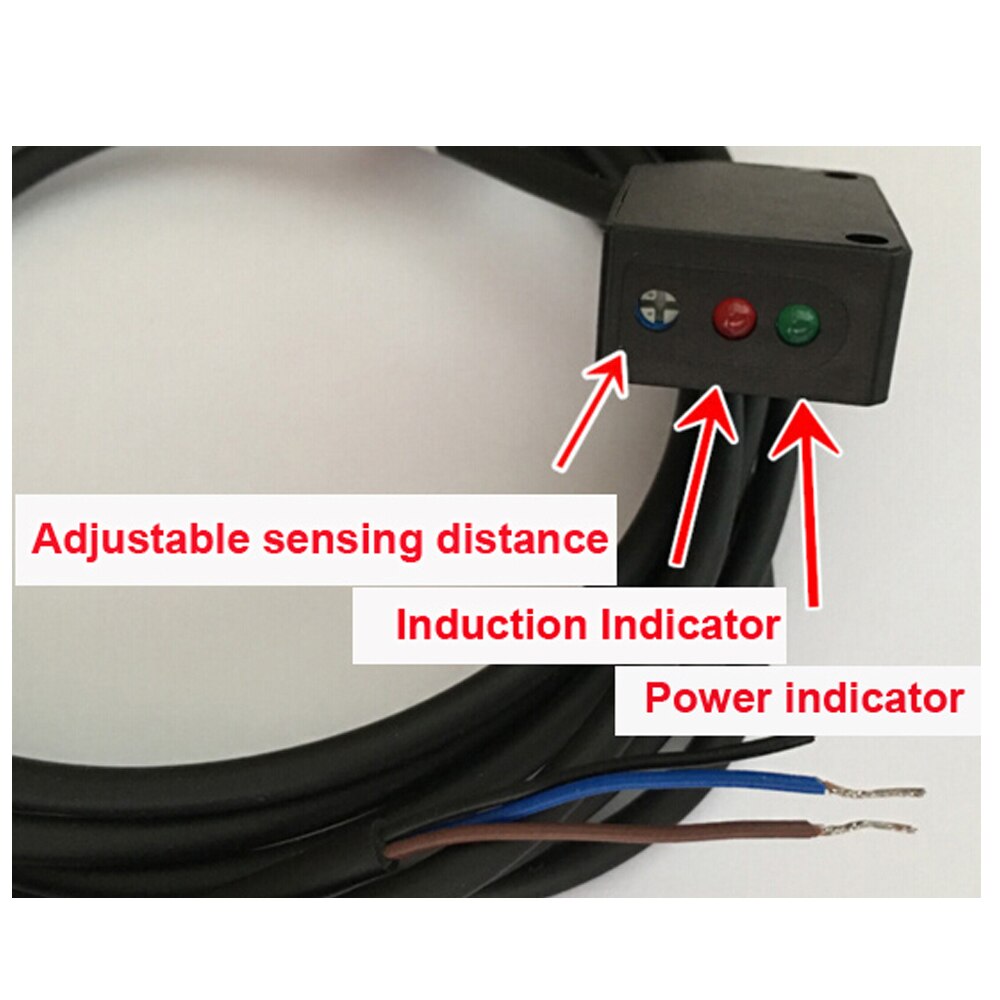

The square laser photoelectric switch sensor can see red light spot diameter of 3mm, long service life, stable performance, high sensitivity and adjustable sensing distance.

1. Launch laser, linear beam, visible spot, detect 0.8mm ultra-fine objects

2. Reliable detection of small objects and narrow gaps with small spots

3. The smallest object can be detected through a small hole with a diameter of 5mm.

4. Laser level 1 (JIS and IEC)



Package:

1* Visible Laser JR31-20N Photoelectric Switch Sensor Diffuse Reflection Infrared Normally Open DC24V Adjustable
