Description

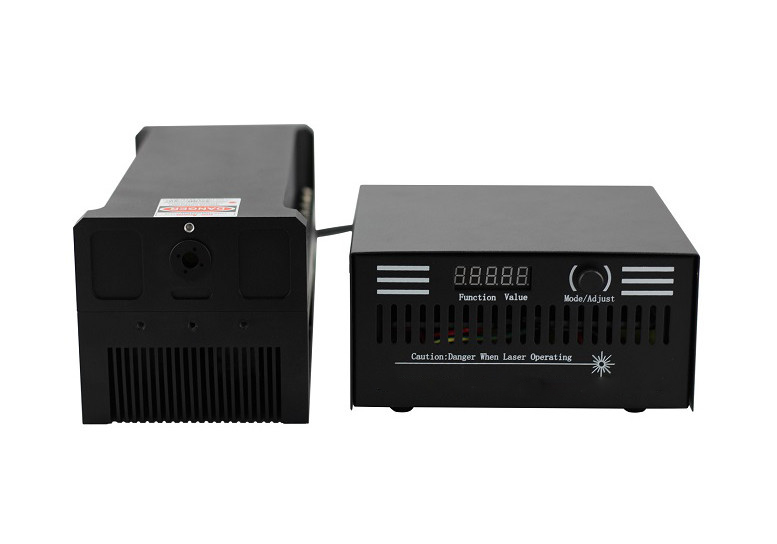

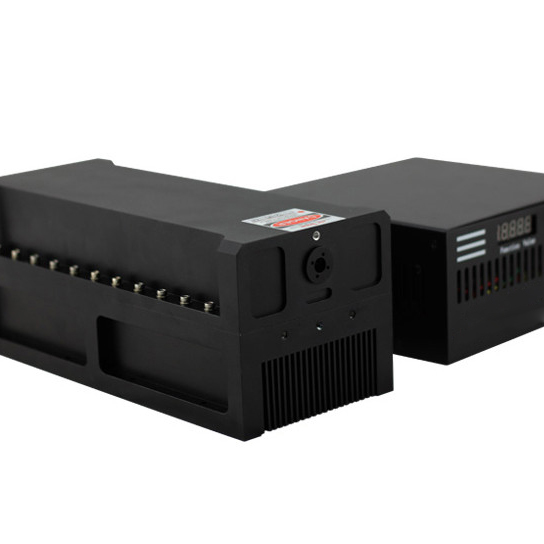

VA-III-N-532 (532nm- split laser Dpss -5000~10000mW)

Output power – 10 W
Radiation wavelength – 532 nm
The optical resonator,diode pump unit and electronics are integrated and have:
– no more than 390 mm in length
– width not exceeding 160 mm
– height not exceeding 11 mm
Spatial mode – TEM 00
Longitude Multi – longitude
Spectral linewidth (nm) – <0.1
Polarization Line – polarization
Polarization Ratio – >100:1
Beam ellipticity does not exceed – 10%
Radiation polarization is more than – 100:1 vertically
Beam diameter is – 4mm,
tolerance is 1 / e2 and no more than – 10%
Beam quality does not exceed – 1.1 M2
The divergence of the beam does not exceed – 1.2 milliradians
Power stability(RMS) – <5% @8hours
Aperture Position (mm) – 206X127X110
The deviation of the laser radiation power from the average value exceeds 2 hours and does not exceed – 3%.
The stability of the outgoing beam direction does not exceed – 2 milliradians / ° C
For the frequency range of 10Hz-100MHz, the mean square error of the radiation intensity and the average value does not exceed – 0.04%
Power supply from AC circuit – 220V, 50Hz
Closed circuit air cooling system with stable water temperature and pressure (cooler)
Allowable deviation of coolant temperature from set value without exceeding – 0.1 °С
Allowable deviation of coolant pressure from set value when the operation does not exceed 3.5% of full scale
a set of connecting tubes, connectors compatible with lasers and coolers
2 or more displays indicate coolant pressure and temperature
Cooler power supply from power supply – 220 V, 50 Hz
External Modulation – 5V TTL / 5V Analogue
Modulating Repetition – 10KHz TTL / 5KHz Analogue
Cooling system – TEC
Warm-up time (seconds) -15
Working temperature (°C) – 0~30
Expected Lifetime (hours) – >10,000
Warranty Time 1 year
