USR-TCP232-410S RS232 RS485 Ethernet Converter Serial Ethernet to Modbus Converter

$69.00

SKU: 32814533828 Category: Tag:

Description

Introduction of RS232 RS485 Ethernet Converter

USR-TCP232-410S is a dual serial RS232 RS485 Ethernet converter, which is based on TI Cortex-M4 solution & integrated TCP/IP protocol stack.

Advanced Function of RS232 RS485 Ethernet Converter

  • Industrial Solution: TI Cortex M4 Solution, -40~85C
  • Web Server: Web socket/ Web to Serial
  • Modbus Gateway: Modbus RTU to Modbus TCP / Modbus Pollinig
  • Flow Control: CTS/RTS, XON/XOFF
  • 2 Network links, each serial supports sending data to two target servers
  • Network Printing
  • N series supports hardware watchdog, never crash

Basic Feature of RS232 RS485 Ethernet Converter

  • Multiple indicator lights for convenient debugging
  • Power-line terminal for industrial application
  • ARM kernel and TCP/IP protocol stack
  • Auto-MDI/MDIX,RJ45 port with 10/100Mbps
  • TCP Server,TCP Client,UDP,UDP Server and HTTPD Client work mode
  • Two ports can work independently at the same time
  • Support virtual serial port and provide corresponding software USR-VCOM
  • Serial baud rate from 600bps to 230.4K bps;Check bit of None,Odd,Even,Mark and Space
  • DNS and DHCP supported
  • Provide PC TCP/IP SOCKET programming example,VB,C++,Delphi,Android,IOS
  • Built-in webpage;also can customize webpage for users
  • Reload button,one key to restore default settings
  • RJ45 with Link/Data indicator light,built-in isolation transformer and 2 KV electromagnetic isolation
  • The global unique MAC address bought from IEEE,user can define MAC address
  • Upgrade firmware via network
  • Keepalive,rapidly detect dead links
  • Support account and password,can be used to page login and network settings
  • Support one channel Websocket,realize bidirectional transparent transmisison bewteen webpage and serial 0
  • Support UDP broadcast function,send and receive data from all ip in the network

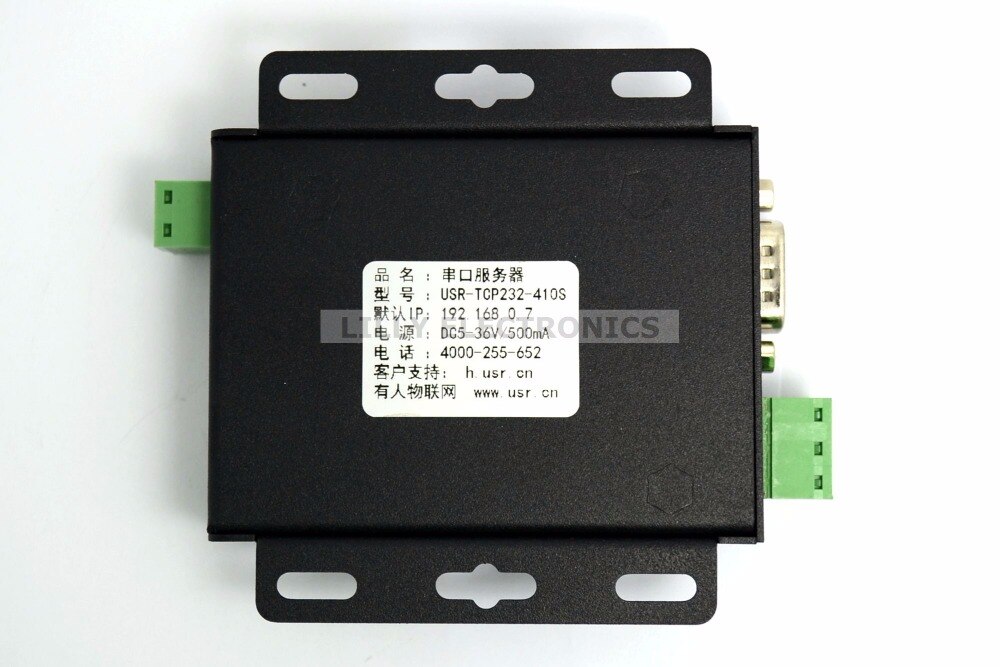

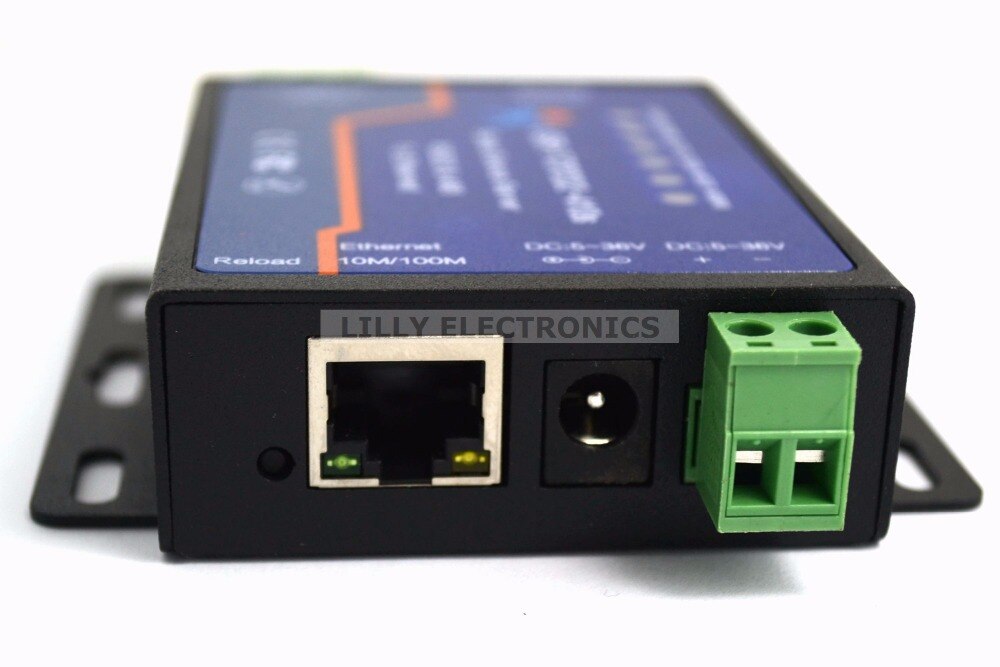

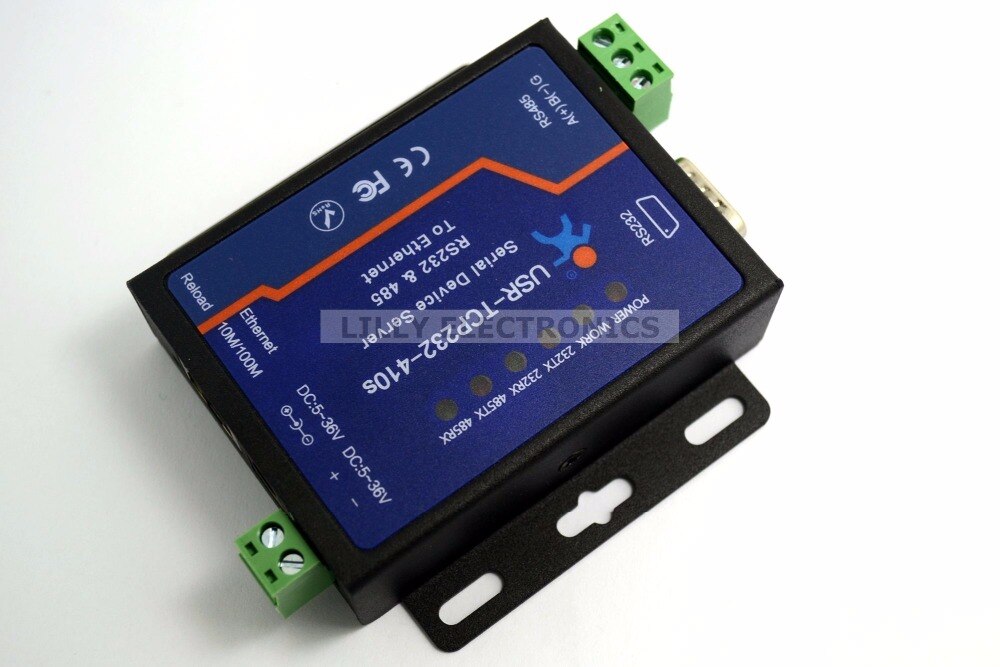

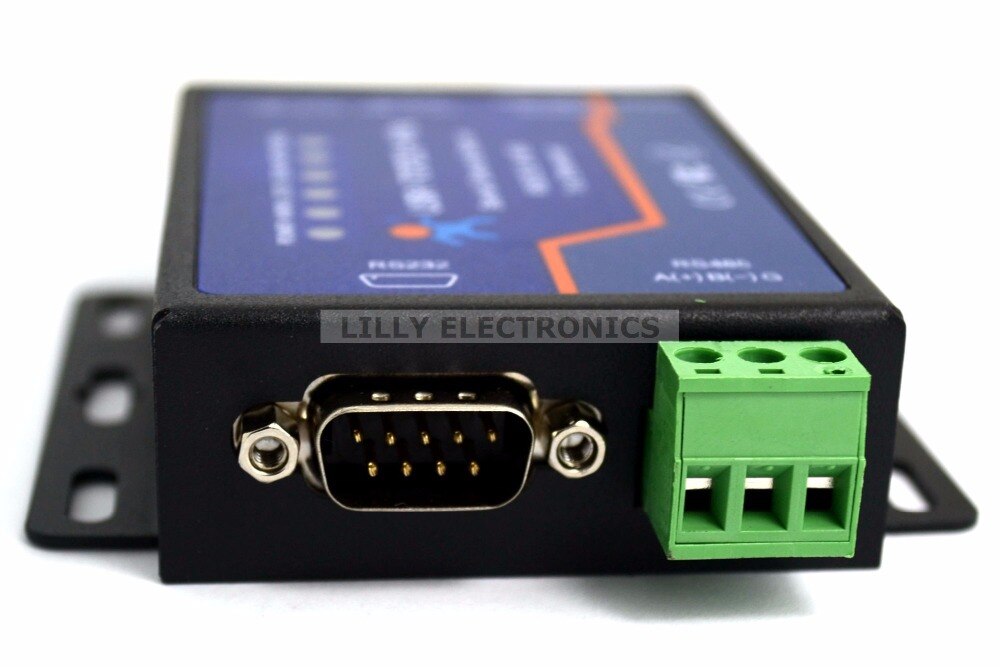

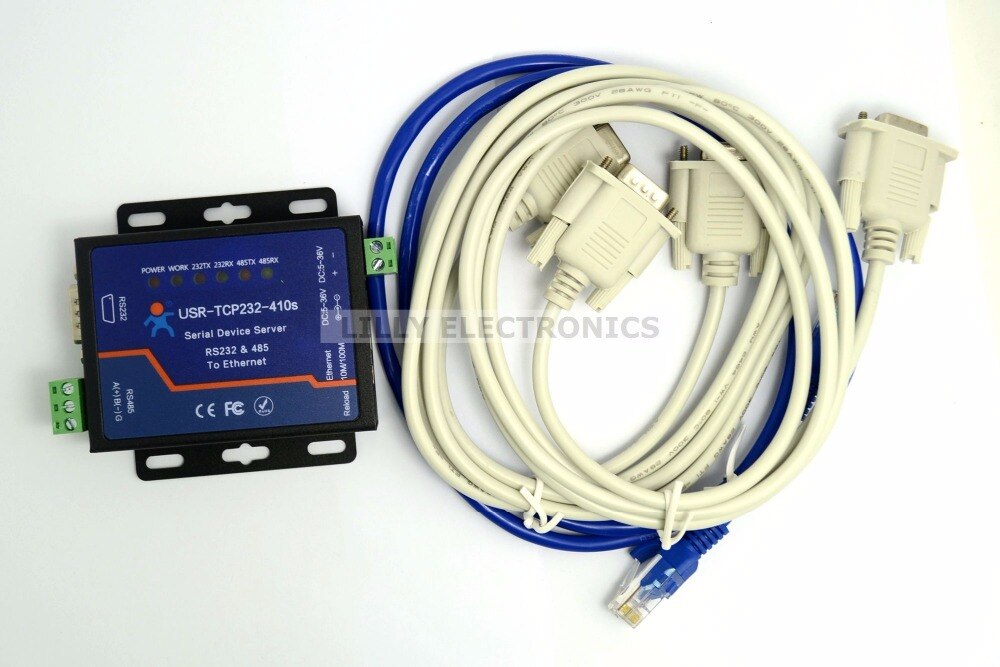

Serial to Ethernet Converters Images

Ethernet Serial Converters Application Field

  • Industrial data transmission, industrial automation
  • security and protection monitoring, public security
  • Smart home, power control, environmental monitoring, intelligent agriculture
  • Door check on work attendance system, POS system, rice selling system
  • Building automation system, power monitoring, self-service banking system, telecom machine room monitoring
Package:
1 x USR-TCP232-410S
