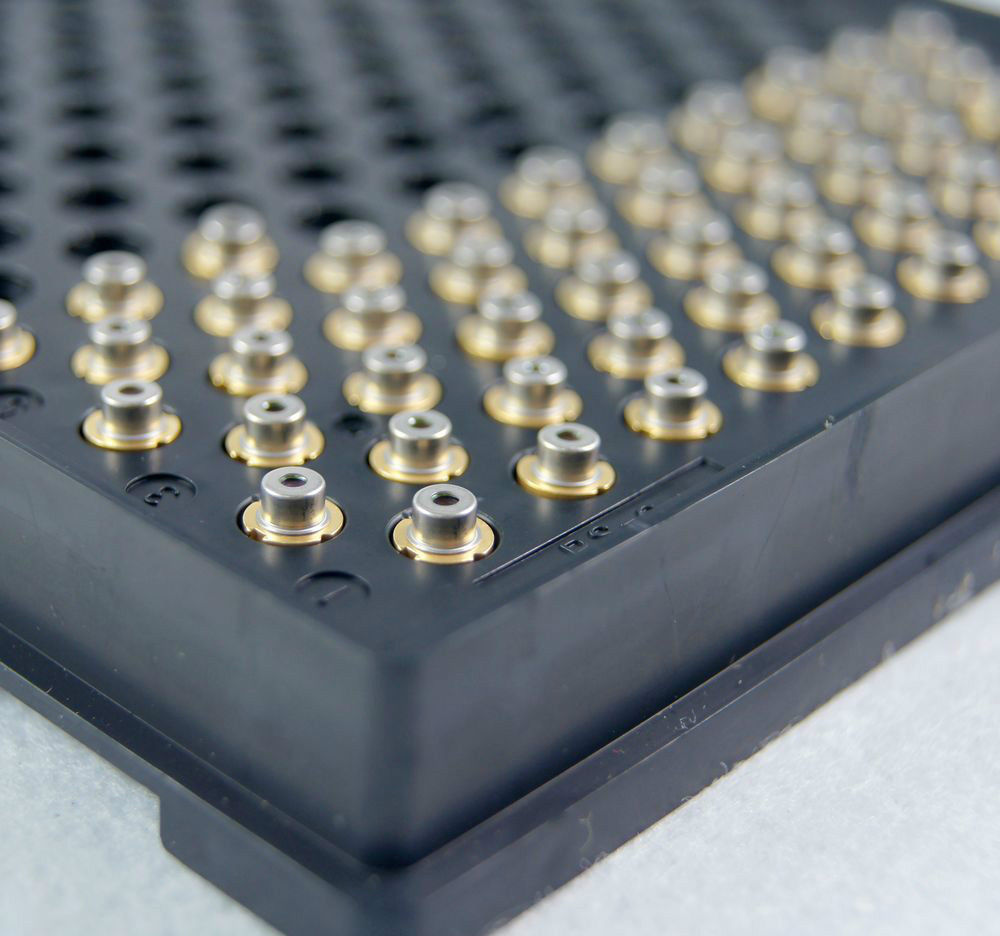

Ushio HL63392DG 638nm 200mw 5.6mm laser diode

Features
• Visible light output: 638nm Typ.
• Optical output power: 200mW (CW)
• Single transverse mode
• Low operating current: 245mA Typ.
• Low operating voltage: 3.0V Typ.
• Operating temperature: +60°C
• TE mode oscillation
• Built-in monitor PD

Application

Laser module
Leveller
Measurement
Light source of optical equipments

Absolute Maximum Ratings (Tc=25°C)

Optical output power (Tc=25˚C)： 200 mW
(Tc=60˚C) ： 120 mW
LD Reverse Voltage ： (LD) 2 V
PD Reverse Voltage ： (PD) 30 V
Operating Temperature  ： -10 ~ +60 °C
Storage Temperature ： -40 ~ +85 °C

Optical and Electrical Characteristics (Tc=25°C)

Threshold current ： 75 mA –
Operating current： 280 mA
Operating voltage ： 3.3 V
Beam divergence：5~13
Parallel to the junction ： 5 ~ 13
Beam divergence ：10 ~ 18
Lasing Wavelength：  633 ~ 643 nm
Monitor Current ： 0.4 ~ 1.3 mA
