Description
Specification:
1.Support USB2.0 Support 24BIT-96K audio output
2.SA9023 + CS4398, top OPA2132 op amp output.
3.With 3.5 headphone output can be used for 32 Euro headphones.
4.Using USB self-powered, no external power supply required.
2.SA9023 + CS4398, top OPA2132 op amp output.
3.With 3.5 headphone output can be used for 32 Euro headphones.
4.Using USB self-powered, no external power supply required.
Feature:
1.Coupling capacitor Using imported Siemens capacitor 2.2UF, the main filter electrolytic capacitors using imported aluminum SMD electrolytic ,
2.Its quality better than ordinaryelectrolytic and has a longer life.
3.Resistance uses 0805 high-precision SMD resistor, ensure the machine has a good SNR. PCB use 1.6mm thick double-sided sheet, 2.0 oz copper thickness, ensuring a size of the current has good through performance.
4.First-class quality of the PCB.
5.Size:80mm X 62mm
Package:

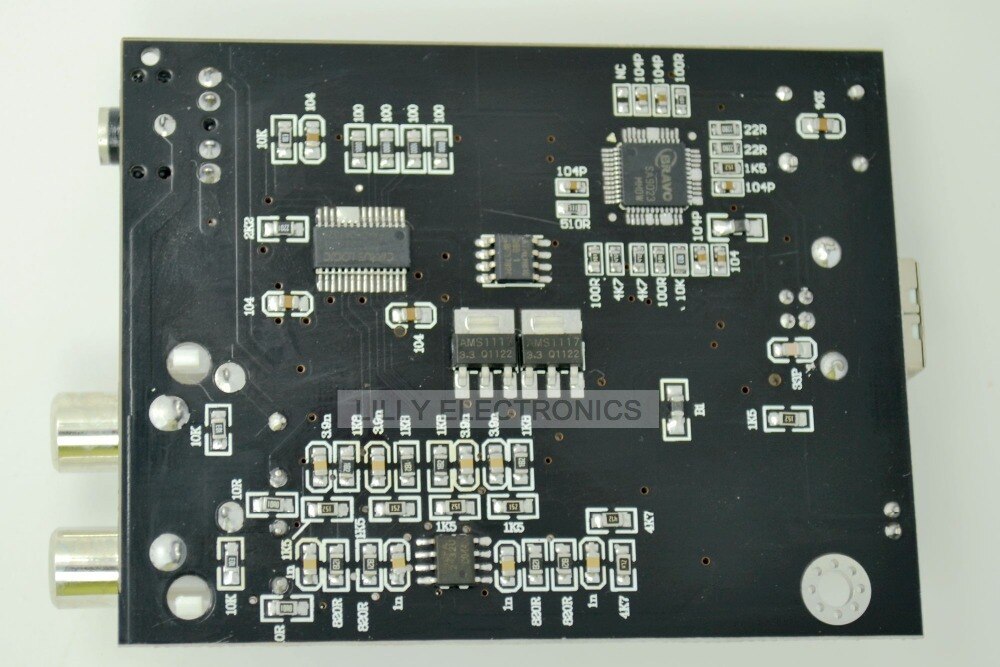

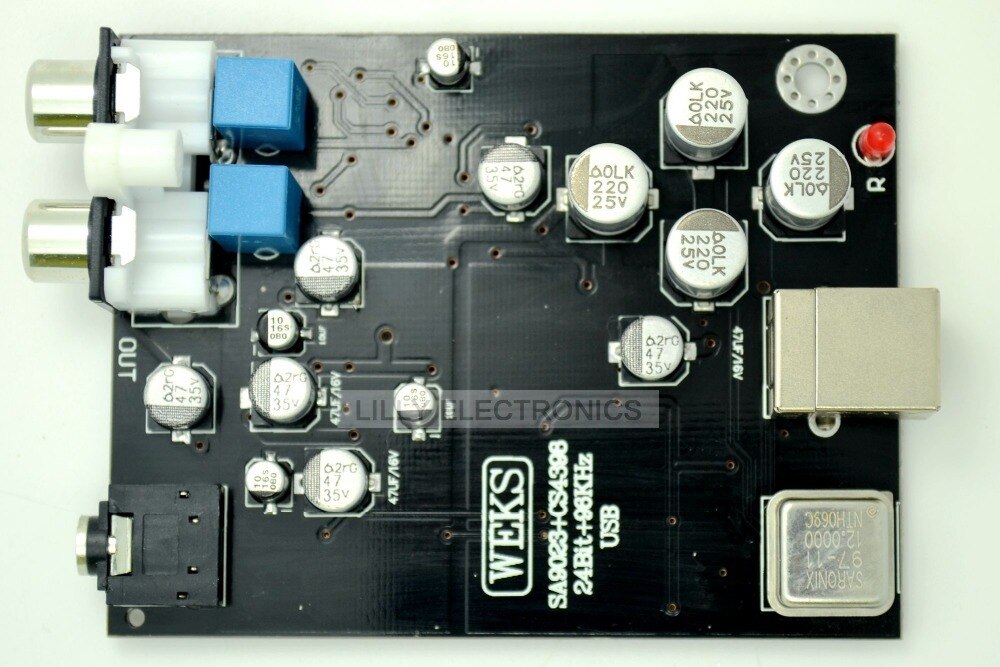

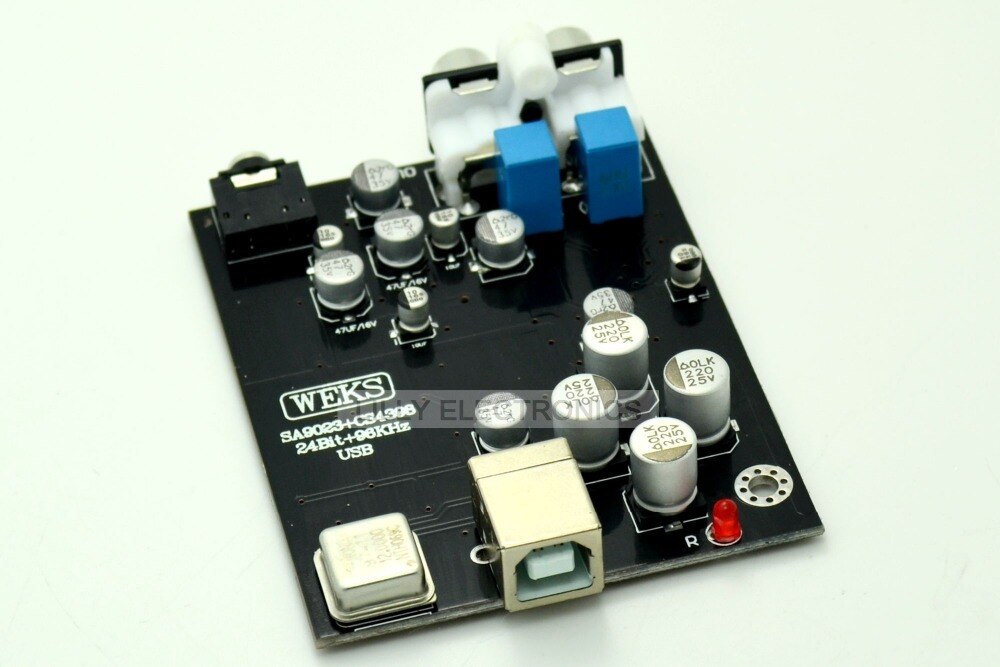

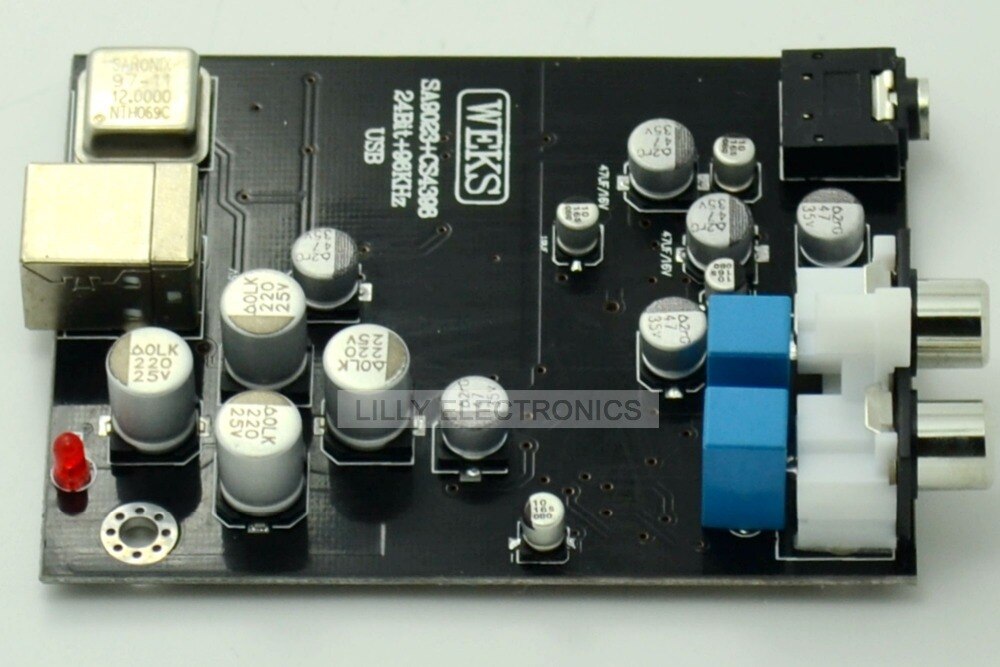

1* USB 2.0 SA9023+CS4398+OPA2132 USB Decoder Board 24BIT 96KHz
