Description
UNI-T Laser Power Meter UT385 Precision Sensor Power Analyzer Tester LCD Screen Display
- DIY Supplies: ELECTRICAL
- Origin: Mainland China
- Model Number: UT385
- Certification: CE
- Measurement range: 0uW-39.99mW
- Laser wavelength range: 400nm-1100nm
- LCD display: 4-digit LCD display
- Data storage: 199 sets
- Power Measurement: Power Analyzer Sensor

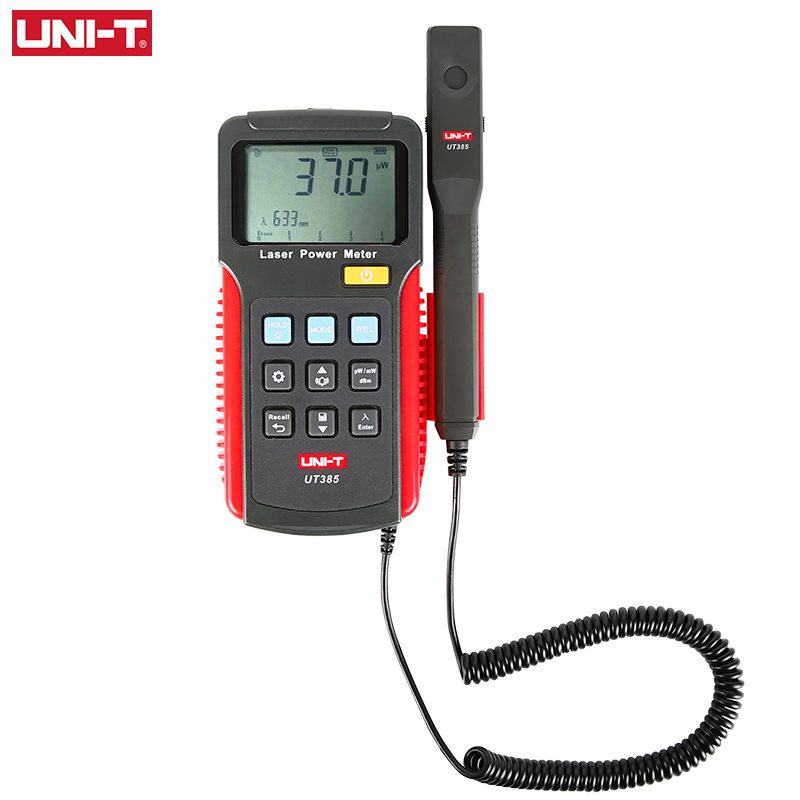

UT385 Laser Power Meter
UT385 Laser power meter is used to measure the energy output of laser beams for testing or laser system applications. It uses detection sensor to determine the intensity of a laser beam’s energy output.

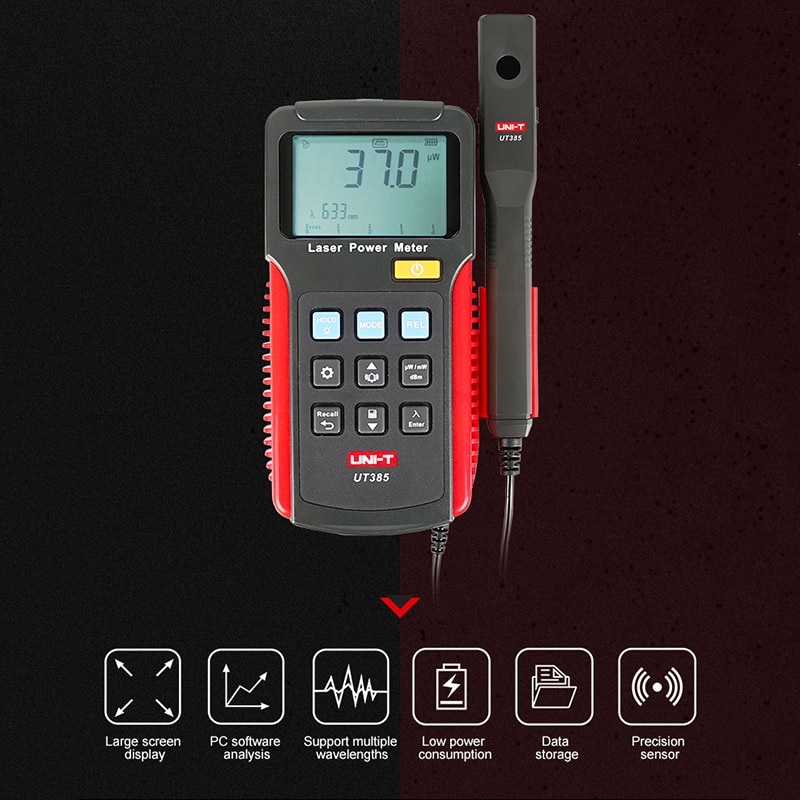

Features
● Precise laser sensor
● Split design with retractable spring wire
● LCD screen for clear readings
● Data storage function
● Selectable and customizable wavelengths
● Threshold alarm function
● Low power consumption
Parameter
| Specifications | Range | |
| Certificates | CE, RoHS | |
| Measurement range | 0uW~39.99mW | |
| Measurement accuracy | 0uW~10uW: ±(5%+0.3); 10uW~39.9mW: ±5% | |
| Laser wavelength range | 400nm~1100nm | |
| Laser wavelength preset options | 520nm, 633nm, 650nm, 780nm | |
| LCD display | 4-digit LCD display |
|
| Sampling rate | 0.5s | |
| Data storage | 199 sets | |
| Battery level indication | √ | |
| LCD backlight | √ | |
| Auto power off | √ | |
| Operating temperature | 0~40°C | |
| Operating humidity | 80%RH (no condensation) | |
| Storage temperature | -10°C~50°C | |
| General Characteristics | ||
| Power | 9V battery (6F22) (No include) | |
| Display | 57mm x 37mm | |
| Product net weight | 319g | |
| Product size | 198mm x 104mm x 35mm | |

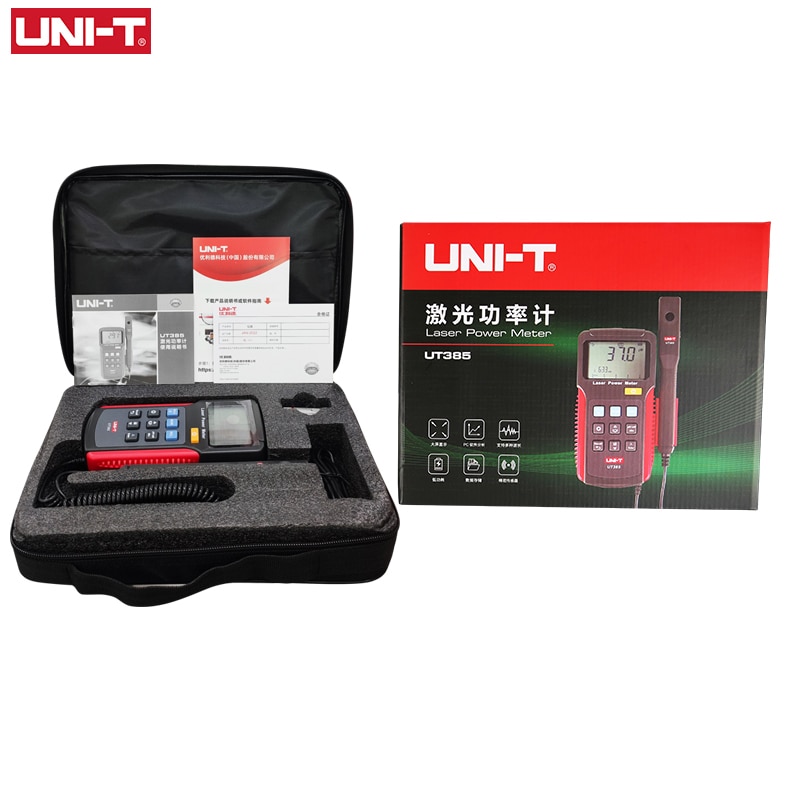

| Standard accessories | USB cable, documents download guide, English manual | |
Customizable wavelength
No need to look up table conversion
Threshold alarm function

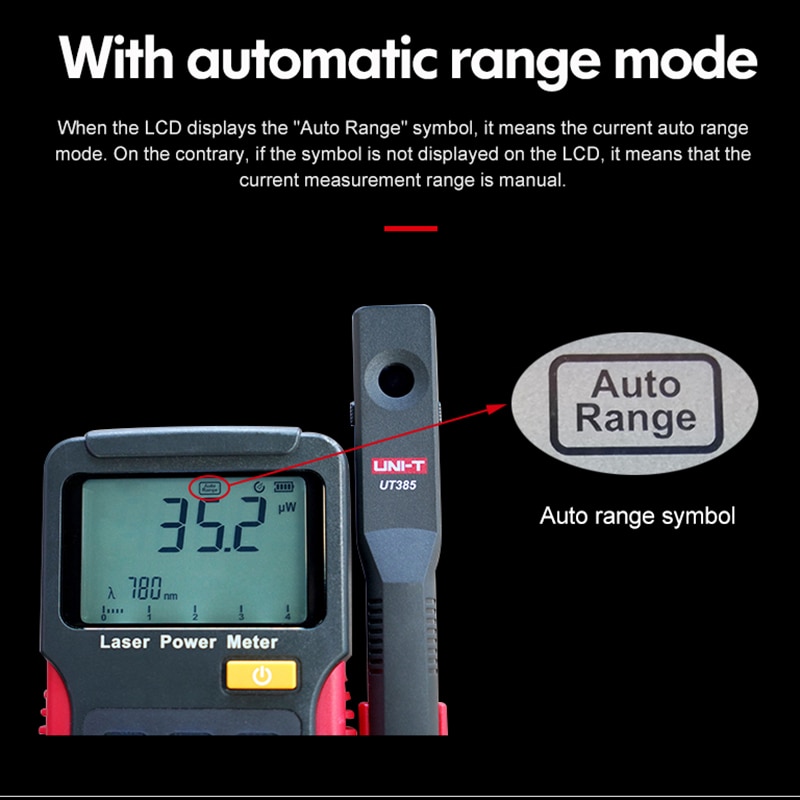

Auto range

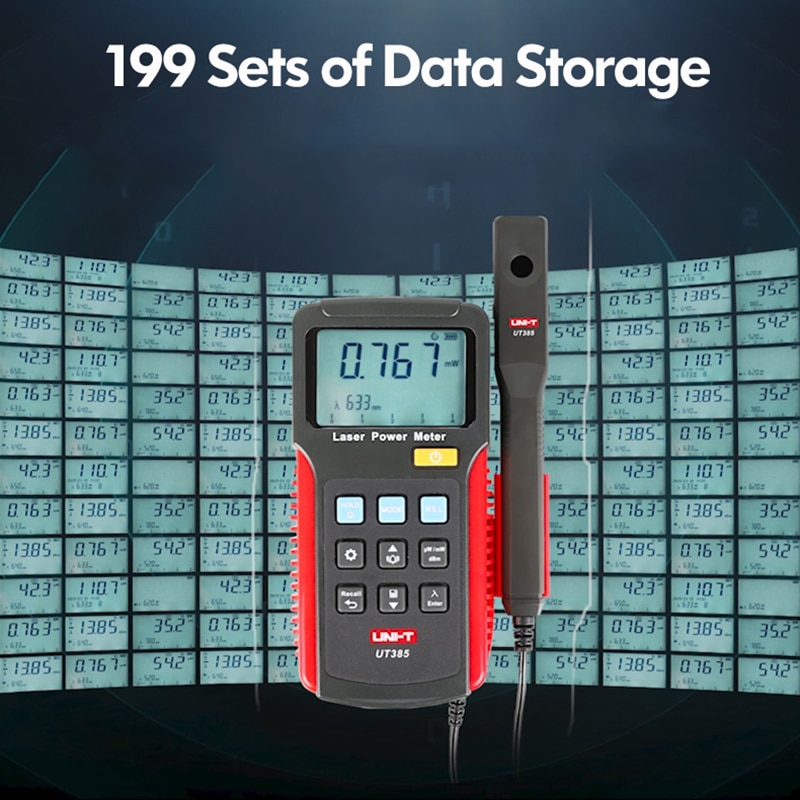

199 sent data storage

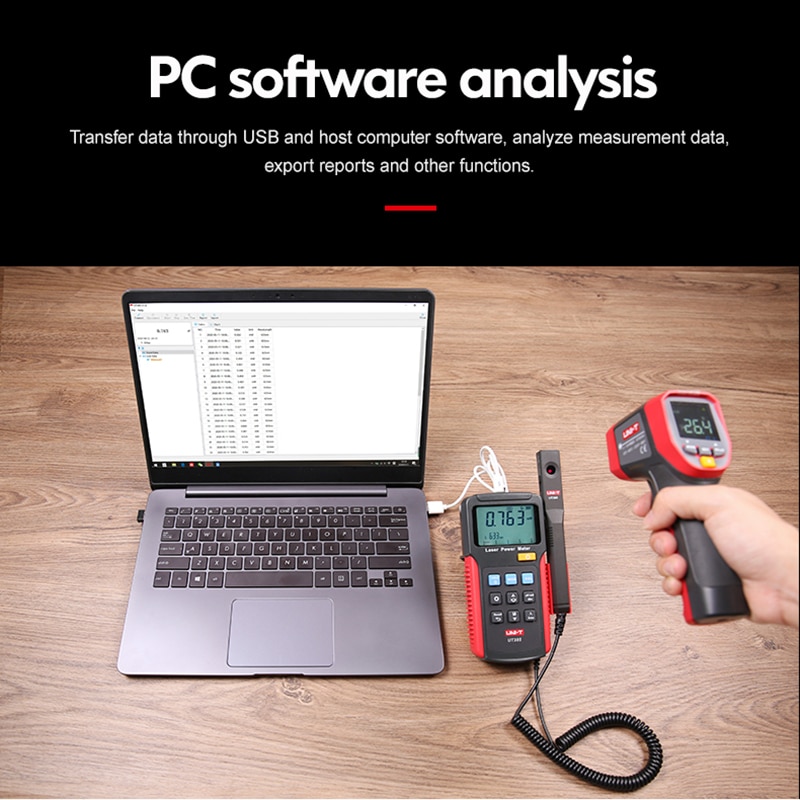

PC software analysis
Notice please: battery no include!
