Turmera 1.3A 2S 3S 4S BMS Active Equalizer Balancer for 18650 21700 Lithium Battery and 32700 Lifepo4 Battery Transfer Active Balance Board with Indicator

About the Principle of balance:

This module is adjacent to the differential voltage balance, and the adjacent battery voltage difference reaches 0.1V or more. The internal trigger balance is working until the adjacent battery voltage difference stops within 0.03V. There is an adjacent differential voltage when charging and discharging on the battery pack. Trigger balance, the battery pack voltage error will be pulled back to the ideal value, reducing battery maintenance costs.

Balanced BMS Features:

High-precision energy transfer equalization, exclusive balanced IC, high current 1.3A energy transfer battery voltage balancer, significantly balancing battery voltage, improving overall battery pack efficiency

Technical Parameters:

Operating voltage range: 3.0-4.5V, Li-ion/Lipo/Lifepo4/18650 lithium battery universal.
balance current:
Adjacent voltage difference is 0.1V or more (current is about 0.5-0.7A);
Adjacent voltage difference is above 0.2V (maximum balance current is 1.3A);
The smaller the differential voltage , the smaller the balance current.

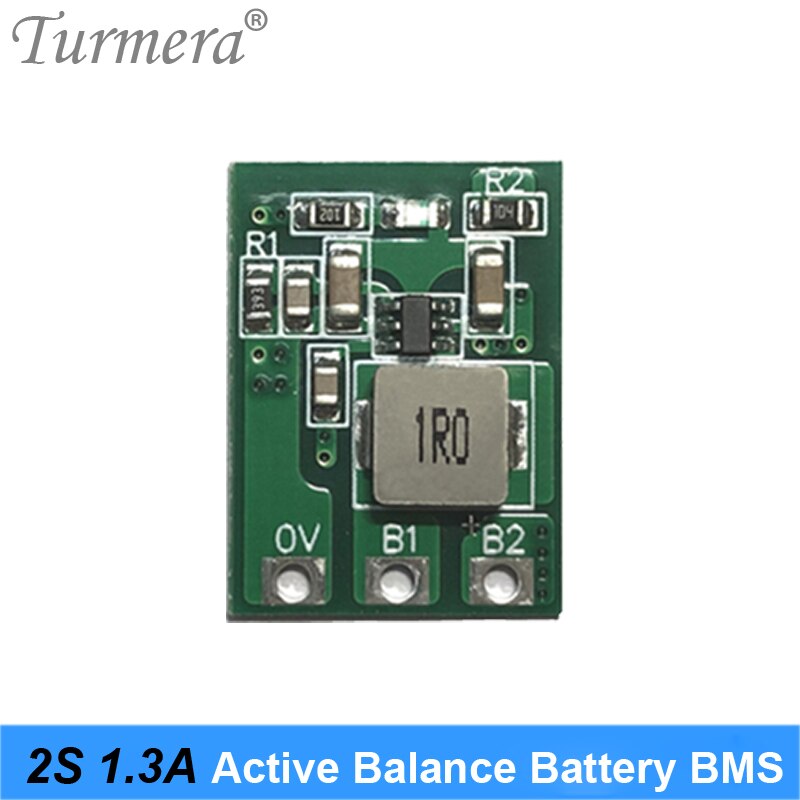

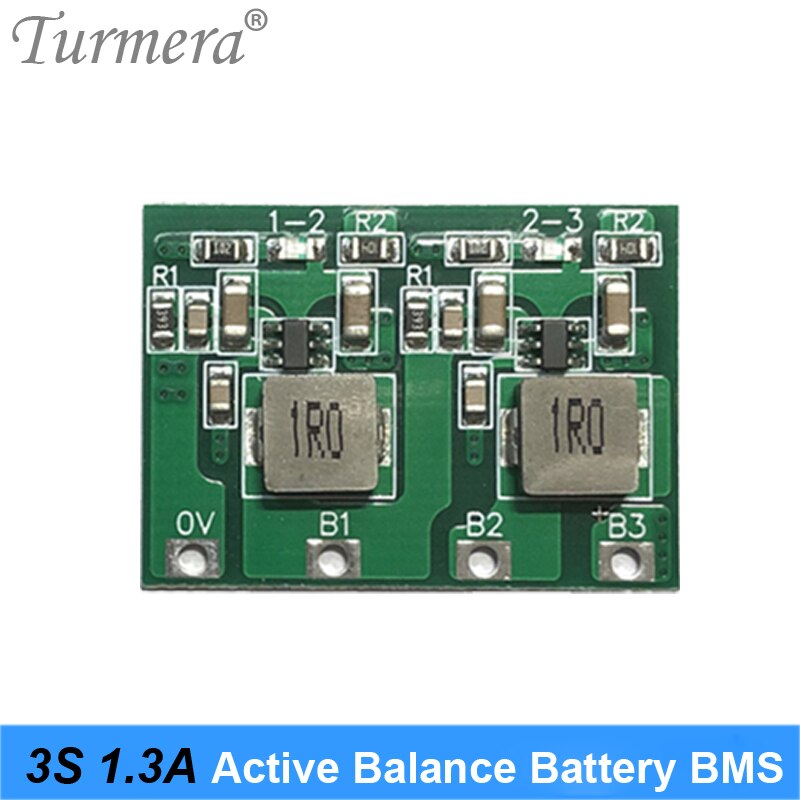

Dimension : 2S: 22*16*4mm  3S: 22*30.5*4mm  4S: 22*45*4mm

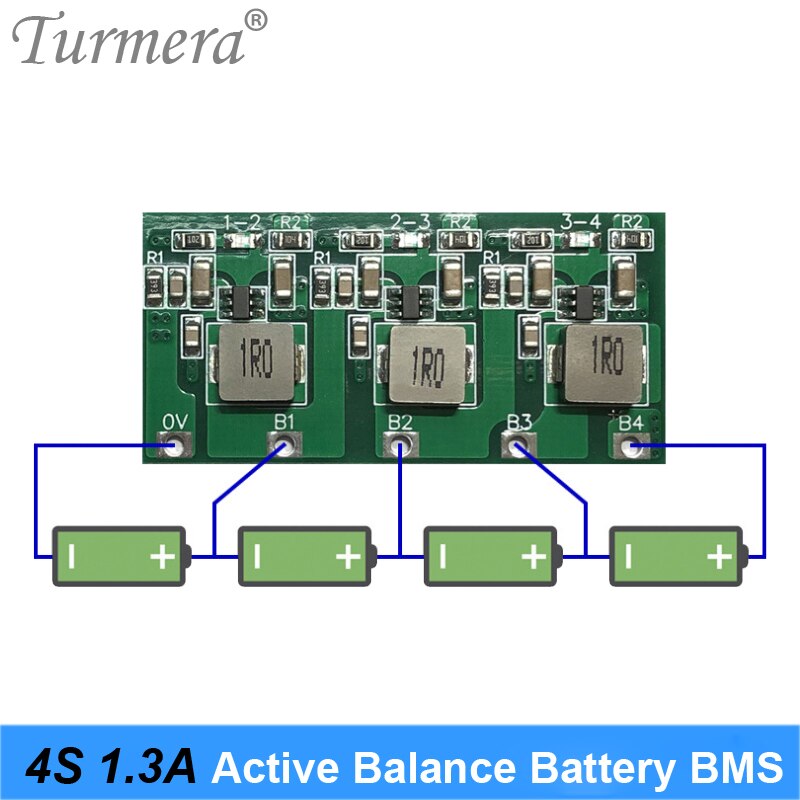

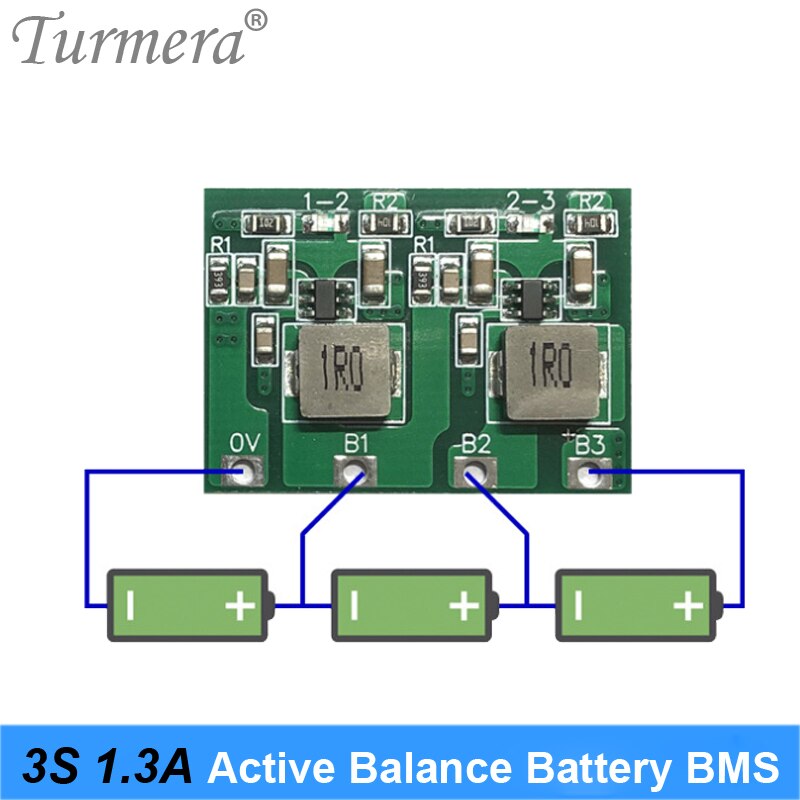

About Connect:

B-, the total negative pole of the battery pack (the negative pole of the first battery)
B1, the positive electrode of the first battery
B2, the positive electrode of the second battery
B3, the positive electrode of the third battery
And so on……….

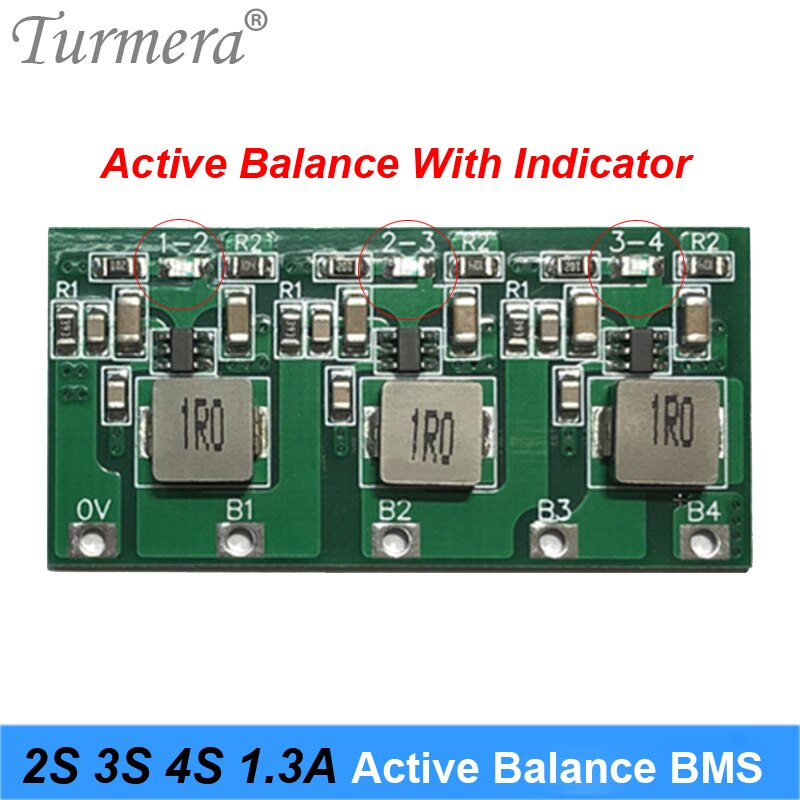

About the Indicator:

1.The indicator is lighting,it mean the Active balancing work for between the batteries.

2.The indicator is no lit,the equalization have been completed or not reach for start-up balancing.

3.The indicator is flash,the equalization not work.

Picture show:
