Description

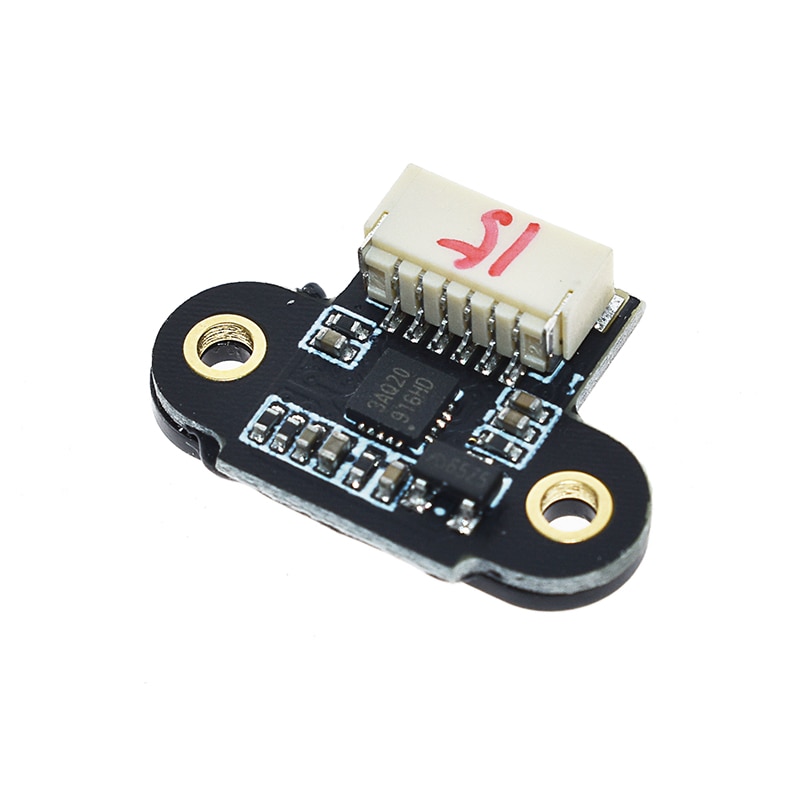

Time-of-Flight ranging Sensor
TOF10120 range sensor provides accurate and repeatable long range distance measurement for high-speed autofocus (AF). The innovative time-of-flight technology allows
performance independent of object reflectance.TOF10120’s time-of-flight sensing technology is realized by Sharp’s original SPAD (Single Photon Avalanche Diodes ) using low-cost standard CMOS process. It enables accurate ranging result, higher immunity to ambient light and better robustness to cover-glass optical cross-talk by special optical package design.
TOF10120 range sensor provides accurate and repeatable long range distance measurement for high-speed autofocus (AF). The innovative time-of-flight technology allows
performance independent of object reflectance.TOF10120’s time-of-flight sensing technology is realized by Sharp’s original SPAD (Single Photon Avalanche Diodes ) using low-cost standard CMOS process. It enables accurate ranging result, higher immunity to ambient light and better robustness to cover-glass optical cross-talk by special optical package design.
・940nm laser classified as class 1 under operation condition
by IEC 60825-1:2014-3rd edition
・Small ceramic package(20×13.2×2.0mm)
・Long range absolute range measurement up to 1.8m
within 5％ accuracy at indoor
・Reported range is independent of the target reflectance
・Operates in high infrared ambient light levels
・Advanced optical cross-talk compensation
・High speed ranging MAX 30ms
・Standard solder reflow compatible
・No additional optics
・Single power supply
・Txd interface for device control and data transfer
・High-speed AF
・Continuous AF for video
・User detection for Personal Computers/
・Laptops/Tablets
・Robotics (obstacle detection)
・White goods (hand detection in automatic
by IEC 60825-1:2014-3rd edition
・Small ceramic package(20×13.2×2.0mm)
・Long range absolute range measurement up to 1.8m
within 5％ accuracy at indoor
・Reported range is independent of the target reflectance
・Operates in high infrared ambient light levels
・Advanced optical cross-talk compensation
・High speed ranging MAX 30ms
・Standard solder reflow compatible
・No additional optics
・Single power supply
・Txd interface for device control and data transfer
・High-speed AF
・Continuous AF for video
・User detection for Personal Computers/
・Laptops/Tablets
・Robotics (obstacle detection)
・White goods (hand detection in automatic
Ranging Range 100 ～ 1800mm
VCC 3 ～ 5V
ICC_VDD 35mA
Topr － 20 ＋ 70 °C
Tstg － 40 ＋ 85 °C
Communication protocol
Bits per Second:9600
Data Bits : 8
Parity : None
Stop bits : 1
Flow Control : None
VCC 3 ～ 5V
ICC_VDD 35mA
Topr － 20 ＋ 70 °C
Tstg － 40 ＋ 85 °C
Communication protocol
Bits per Second:9600
Data Bits : 8
Parity : None
Stop bits : 1
Flow Control : None

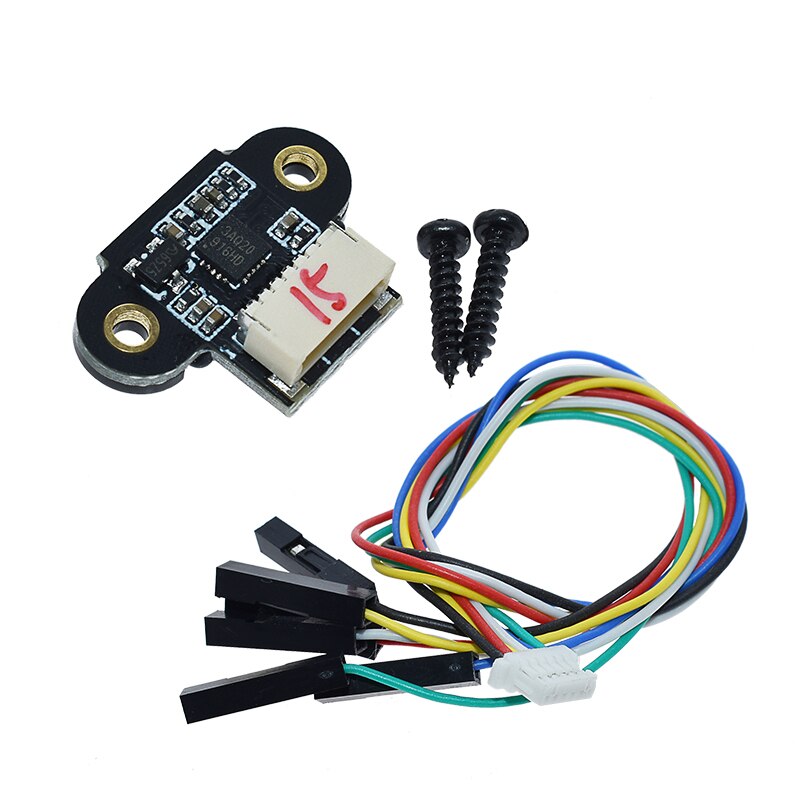

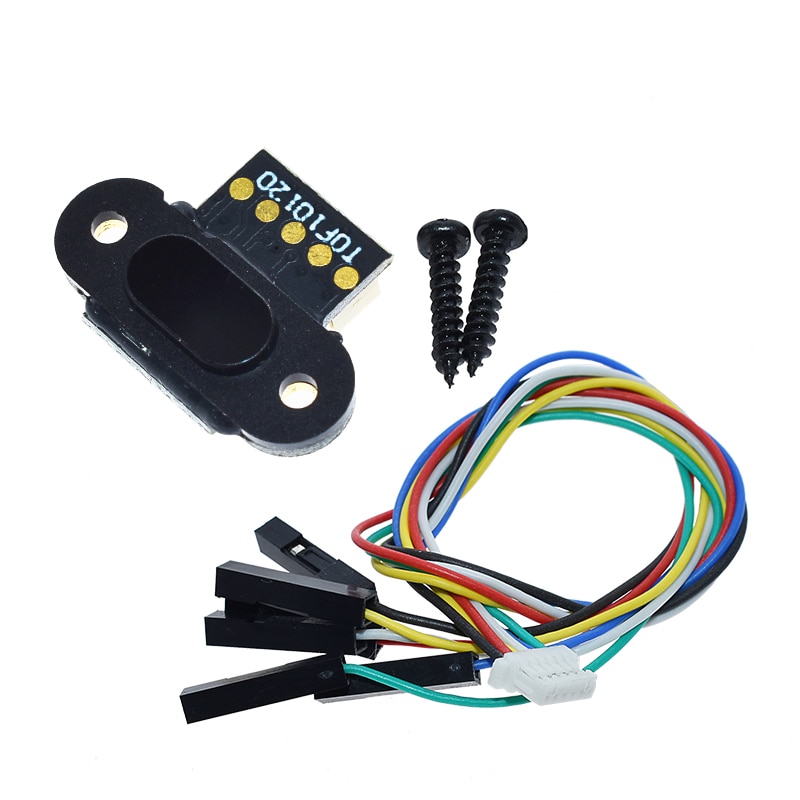

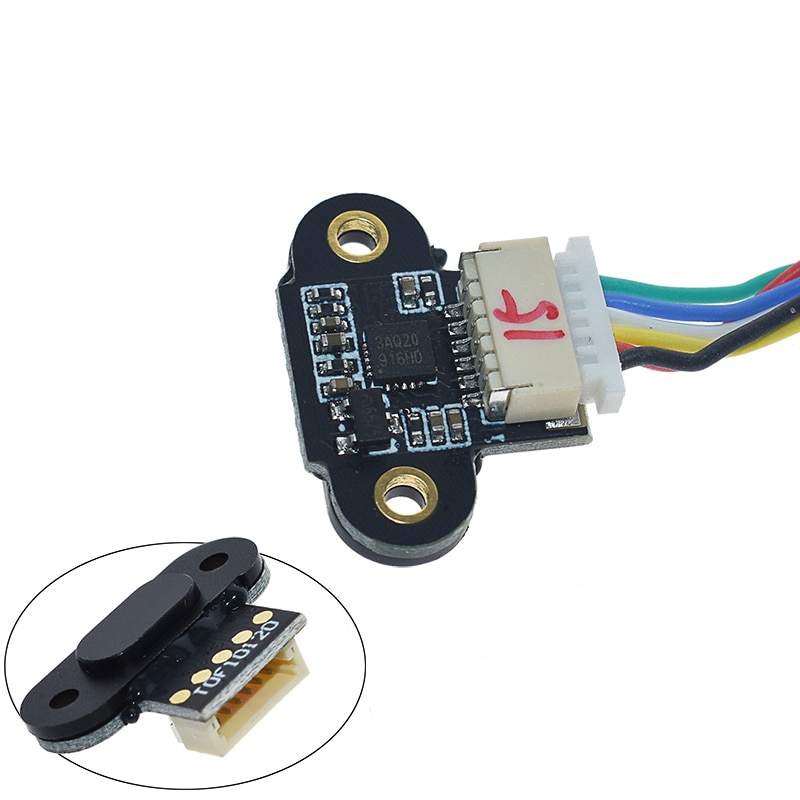

①GND Black
②VCC Red
③RXD Yellow
④TXD white
⑤SDA blue
⑥SCL purple
