Description

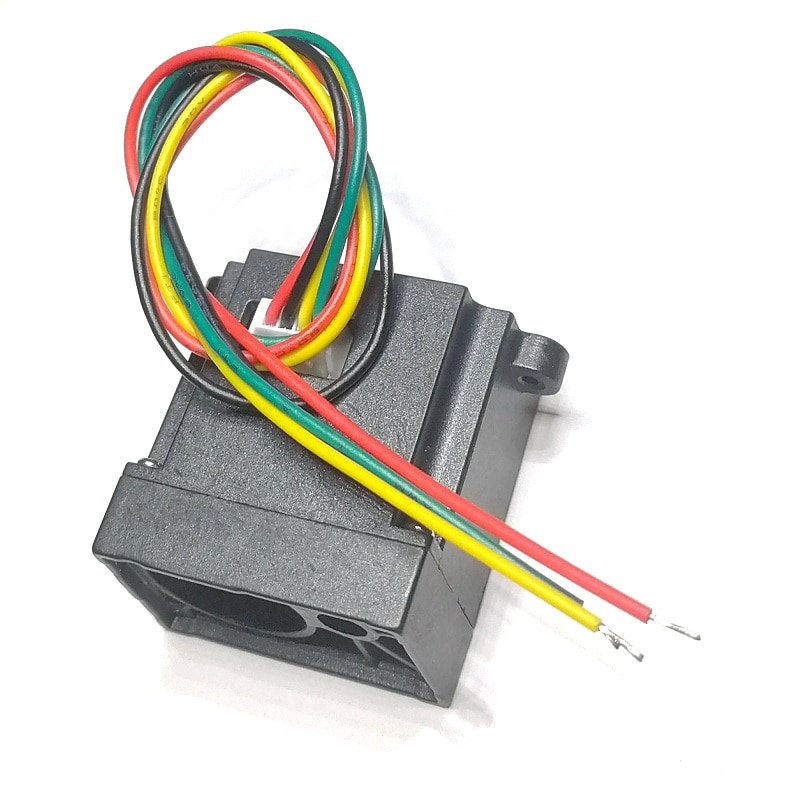

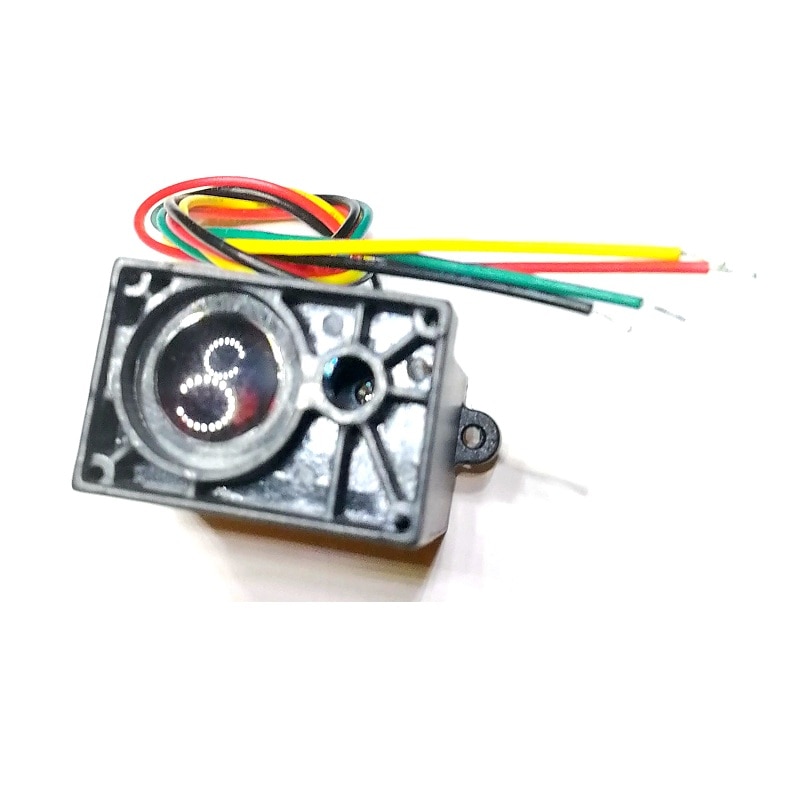

L10 Lidar is use for the field of drones, sweeping robots, industrial robots, etc.
A new laser ranging solution. This product is based on the principle of TOF ranging and has a small size.
Low cost, excellent performance, strong resistance to ambient light interference, and can be used as an upgrade substitute for related fields.
Product. The product is based on serial communication distance information, simple to use, flexible to install, and easy to expand.

Laser type:Class IIIA laser

Output frequency: 100Hz

Range: 0.06-30m

Repetition accuracy: +2cm (within 2m) accuracy: 1-10cm

Display unit: 1mm

Light Source: 780 nm Laser Class I Safety

Size: 20*22*14 mm invisible red laser

Weight: 11g

Power supply: DC + 5V

Output Interface: Uart(115200bps)

Level: TTL 3.3V

Working temperature: 0-40 °C

Resistance to ambient light: 100W LUX

Size:22*20*14mm
