Description

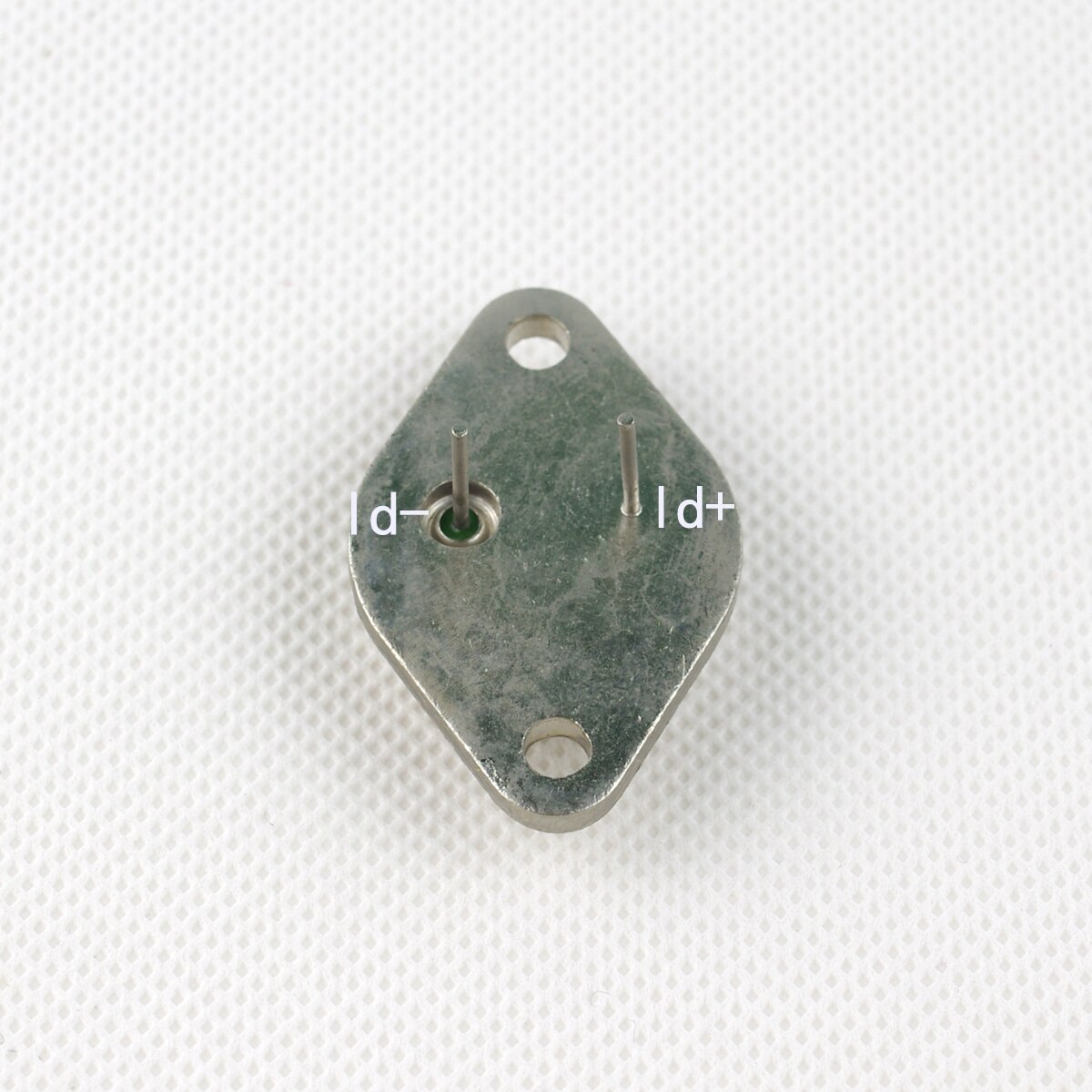

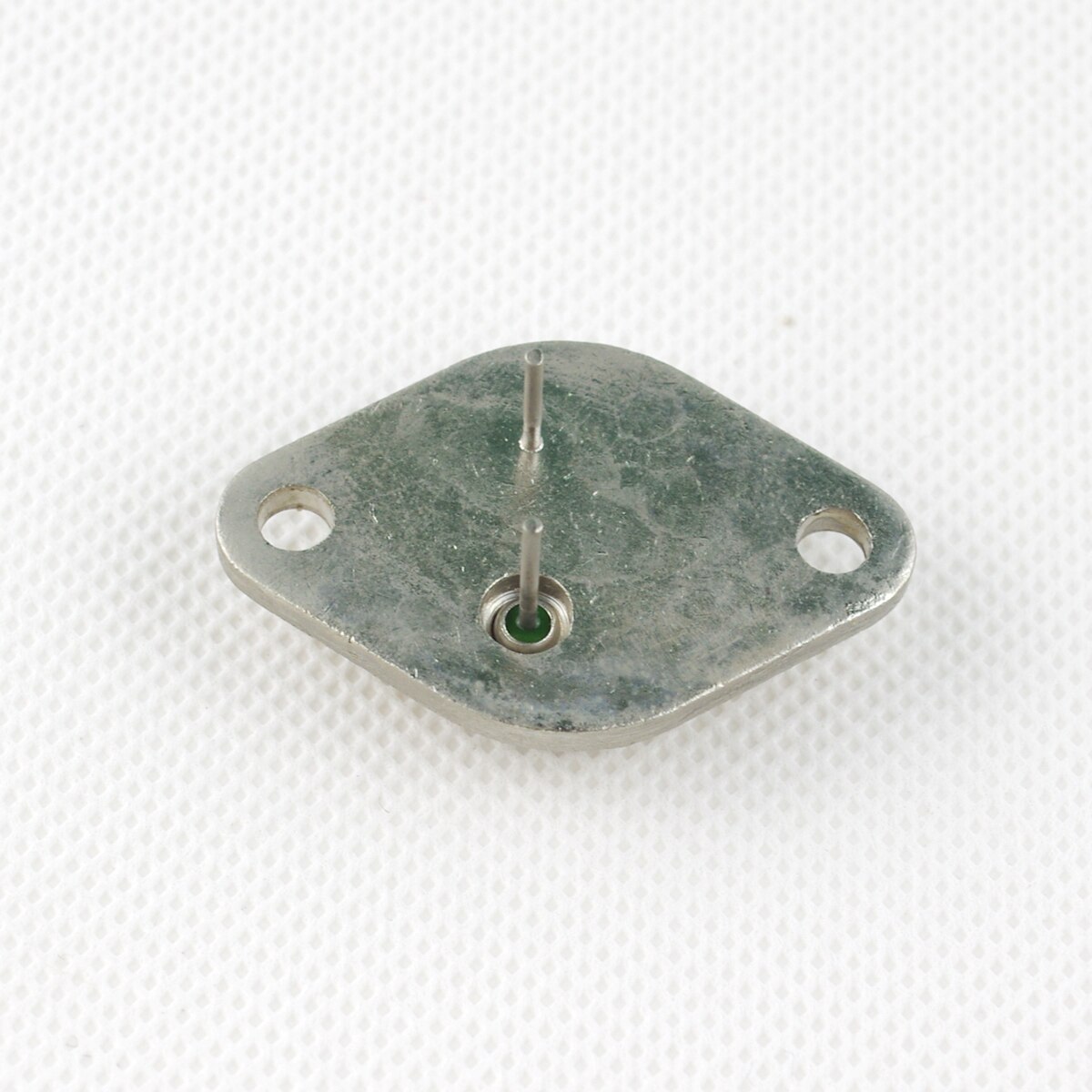

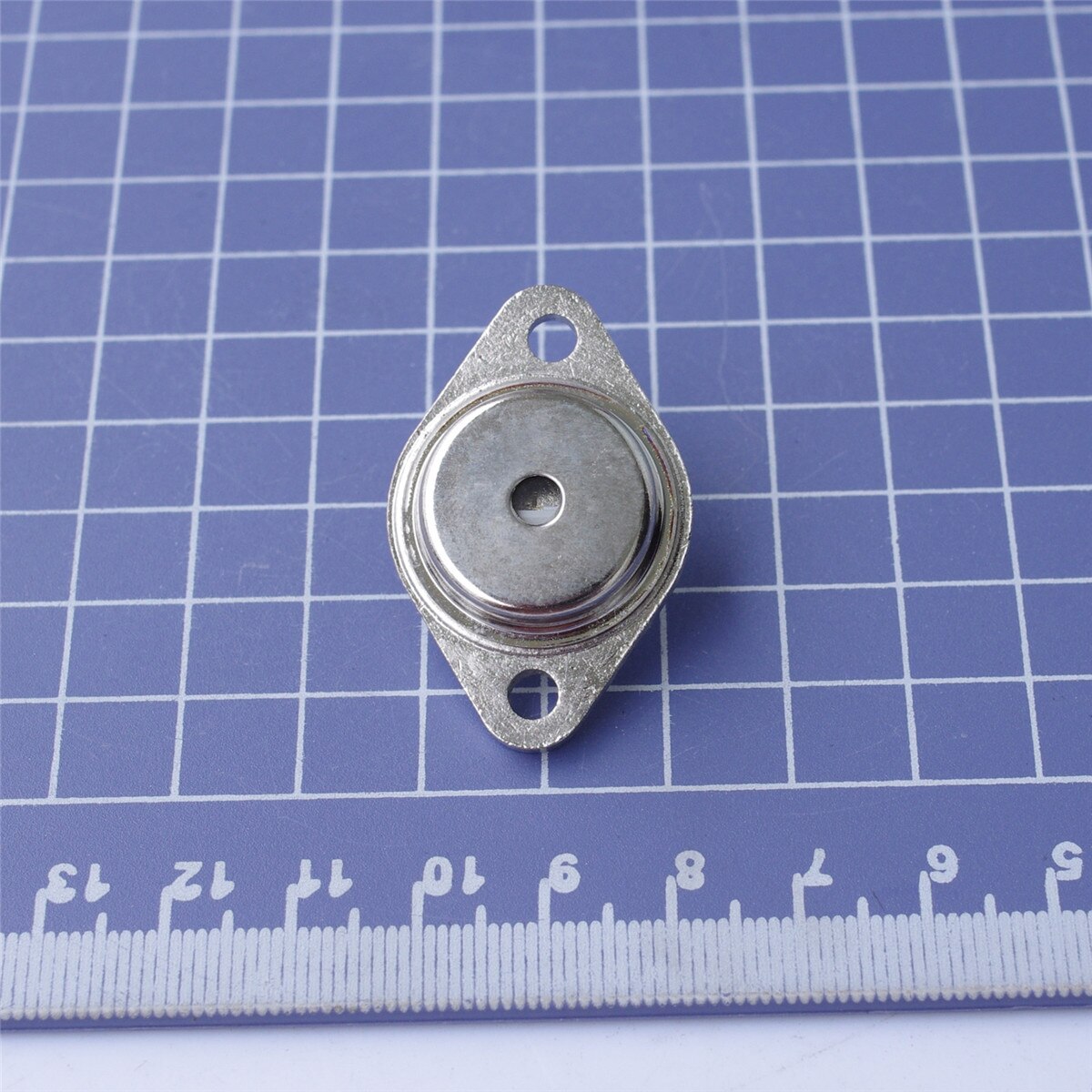

Characteristics Output power: 2000mw TO-3 package DATA SHEET: CW output power(Mw): 2000 Peak wavelength(nm): 808+/-10 Spectral width(nm):5 Threshold current(mA):700 Operating current(mA):2800 Operating voltage:2.2 Slope efficiency(W/A):1.0 wavelength temperature coefficienc(nm/?):0.3 Beam divergency(deg):12/40 Emitting area(m):200×1 Serial resitance():0.25 Lifetime(h):10000 Package: TO-3
Note:
1. only for professionals.
2. duty cycle without heatsink: max 5 seconds on, 1 seconds off.
3. working life: testing life with heatsink.
4. warranty: no warranty because laser diode is consuming material.
5. datasheet: you can google a datasheet or contact me for it.
6. if buyer use it for longer time without heatsink, we do not take any responsibility.
It is IR laser,the laser light cannot be seen by human bare eyes with only using DDC/infrared camera get it.
|
