Description

TL563 Optical Power Meter Visual Fault Locator  2In1 Optical Fiber Tester 10Mw 20mw 30nw Visual Fault Locator 12KM

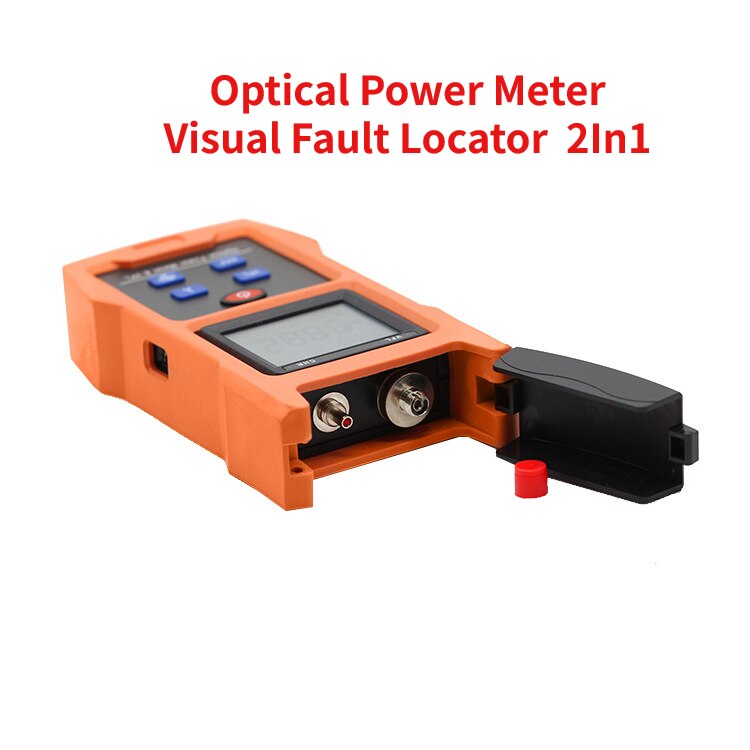

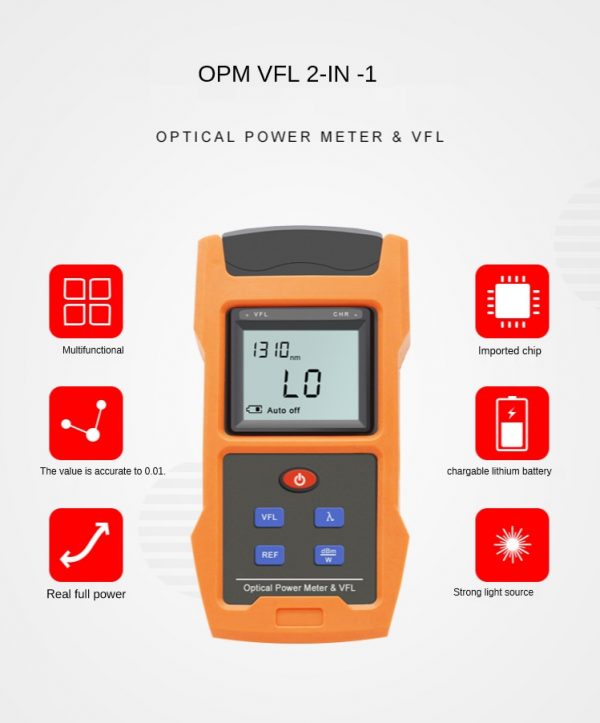

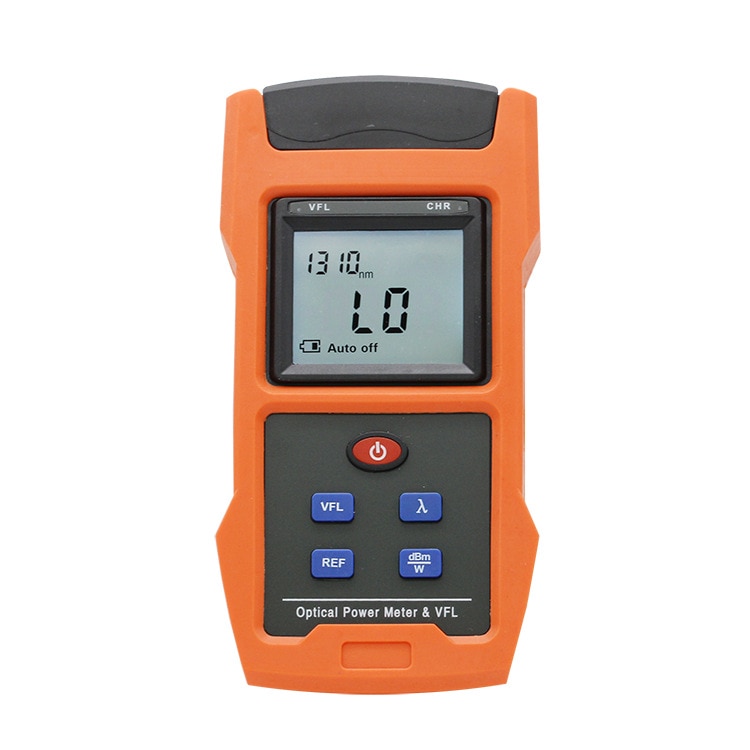

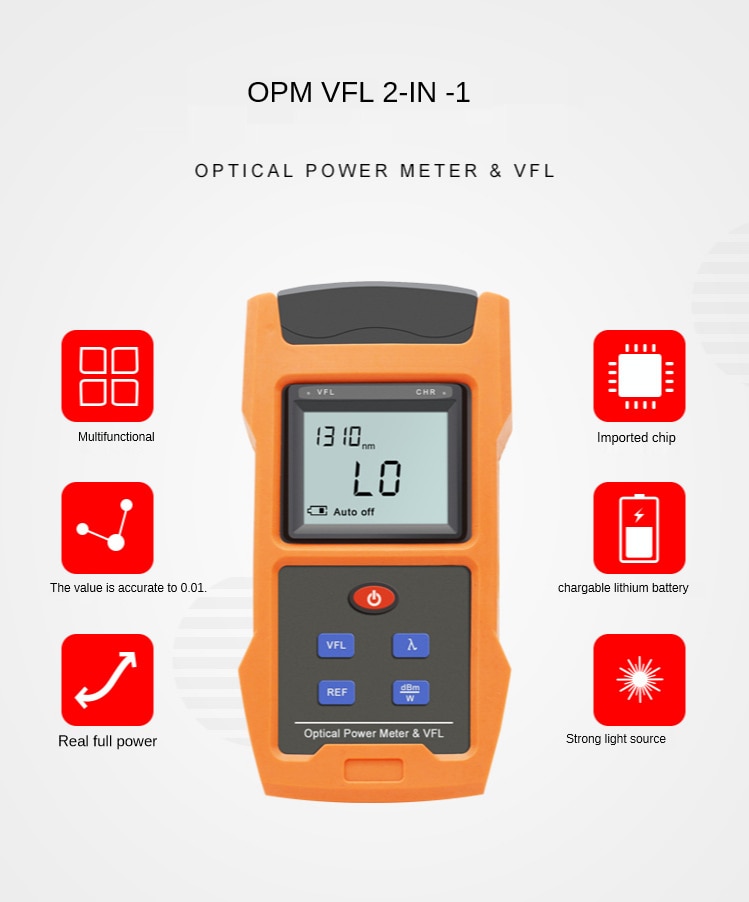

Visual fault locator  Optical power meter 2-in-1 tester

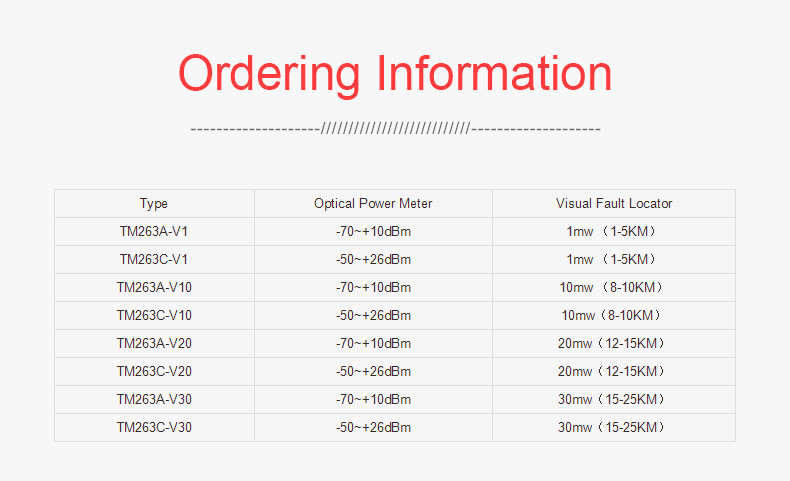

Item detial model:
TL563C (OPM:-50~+26dBm,VFL:10mw/20mw/30mw optional)

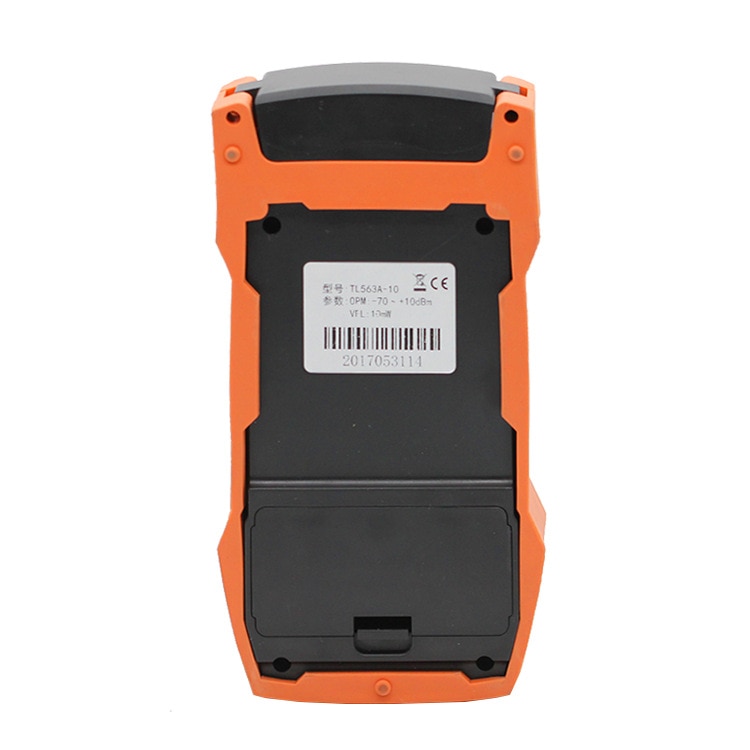

TL563A (OPM:-70~+10dBm,VFL:10mw/20mw/30mw optional)

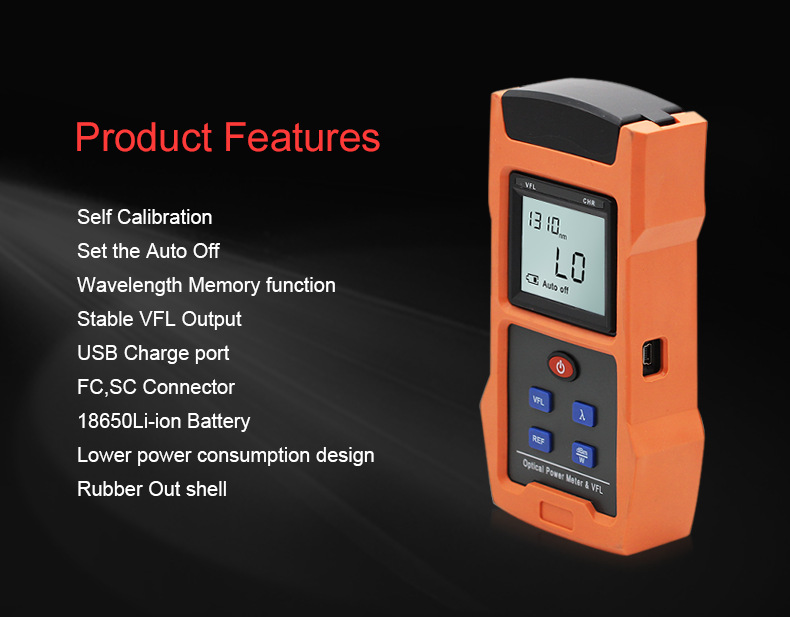

Product features :
1. Self Calibration
2. Set the Auto Off
3. Wavelength Memory function
4. Stable VFL Output
5. USB Charge port
6. FC ,SC Connector
7. 18650Li-ion Battery
8. Lower power consumption design
9. Rubber Out shell

Optical Power Meter
Detector Type: InGaAs
Optical Connector: SCIFC & 2 5mm Universal

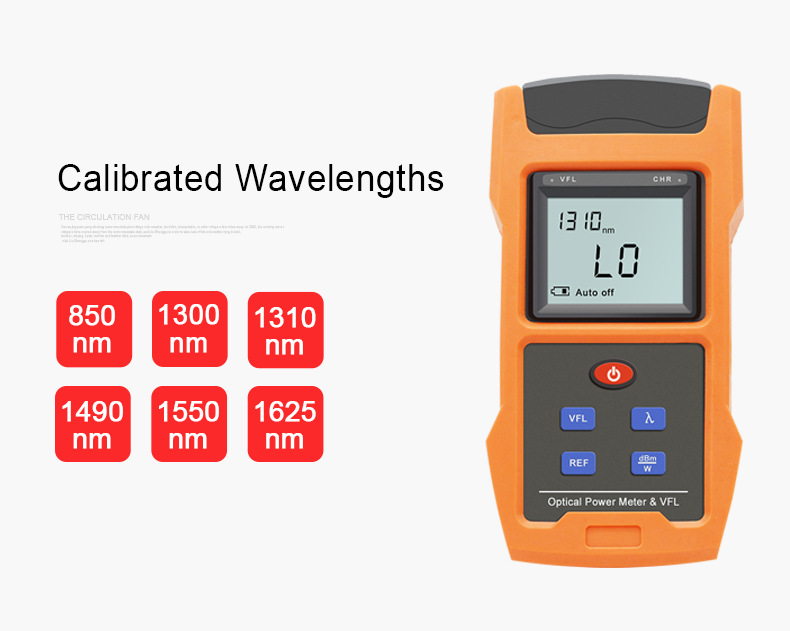

Calibrated Wavelengths: 850, 1300,1310, 1490, 1550, 1625 nm
Measurement Range:+10~ -70 dBm, +26~-50dbm optional
Accuracy: +0.2 dB
Power Measurement Lineanity: +0.1 dB
Display Resolution: +0.01 dB
Power Display Units : dBm, mW, uW

Visual Fault Locator
Output power: 1mw/10MW/20mw/30mw optional
Range: 12-km@SM
Connector: ST/SCIFC & 2.5mm Universal
Laser safety rating:Class 2
Wavelength:650nm+20nm
Output modes: Continuous (CW),2 Hz pulsed
Reverse battery protection: Yes

Others
Power Supply:18650 Li-con battery
Auto Of: 10 minutes
Working time : >200hours (only OPM Work)
z50hours (10mWVFL & OPM Work meanwhile)
Working Temperature: -10~+45
Weight:250g
Dimensions:160*75* 10mm

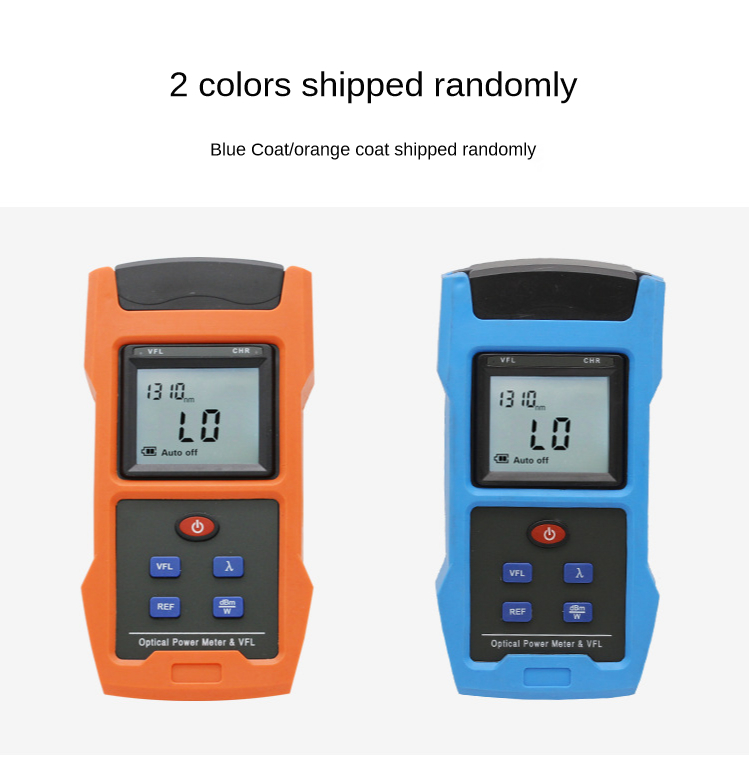

2 colors shipped randomly
Blue Coat/orange coat shipped randomly

Rubber outer shell
stable VFL output
USB charger port
Auto power off

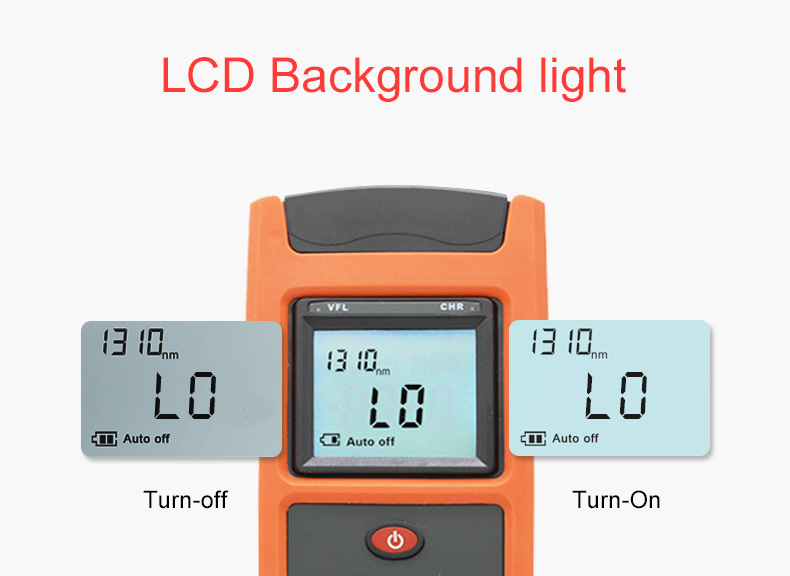

Lcd Backgroud light
Customer self-alignment

Product features :
1. Self Calibration
2. Set the Auto Off
3. Wavelength Memory function
4. Stable VFL Output
5. USB Charge port
6. FC ,SC Connector
7. 18650Li-ion Battery
8. Lower power consumption design
9. Rubber Out shell

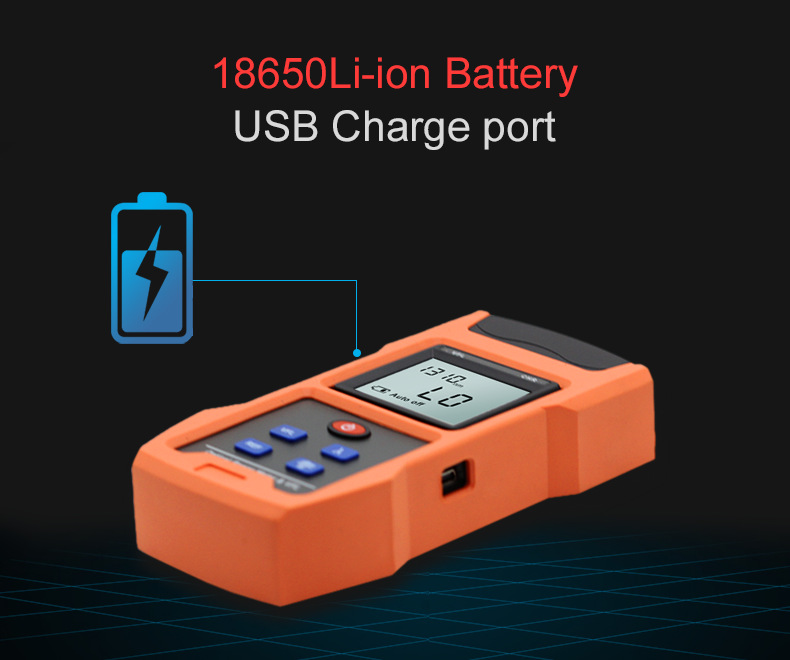

1865 liion battery
usb charger port

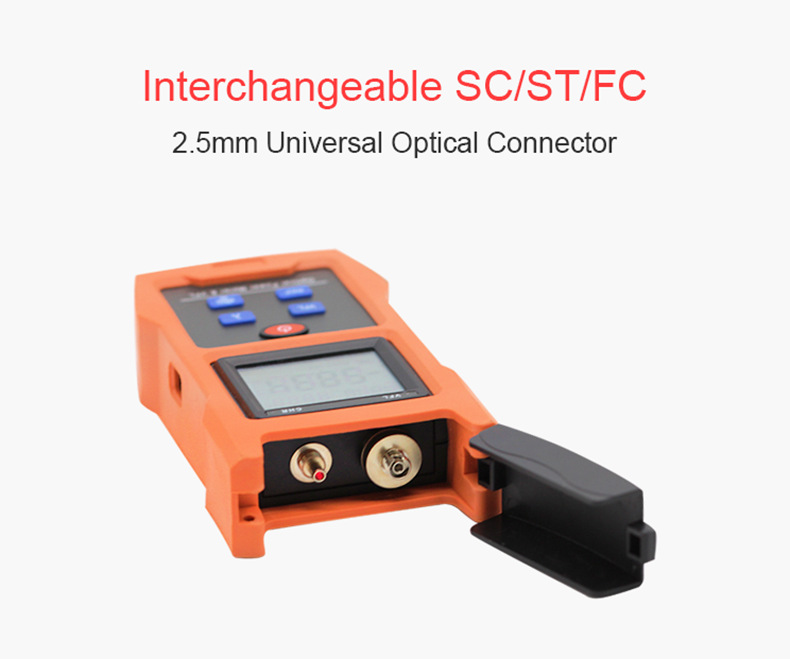

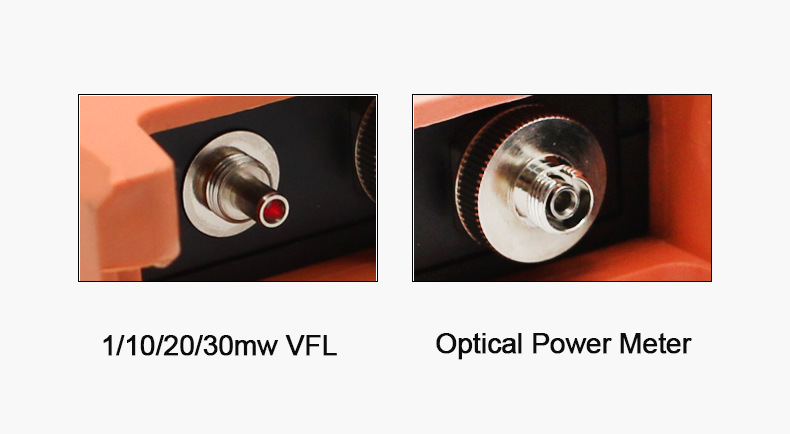

interchangeable SC/CT/FC
2.5mm universal optical connector

Optical power meter

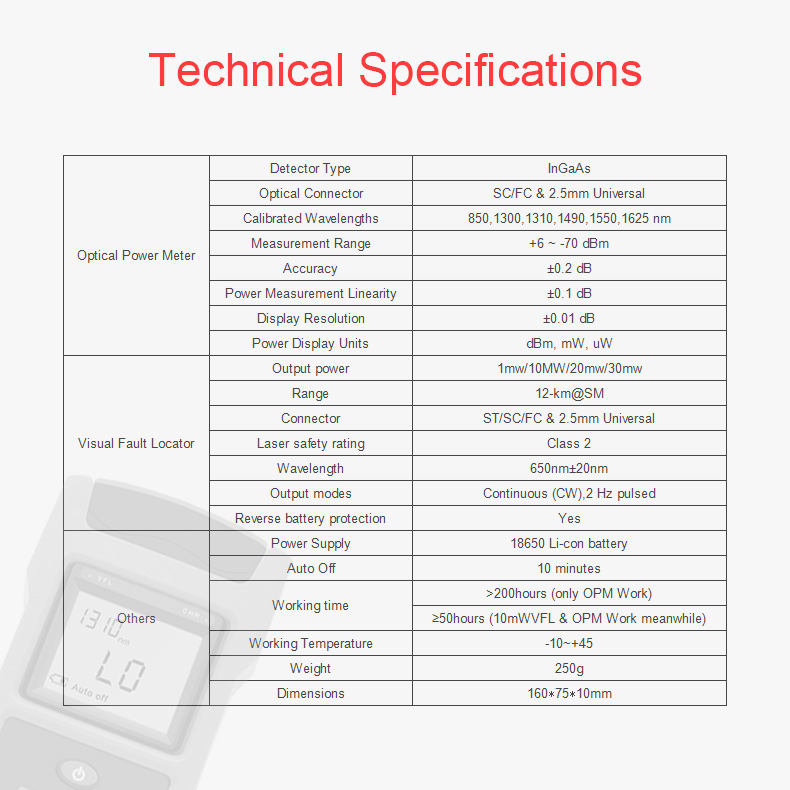

Optical Power Meter
Detector Type: InGaAs
Optical Connector: SCIFC & 2 5mm Universal
Calibrated Wavelengths: 850, 1300,1310, 1490, 1550, 1625 nm
Measurement Range: +6 ~ -70 dBm optional
Accuracy: +0.2 dB
Power Measurement Lineanity: +0.1 dB
Display Resolution: +0.01 dB
Power Display Units : dBm, mW, uW

Visual Fault Locator
Output power: 1mw/10MW/20mw/30mw
Range: 12-km@SM
Connector: ST/SCIFC & 2.5mm Universal
Laser safety rating:Class 2
Wavelength:650nm+20nm
Output modes: Continuous (CW),2 Hz pulsed
Reverse battery protection: Yes

Others
Power Supply:18650 Li-con battery
Auto Of: 10 minutes
Working time : >200hours (only OPM Work)
z50hours (10mWVFL & OPM Work meanwhile)
Working Temperature: -10~+45
Weight:250g
Dimensions:160*75* 10mm
