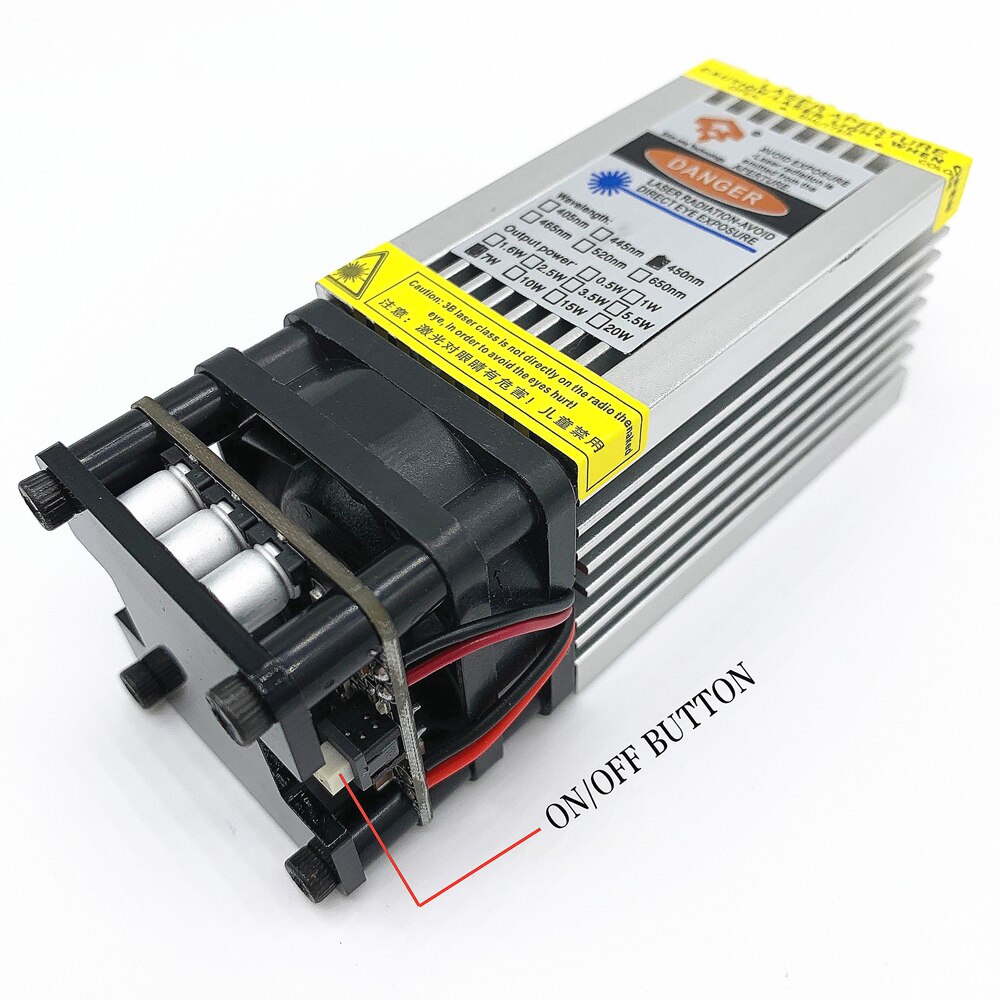

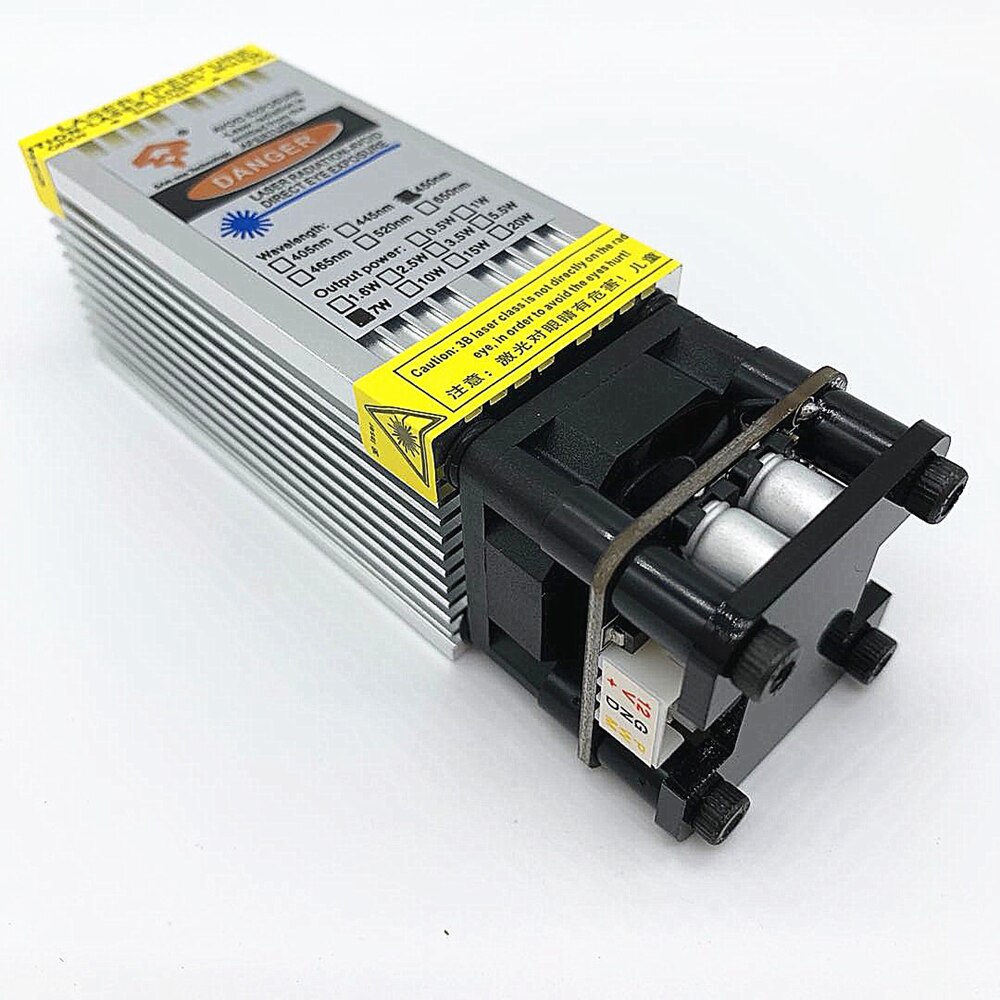

Technical Parameters

Total length of laser + fan: 105mm

Laser light source: semiconductor blue light

Shell material: aircraft aluminum

Module center material: copper

Color: Oxygen silver

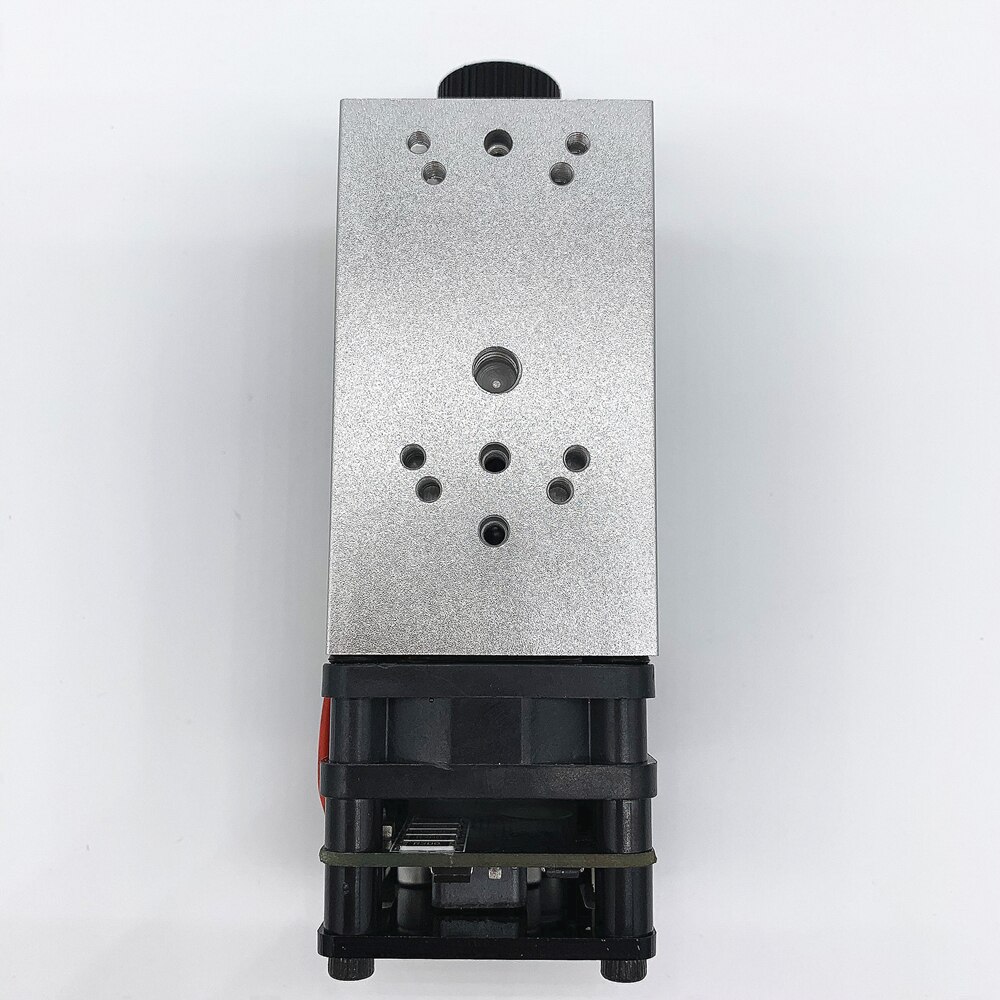

Shell size: 40×40×70mm

Optical power output: 7W

Laser wavelength: 450nm

Optical lens material: efficient light transmittance

Supply voltage: 12V

Power control: PWM TTL

Power supply current: 3.5A

Interface specifications: 3pin 2.54 /4pin 2.54

Light shape: dot, adjustable focal length

The life span is 10500 hours. (If the smoke is blurred, please add a fan when engraving or cutting)

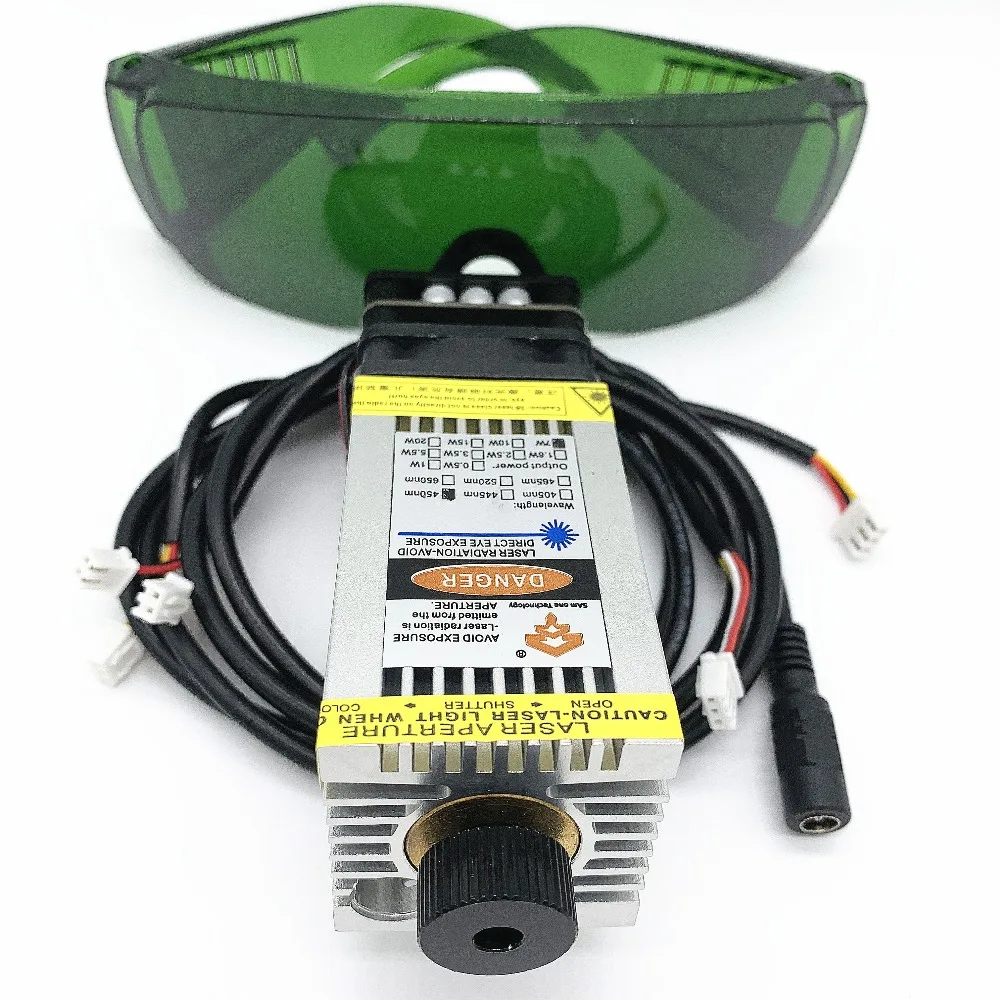

The list includes: 4P line*1, 3P line*1, short line DC*1, glasses*1, laser module*1. (The color of the glasses is delivered randomly)

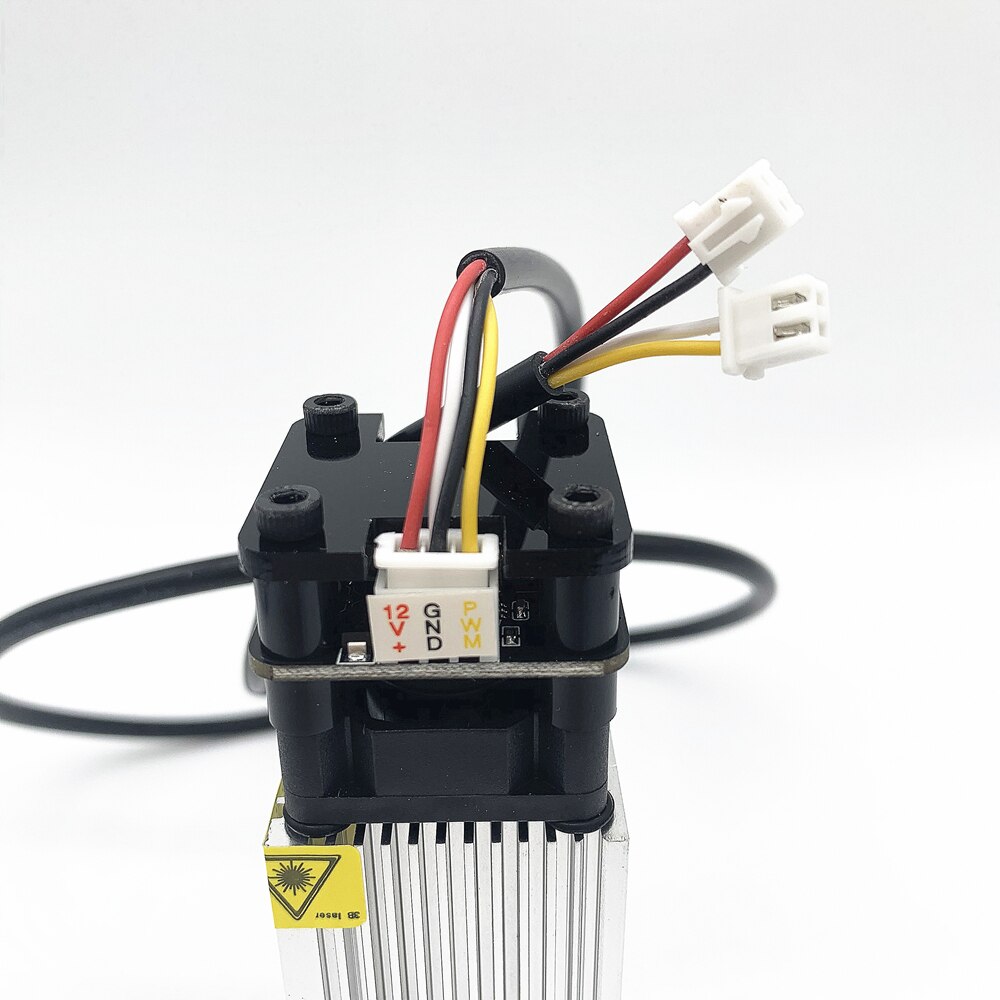

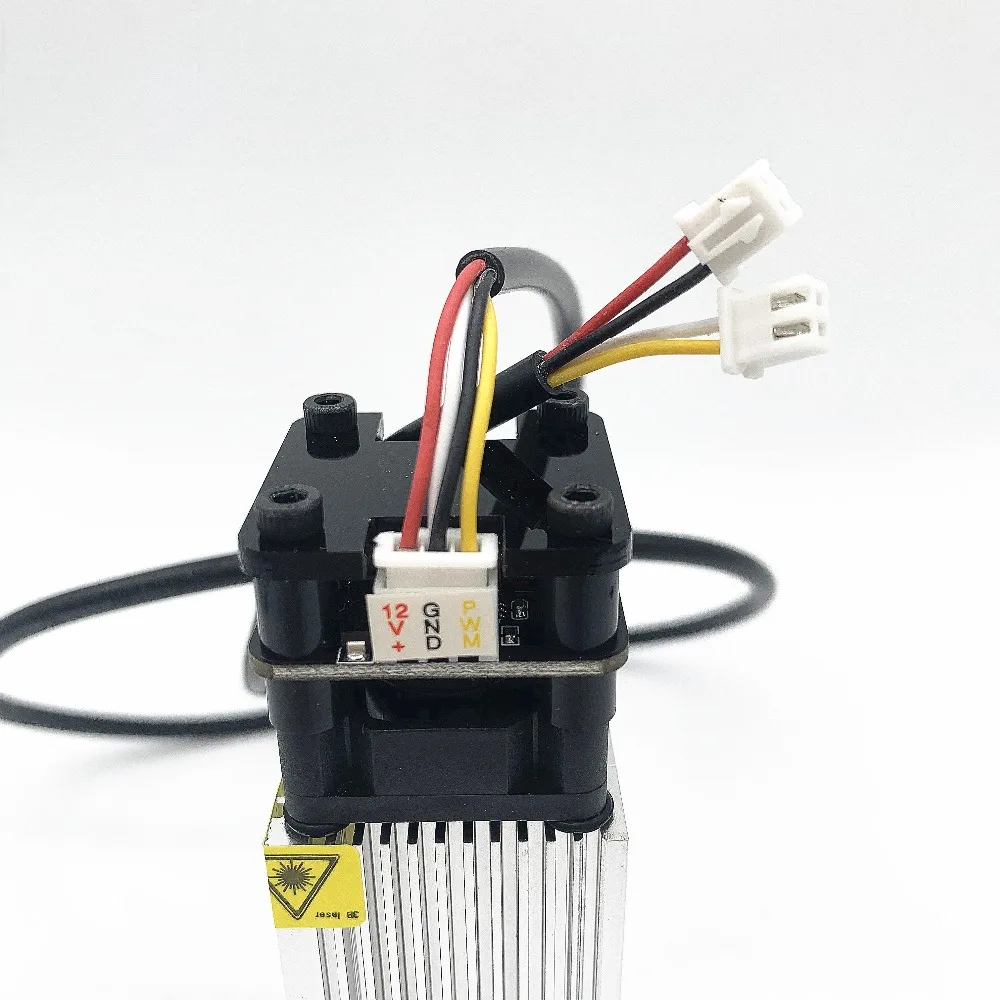

Buyers read: Please pay attention to the order of wires: 3P wire link mode, red wire 12v+, black wire GND -, yellow wire pwm+, if you need to replace, please check carefully

Buyers read: Please pay attention to the sequence of wires: 4P wire link mode, red wire 12V+, black wire 12V-, yellow wire TTL+, white wire TTL- please check carefully

Note: For industrial use only, eye contact is prohibited, children are prohibited from contacting this laser product, and the consequences are at your own risk.

Paint and oxide layers can be carved, stainless steel can be carved, aluminum raw materials and copper raw materials cannot be carved. It can be understood that metals with carbon content can basically be carved, and metals without carbon content cannot be carved.

It can engrave 201/304 stainless steel, titanium steel and anodized aluminum, stone, MDF, Balsa, wood, fabric, plastic, PCB, paper, bamboo, horn, leather, sponge paper, etc.

Not engravable: copper raw materials, aluminum raw materials, steel raw materials,

Cutting materials: cutting plywood, cutting black acrylic board, leather, paper, etc.

Cutting just proves whether the laser module has actual wattage. actual power. Frequent cutting can easily lead to power drop.

Engraving must know: Engraving reflective objects must be blacked before engraving, otherwise the reflective light will easily damage the laser lens, or the engraving will not be effective.

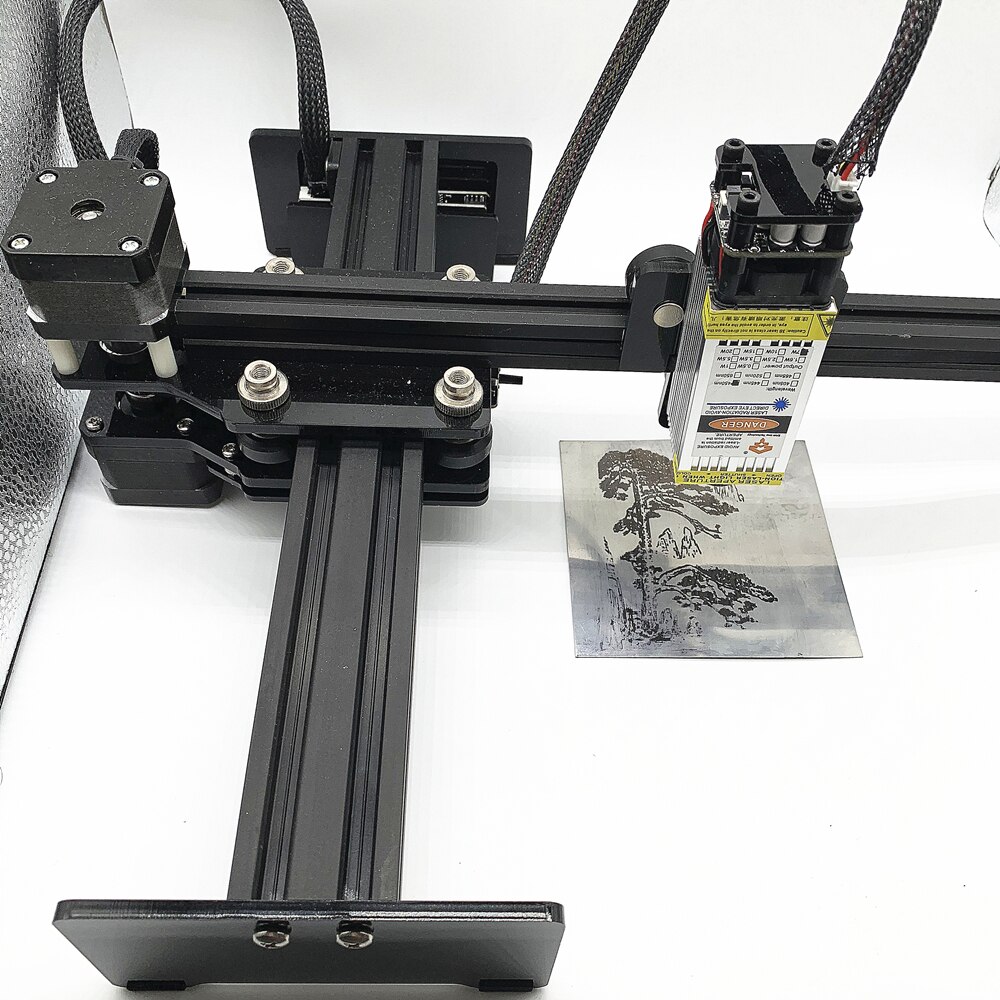

You need to know whether this size laser head is suitable for installing your machine.

If you don’t know whether this laser head can use your engraving machine, you can send me a picture of your engraving motherboard. If you take a clear picture, you can see the letters displayed on the interface between the engraving motherboard and the laser module.
