Description

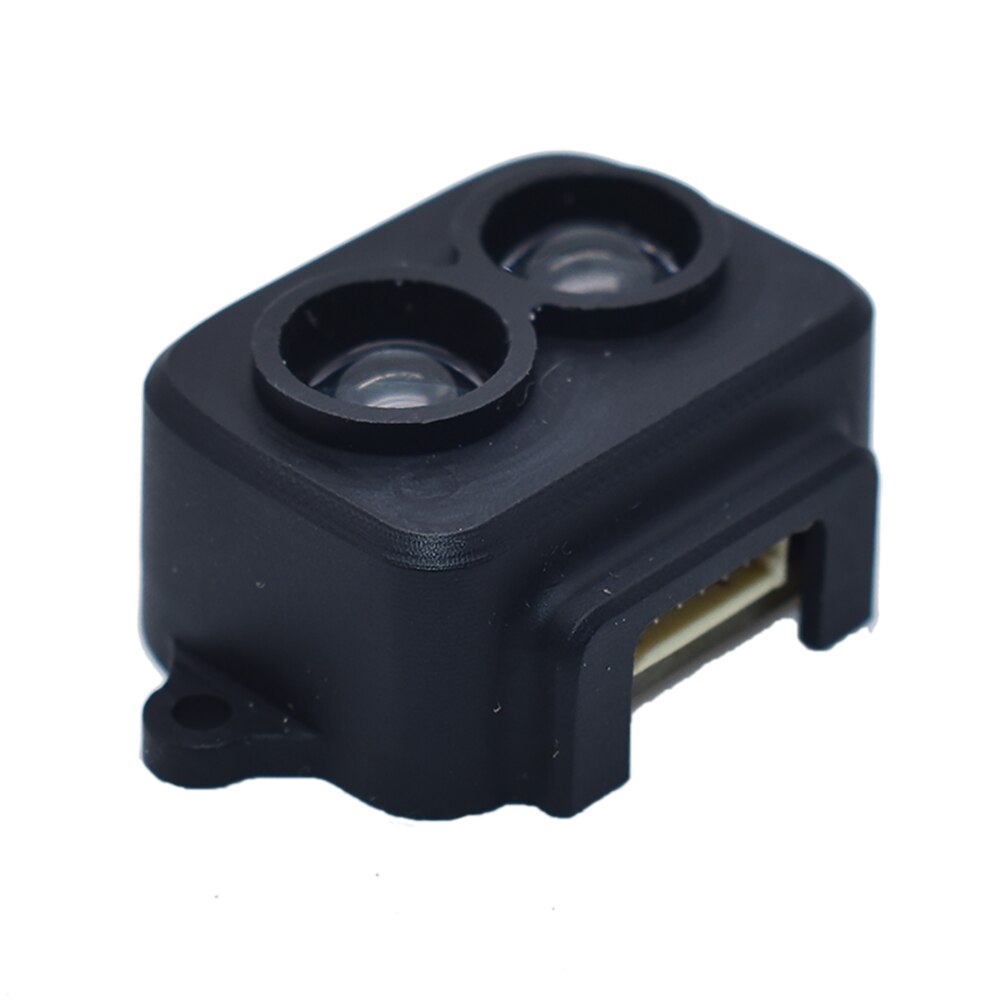

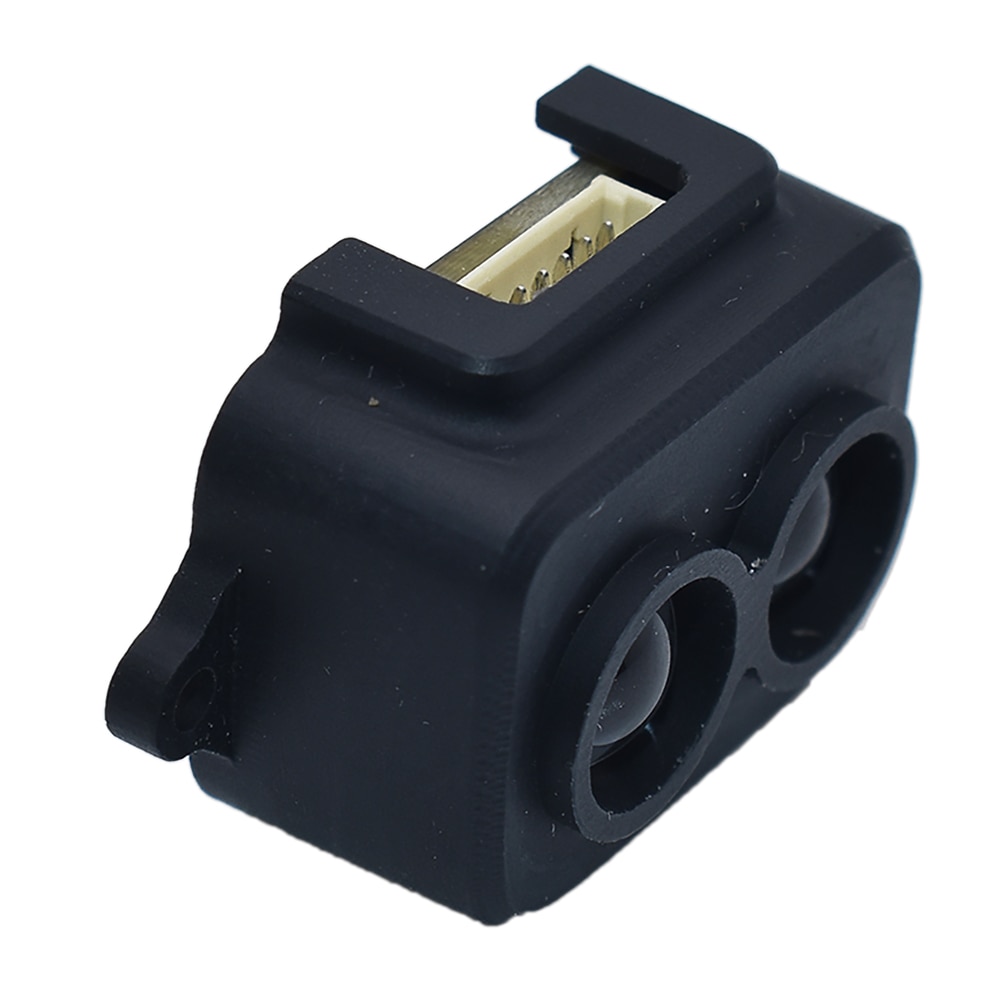

Description of TFmini -S
Specifications:
Operating Range : 0.1-12m
Maximum operating range at 10% reflectivity : 5m
Applicable voltage range : 4.5-6V
Average power consumption : 0.12W
FOV : 2°
Communication interface : UART/I2C
Electromagnetic Compatibility(EMC):EN 55032 Class B
Baud rate:115200
Data bit:8
Stop bit:1
Parity bit:0
Minimum resolution ratio : 5mm
Frequency: 100Hz(1-1000Hz adjustable)
Light source:VCSEL
Wavelength:850nm
Operating temperature : 20-60C
Light sensitivity : 70,000lux
Accuracy : 1% (less than 6m), 2% (6m-12m)
Size : 42mm * 15mm * 16mm
Weight : 6.1g
Certification:CE,FCC,ROHS
Major Applications:
Traffic Monitoring
Obstacle detection
Level measurement
Smart device
Security and obstacle avoidance
Drone altitude holding and terrain following
Machine control and safety sensors
Distance measuring instrument
Description of TFmini Plus
Description of TF02
TF02 LIDAR LED Rangefinder Single Point Ranging IP65 22M Benewake for Arduino Pixhawk Drone

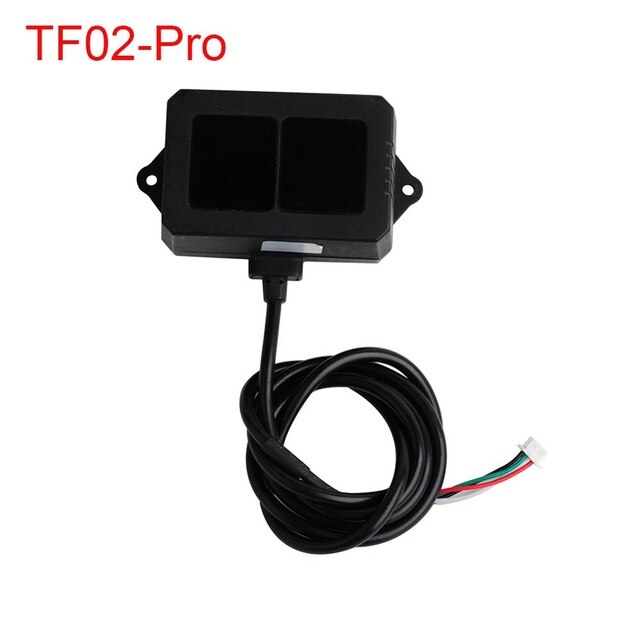

Description of TF02-PRO
TF02-Pro is the improve version of TF02, it is a newly developed product based on the widespread application
experience of TF01. It possesses a higher performance and is applicable to more fields. On the basis of preserving multiple advantages from the last generation,
TF02-Pro highly optimizes the energy system, product structure, fusion algorithm,
and shell material so as to achieve a 22-meter-long range and a more stable
ranging performance. Combining an innovative production process and multiple
software and hardware optimizations, Benewake upgrades LiDAR truly to a
consumer level and makes it applicable in numerous fields.
Feature:
High sensitivity, and able to measure as far as 22 meters
High speed measurement with a maximum sampling frequency of 100Hz
Excellent anti-ambient light usability (operable under 100kLux ambient light)
Protection grade reaches IP65
Anti-corrosive against pesticide
Small in size and light
Operating Range: 0.4-22m
Frequency: 1-10KHz
FOV : 3°
Communication interface: UART RS485 I2C
