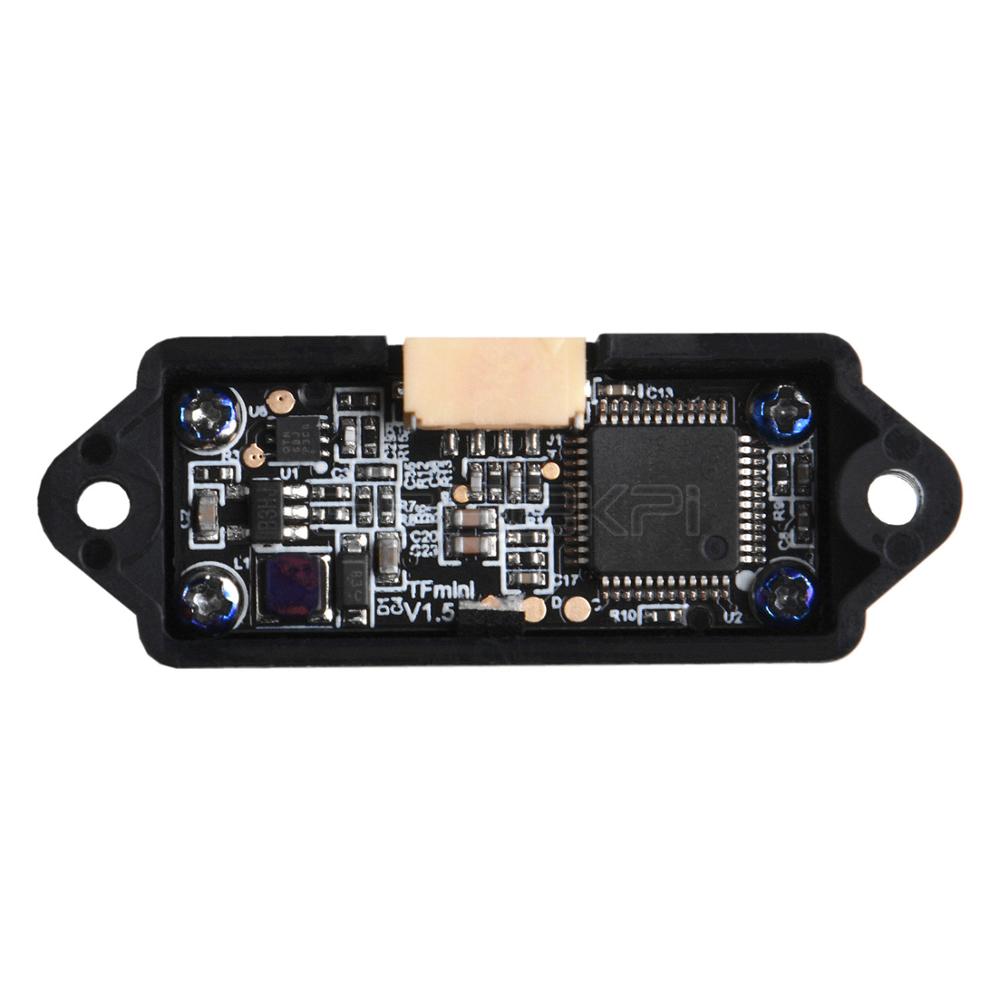

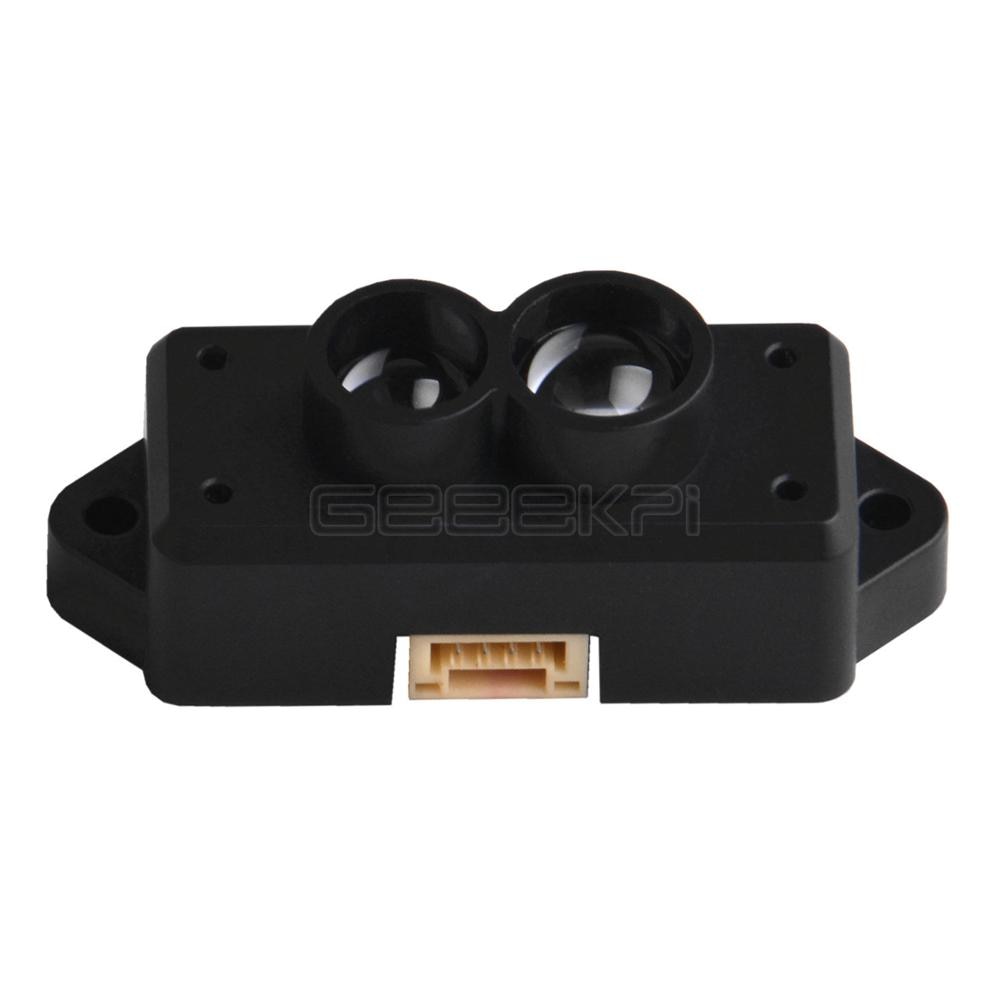

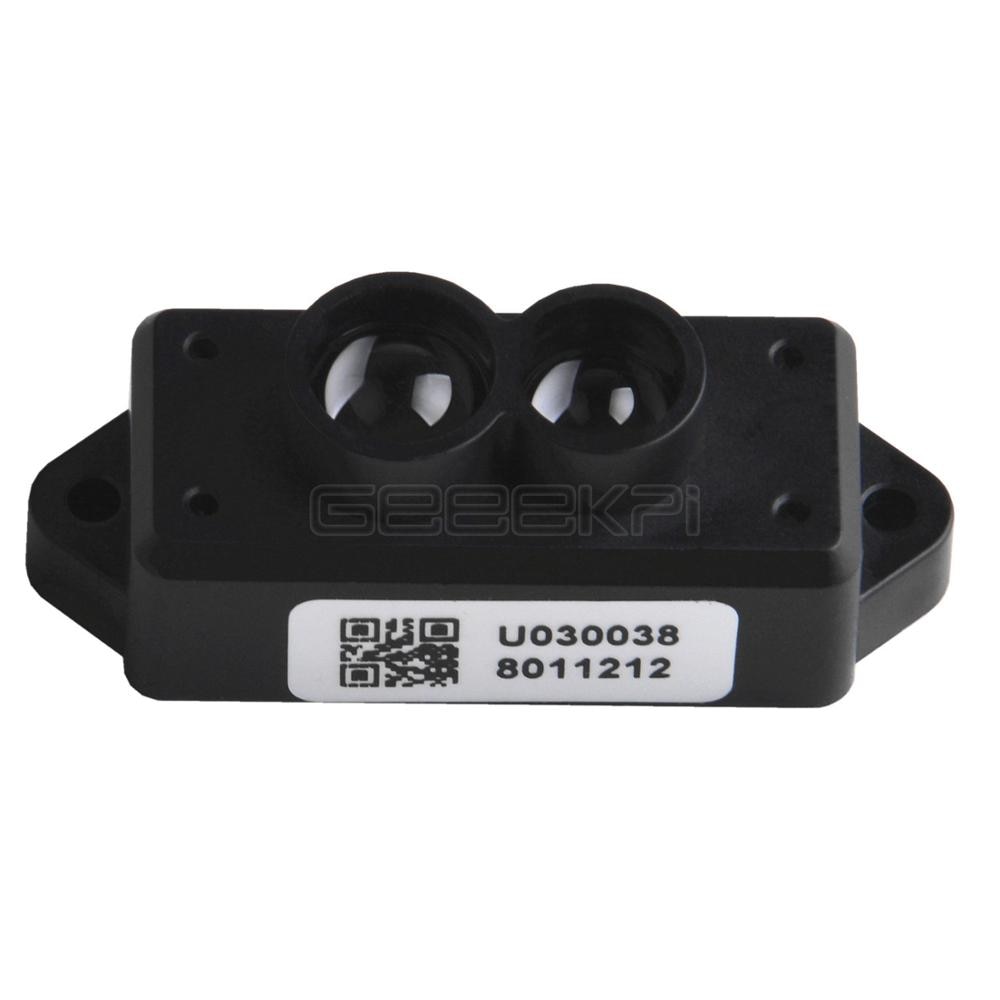

TFmini Micro LiDar Module

Description:

TFmini is a mini LiDAR module. It is mainly capable of the function of real-time and contactless distance measurement and is featured by accurate, stable and high-speed distance measurement

TFmini is based on TOF, namely, Time of Flight principle. To be specific, the product transmits modulation wave of near infrared ray on a periodic basis, which wave will reflect after contacting object

Features:

• Operating Range(Indoor): 0.3m~12m
• Range resolution: 5mm
• Frequency: 100Hz
• Default unit of distance output: cm
• Light sensitivity: 70klux
• Operating temperature: 0~60°C
• Light source: LED
• Wavelength: 850nm
• Receiving half angle: 1.15°
• Transmitting half angle: 1.5°
• Power supply voltage: 5V
• Average current: ≤120Ma
• Average power: ≤0.6W
• Peak current: 800mA
• Communication level: LVTTL (3.3V)

Package List:

• 1x TFmini Micro LiDar Module
• 1x Data Wire

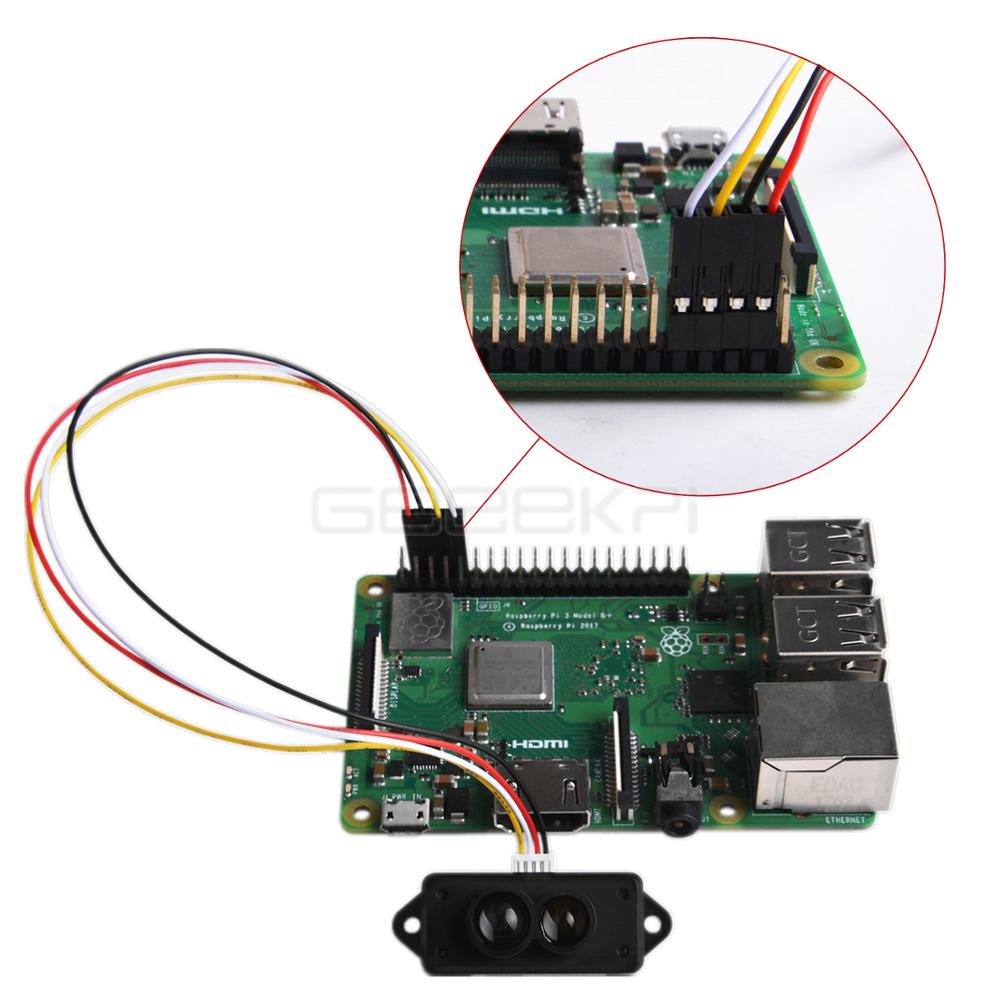

• 1x DuPont line (Connect with Raspberry Pi Board
