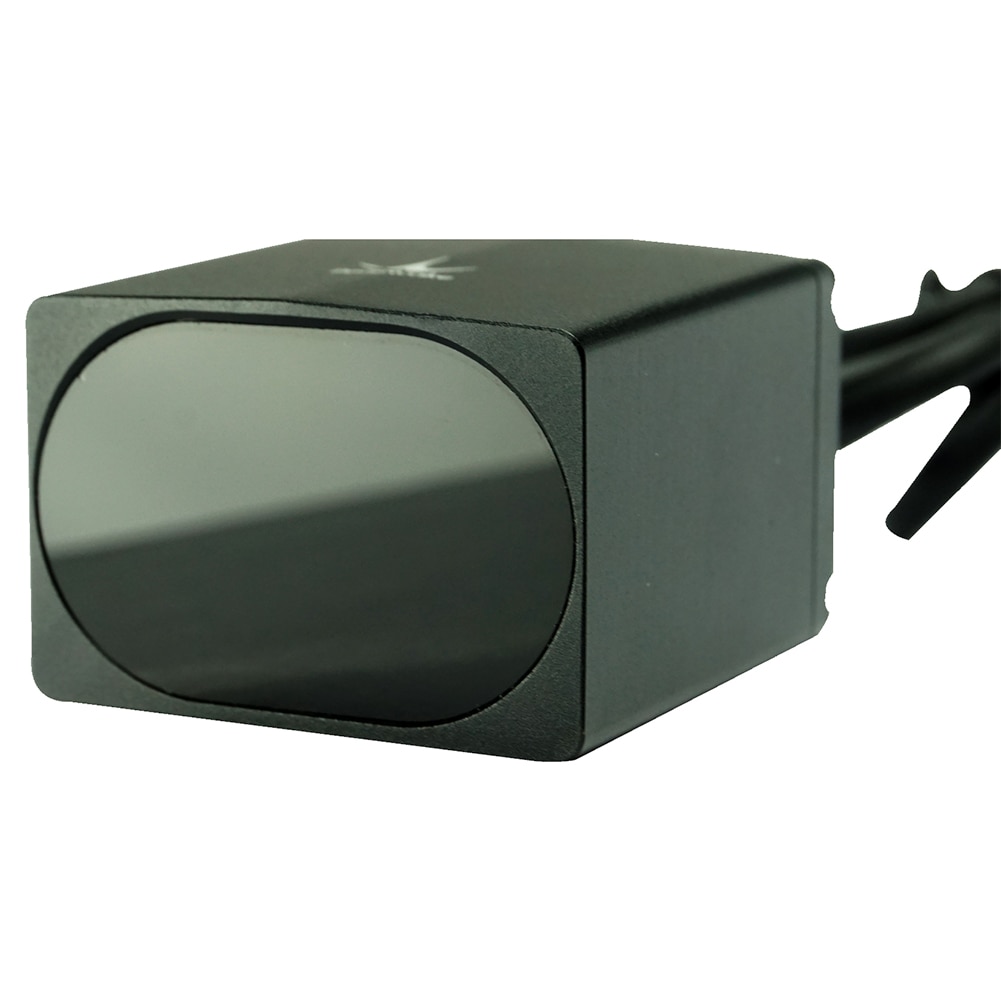

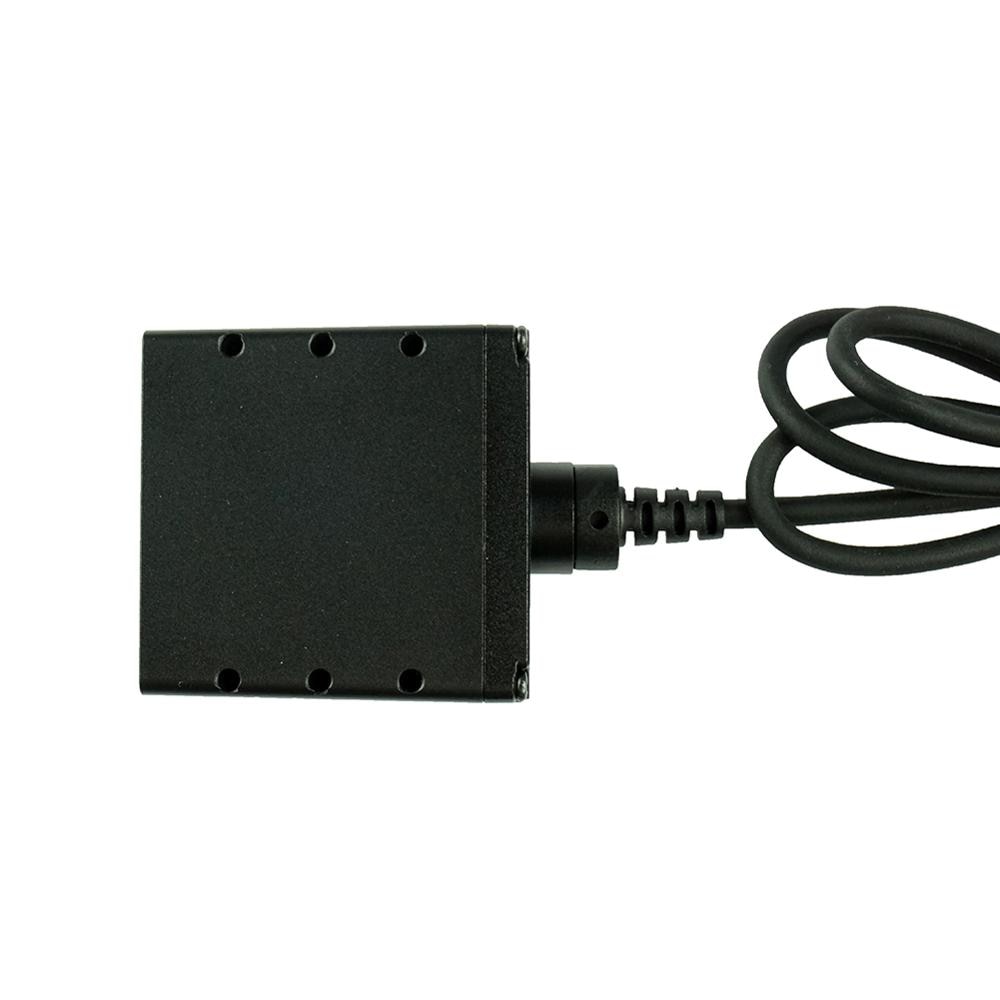

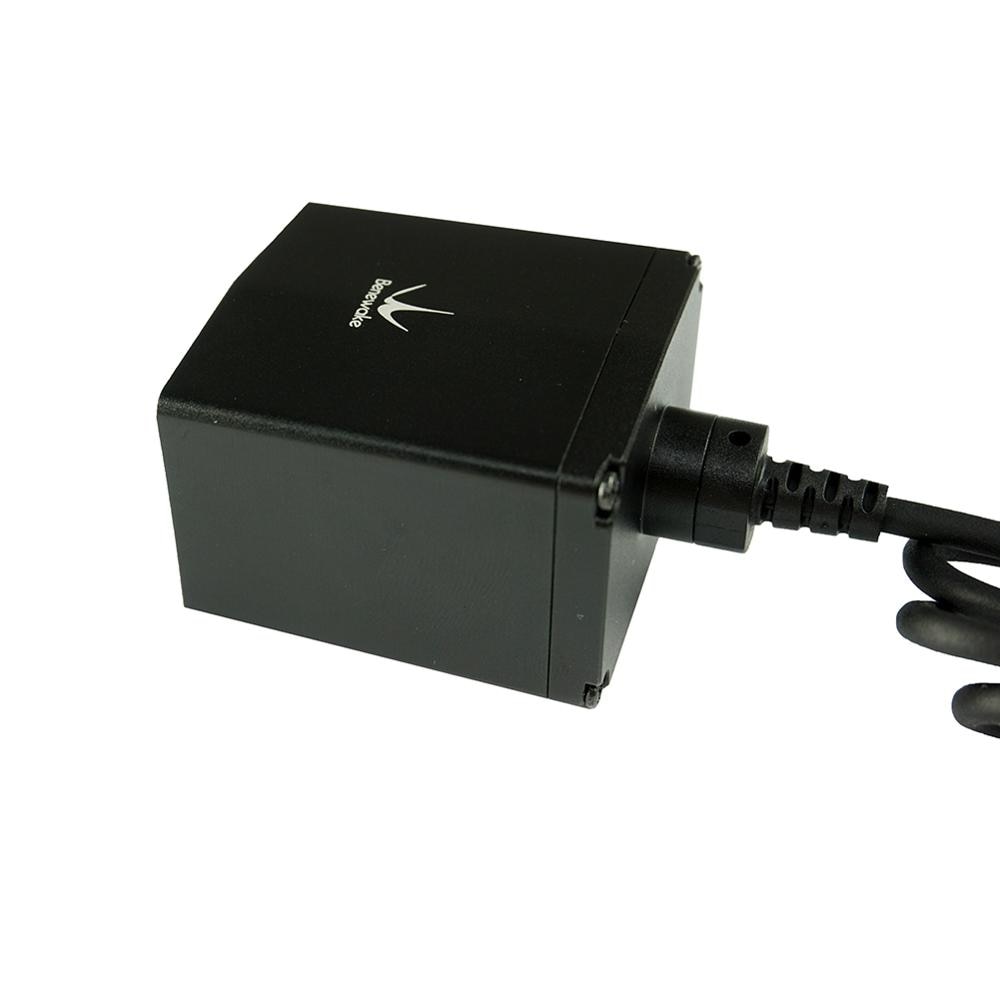

TF03 LiDAR ToF Laser Rangefinder IP67 Range Sensor Up to 100m/180m UART/CAN/IO,RS485/RS232

Description

TF03 LiDAR ToF Laser Rangefinder IP67 Range Sensor Up to 100m/180m UART/CAN/IO,RS485/RS232

Product specification:

TF03 is a industrial high-speed LiDAR, It contains two versions with 100m and 180m.

TF03 includes compensation algorithms for outdoor glare and other interference, so it works normally under strong light environment and rain, fog and snow conditions. Different built-in operating modes let customers change parameters and configuration to meet their need.

Descriptions of TF03-100

Technical specifications:

Two versions of TF03-100 are available to customers who have different interface and power supply requirements:

1) Standard version supports TTL serial port and CAN interface with 5V power supply (If 6-24V power supply is needed, please contact sales).

2) RS485/RS232 version supports RS485/RS232 interface with 6-24V power supply.

Communication interface

TF03-100 standard version supports TTL serial port as default, and CAN communication mode is also available to use if needed. Command are provided for modifying to CAN mode, but only one of the two modes are working,two of them cannot output at the same time.TF03-100 RS485/RS232 version supports RS485 and RS232 communication modes at the same time. By default,TF03-100 standard version supports TTL serial port as default, and CAN communication mode is also available to

use if needed. Command are provided for modifying to CAN mode, but only one of the two modes are working,

two of them cannot output at the same time.

TF03-100 RS485/RS232 version supports RS485 and RS232 communication modes at the same time. By default,

both interfaces can communicate, and different interface lines can be used.

Product Performance

Operating Range:

0.1m-100m@90% reflectivity

0.1m-40m@10% reflectivity

0.1m-80m@90% reflectivity &100Klux

0.1m-30m@10% reflectivity &100Klux

Accuracy: ±10cm (within 10m), 1%(10m and futher)

Distance Resolution: 1cm

Frame Rate: 1Hz-1000Hz Adjustable (Default 100Hz)

Ambient Light Immunity: 100klux

Repeatability: 1σ：<3cm

Operating Temperature: -25℃~60℃

Enclosure Rate: IP67

Optical Parameters

Light Source: LD

Wavelength of Light Source: 905nm

FOV Angle: 0.5°

Laser Class: CLASS1 (EN60825)

Electrical Parameters

Supply Voltage: 5V±0.5V

Average Current: ≤180mA

Power Consumption: ≤0.9W

Peak Current: ≤180mA

Communication Voltage Level: LVTTL（3.3V）

Communication Interfaces: UART/CAN/IO ; RS485/RS232

Descriptions of TF03-180

Product Performance

Range: 0.1m-180m@90% reflectivity

0.1m-70m@10% reflectivity 0.1m-130m@90% reflectivity &100Klux， 0.1m-50m@10% reflectivity &100Klux

Accuracy: ±10cm (less than 10m), 1%(more than 10m)
