Description
Specification:
ONLY FOR PROFESSIONALS
Supply Voltage: AC24-0-24V
Output power:
80W +80 W (TDA7294)
100W +100 W (TDA7293)
Speaker Impedance: 8 ohms -16 Europe
Dimensions: Length 141mm width 76MM high 45mm (without pillars)
Weight: 0.2KG / sets
Supply Voltage: AC24-0-24V
Output power:
80W +80 W (TDA7294)
100W +100 W (TDA7293)
Speaker Impedance: 8 ohms -16 Europe
Dimensions: Length 141mm width 76MM high 45mm (without pillars)
Weight: 0.2KG / sets
Feature:
2 22UF/50V capacitance between the amplifier chip negative upward install = TDA7293,
To the left to install = TDA7294,
Magnification adjustment method,
To change before class 47K resistor value, you can choose between 1-10 times,
Greater attention to larger multiples of the greater noise,
Recommended 2-3 times is appropriate.
To the left to install = TDA7294,
Magnification adjustment method,
To change before class 47K resistor value, you can choose between 1-10 times,
Greater attention to larger multiples of the greater noise,
Recommended 2-3 times is appropriate.
Package:

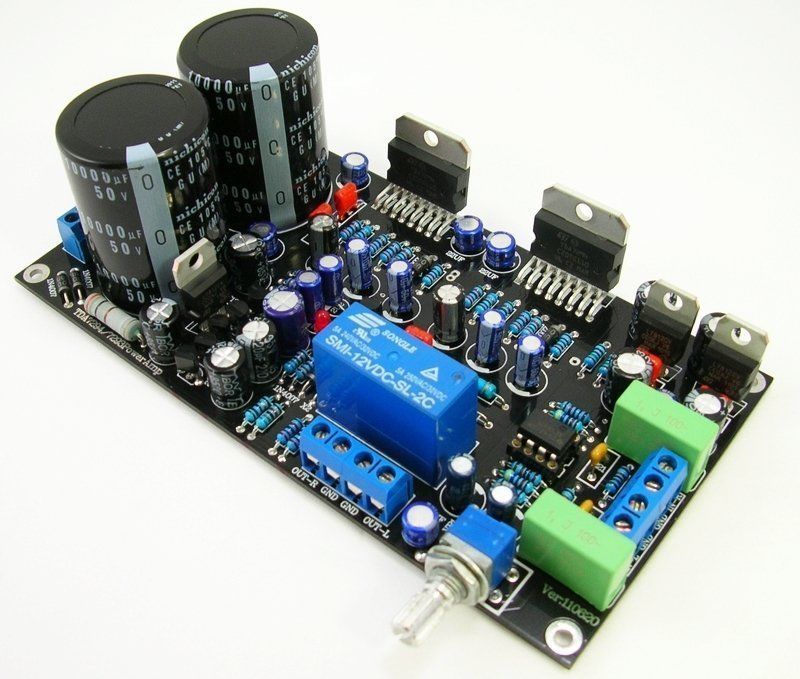

1 x TDA7294 Integrated AMP Kit
