Description
Specification:
| General Specification | |
| Model | T05 |
| Heatsink Material | Aircraft Aluminum |
| Luminous Color | Blue |
| Section Size | 43mm x 43mm |
| Cooling Mode | Heat Sink Groove, Cooling Fan |
| Dimension | 76 * 43 * 43mm |
| Adapter Plug | US Plug |
| Adapter Input Voltage | AC 100-240V |
| Adapter Output Voltage | DC 12V 5A |
| Can Engrave | MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum |
| Can Not Engrave | Metal/Glass/Stone/Ceramics/Stainless Steel/Reflective Material/ Transparent Material |
| Technical Parameters | |
| Laser Power | 5500mW |
| Wavelength | 445nm |
| Beam Shape | Dot (Focusable) |
| Working Voltage | DC 12V |
| TTL/PWM Modulation | YES |
| Input Voltage | DC12V (+,-, PWM) + DC5V (TTL,-) |
| Input Interface | XH2.54-3P (+,-, PWM) + XH2.54-2P (TTL,-) |
| Drive Mode | External ACC |
| Life Time | >10,000 hours |
Features:

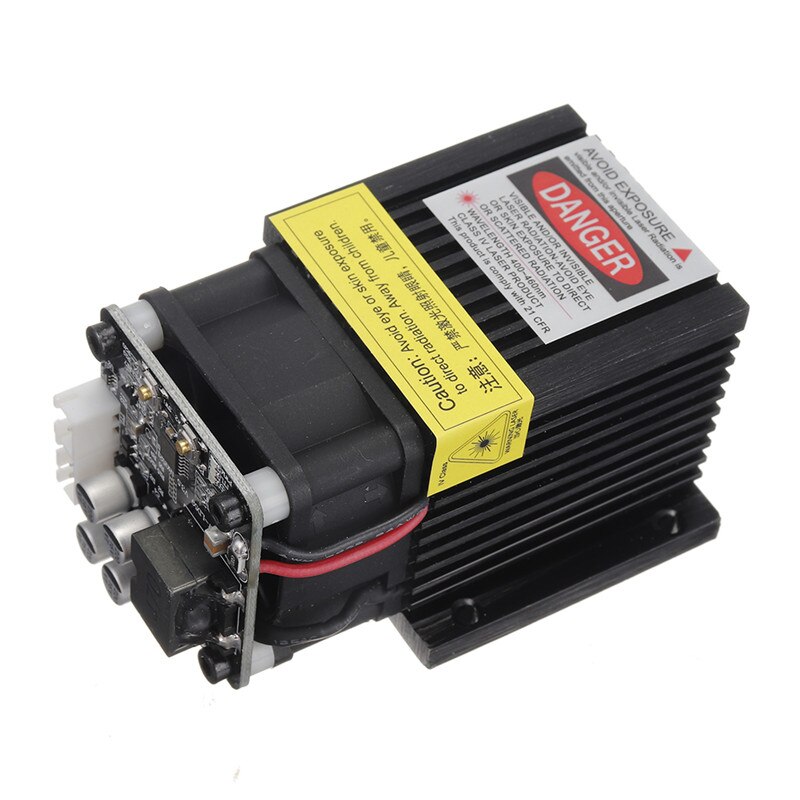

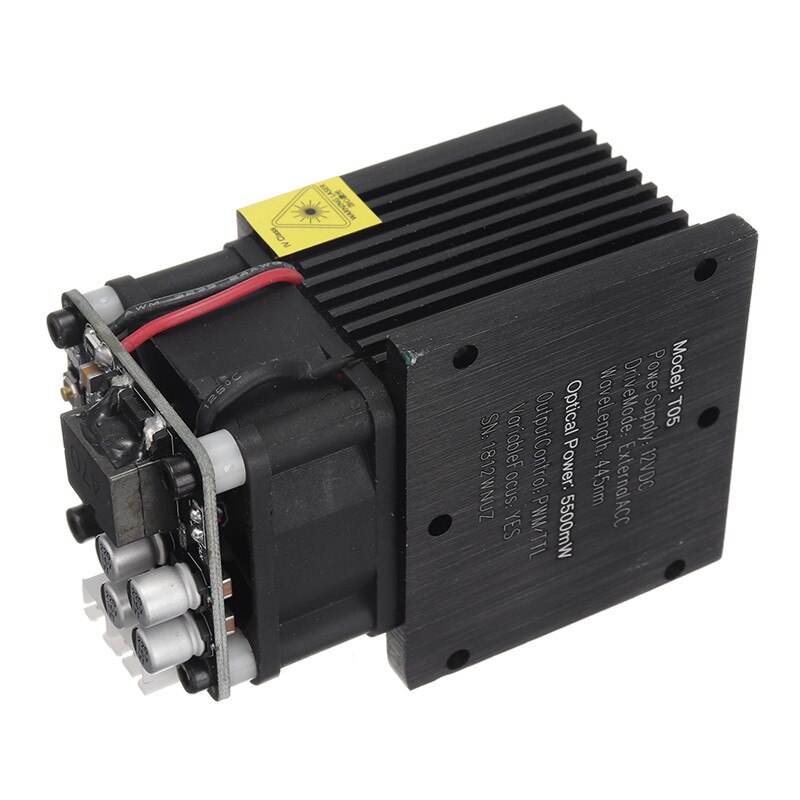

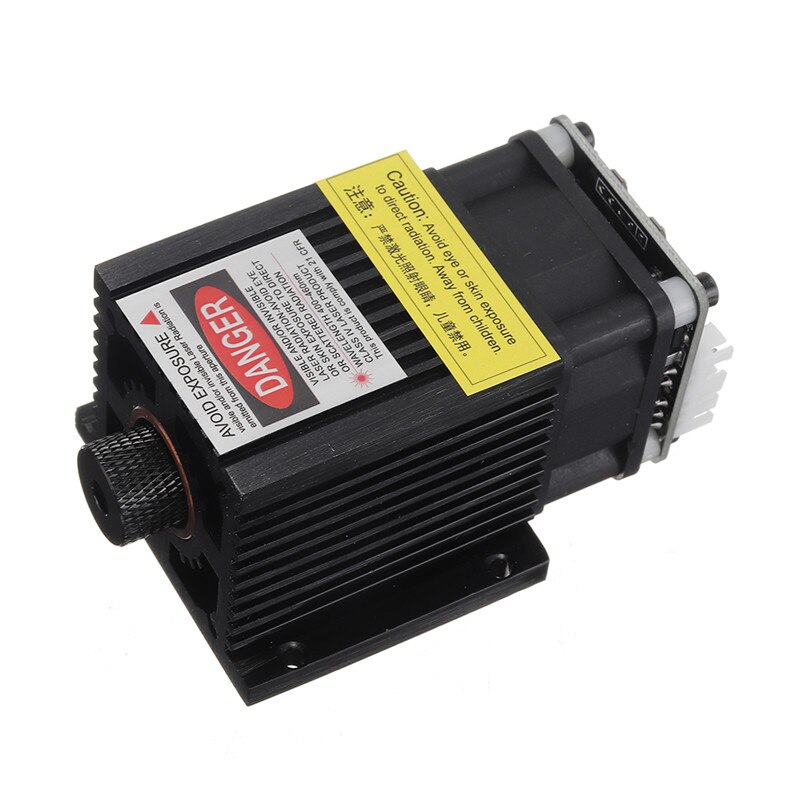

– T05-5500 445nm 55000mW focusable powerful blue laser module, with both TTL and PWM functions. (TTL can control the switch and PWM can control the power).
– Aircraft aluminum heatsink with cooling fan ensure long working time continuously.
– Equipped with constant-current driver board ensure stable output optical power, low heat no external driver board needed, easy to use.
– 3 pins plug for DC 12V power supply and PWM, 2 pins plug for TTL, TTL/PWM drive mode, suitable for laser engraving machine equipment usage.
– Can Engrave: Wood, Plastic, PCB, Paper, Bamboo, Ox Horn, Leather, Sponge Paper, Metal, Stone, Ceramics, etc.
Can Not Engrave: Glass, Reflective or Transparent Material.
Notice:
1. Please wear laser goggles during usage, avoid to touc。h the laser directly to the eyes and skin! Keep away from children and pets.
2. Note that the laser module works less than half an hour in one time, and please wait until it has cooled down before continuing the work.
3. The warranty period of laser module is one month. If you have any quality problem(Except individual situation like using the laser module more than 30 minute one time and casue the damage ), please feel free to ask our customer service for a help. Thanks for your understanding.
Package Included:

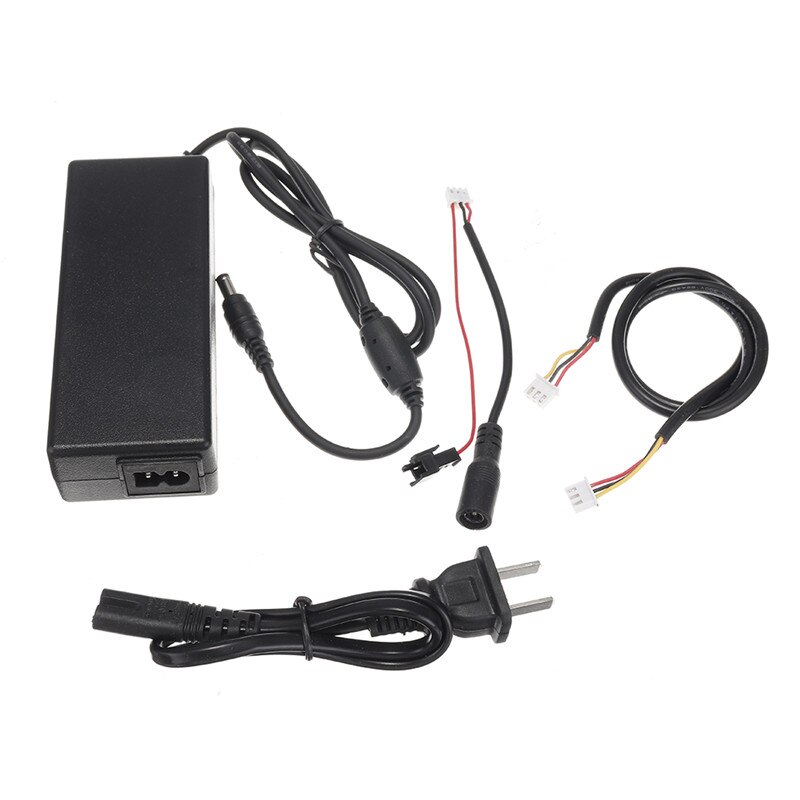

1 x T05-5500 5500mW Blue Laser Module
1 x Power Adapter
2 x Connector Cables (As The Picture Shown)
(Carboard Box Packing)
