Description
- Brand Name: EMDSXGO
- Accessory Type: Extension Board
- Origin: Mainland China
- Compatible With: new
In order to improve the crystal quality, a new MOCVD (metal organic chemical vapor deposition) crystal growth device optimized for the production of GaN-based materials, the constituent material, has been developed. This MOCVD apparatus can perform crystal growth on a plurality of substrates at one time, and can cope with the increasing demand for semiconductor laser diodes for Blu-ray discs in the future. In addition, a process and a process apparatus that can ensure high productivity in the wafer processing process following the crystal growth process have also been developed.
The SLD3237VF is housed in a 5.6mmφ standard package. The working temperature range is 0～85℃. In addition, the “SLD3237VFR” packaged in a 3.8mmφ small diameter package for thin IT drivers was also launched. The pulse output of this product is 350mW, and the operating temperature range is 0~90℃. Sample prices for both products are 1,000 yen. Production will take place at Sony Shiraishi Semiconductor, a wholly-owned subsidiary of Sony.
baby description:

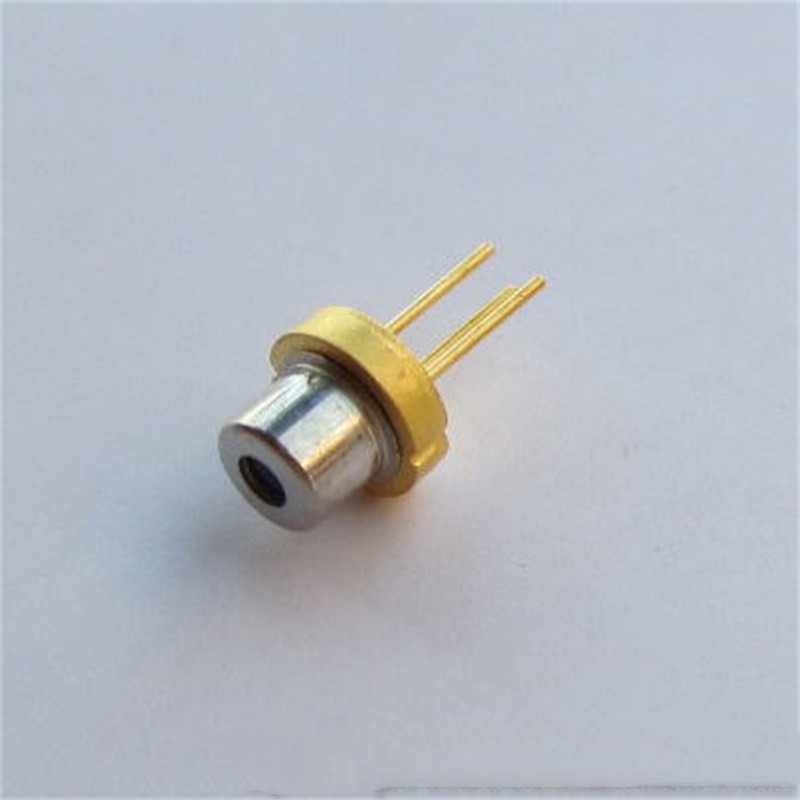

Product Name; Brand New Original Blue Laser Diode
Output power: CW 150mW Max 350mW
Working current: Max 260mA
Working voltage: 5V
Package form: T038 (3.8mm)
Working temperature: +10℃/+70℃
Storage temperature: -40℃/+85℃
Working life: more than 10000 hours
Precautions:
This component is sensitive to static electricity. Please do not directly touch the laser tube body without taking anti-static measures. In addition, this product must have a qualified driving circuit to work normally. The voltage of different powers is the same, but the working current is different. The drive current needs to be controlled within a safe range, otherwise it will affect the life.
