Description
Product Description
Specification
|
Model
|
SW-800B/SW-1000B/SW-1500B
|
SW-600A/SW-1000A/SW-1500A
|
|
Working Range
|
800M/1000M/1500M
|
600M/1000M/1500M
|
|
Magnification
|
(6.0±5%)X
|
7X
|
|
Unit Selection
|
M, Y
|
M, Y
|
|
Field of view
|
6°±10%
|
±7°
|
|
Scan Distance Measure
|
Yes
|
Yes
|
|
Distance Accuracy
|
±(1.0m+D*0.2%)
|
±1.0M
|
|
Speed Measure Accuracy
|
±5kM/H
|
±5kM/H
|
|
Speed Measurement
|
Yes
|
Yes
|
|
Height Measurement
|
Yes
|
Yes
|
|
Flagpole Locking
|
Yes
|
Yes
|
|
Area Measurement
|
Yes
|
NO
|
|
Volume Measurement
|
Yes
|
NO
|
|
Angle Range
|
±90°
|
±90°
|
|
Angle Accuracy
|
±1°
|
±1°
|
|
Dioptre Adjustable Range
|
±6°
|
±3°
|
|
Objective caliber
|
23.7mm
|
24mm
|
|
Eyepiece caliber
|
15mm
|
16mm
|
|
Exit pupil caliber
|
3.7mm
|
3.8mm
|
|
Automatic store function
|
30 units
|
NO
|
|
Battery
|
750mAh Li-ion(Built-in)
|
750mAh Li-ion(Built-in)
|
|
Water Resistant
|
IP54
|
IP54
|
|
Measure function
|
Distance,Speed,Height,Angle,Area,Volume,Flag lock
|
Distance,Speed,Height,Angle,Flag lock
|
|
Touch display
|
Transflective LCD
|
NO
|
|
Automatic turn off
|
Yes
|
Yes
|
|
Product Weight / Size
|
185g/104*76.5*41mm
|
185g/104*76.5*41mm
|
|
Package Weight / Size
|
350g/17.7 * 13.5 * 6.4cm
|
350g/17.7 * 13.5 * 6.4cm
|
|

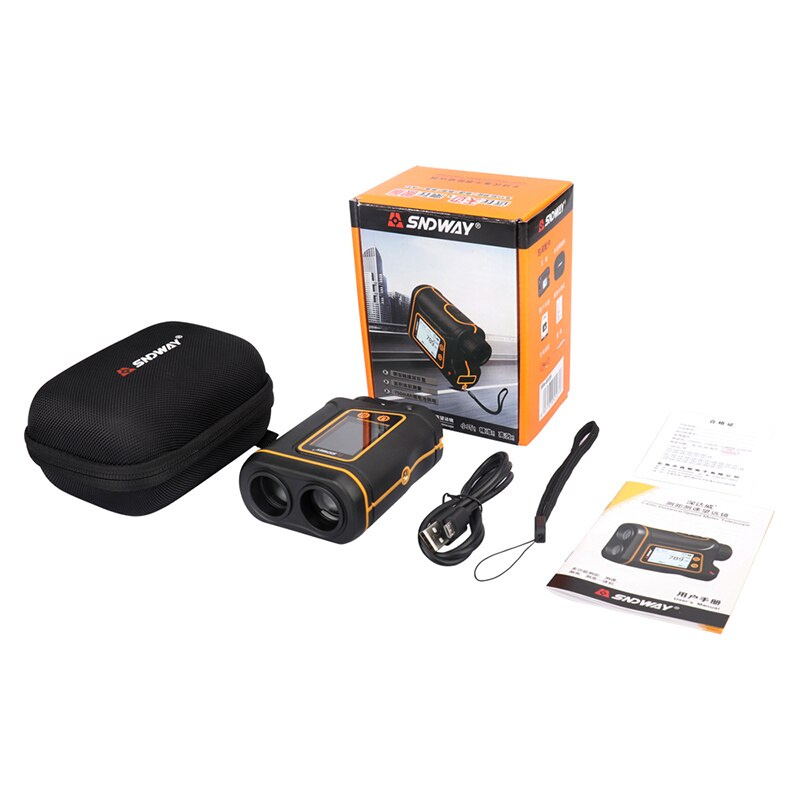

Packing Contents
|
1 x Laser Rangefinder 1 x Portable pouch
1 x Hanging rope 1 x USB Charge cable 1 x User Manual 1 x Gift Box |
1 x Laser Rangefinder 1 x Portable pouch |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
