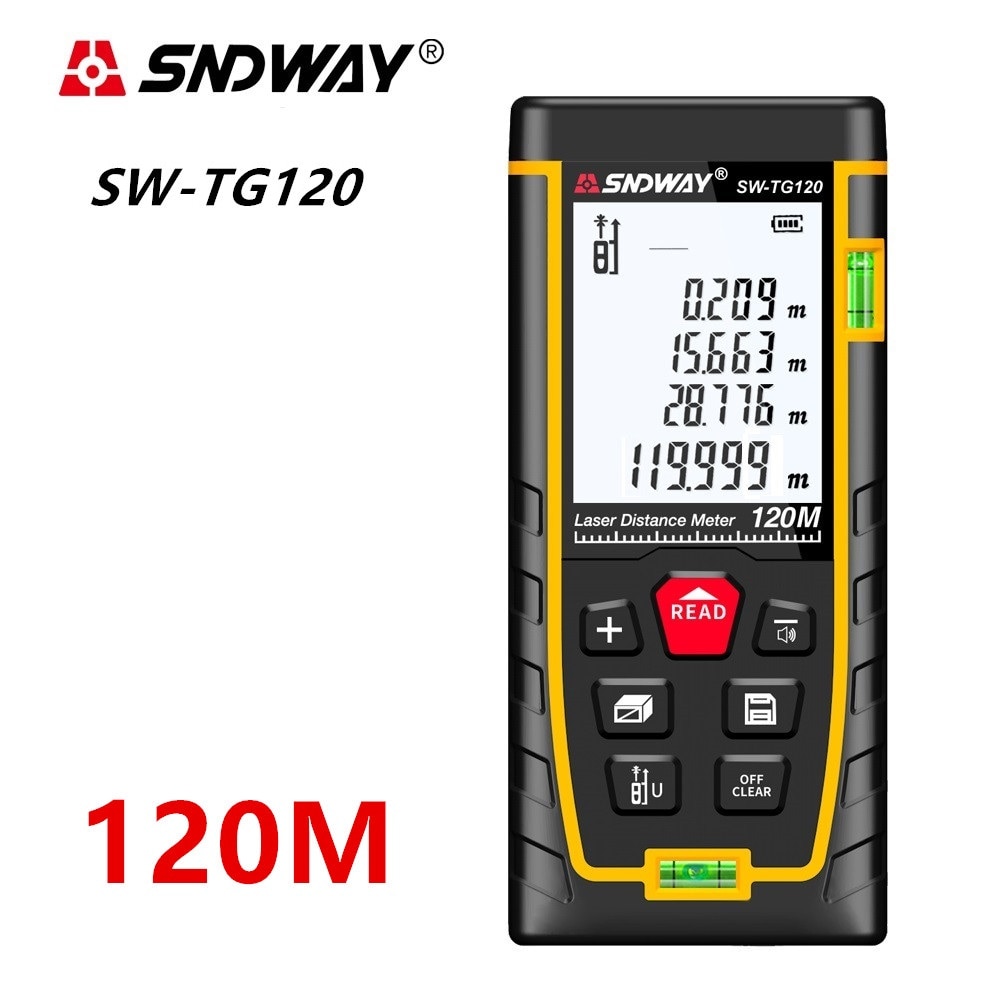

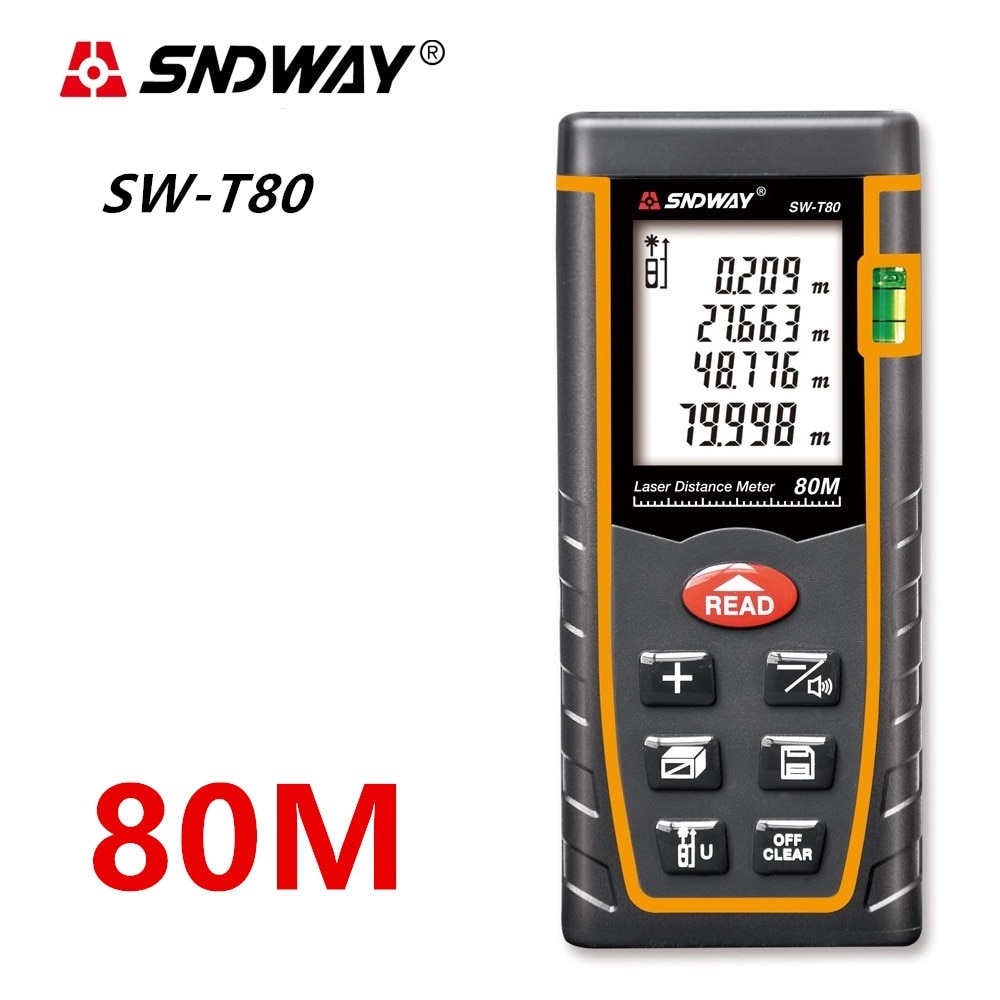

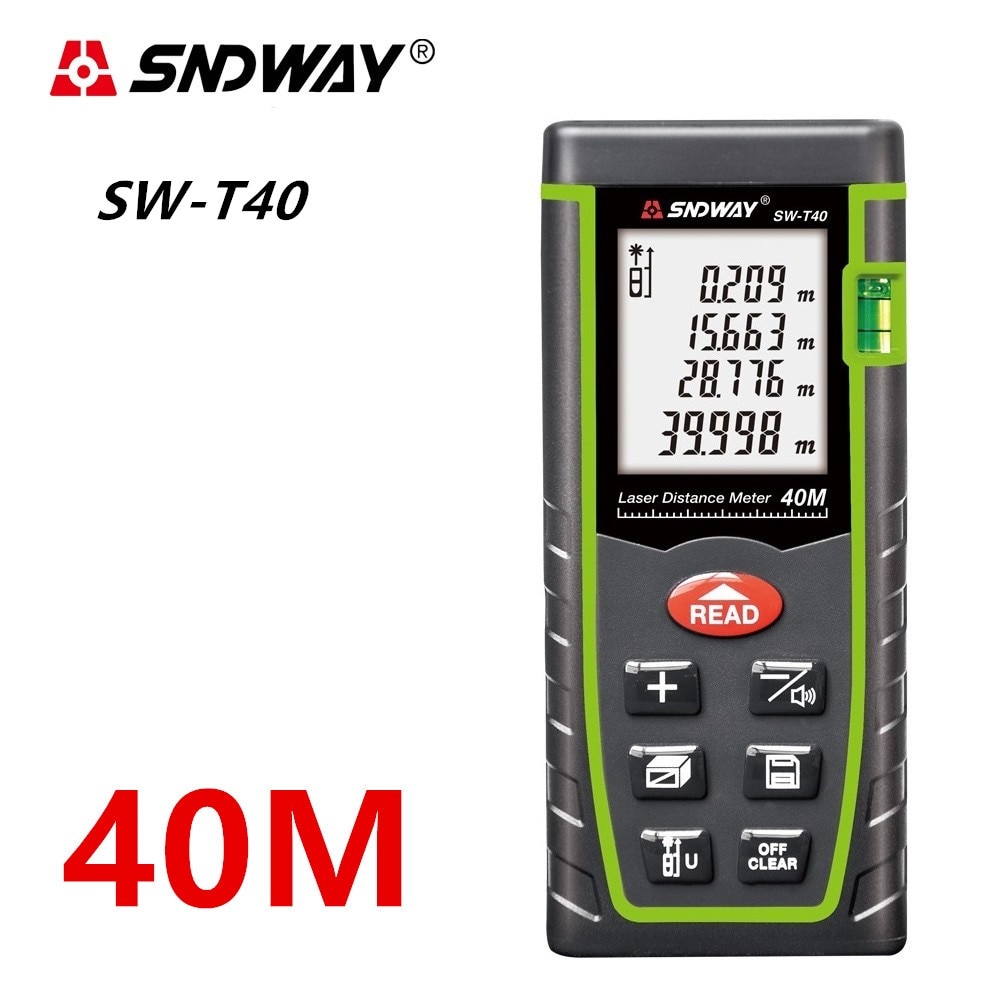

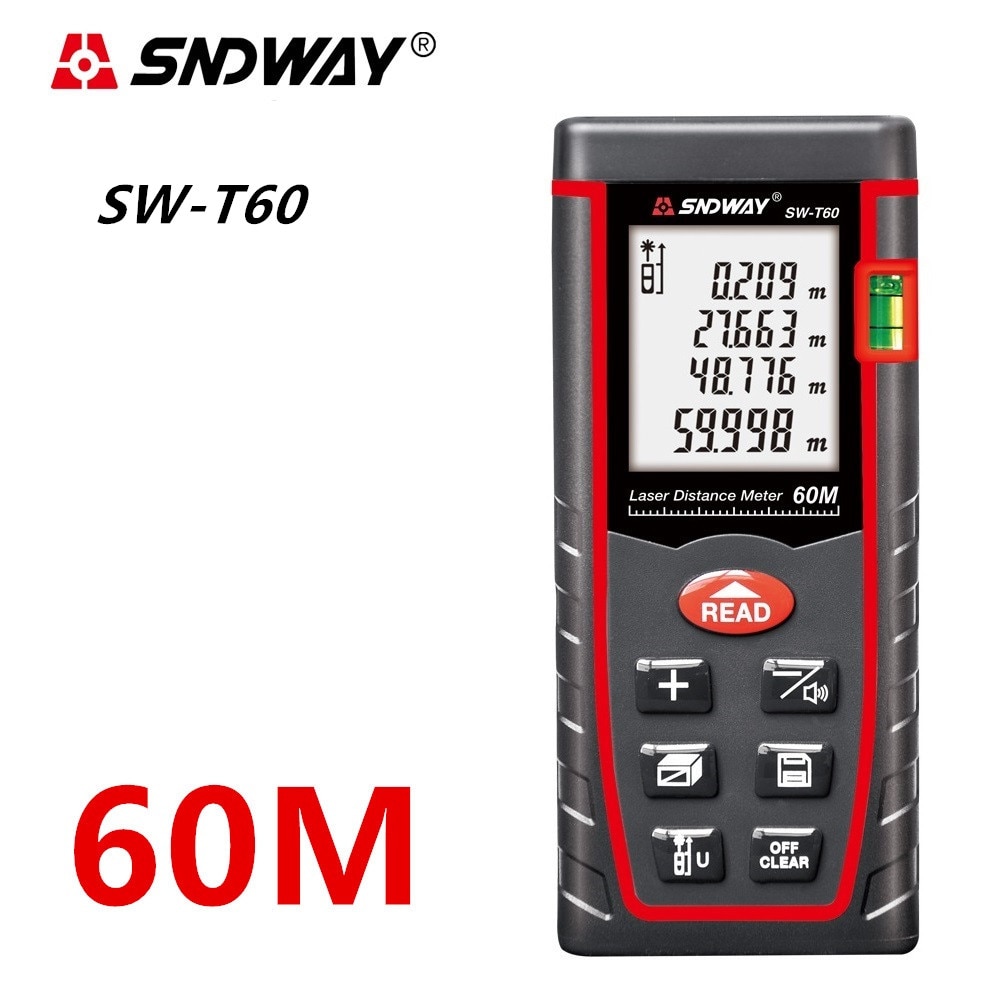

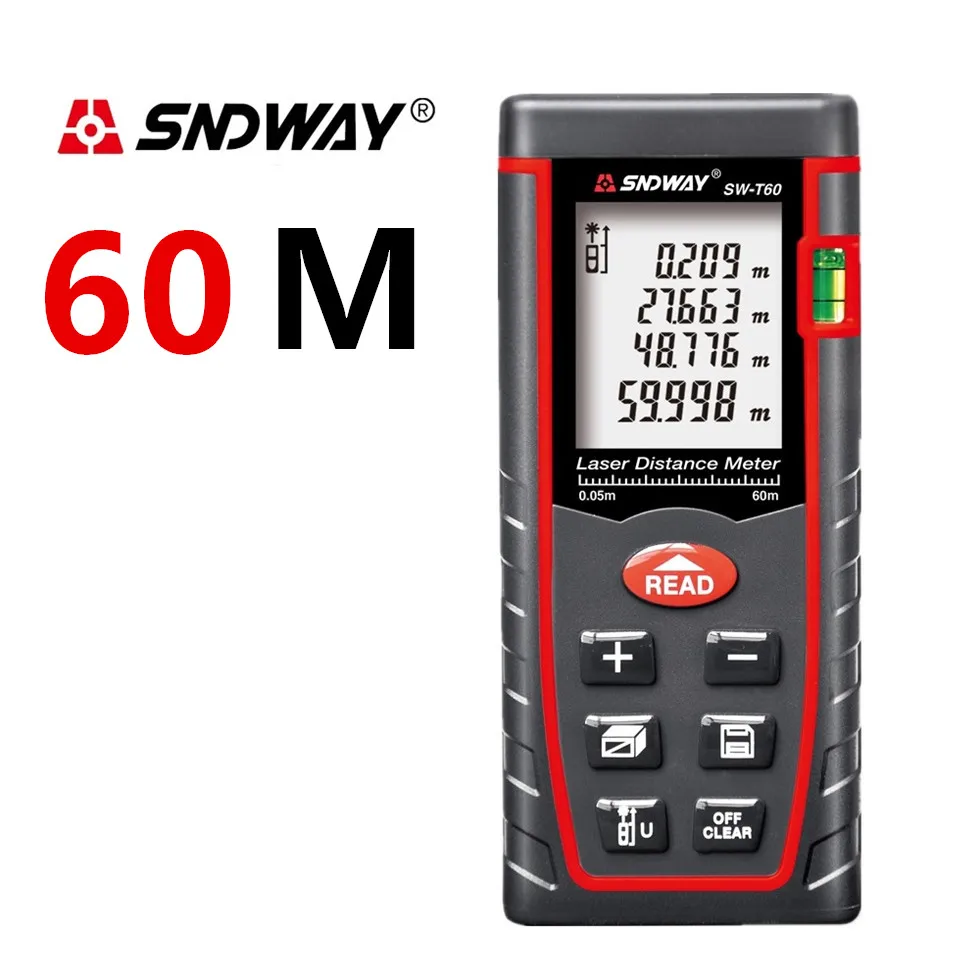

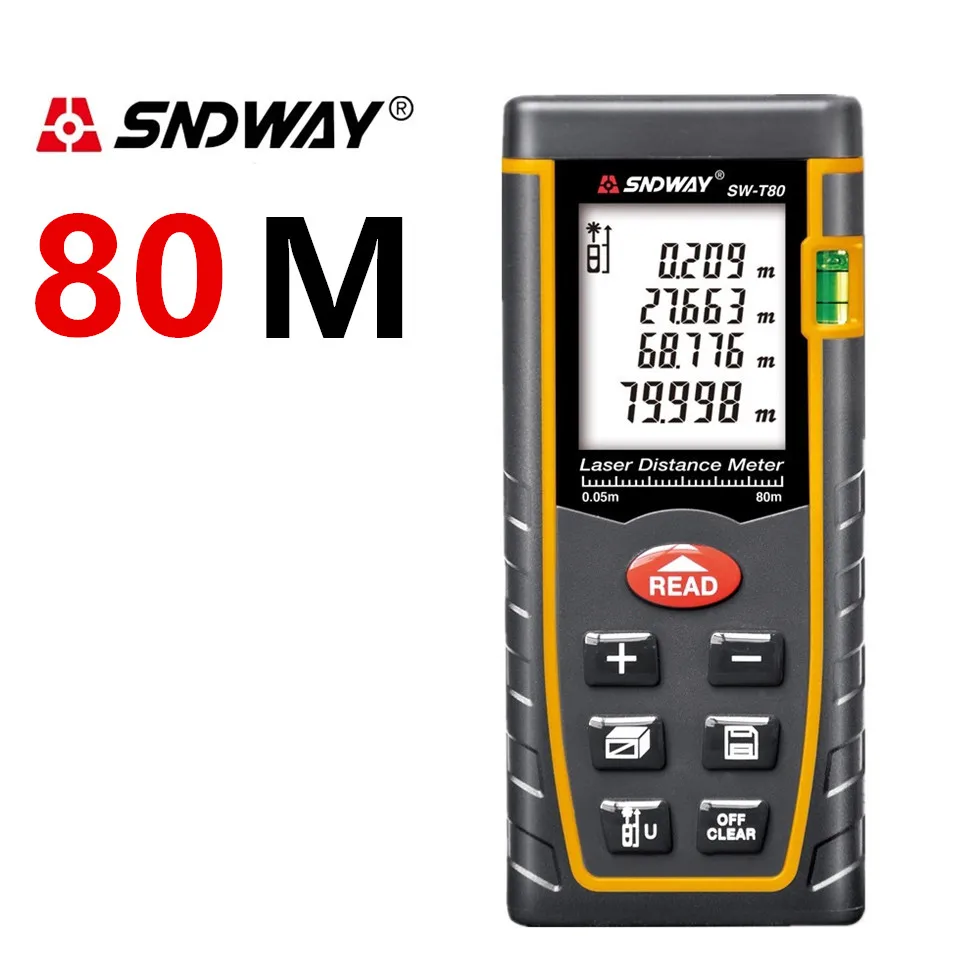

SNDWAY laser distance meter Laser rangefinder 40M 60M 80M 100M laser range finder Tape Roulette Diastimeter trena ruler Measure

Sndway digital Large LCD laser distance meter laser rangefinder roulette laser meter 50m 70m 100m 120m lazer tape measure trena

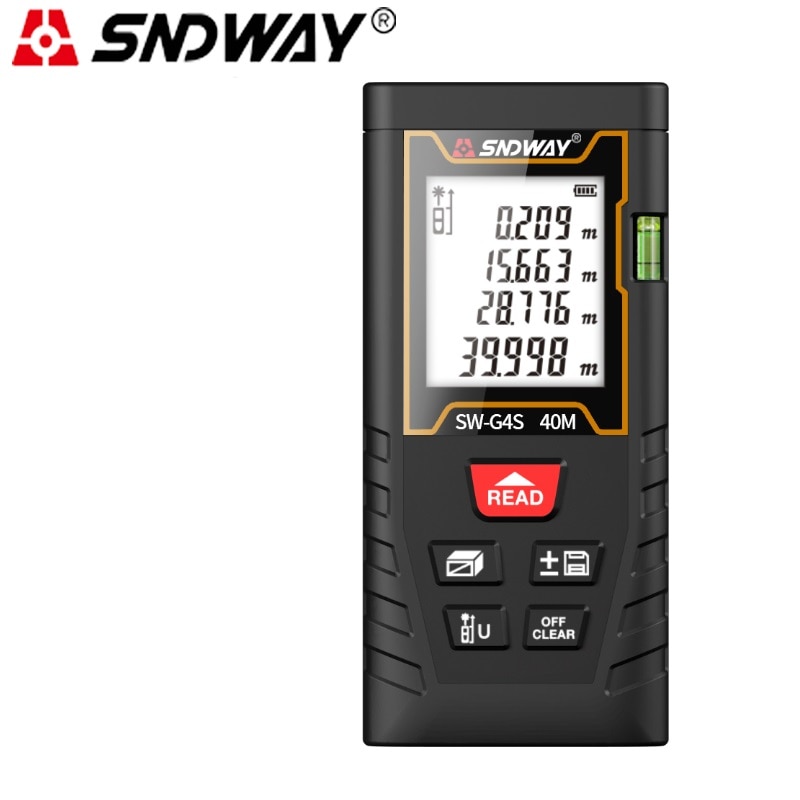

Please k(pls Note SW-T4S and SW-T6S ;SW-T8S;SW-T10S have not bag,SW-G4S/G6S/G8S/G10S/have not Reflective plate and Rope

indly note:

1>We always have enough products in stock.

2>We send all the parcels by registered Airmail except you specify another shipping method. All parcel has tracking number.

3>If the order quantity is more than 100pcs for each model, we can provide OEM Service according to your requirements. The charge for packing change should be paid by your side.

4>For big order, we’ll provide you big discount.

5>For laser distance meter, we have 6 models for your option:

1, in the case of strong sunlight or target reflection is not good, please use the reflector

3,  it can be used in rough uneven walls and astigmatism surface (glass lens stainless steel), the reflected signal is not good or interfere with the strengthening of local signal reflection







Main Function

Start the instrument/Menu Setting

1. Turn on/off the Instrument Under off status, press button A, device and laser get starting simultaneously and stand by for measurement. Under on status, long press button G for 3 seconds to turn the device off. The device can also be shut off without any operation for 150 seconds.

2. Unit Setting

Long Press button F , reset current measurement unit, the default unit is:0.00m There are M/in/ft for selection

3. Changing Reference Point

Press Button F to change the reference point. The device reference point by default is rear.

4. Back Light On/Off

The back light is set to turn on and off automaticly. The back light can be on for 15s while operating and it will be shut off automaticly in 15s when there is no operation to the device

Self-Calubration

This function can keep the precision of the device. Instruction: Power off, long press buttion G, and then press button A. Release the button A, then release button G till “CAL” and a figure under it display on the screen. User can adjust the figure with button B,C according to the accuracy of the meter.  Adjusting range: -9 to 9mm, then, long press button A to save the calibration result.

Length Measurement & Calculation

1.Single Distance Measuring:

Turn on the laser bram by short press of the button A under measuring mode, press the button A again for single measurement of length, then the measured results displayed in the major display area.

2.Continuous Measuring:

Long press button A under measuring mode and enter into continuous measuring mode (shows as L1) Maximum measuring result displays in auxiliary display area, present result displays in major display area. Short press button A or G to exit continuous measuring mode.

3.Area Measurement:

Press button D, L2 will shows on the screen. One of the side of L2 blinking on the display, please follow the below instructions for area measuring:  Pree button A once for length.  Press button A again for width.  The device calculates and shows the result in the major display area.  The resent measuring result of length is showed in the auxiliary display area. Press button G, clear off the result and measuring again if necessary. Press button G again to exit the mode.

4.Volume Measurement

Press button D twice to enter volume measurement mode. L3 will shows on the top of screen. Please follow the below instruction for volume measuring: Press button A for Length Press button A again for Width Press button A thirdly for Height The device calculates and shows the result in the major display area. Press button G, clear off the result and measuring again if necessary. Press button G again to exit the mode.

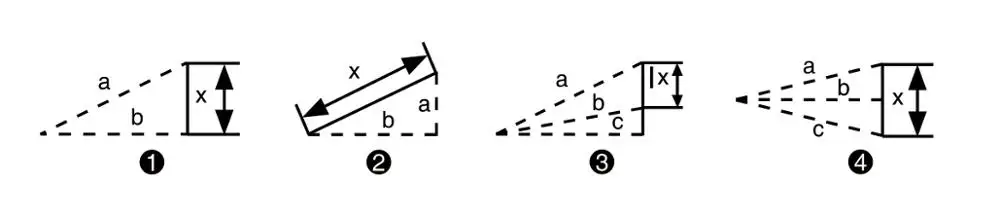

5.Pythagorean measurement

There are four(A-D) Pythagorean modes in case that user gets hard to reach the target.

A. Calculate the second leg by measuring the hypotenuse and another leg. Short press D three times to enter Pythagoras mode, the hypotenuse of P1 blinking. Press button A, measure the length of hypotenuse (a) Press button A, measure the length of one leg (b> Device calculates the length of another leg (x)

B. Calculate the hypotenuse by measuring the length of two legs. Shor press button D four times, when one leg of P1 blinking. Press button A, measure the length of one leg (a) Press button A, measure the length of another leg(b) Device calculates the length of hypotenuse(x)

C. Press button D five times till the one side of P2 blinking on the screen. Press button A, measure the length of one side(a) Press button A, measure the length of the median line(b) Press button A, measure the length of another side(c) Device calculated the length of the leg in full line(x)

D. Press button D six times till the hypotenuse of P3 blinking on the screen. Press button A, measure the length of one hypotenuse(a) Press button A, measure the length of another hypotenuse(b) Press button A, measure the length of one leg(c) Device calculates the length of the leg in full line(x) Legs must short than hypotenuse, or there will be “err” shows on screen. In order to guarantee the accuracy, please make sure all measurements are start from the same point.

6.Addition/Subtraction

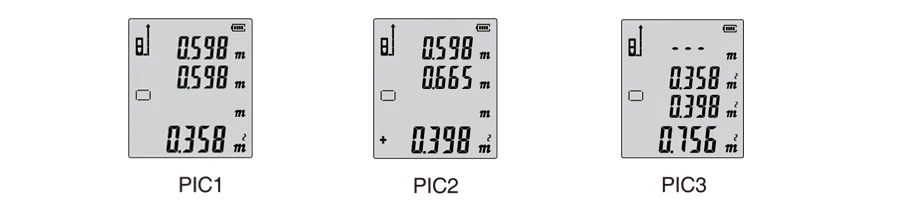

The device can be used for length addition and subtraction. Press button B or C to select the fuction once get the length meauring result. Press button B, “+” will show in the major display area, entering cumulation mode. Value of last measurement and the result of cumulation will be showed on the screen. Press button C, “-” will show in the major display area, entering regressive mode. Value of last measurement and the result of cumulation will be showed on the screen.  Not only length can be caculated in addition and subtraction, but area and volume can do the caculation as well. Take area as sample: Area cumulative function: Measure the first area as showing in PIC1. Then press button B, and measure the second area as showing in PIC2, there is a “+” in the left bottom. At last, press button A to get the summation result of these two areas which is showing in PIC3.

Record Function

Long Press button E for 3s to record your measuring result under measuring mode. It can also record the result under Area, Volume and Pythagoras mode. All the calculating records can be saved by the device. Read/Delete the Record: Short press button E, read the records by press button B and C. Short press button G to delete recent record and long press button G to clear up all the records. Press E or A to exit record mode.

TIPS

You may get some warning information as below:

Introduction:

Our Laser distance meter is specially designed to measure the distance precisely. It comes with the function of measuring AREA, VOLUME, ADDITION, SUBTRACTION easily. It can also store 99 data. The laser distance meter is hand-held and easy to operate. You can measure the distance in Metric / Imperial.

Features:

• Instant measurement of distance, area & volume with one button operation: YES
• Wide measuring range: YES
• High accuracy: ±2mm (0.079inch)
• Automatic calculation of Area and Volume: YES
• Indirect measurement by Pythagorean Theorem: YES
• Single/Continous measurement: YES
• Max/Min distance tracking (display value): YES
• Easy Addition/ Subtraction of measurement: YES
• Set up front / rear benchmark: YES
• Selectable meter(m), inch(in) and feet(ft): YES
• Data store/ recall function: YES
• Data Hold / Data clear function: YES
• Air Bubble Level: YES, Included
• Easy targeting with bright laser pointer: YES
• Large LCD with backlight and multi-line display (4 lines): YES
• Auto correction and error report technology: YES
• Buzzer indication: YES
• Battery status Indication: YES
• IP54 protection (dust & splash proof): YES
• Auto / Manual power off function: YES
• Multifunction with intelligent calculation: YES
• Compact & handy design: YES
• CE, ROHS, FCC certificate: YES

Specifications:

• Measuring range: 0.05 to 40m
• Acurracy: ±2mm
• Laser class: Class II
• Laser maximum output: <1Mw
• Dust & Splash proof: IP 54
• Laser Auto off: 20S
• Power Auto off: 3min
• Operation temperature: 0~40C (32~104F)
• Storage temperature: -10~60C (14~140F)
• Power supply: 2 x 1.5V AAA battery (We have to take away the batteries due to the policy of the shipping company)
• Weight (without battery): 110g
• Dimension: 112*50*25mm
