SNDWAY Laser Range Finder Telescope for Hunting Golf Sports Survey 800M/1000M/1500M Monocular Trena Rangefinder Distance Measure
Features
| Model Number | SW-800B/1000B/1500B | SW-600A/1000A/1500A |
| Measuring range | 800m/1000m/1500m | 600m/1000m/1500m |
| Speed measuring | 0-300km/h (vertical measuring error 5km/h) | 0-300km/h (vertical measuring error 5km/h) |
| Indication error | ±(1.0m+D*0.2%) | ±(1.0m+D*0.2%) |
| Protection level | IP54 | IP54 |
| Height measuring | V | V |
| Flagpole lock | V | V |
| Area/Volume measuring | V | X |
| Data storage | 30 items | X |
| Angle measuring | ±90° | ±90° |
| Telescope magnification | 6X | 7X |
| Objective aperture | 23.7mm | 24mm |
| Eyepiece aperture | 15mm | 16mm |
| Field of view | 6.00±10% | 6.00±10% |
| Dioptric adjustment | ±6 diopter | ±2 diopter |
| Exit pupil caliber | 3.7mm | 3.8mm |
| Unit Selection | M Y | M Y |
| LCD Monitor | V | X |
| Power supply | 750mAh lithium battery | 750mAh lithium battery |
| Warranty | 2-year | 2-year |
| Product Weight / Size | 185g/104*76.5*41mm | 185g/104*76.5*41mm |
| Package Weight / Size | 350g/17.7 * 13.5 * 6.4cm | 350g/17.7 * 13.5 * 6.4cm |
| Packing Contents: |

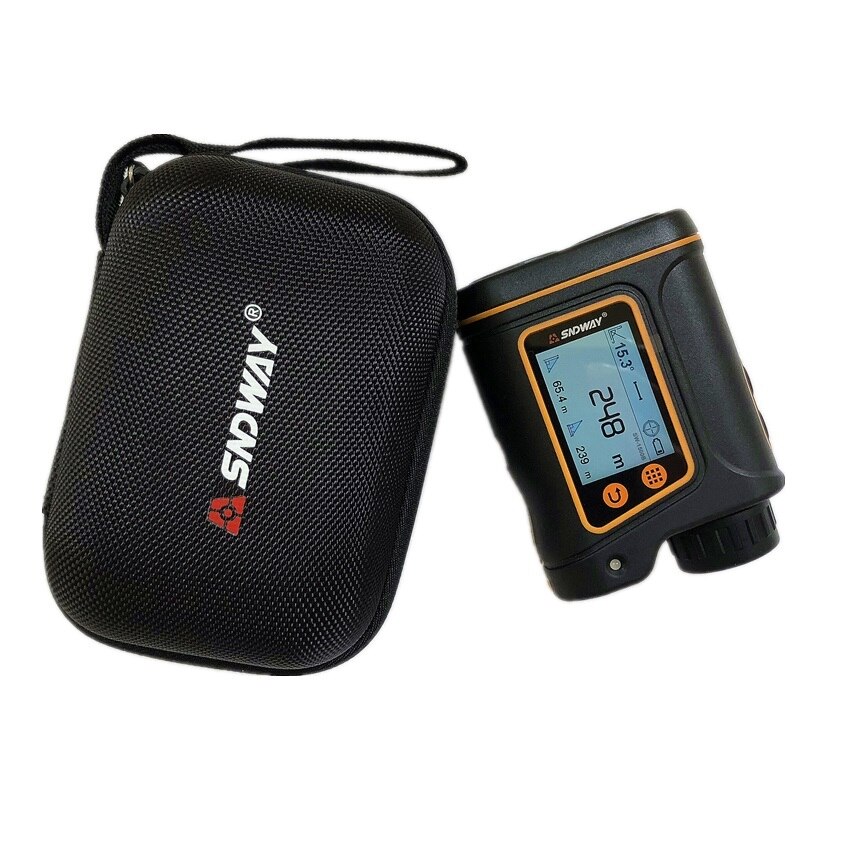

1 x Laser Rangefinder / 1 x Portable pouch / 1 x Hanging rope / 1 x USB Charge cable
1 x User Manual / 1 x Gift Box
|
|
|

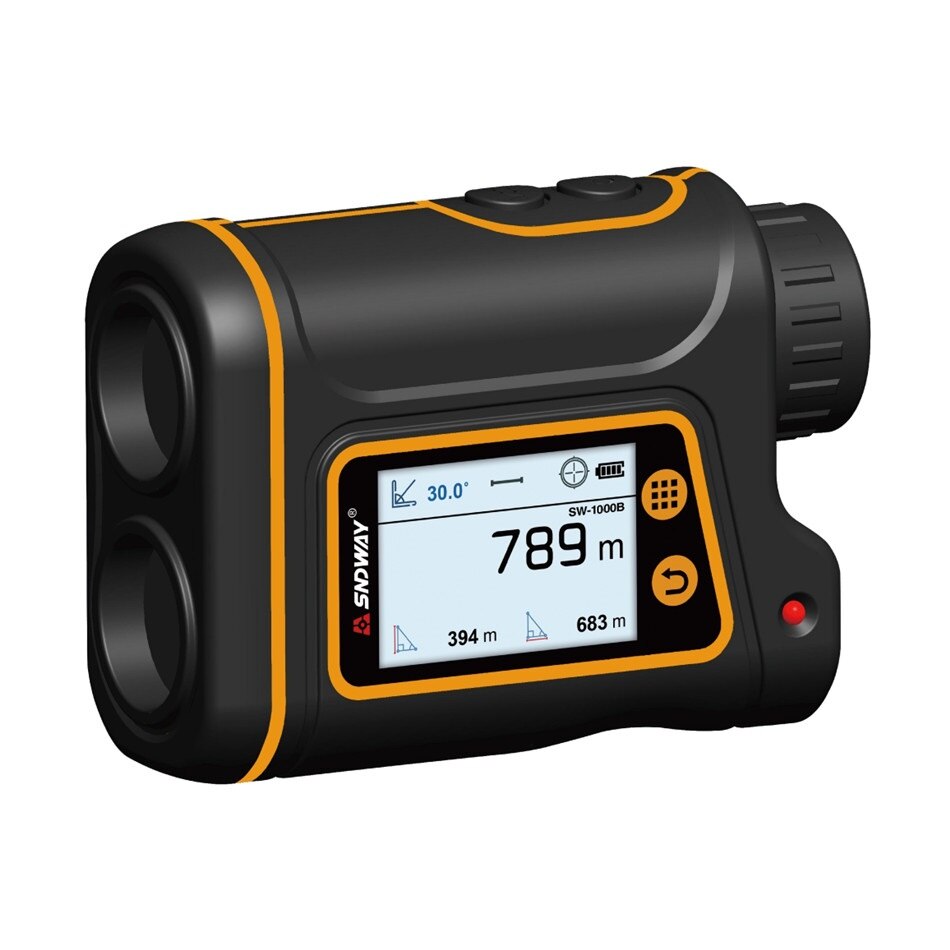

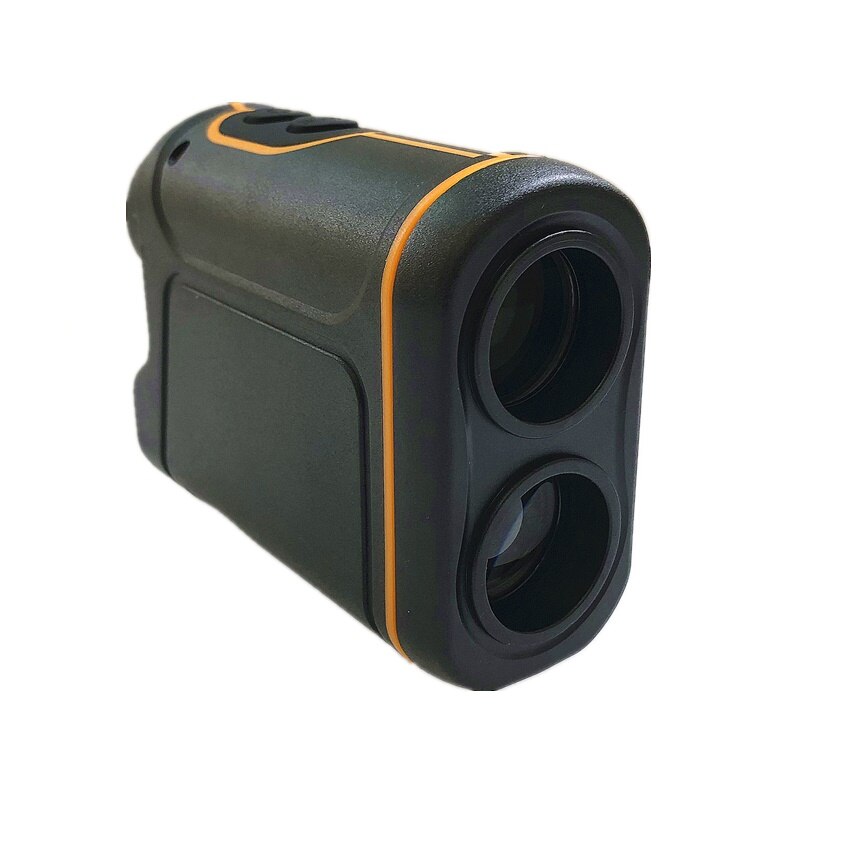

Layout & LCD display
|
|
|
|
1. Mode/Unit

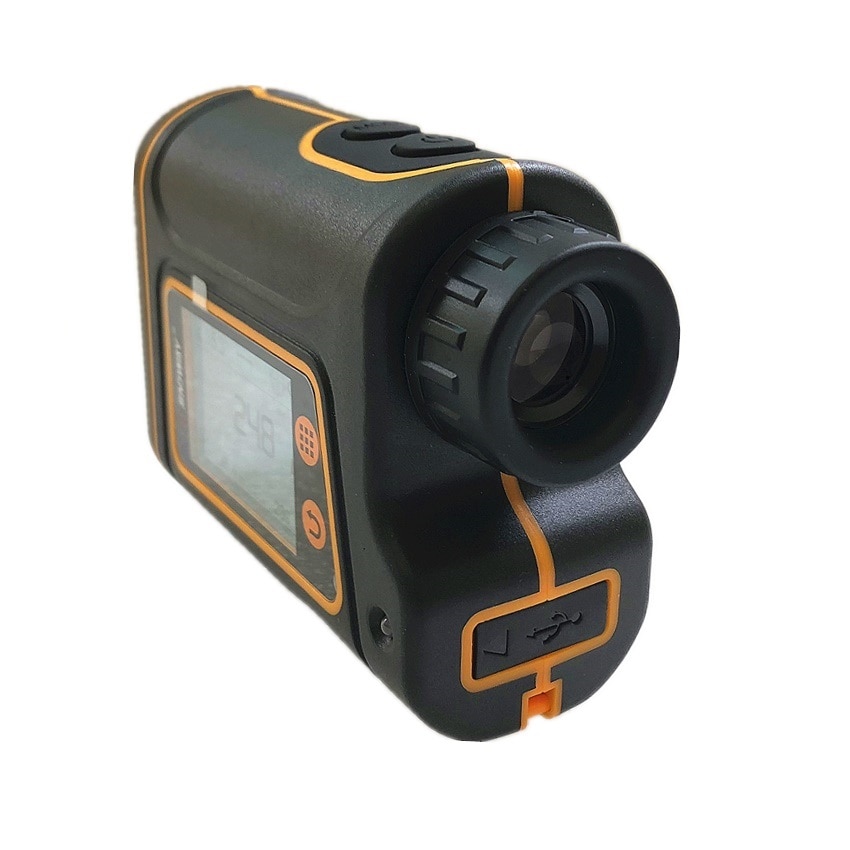

2. Laser emission 3. Laser receiving 4. TFT LCD 5. Power/Start 6. Observation eye inner LCD 7. Rotation-type fo8. USB Insert 9. Charging Light
|
|
|
1.
2.
4.
5.
6.
7.
8.
9.
10.
11 |
—Lack of power
—Measuring Mode
—Flagpole Locking Mode
—Target
—Laser shooting
—Angle
—Speed Mode
—Distance of straight line
—Unit of speed/distance
—Vertical height
—Horizontal distance
|
Operation Instruction
|
|
| A) Start |
The laser range and Speed finder has two buttons: “Start” button ( ) and “Mode” button. Press “” about 1 second and the device will start.Press and hold botton ““and “MODE”for more than 6 seconds to reset the device when there is an unexpected error |
| B) Diopter adjustment: |
Adjust the diopter to get a clear image in the eyepiece display. Turn the rotation of eyepiece left or right until the display is in focus. |
| C) Mode change |
Shortly press “mode” button, the range finder will change between 2 modes.
|
| D)Straight line distance/Angle/Horizontal distance/Vertical height measuring |
Shortly press the (
|
| E)Scanning |
Hold the key to start the scan measuring function.”DST”shows on the left top of the display.As long as the object is moving,the speed,straight line distance,angle,horizontal distance and vertical distance will be measured in real time too.To stop the mode and save the latest speed and measurement result on the display.release the button |
| F) Unit change | Long press the “MODE”button,Units of distance “M/Y”can be converted |
| G) Automatic Power-off | Laser rangefinder will automatically power off in 20 second without operation. |
| H) The points for attention |
Battery life: Continuous operation about 30000 (room temperature), goal focus, measurement and automatic power-down is included in the single duty cycle. This number may vary depending on the other factors of the temperature the target shape, color. |

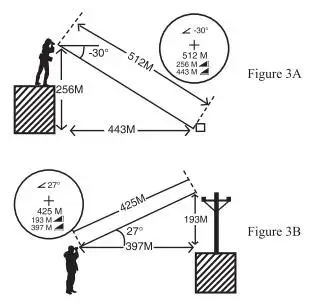

will blink when laser in transmitting.In measuring the distance,if the reflection of target is too weak,The LCD will display”—-“.Figure 3A and 3B are two different measurements of the location of the target.
The multifunctional range finder does not emitted a visible It uses a , and from the selected target reflection, back to the optical receiver.
non-destructive vision infrared pulse laser By measuring each pulse from the target and back, the laser rangefinder then uses its advanced diagnostic circuit to instantly calculate the measured distance. The maximum measuring range of the device depends on target reflectivity, colour, surface finish, size and actual shape
