Description
SNDWAY Laser Range Finder Rangefinder 50m 70m 100m Laser Distance Meter Trena Lazer Roulette Ruler Measurement Tool
|
Specifications |
||||
| Model | SW-G4S/G6S/G8S/G10S | SW-DS50/SW-DS70/
SW-DS100/SW-DS120 |
SW-50G/70G/100G | H-D510A/H-D710A/ H-D100A/H-D120A |
|
Work Range |
40m/60m/80m/100m |
50m/70m/100m/120m |
50m/70m/100m |
50/70/100/120m |
|
Laser color |
Red |
Red |
Green |
Red |
|
Bubble level |
1 bubble |
Electronic level |
Electronic level |
Electronic level |
|
Angle function |
No |
Yes |
Yes |
Yes |
|
Accuracy |
±(3mm + d*10^-4) |
±2mm |
±2mm |
±2mm |
|
Reference point |
2 ( rear, front) |
2 ( rear, front) |
3 ( rear, middle,front) |
2 ( rear, front) |
|
Max storage |
99 units |
30 units |
99 units |
99 units |
|
Automatic backlight |
Yes |
Yes |
Yes |
Yes |
|
Measurement unit options |
m/in/ft |
m/in/ft |
m/in/ft |
m/in/ft |
|
Continuous measurement function |
Yes |
Yes |
Yes |
Yes |
|
Area/Volumn measurement function |
Yes |
Yes |
Yes |
Yes |
|
Pythagorean proposition measurement |
Full mode |
Full mode |
Full mode |
Full mode |
|
Add and subtract measurement |
Yes |
Yes |
Yes |
Yes |
|
Min/Max value |
Yes |
Yes |
Yes |
Yes |
|
Self-Calibration |
Yes |
Yes |
Yes |
Yes |
|
Button/Keys sound |
Yes |
Yes |
Yes |
Yes |
|
Laser level |
Class II |
Class II |
Class II |
Class II |
|
Laser type |
630-670nm,<1mW |
635nm,<1mW |
500-535nm,<1mW |
635nm,<1mW |
|
Display |
1.8 inch |
2.0 inch |
2.2 inch |
2.0 inch |
| Tripod thread | NO | NO | 1/4 thread | NO |
|
Automatically cut off laser |
20s |
20s |
20s |
20s |
|
Automatic shutdown |
150s |
150s |
150s |
150s |
|
Power supply |
2×1.5V AAA |
2×1.5V AAA |
3×1.5V AAA |
3.7V 850mAh |
|
Working temperature |
0°C~40°C |
0°C~40°C |
0°C~40°C |
0°C~40°C |
|

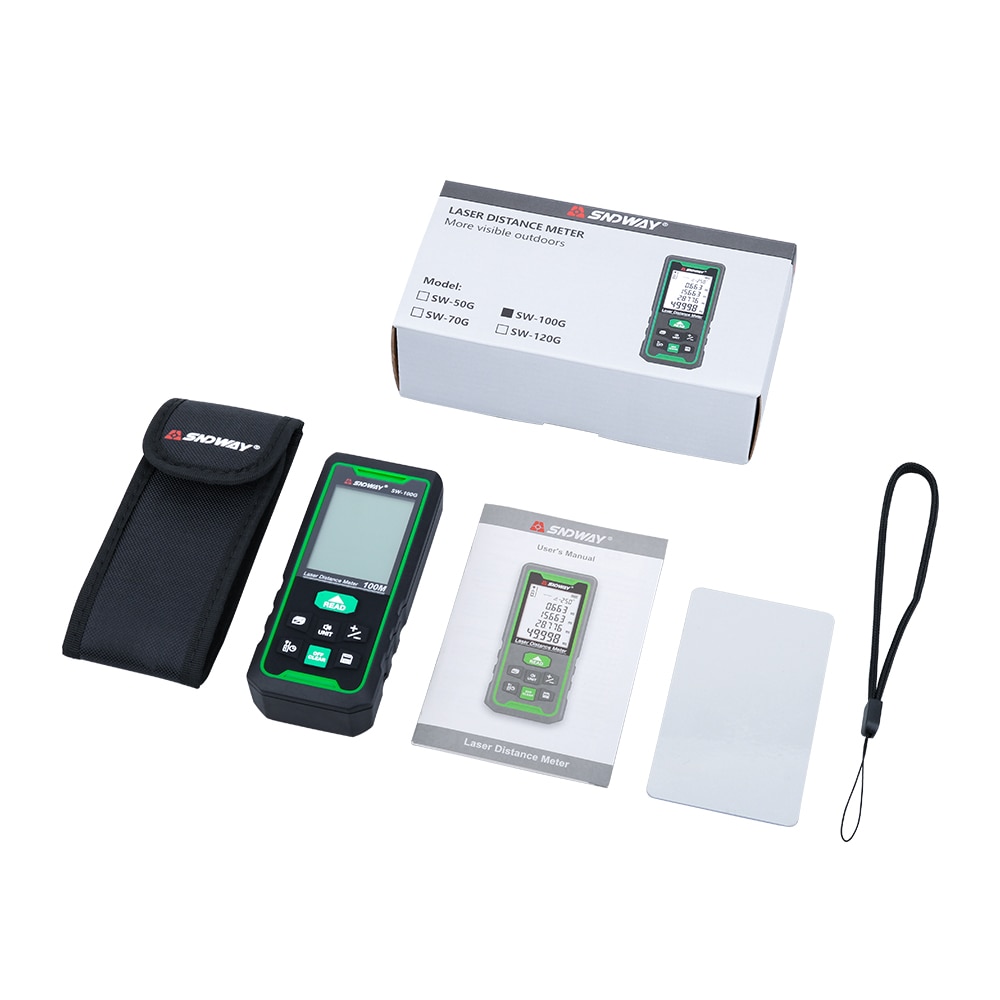

Packing Contents |
1*Laser meter
|
1*Laser meter |
1*Laser meter |
1*Laser meter |

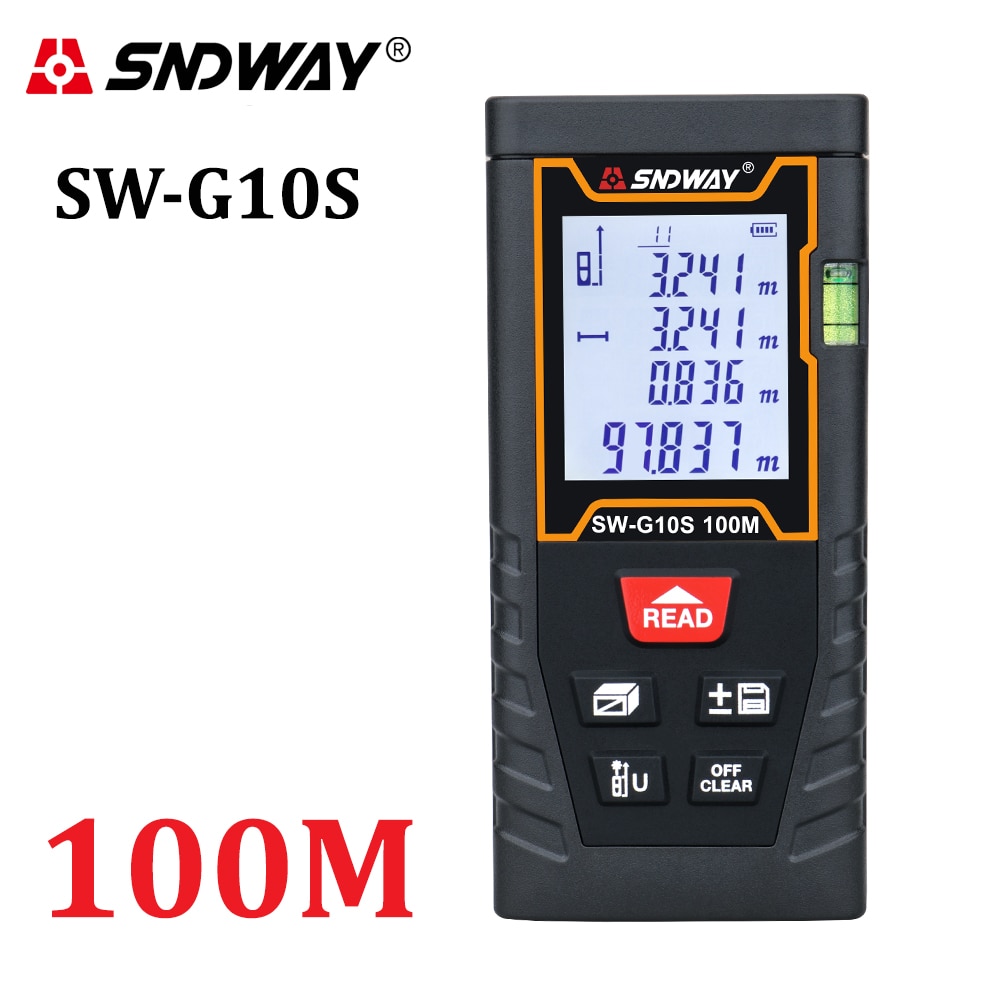

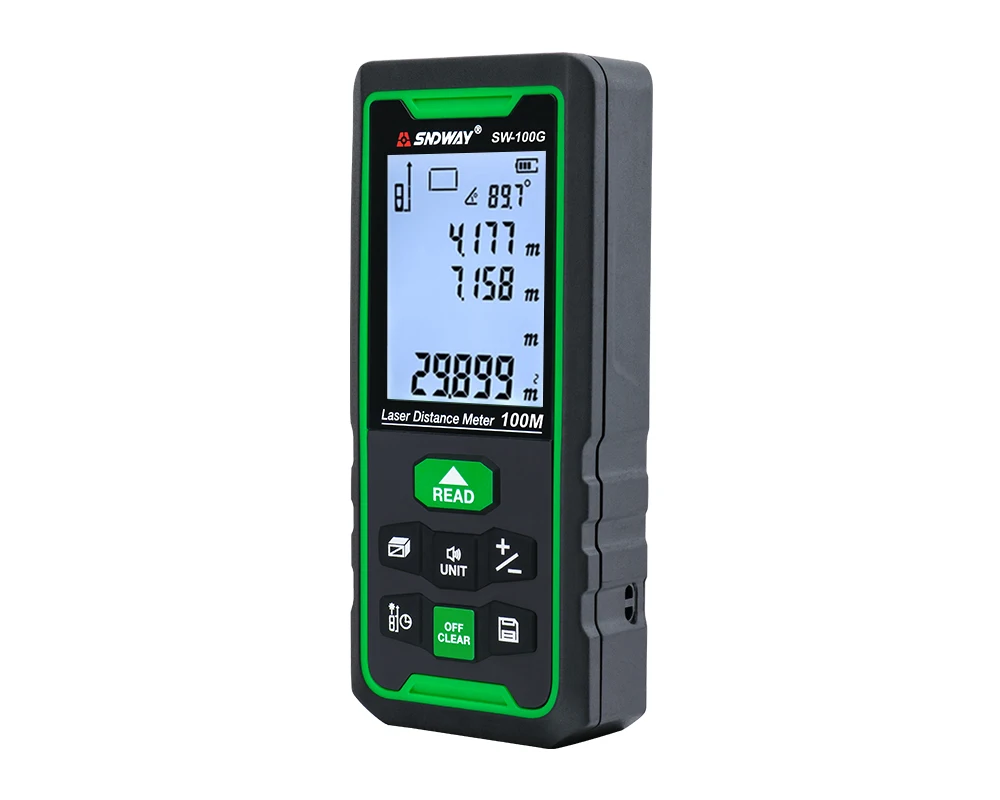

SW-G Series Laser Distance Meter with Electronic Angle Sensor
Distance/Area/Volume/Pythagorean/Angle/Wall Area Function
Electronic angle sensor, real-time angel measurement all the time
Rangefinder core chip, dual performance improvement
Green beam more visible, Class II Low consumption laser

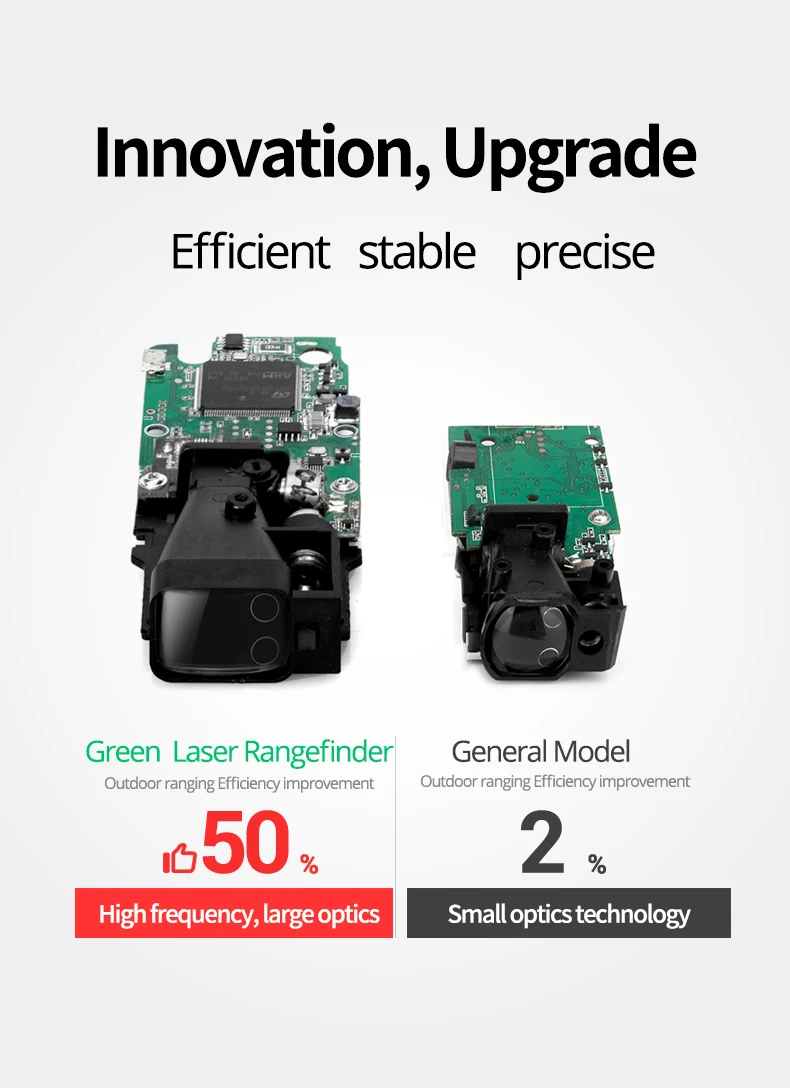

Large optical system, efficient, stable, precise
Dual hole photosensitive, receive laser signal better
High accuracy: ±2mm

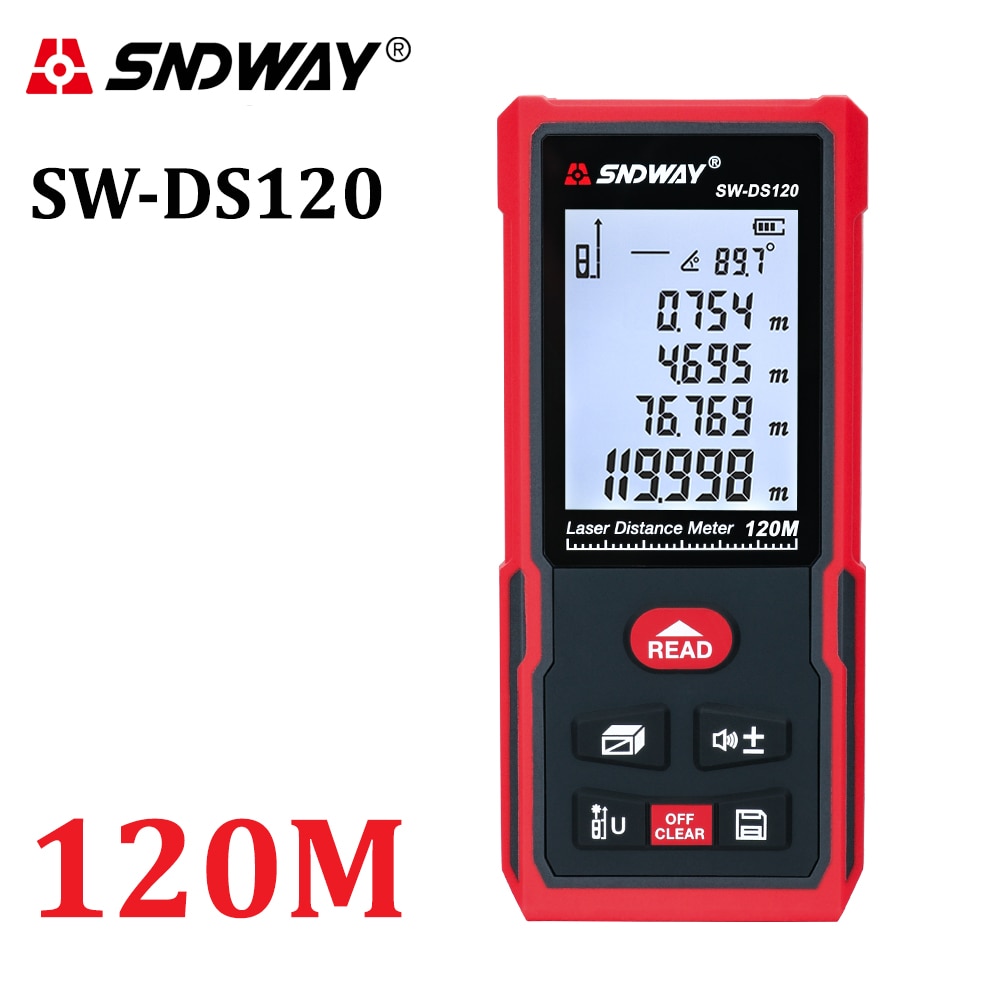

SW-DS Series Laser Distance Meter with Electronic Angle Sensor
Distance/Area/Volume/Pythagorean/Angle/Wall Area Function
SW-DS Laser distance meter import SMT32 Chip, precise & stable
Larger optical lens for enhanced signal reception and more accurate
Electronic angle sensor, one key for angle and height measurement
Large LCD blacklight supports better visibility in low light conditions
Electronic Level function, will show real-time refresh angle on display
Top-quality ABS injection molding,dustproof,anti-fall proof,IP54 waterproof

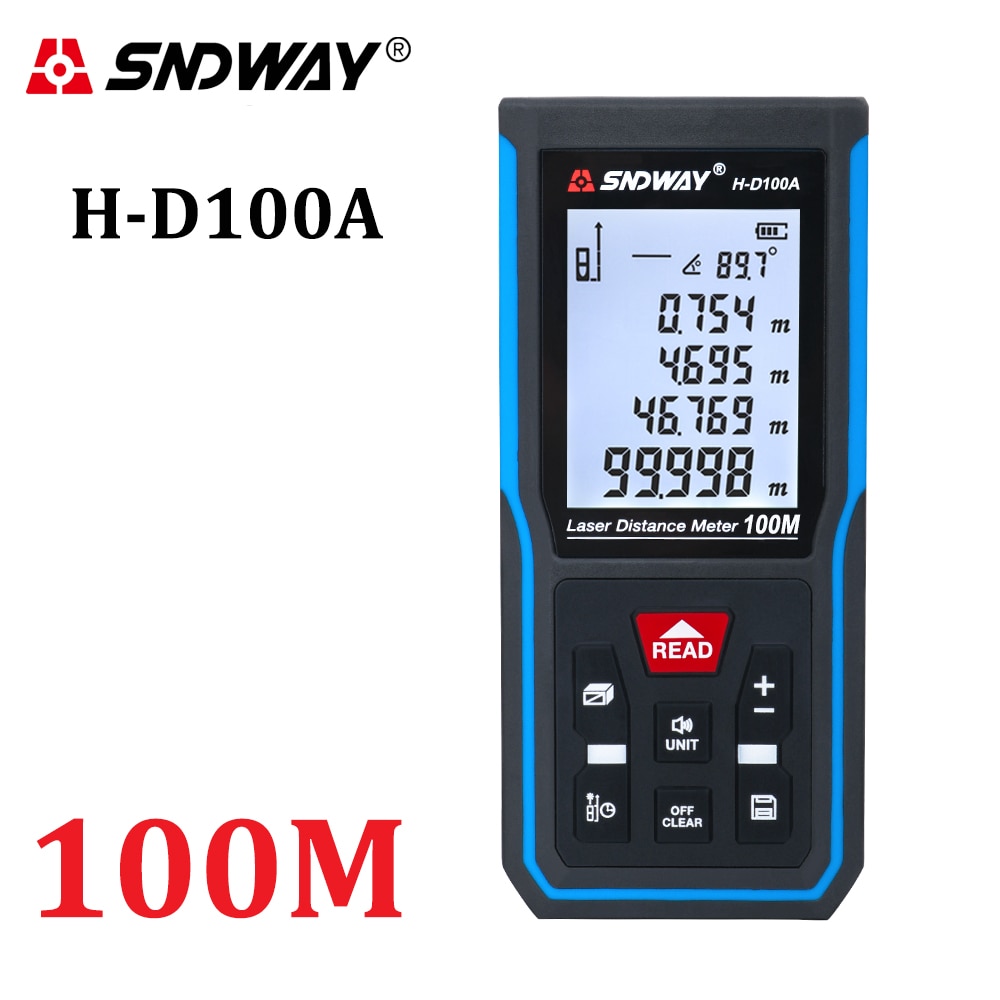

H-D Series Laser Distance Meter with Built-in Lithium Battery
Distance/Area/Volume/Pythagorean/Angle/Wall Area Function
High Accuracy:±2mm, Ensuring Higher Accurate Measurement
Built-in Rechargeable 3.7v/850mAh Lithium Battery with USB Cable
Aspherical Optical Lens, Enhanced Reflection Reception, Accurate
&Stable Measurement, Low Power Consumption
Dual-hole Photosensitive, Enhanced Compensation for Signal Receive
Large Storage: 99 Units of Data
High-intensity ABS Engineer Plastic,Dustproof,Fallproof,Waterproof
High Quality & Durable, High Definition Backlight Larger LCD display
Item pictures for G4S series
