SNDWAY SW-600S High-end professional laser rangefinder hunting monocular telescope 600M astronomic camping golf distance meter

Measuring range	3-600m
Magnification	(6.0±5%)X
Field of view	6°±10%
Scan Distance Measure	Yes
Distance Measure Accuracy	±(1.0m+D*0.2%)
Speed Measure Accuracy	±5 KM/H
Diopter Adjustable Range	±6°
Objective caliber	23.7mm
Eyepiece caliber	15mm
Exit pupil caliber	3.7mm
Lens Coatings	Fully Multi-Coated(FMC)
Battery	Li-ion 3.7V 750mAH
Battery Life	Charge-discharge 800 times
Battery working life	Single Measuring 30000 times after one time full charging
Water Resistant	IP54
Dimensions	104 * 76.5 * 41 mm
Net Weight	197g
Laser wave length	905nm

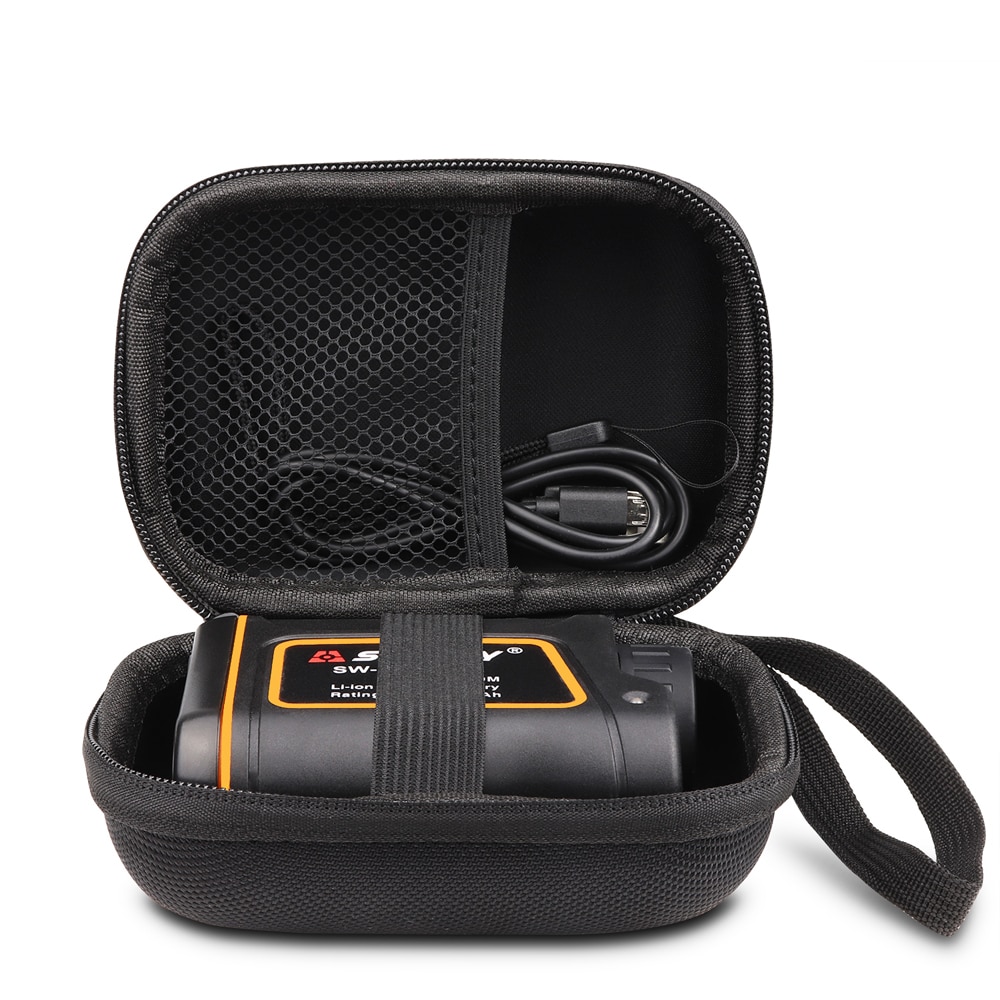

Packing List:

Item	Q’TY
Meter	1pc
Pouch	1pc
Hand Strap	1pc
USB cable	1pc
User’s manual	1pc
Gift box	1pc

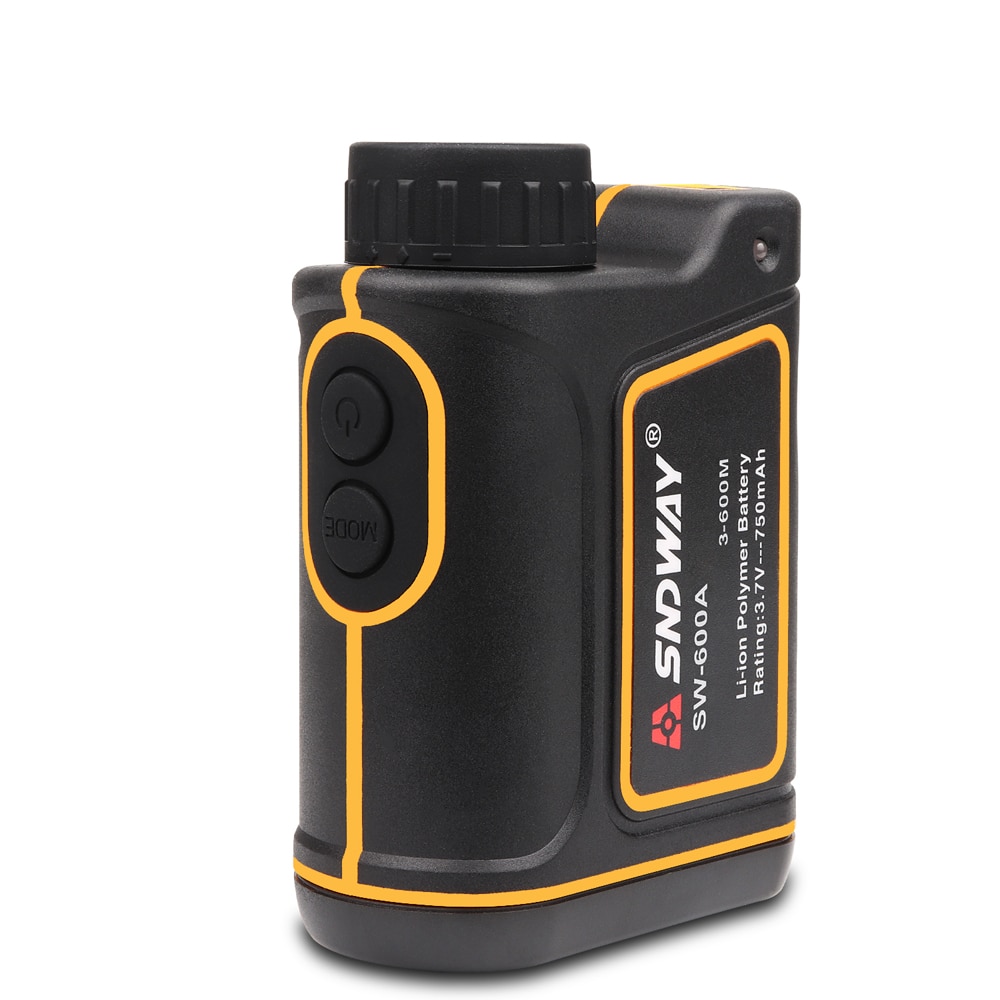

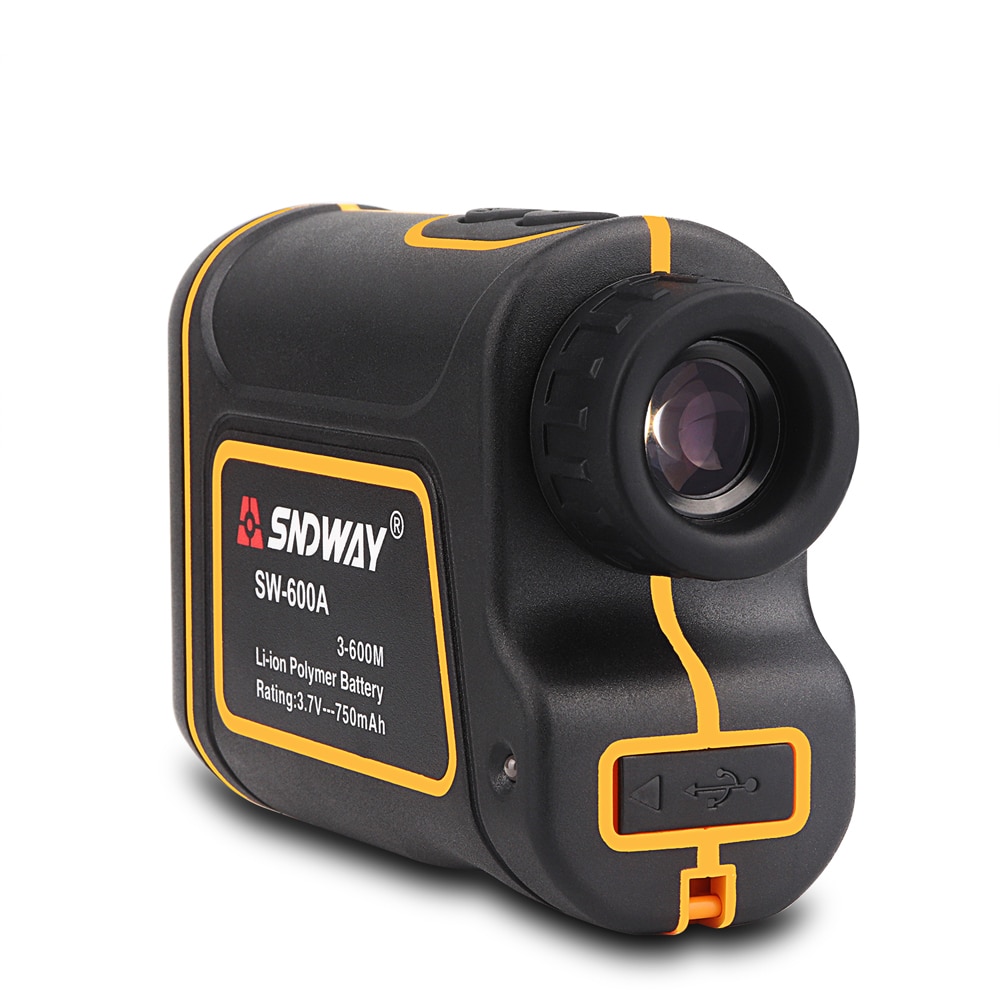

Layout & LCD display:

	1. Laser emission   2. Laser receiving lens   3. Mode/Unit switching key   4. Power & Start button   5. Observation eyepiece   6. Rotation-type focusing   7. USB Insert   8. Charging Light
	1.   “       ” – Low power   2.  “      ” – Scanning mode   3.  “      “   –   Laser shooting   4.  “      ” – Target   5.  “      ” – Straight line distance result

Operating Instructions:

 A) Start

The laser range and Speed finder has two buttons:  “Start” button () and “Mode” button. Press “” about 1 second and the device will start


B) Diopter adjustment:
Adjust the diopter to get a clear image in the eyepiece display. Turn the rotation of eyepiece left or right until the display is in focus.

C) Mode change

Shortly press “mode” button, the range finder will change  between 2 modes.
               Mode 1: Range mode: Measure straight line distance
               Mode 2: Speed mode (Show ” speed in LCD”) .Show in the figure below:


D) Scanning
Hold down the  key does not release it, then start the scan  ranging the top left of the screen displays the scan character “SCAN” with the change of the target, the straight-line distance data to constantly refresh the display, release the key  , stop ranging.

E) Unit change

Laser rangefinder will automatically power off in 20 second without operation.

F) Automatic Power-off

Long press the “MODE” button, Units of distance ” M/Y” can be converted.
G) The points for attention
Battery life: Continuous operation about 30000 (room temperature), goal focus, measurement and automatic power-down is included in the single duty cycle. This number may vary depending on the other factors of the temperature the target shape, color.

Important Notes:

The multifunctional range finder does not emitted a visible It uses a , and from the selected target reflection, back to the optical receiver.
non-destructive vision infrared pulse laser By measuring each pulse from the target and back, the laser rangefinder then uses its advanced diagnostic circuit to instantly calculate the measured distance. The maximum measuring range of the device depends on target reflectivity, colour, surface finish, size and actual shape.
