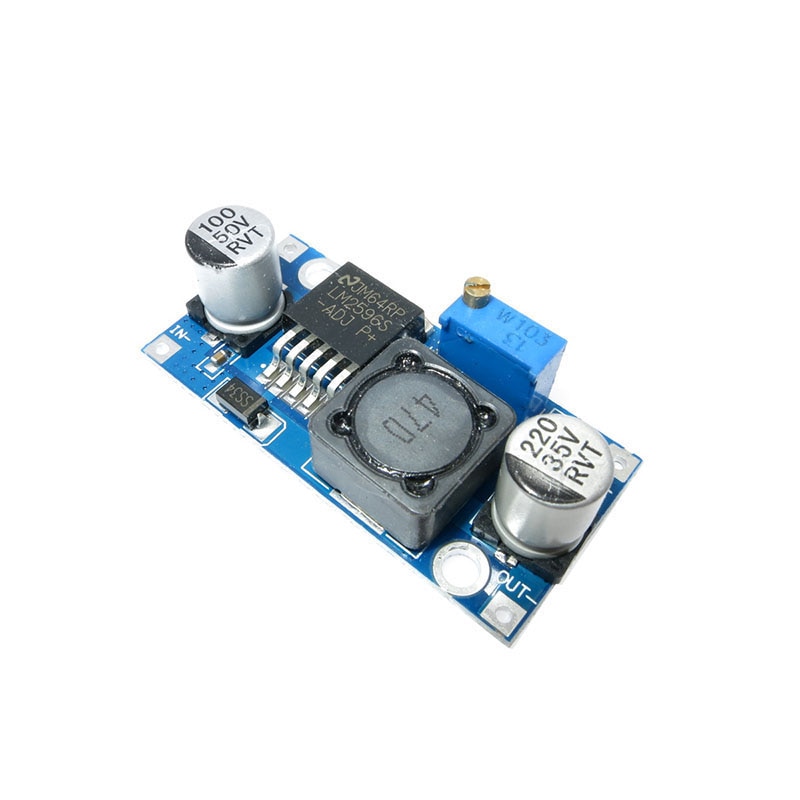

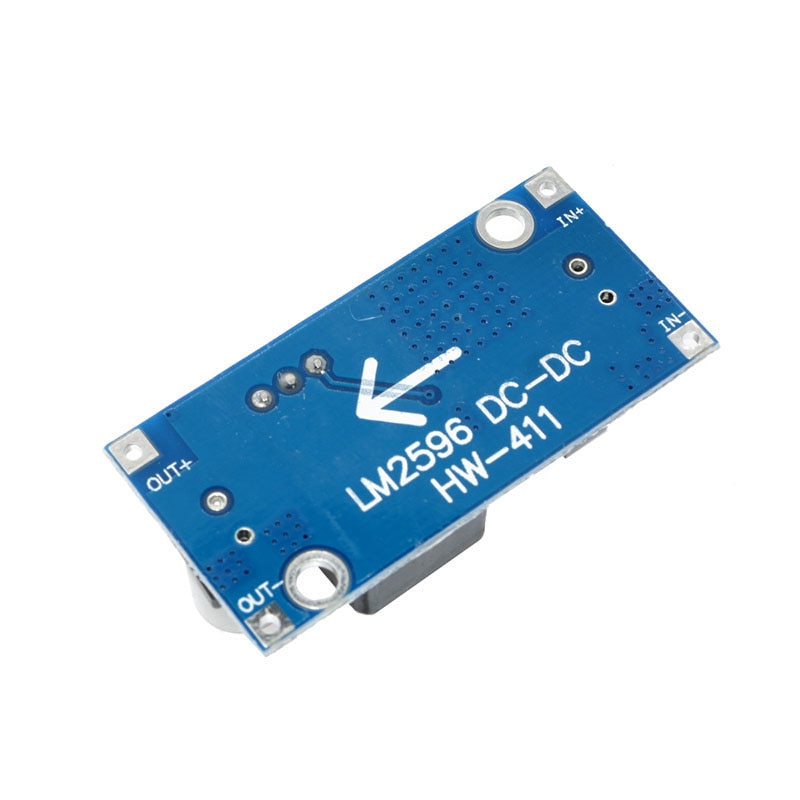

Ultra-small LM2596 power supply module DC / DC BUCK 3A adjustable buck module regulator ultra LM2596S 24V switch 12V 5V 3V

• Name : LM2596 DC-DC Buck module
• Input voltage :4V ~ 35V
• The output voltage : 1.23V ~ 30V
• Output Current :3A( Max)
• Conversion efficiency:92%( MAX )
• Output ripple: <30mV
• Switching frequency: 150KHz
• Working temperature: -forty Five~ +85
• Size :43mm * 21mm * 14mm(Long*Width*Hight)


  Features:

  1. the range of input voltage: 3.2 V to 40 V dc (input voltage must be higher than to the output voltage of 1.5 V above. Can’t booster)

  2. the range of output voltage: 1.25 V dc to 35 V voltage adjustable, high efficiency (92%) largest maximum output current is 3A.

  Instructions:

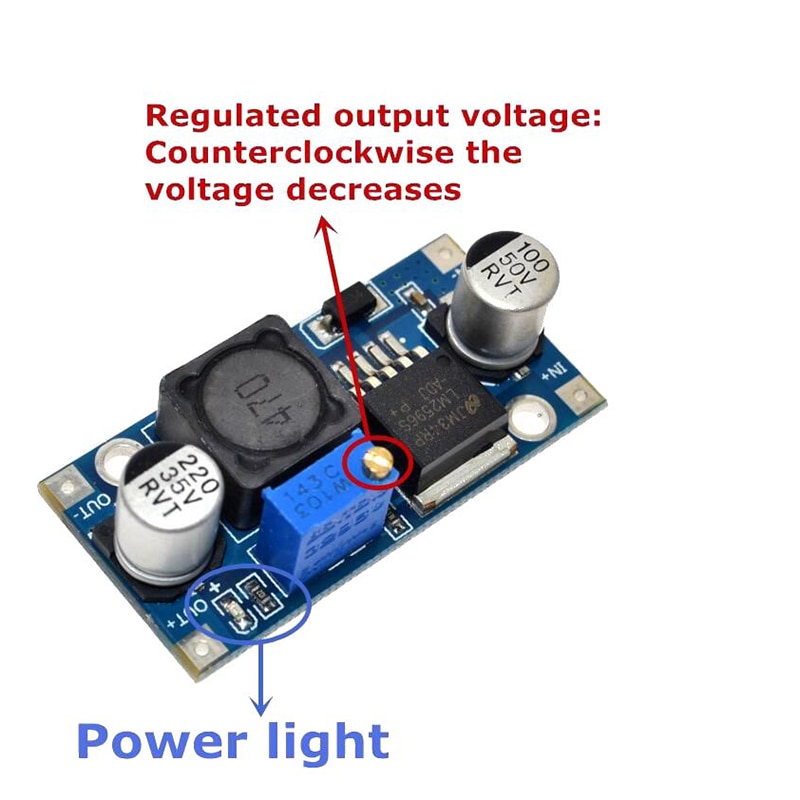

  1. Power (3-40V), power indicator light, the module is working properly.

  2. Adjust the blue potentiometer knob (clockwise rotation generally boost,counter-clockwise rotationTurn down) and reach with a multimeter to monitor the output voltage required voltage.

  Note:

    Current work long hours is recommended for use in less than 2.5A, while adding bulkHeat sink (10W output above),because it is the step-down module, in order to ensure stable output Set,please keep the minimum 1.5V differential.
