Description
Detailed description
Single color: blue
Wavelength:445nm/4W
Output power:4W
Beam Size Divergence(full angle):Φ3×3.2mm
1.0mRad
Modulation mode:TTL /Analog
Input stability:±5%
Recommended temperature:-10~40℃
Lifetime:10000h
Module head size: 90*70*45(mm)
Driver: 12VDC
Analog: 0-5VDC, >50KHz
Net Weight:760g
The whole set includes:

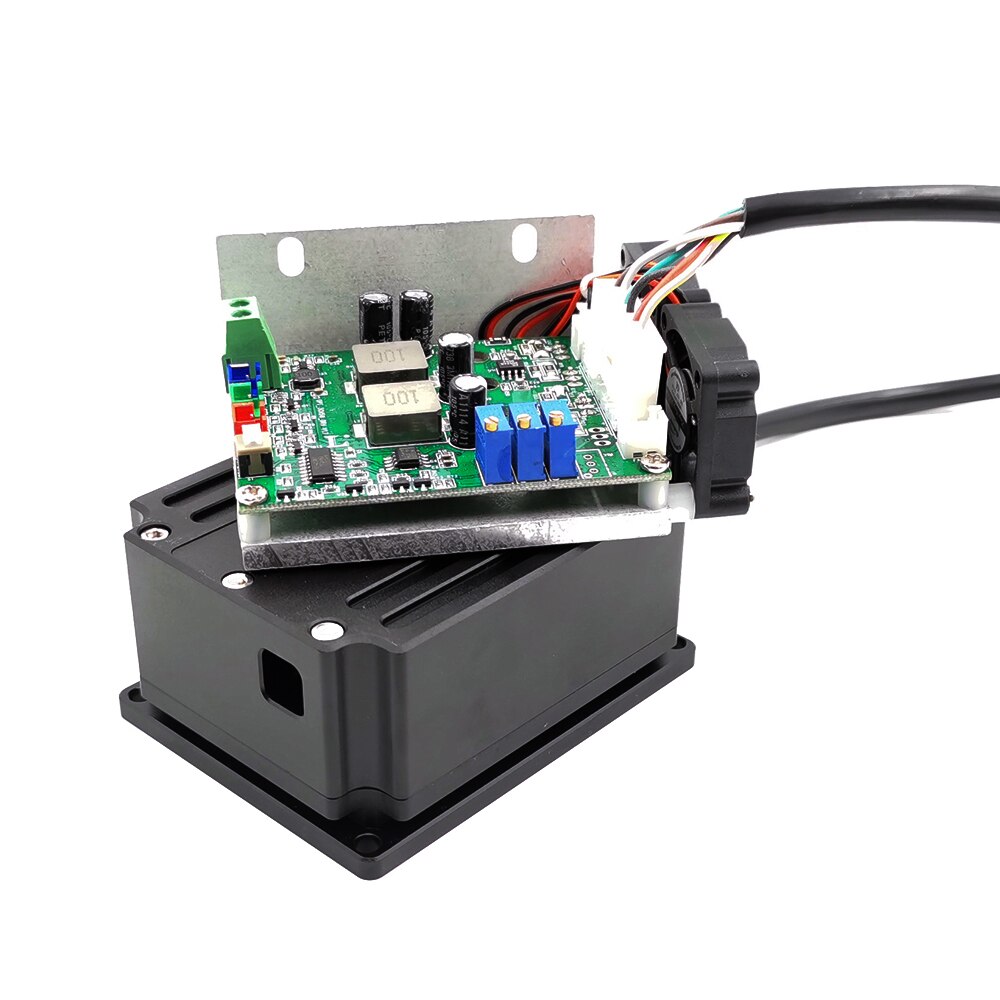

1pcs laser module,

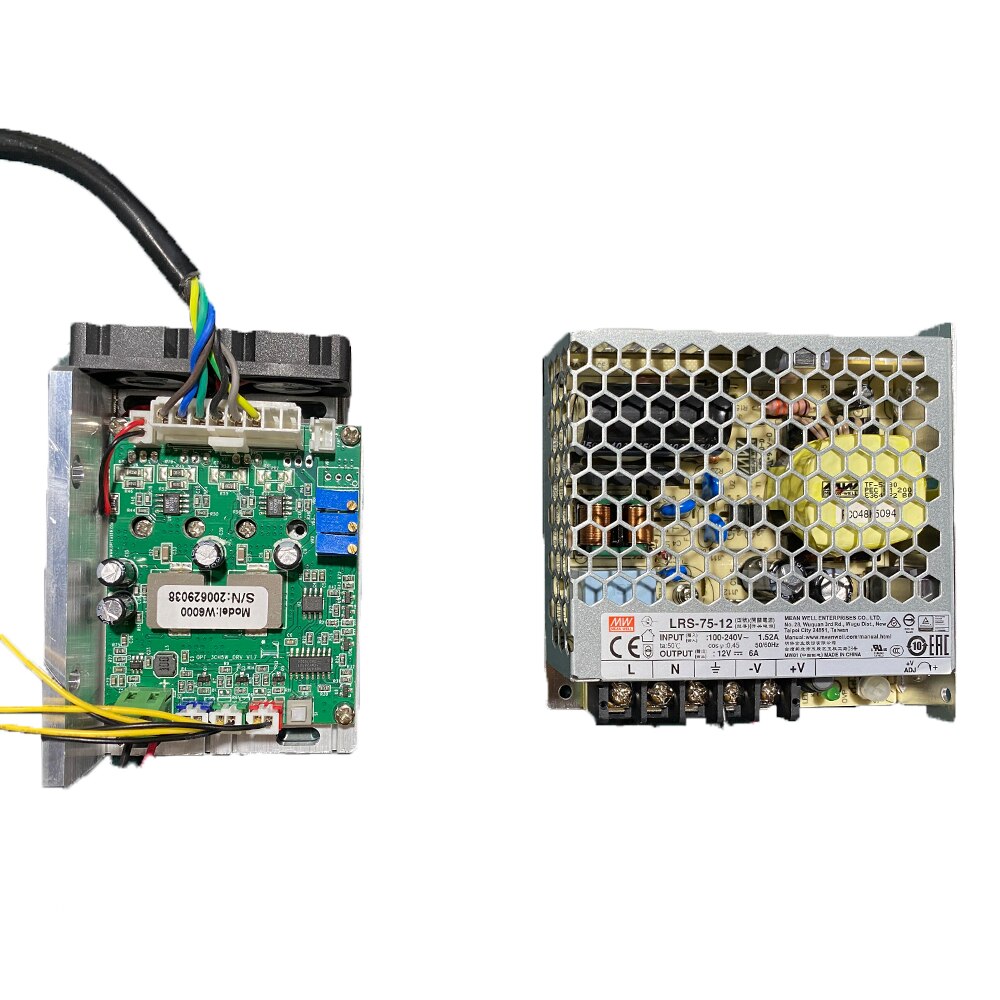

1pcs modulation board,
1pcs 120V~240Vac input 12Vdc output power supply (include 1 pair 10cm red and black color cables.)
1.The quality of the spot is good, the performance is stable and the modulation efficiency is high.
2. Light, convenient, easy to integrate
The Whole Package
Dimensions
Module size
Modulation board size
12V Power Supply
Stage Laser Effects
