Description

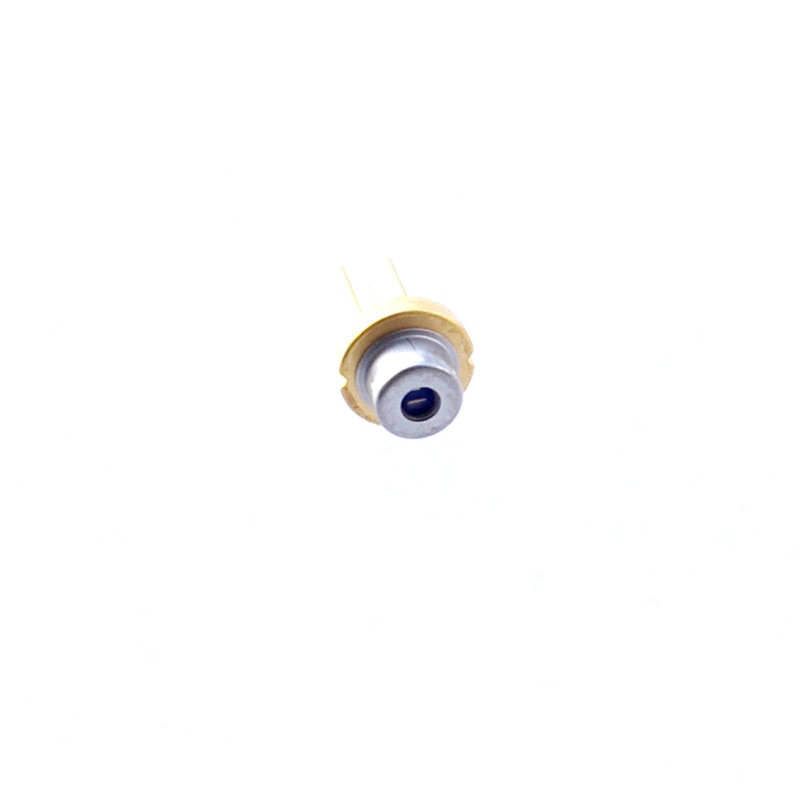

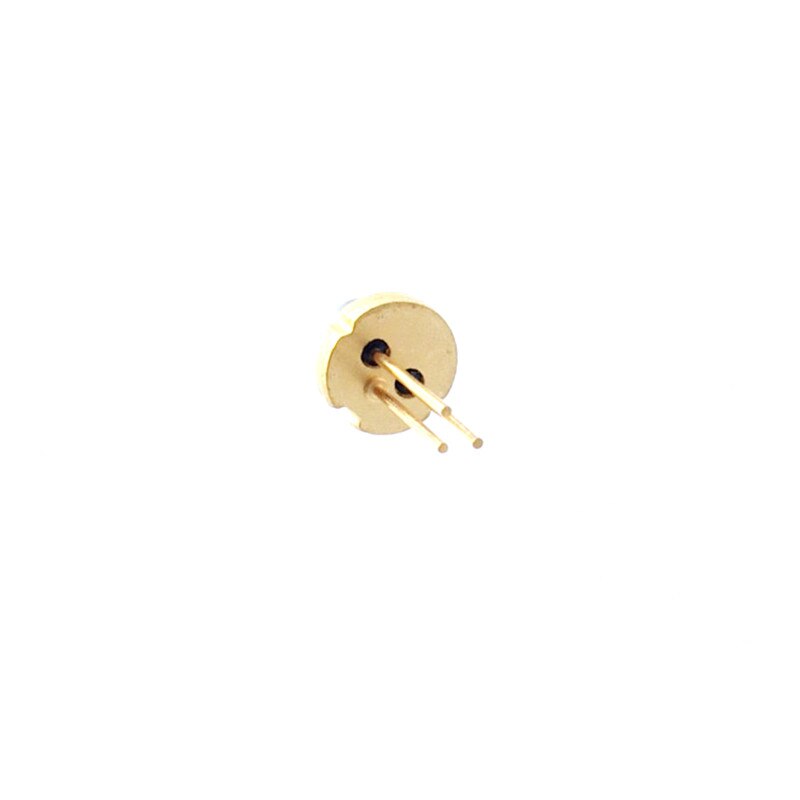

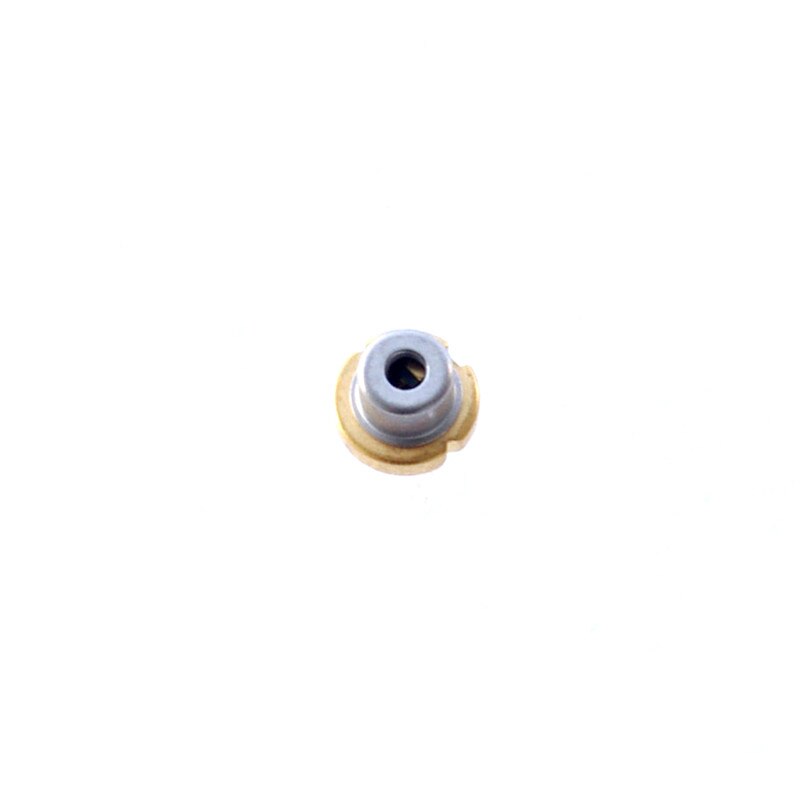

Sharp GH0942WA2G 940nm 700mw Multi Mode IR Infrared Laser Diode
2-1 Absolute Maximum Ratings (Tc=25℃(Note 1))
| Parameter | Symbol | Value | Unit |
| Optical power output (CW) (Note 2) | Po | 700 | mW |
| Optical power output (Pulse) (Note 3) | Pp | 2,000 | mW |
| Reverse voltage | Vrl | 2 | V |
| Operating temperature (Case temperature) | Top(c) | -10 ～ +70 | ℃ |
| Storage temperature | Tstg | -40 ～ +85 | ℃ |
| Soldering temperature (Note 4) | Tsld | 350 | ℃ |
(Note 1) Tc : Case temperature
(Note 2) CW : Continuous Wave Operation
(Note 3) Pulse : Pulse Operation (Pulse Width:1μs Duty:10%)
(Note 4) Soldering temperature means soldering iron tip temperature（The power 20W) while soldering.
Soldering position is 1.6mm apart from bottom edge of the case.(Immersion time: ≦3s) 3-2 Electro-optical Characteristics (Tc=25℃(Note 1))
