Description
- Blue module Size: 40*70（7watt）
- It can be engraved with stainless steel and partially oxidized metal（7w）, such as aluminum.
- The product uses a constant current circuit board to protect the circuit from damage and prolong its service life. The continuous working time can be as long as 48 hours or more.1000 hours total life
- Shipping time is within 3-15 days. Can be used for DIY, cutting wood and manufacturing model parts.

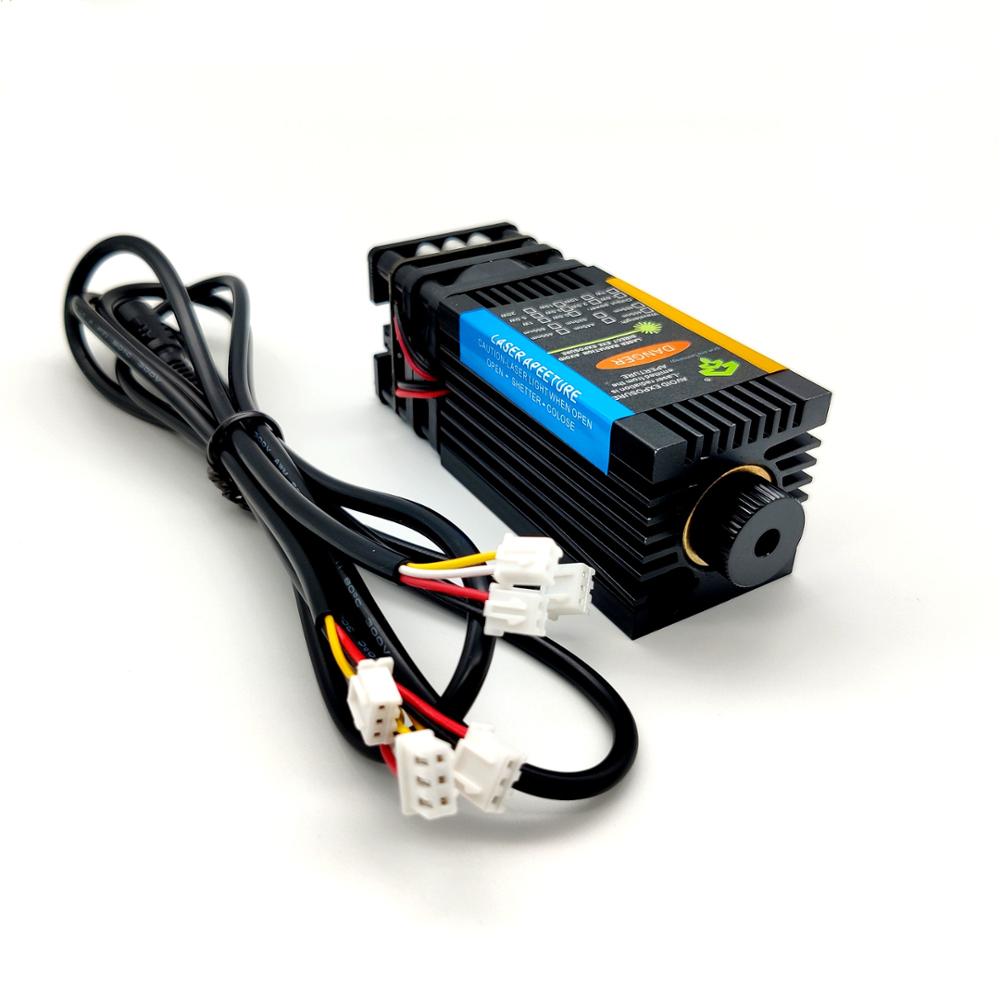

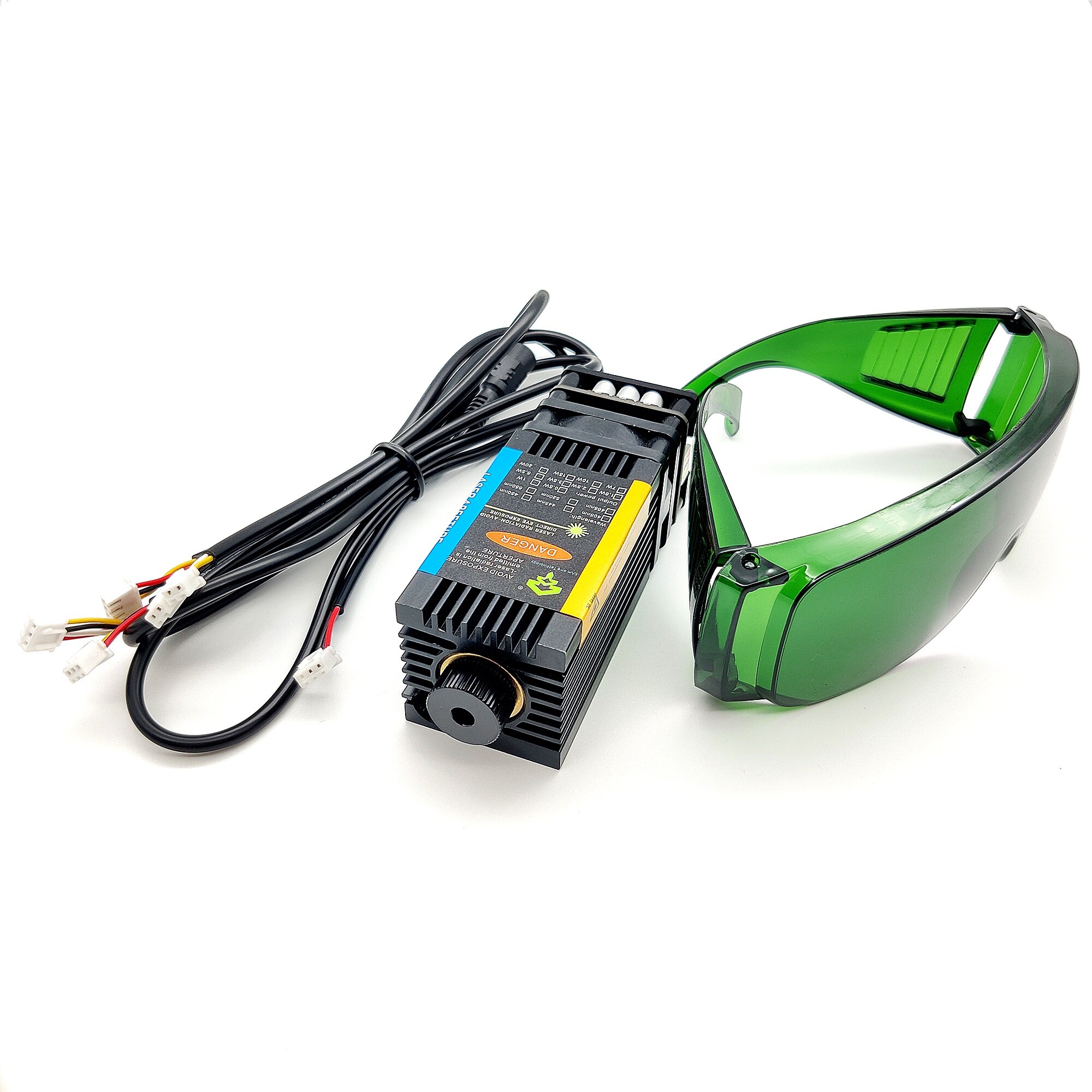

- Product list: 4P line *1，3P line *1, power supply wiring *1, focal length column *1, glasses *1, module *1.
Working current: 2500ma

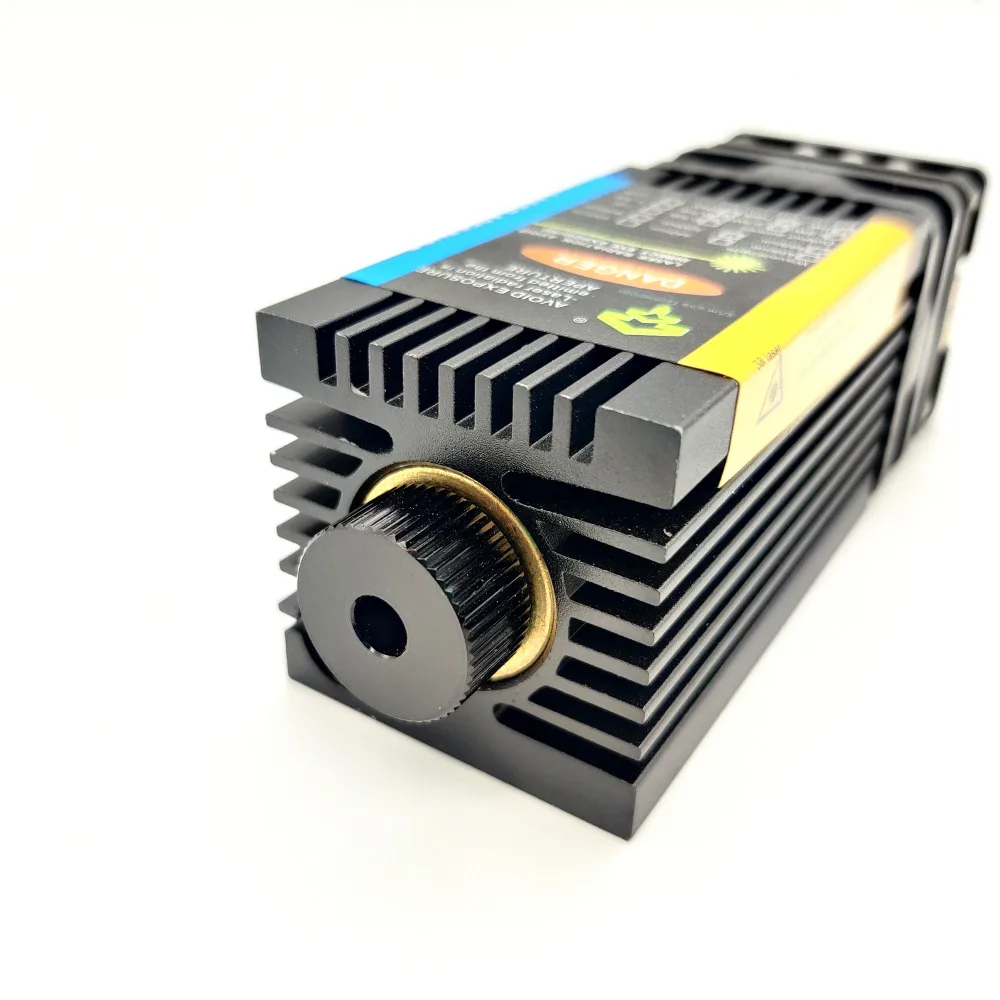

Optical mode: focusing lens
Spot mode: dot
Dimensions: 40mm*70mm
Working life: 10000 hours
Wavelength: 445-450nm
Output band: visible light
Supply voltage: 12V
Working temperature: ± 50 degrees Celsius
Product material: aviation aluminum

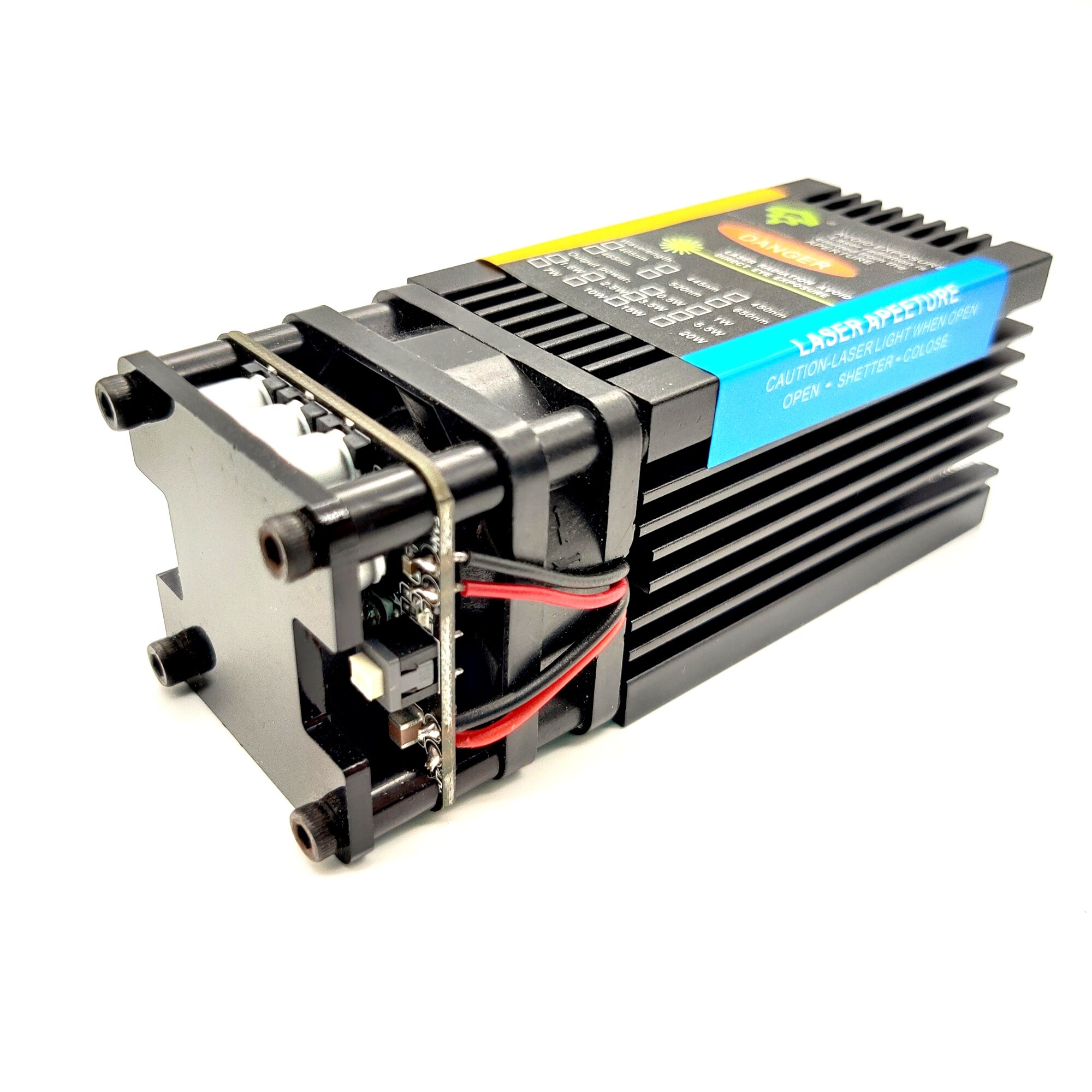

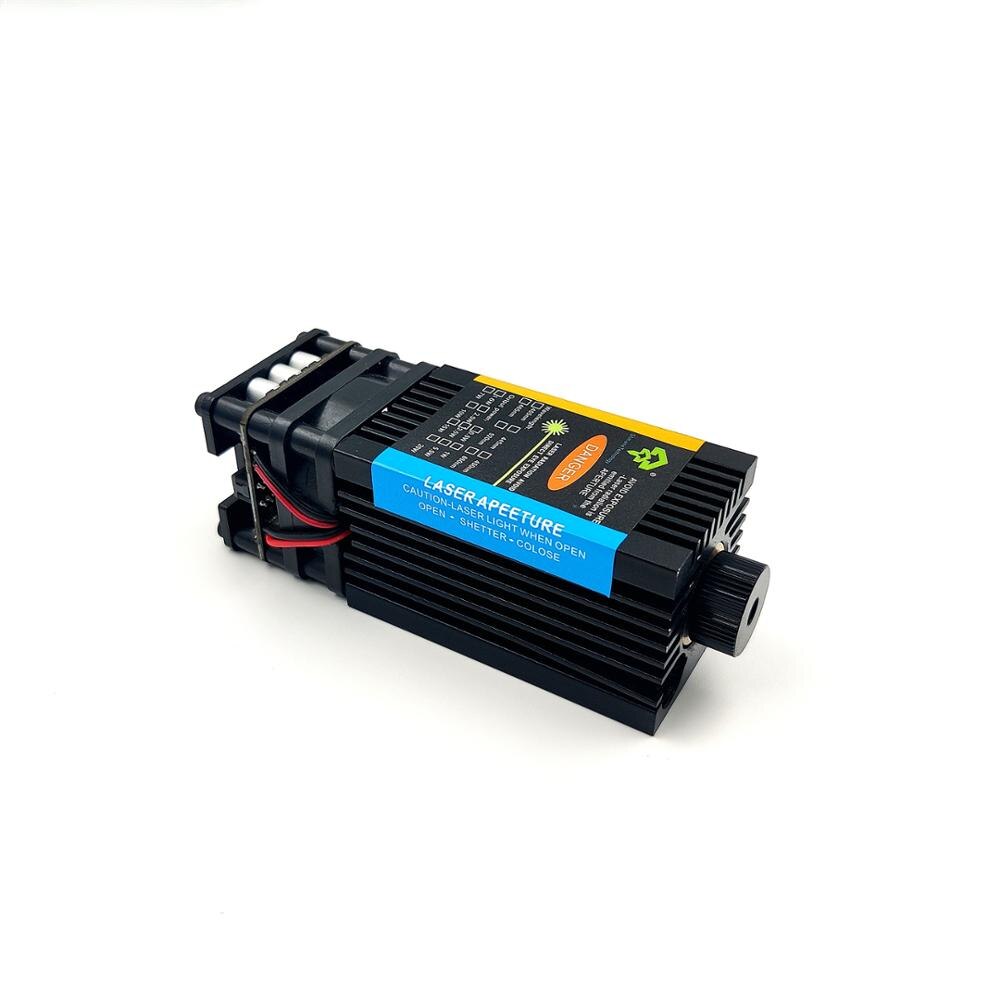

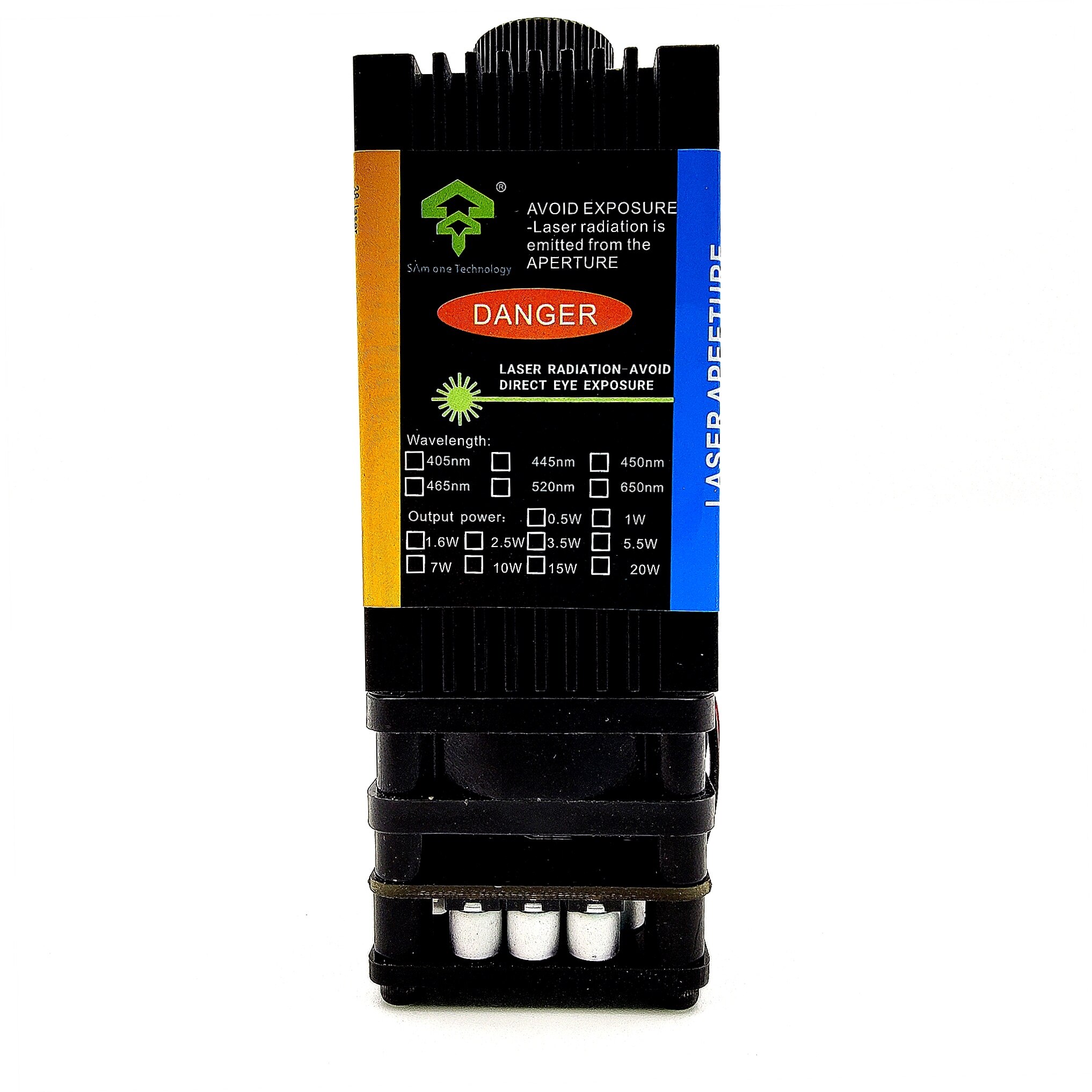

The laser module is a semiconductor laser head, widely used in diy engraving machines, and supports cnc or Android motherboard control.
The laser head driver board has pwm / TTL, so we can control the power and speed of the laser head with some parameters.
Instructions for use:
1. Use directly by connecting the power supply. (You can add a power controller)
2. Connect the engraving machine main board and control the laser module through the main board.
