Description

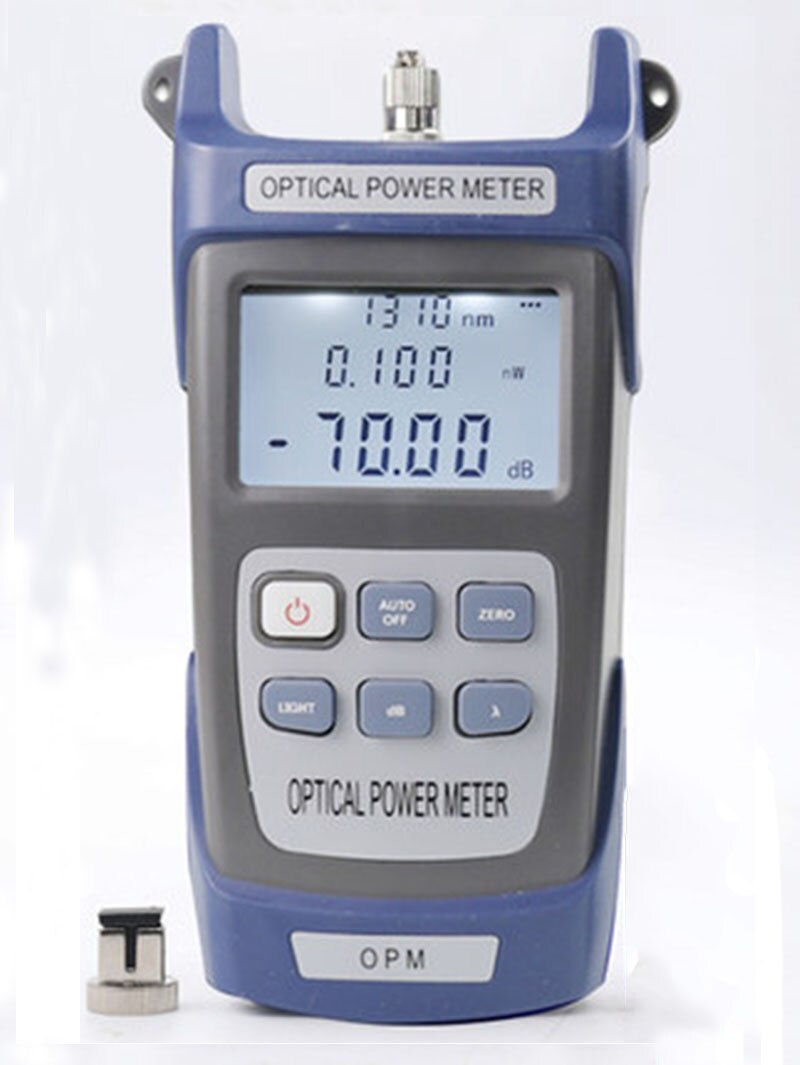

RY3200A/BHandheld optical power meter is a compact and an easy-to-use testing instrument for optical fiber networks, which can be used for absolute optical power measurements as well as for relative loss measurements in optical fibers.
Application
- Telecom Maintenance
- CCTV Maintenance
- Comprehensive cable construction system
- Optical instruments research and development
- Optical communication education and lab testing
- Other optical project
Features
- User self calibration function
- Comfortable LCD display and optional backlight LCD display supports night operation
- Power measurements in dBm or mw and insertion loss in dB
- Low battery consumption, more than 240 hours continual operation time for three 1.5V alkaline batteries (NO included due to the shipment rules)
- Optional 10 minutes Auto-off function
Technical Data
| Model | RY3200A | RY3200B | ||
| Wavelength(nm) | (650nm to 1650nm ) | |||
| Detector | InGaAs | |||
| Measurement Range (dBm) | -70~+10 | -50~+26 | ||
| Uncertainty | +5% | |||

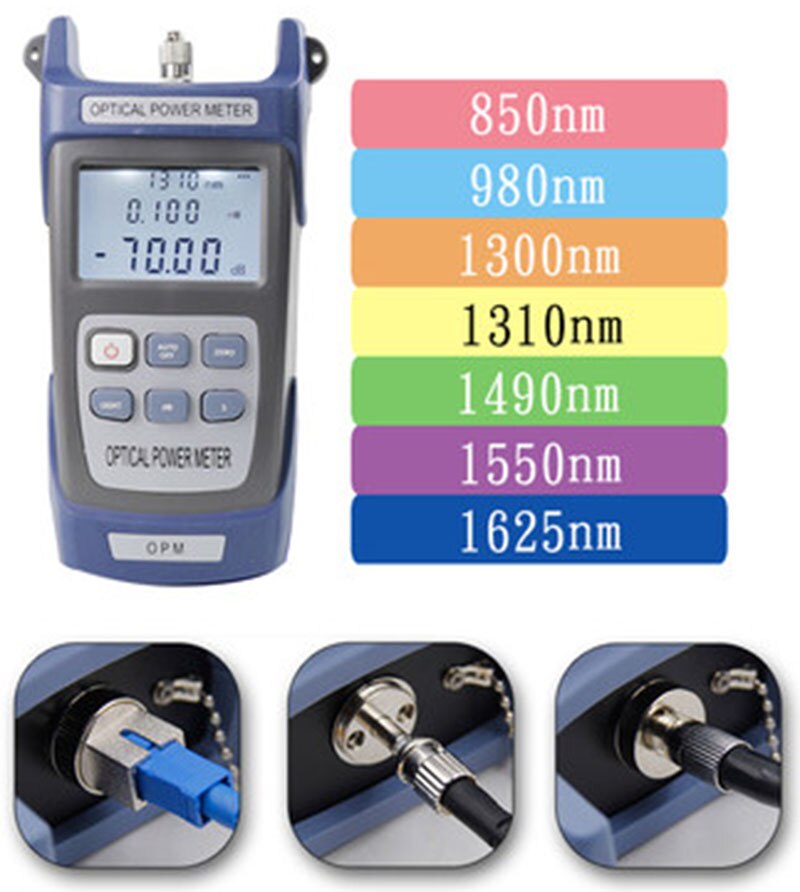

| Calibrated Wavelength(nm) | 850,980,1300,1310,1490,1550 (more calibrated wavelength can be optional) | |||
| Resolution(dB) | Linear 0.1% or Non-linear 0.01dBm | |||

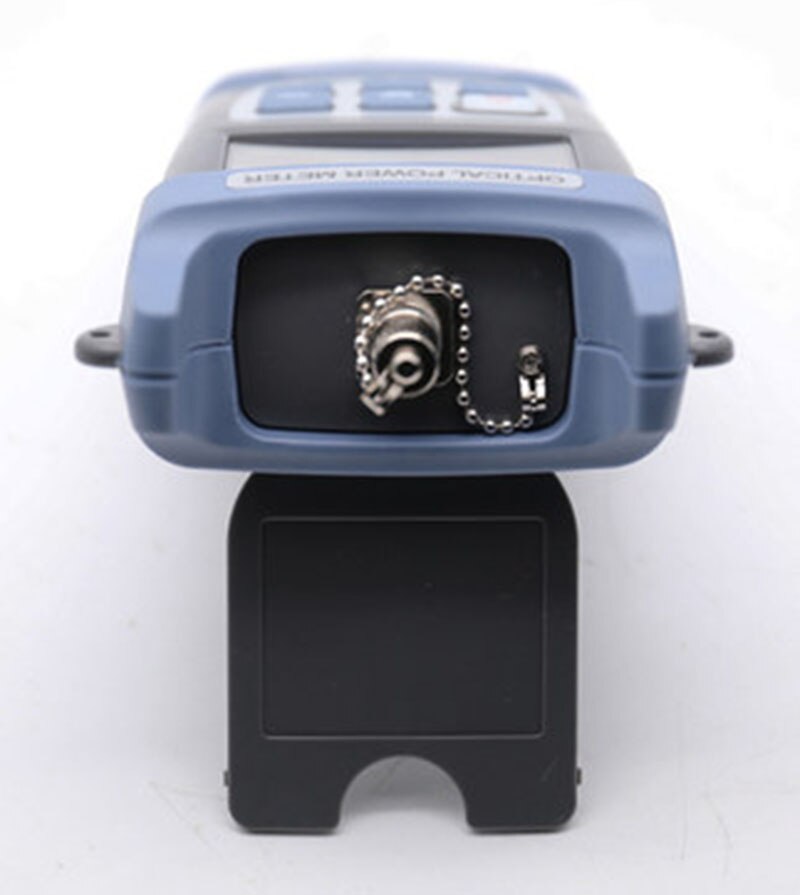

| Optical Connector | FC/ Universal 2.5mm adaptor (FC,SC,ST interchangeable connector can be optional) | |||
| Power Supply | Alkaline Battery(3 AA 1.5V batteries) | |||
| Battery Operating Time | 240 h with 1.5V Battery(3) no included | |||
| Operating Temperature(oC) | -10 ~ +60 | |||
| Storage Temperature(oC) | -25 ~ +70 | |||
| Relative Humidity | 152x74x26 | |||
| Dimension(mm) | 0 to 95% (non-condensing) | |||
