Description
- Brand Name: QDHWOEL
- Origin: CN(Origin)
- Application: Lathe and Turning Center
- Model Number: Ruida RDC6442G/6442S
- Software: RDWorks V8
- Format: DST PLT BMP DXF DWG AI etc
- Software Environment: Windows 2000/XP/VISTA/7/8/8.1/10 (32 and 64-bit)
- Warranty: 1 Year
- Switch power supply: Meanwell 24V 3.2A 75W
- Packaging: Ruida RDC6442G/6442S Co2 Laser Controller Meanwell 24V 3.2A 75W

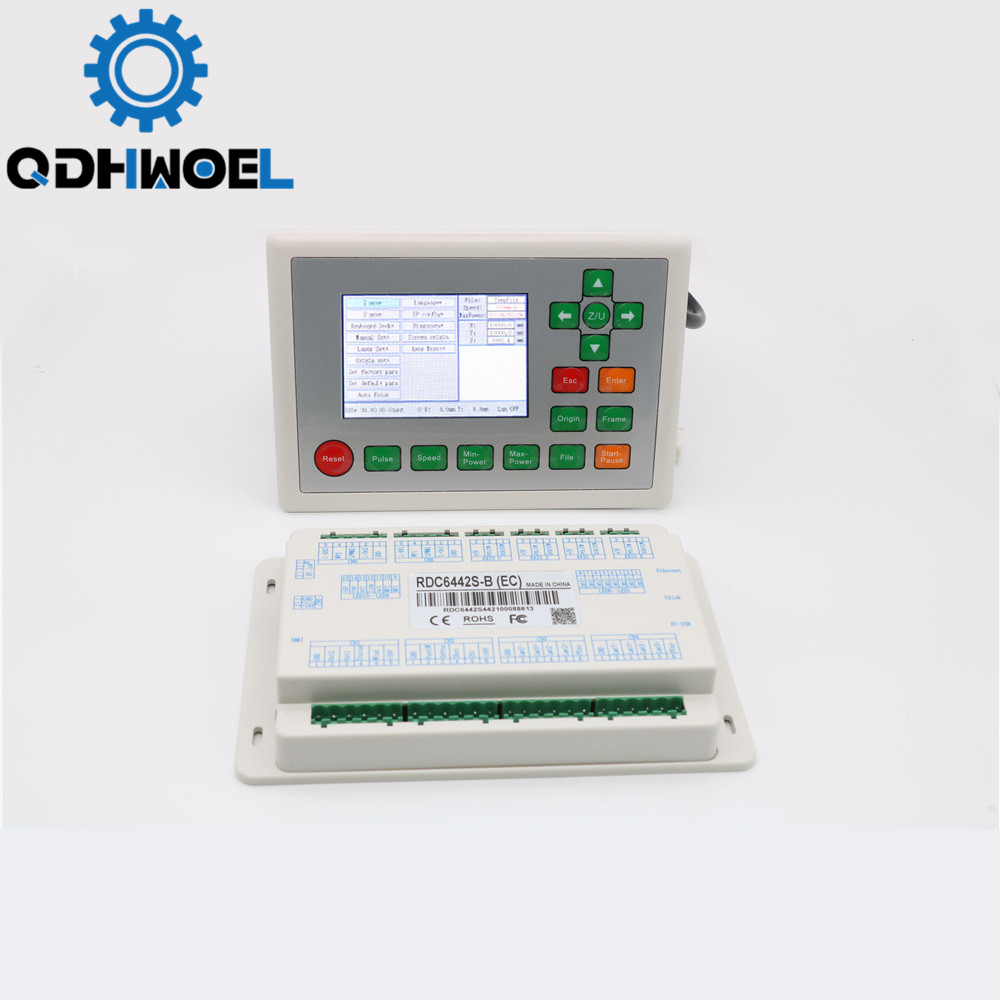

Ruida RDC6442S RDC6442G Co2 Laser Controller for Laser Engraving and Cutting MachineRD Control System
Features:
Ruida RDC6442G/S system is a new generation system for 4-Axis control of laser engraving and cutting.
-
Digital Laser Control Signals:
(1) TTL level output, 50 mA, Drive Capability
(2) PWM frequency 2K-50K for adjustable
(3) PWM duty ratio is 1% ~ 99%, adjustable
(4) PWM value is up to 5.0 V
-
One-Way 24V Power Supply, >2A
-
Motor Control Signal: Common-anode Output, Drive Capability 20 mA. Motor control pulse frequency: Max.500KHZ
-
10/100M Ethernet + USB 2.0 Control.
-
Interpolation: Linear/circular arc/B spline, accuracy + / – 0.5 pulse
-
Output: 4-channel, photoelectric isolated OC gate output, the max. drive capability 500mA drive capability (with follow-current protection).
-
Input: 4-channel, photoelectric isolated input, compatible with 5V/ 12V / 24V logic level
-
6442G: Standard / 6442S: Double Head Linkag
Notice: (Order Package detail as below:)

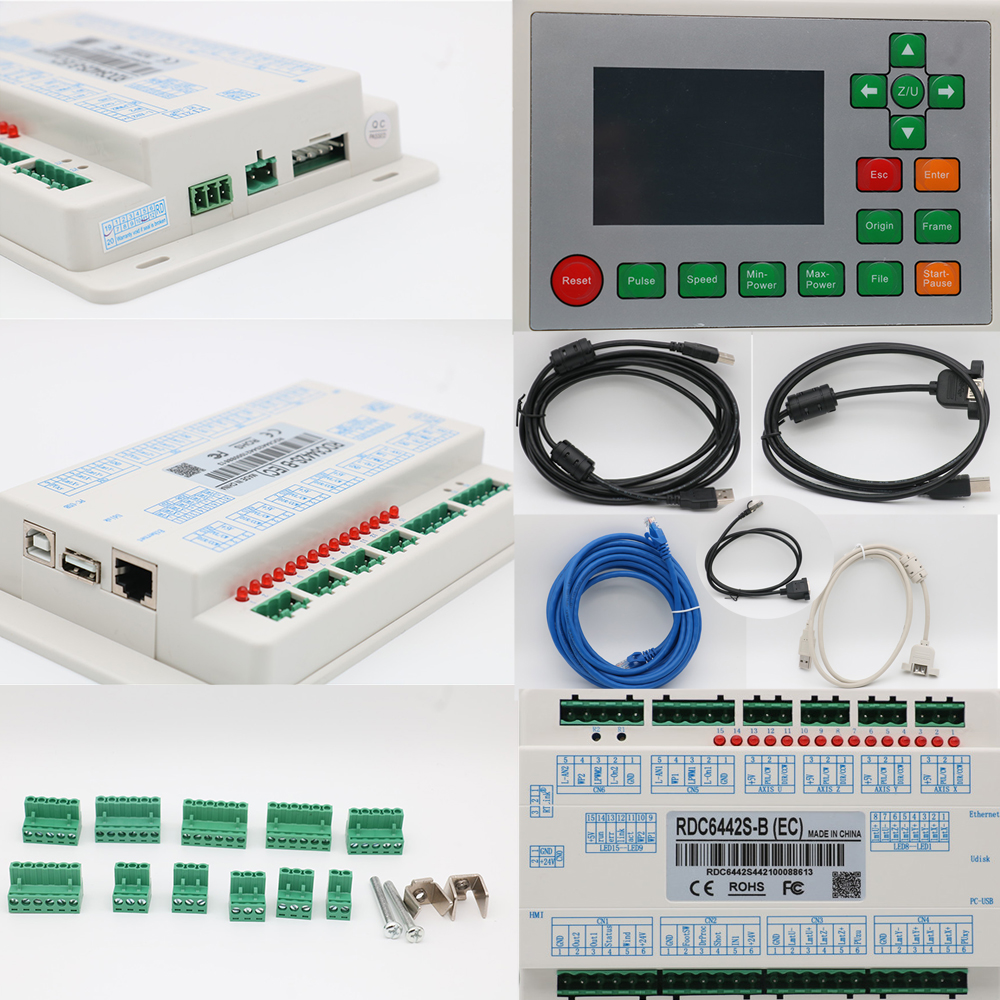

RDC6442S 6442G Panel: (only the Panel)
RDC6442S Mainboard:(Only the Mainboard)

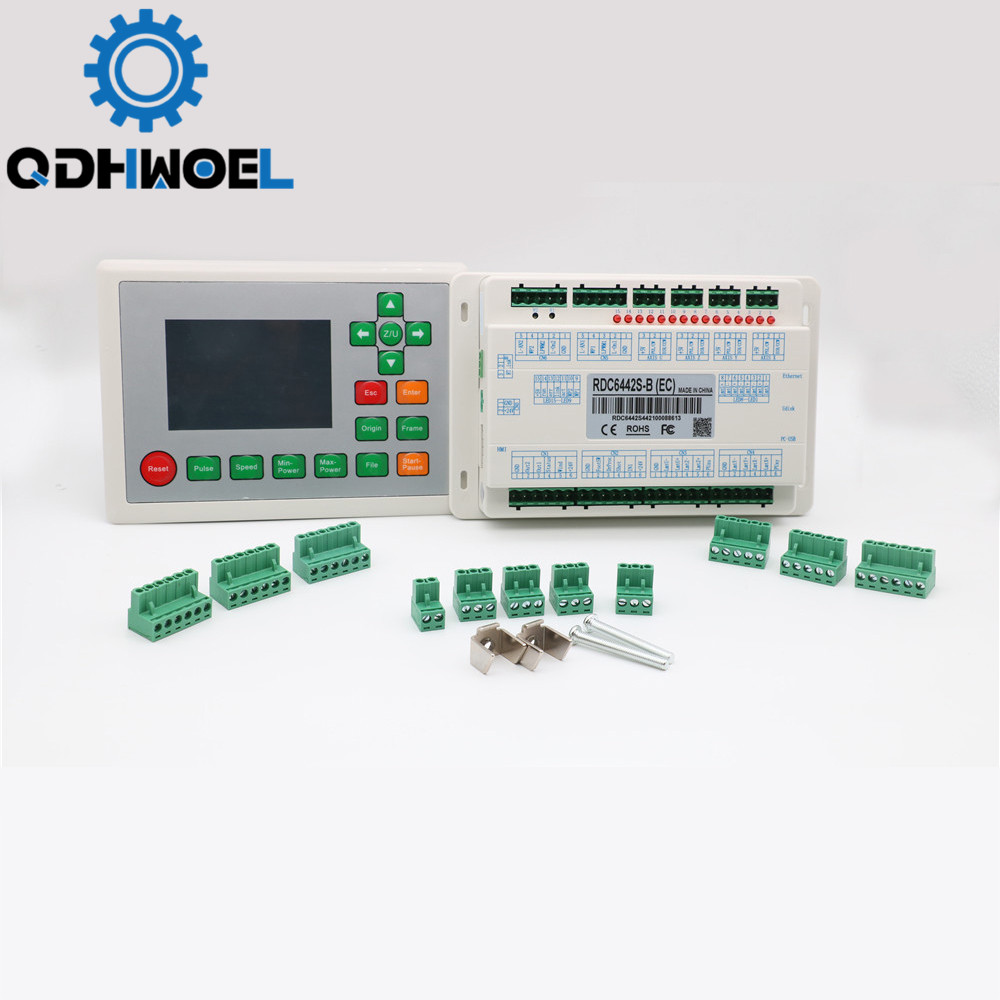

RDC6442S Whoel Set:(Whole Set-Include Panel,Mainboard,Cable)
