Description
- Brand Name: QDHWOEL
- Origin: CN(Origin)
- Certification: CE
- Is Smart Device: NO
- Application: Other
- Model Number: Ruida RDC5121
- Warranty: 1 Year

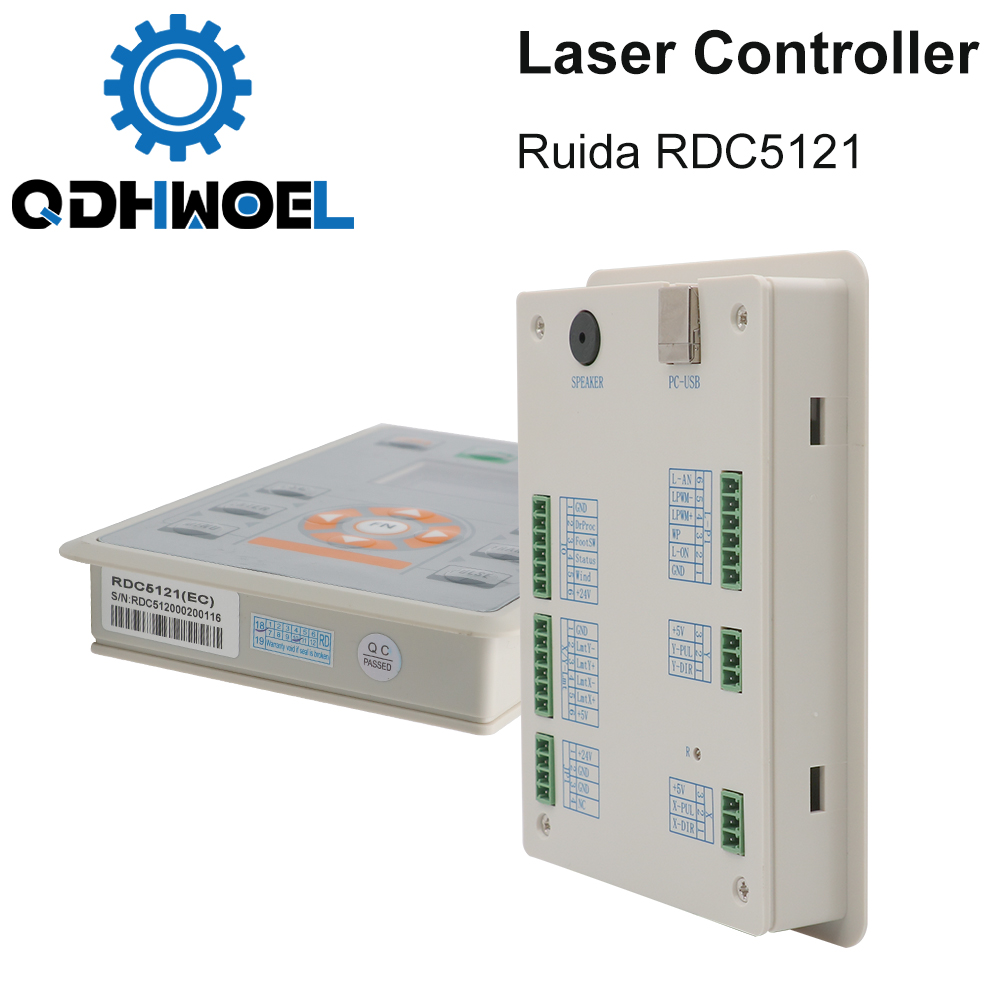

Ruida RDC5121 Lite Version Laser Controller for Co2 Laser Engraving and Cutting Machine
(If you need the Manual and Software, please contact us,leave message,we will send by Email to you.)
RDC5121 simple offline engraving system
Technical Parameters:
1, 2 motor interface output maximum 400KHZ frequency, drive capacity 20mA;
2, 1 channel laser interface output maximum 200KHZ frequency, duty cycle 1% ~ 99% adjustable, drive capacity 50mA;
3. Onboard 128M non-releasable memory;

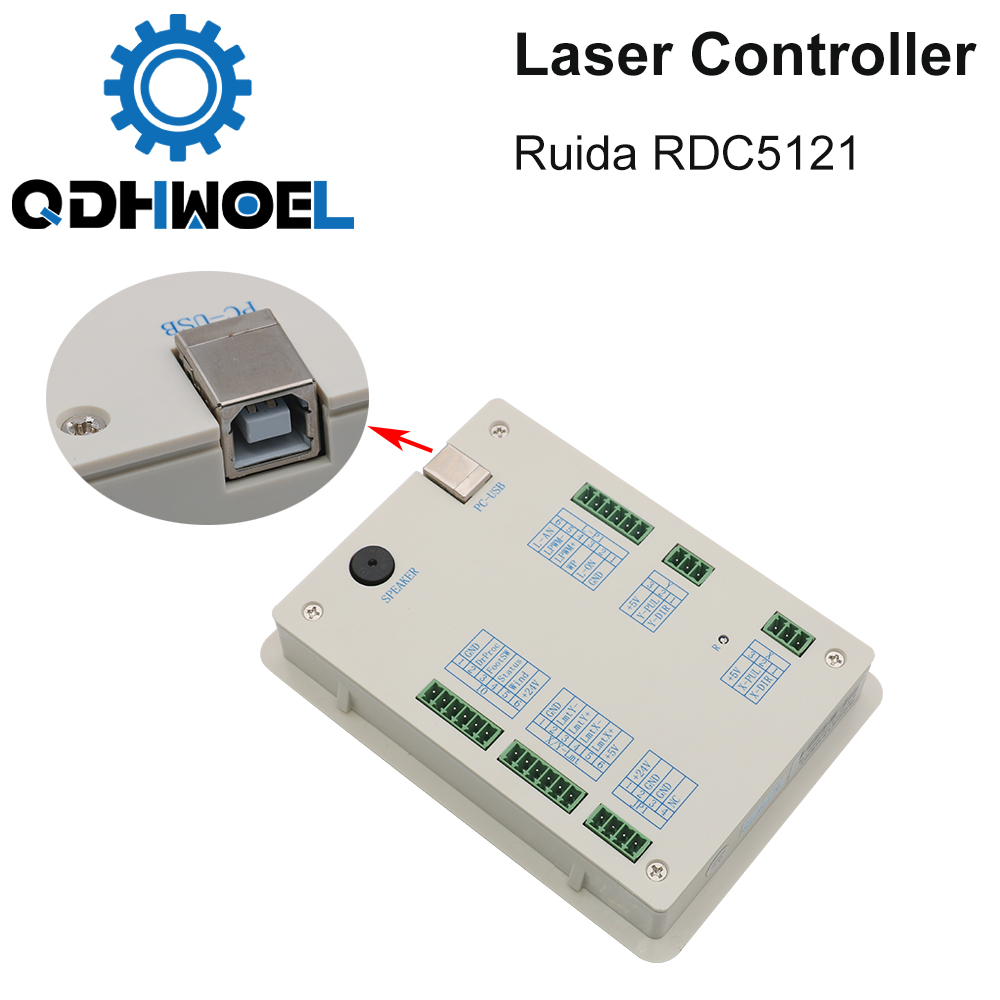

4, USB maximum transmission rate 12M, the longest distance of 5 meters;
5, linear / arc / B-spline interpolation accuracy +/- 0.5 pulse;
6, 2 universal optical isolation OC gate output, maximum 300mA drive capability (with freewheeling protection);
7, 2 universal optical isolation input, compatible with 5V/12V/24V logic level;

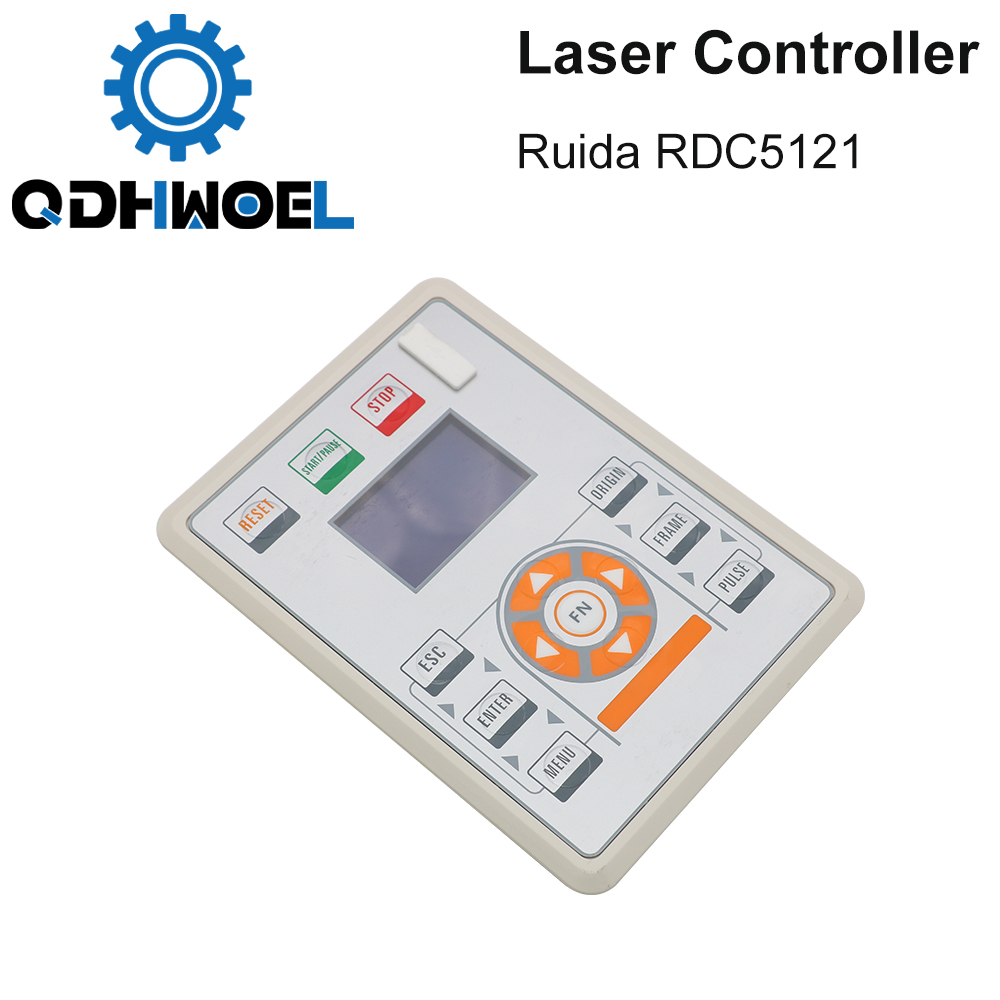

The RDC5121 system is a simple two-axis engraving control system developed by Ruida Technology. With 2.0-inch black and white screen, the interface is easy to operate. Only two motion axes of XY can be controlled, and one laser energy following control can be realized at the same time. Support USB2.0 and PC communication, support U disk copy files.
Function description:
1. Support LCD display and button operation;
2. Support up to 2 motor outputs, 1 independently adjustable digital/analog laser output;
3, support up to 2 OC gate (300mA current) output, can directly drive 5V/24 relay;
4. Support laser engraving/cutting;
Application: It can be widely used in laser cutting, laser engraving, laser welding and other fields with only XY two motion axes, one laser channel, and a small number of input and output points.
