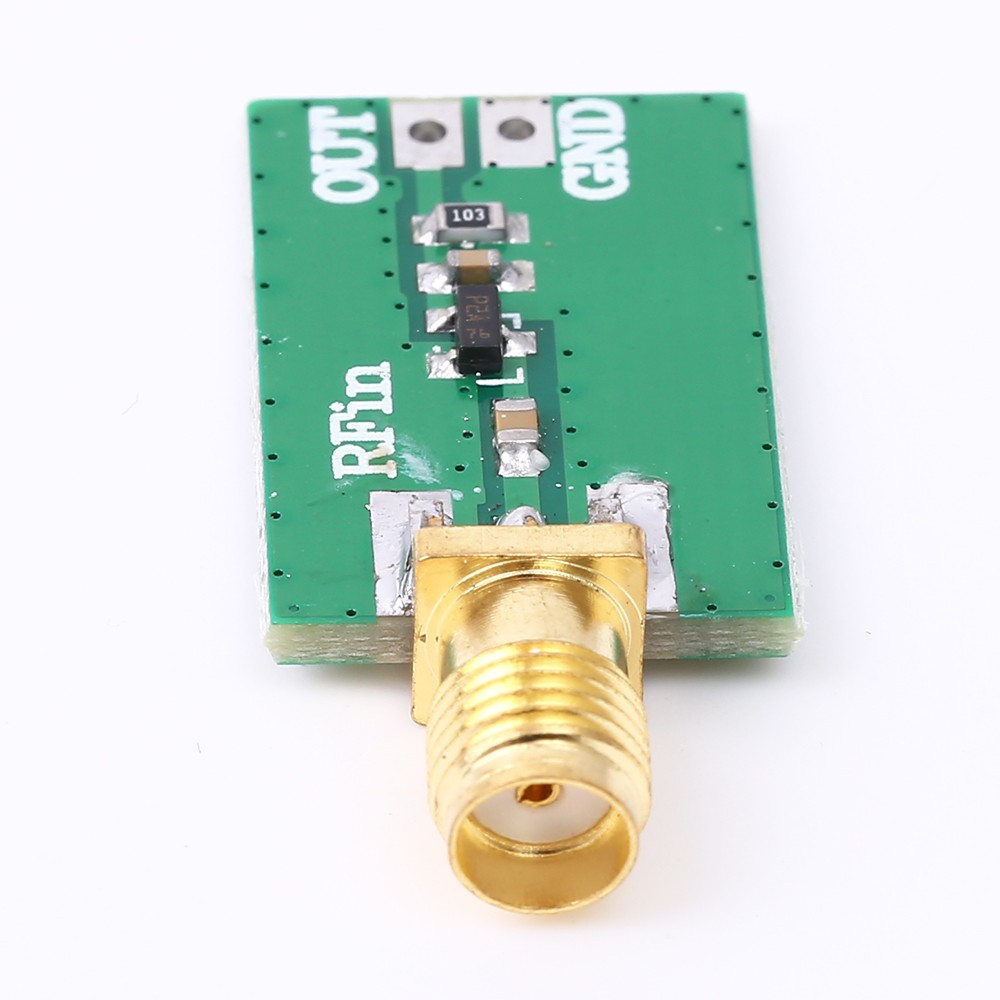

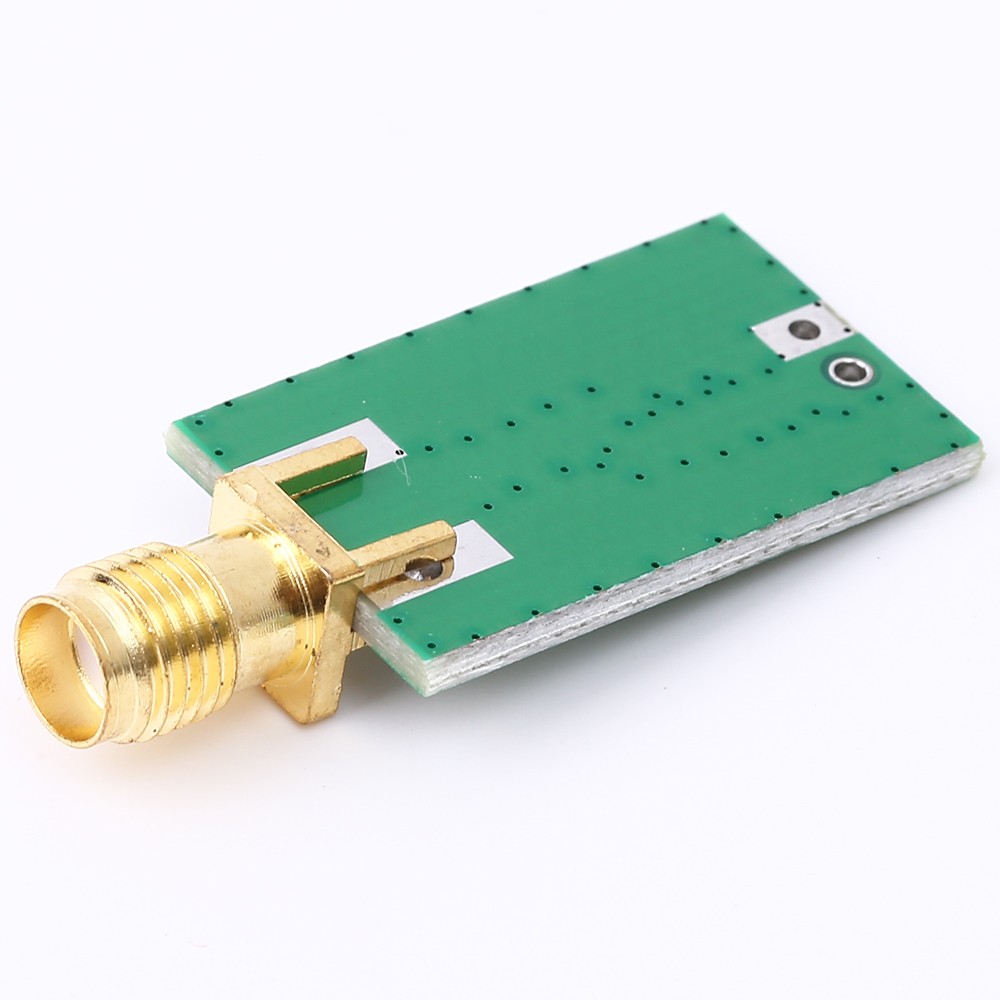

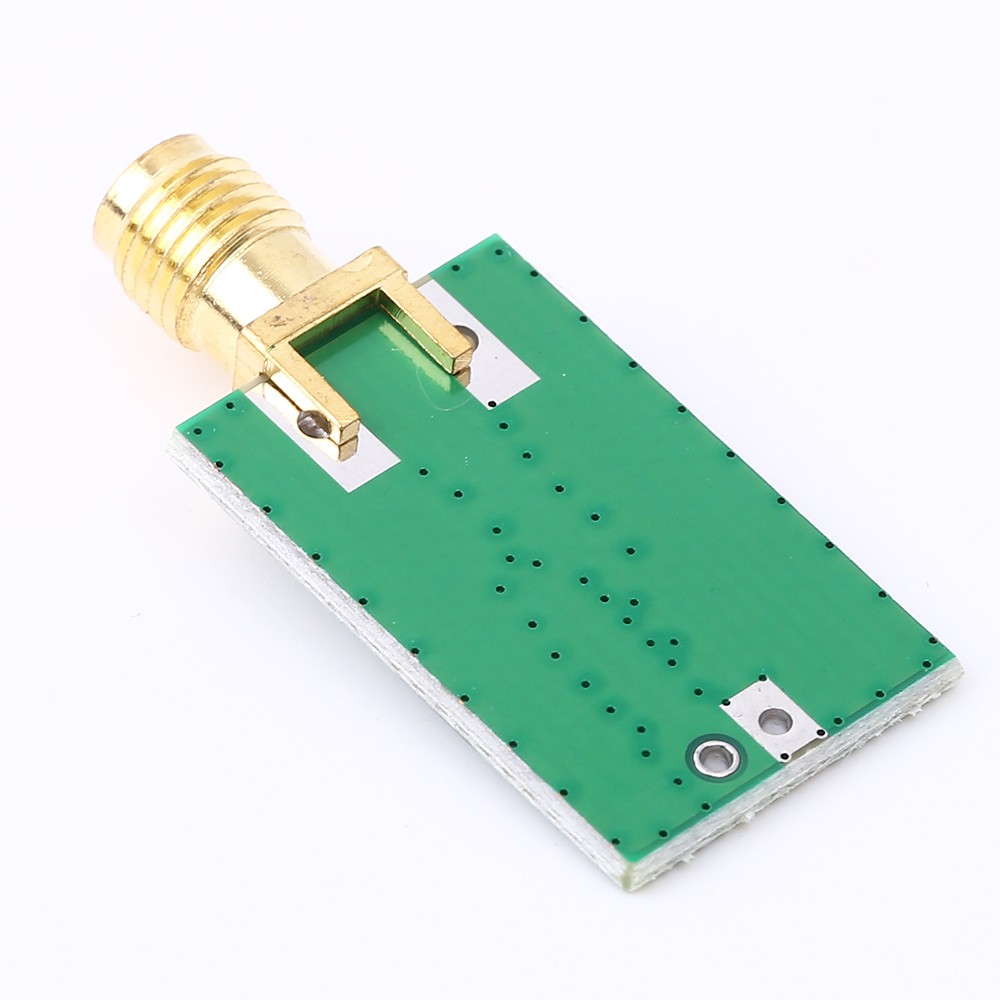

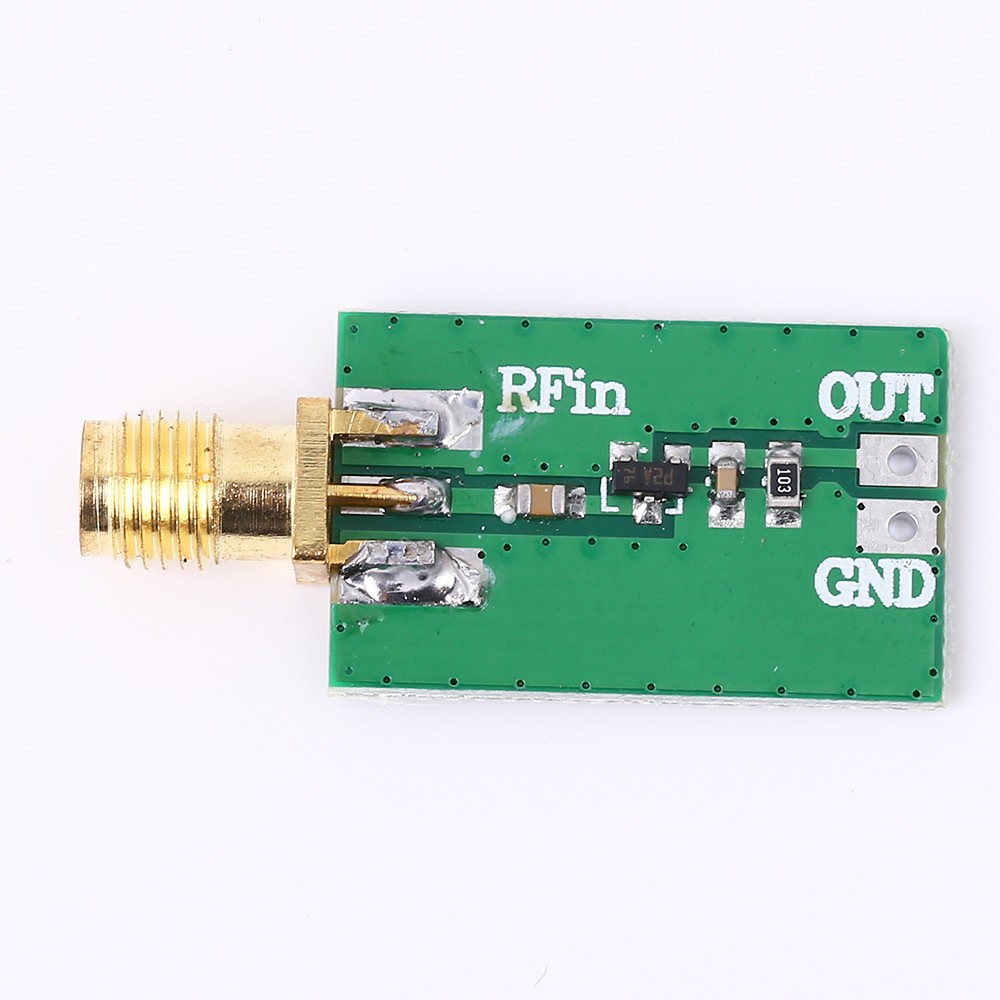

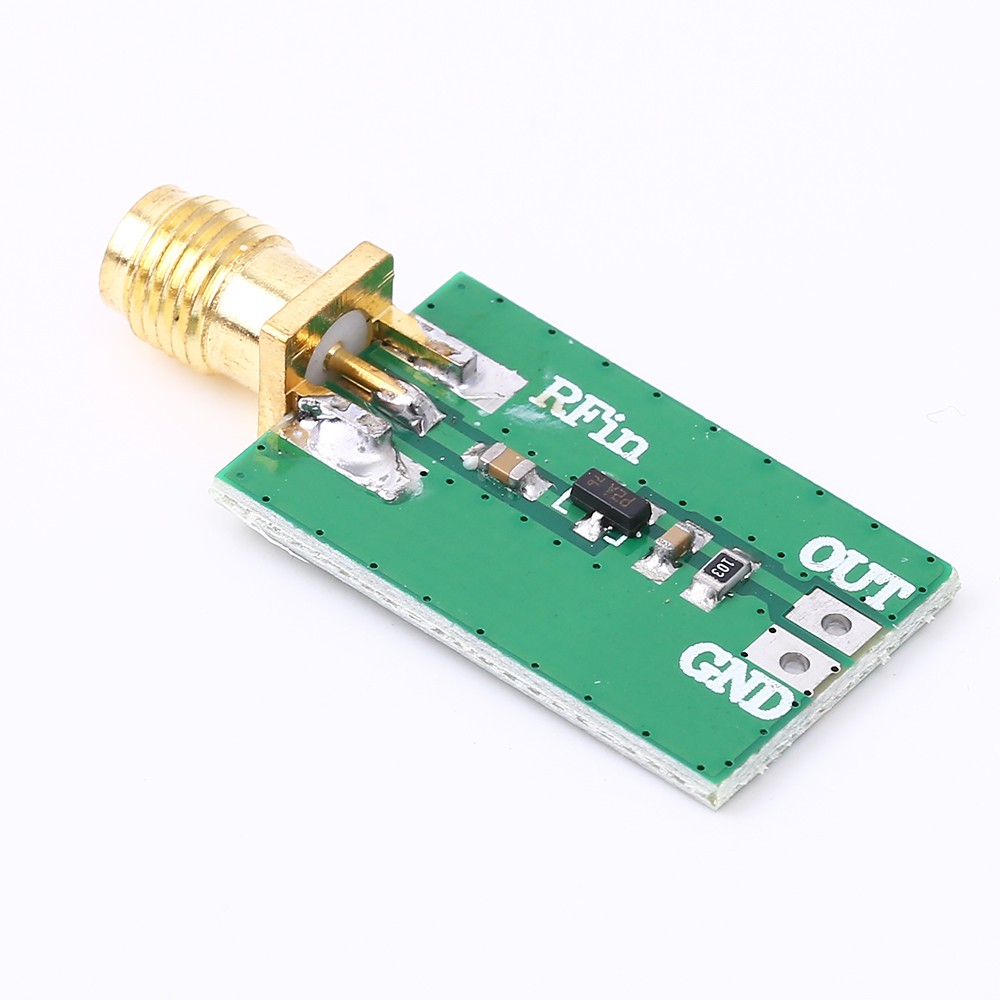

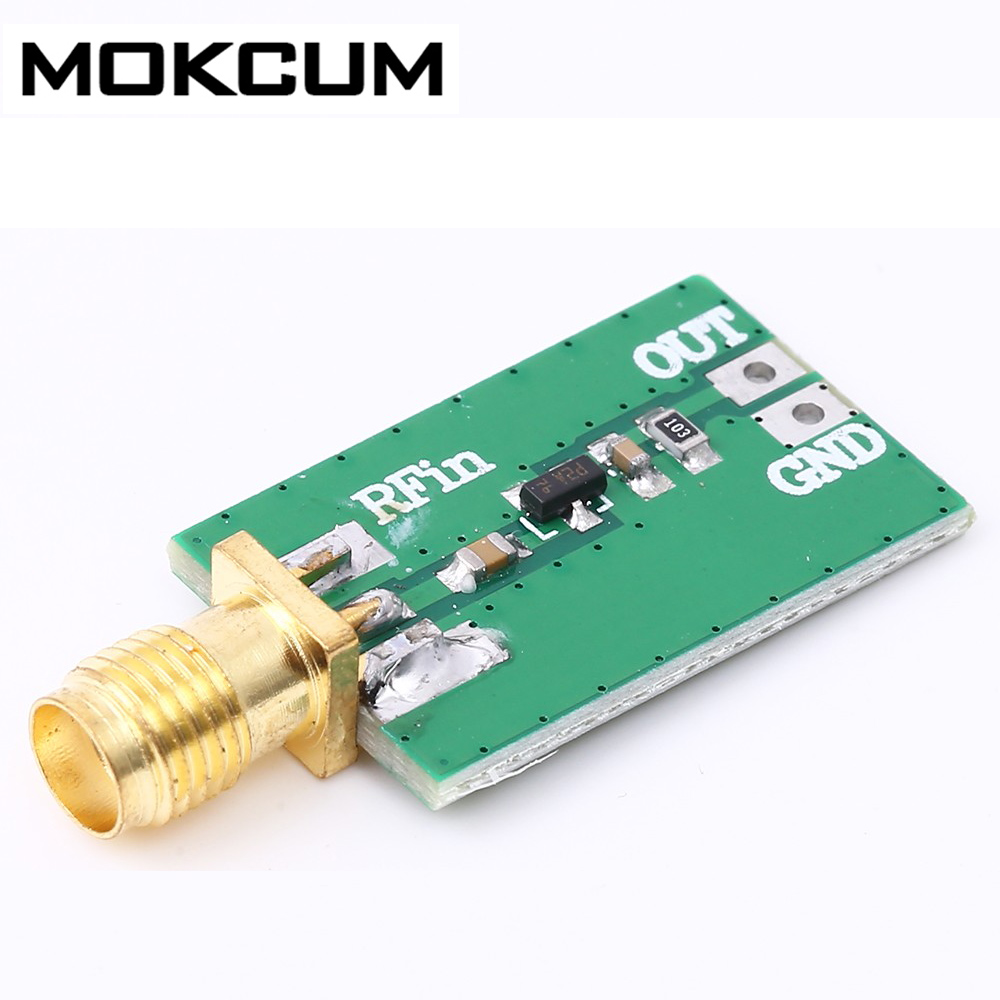

RF Envelope Detector Discharge Signal Detection Amplitude Detection Module voltage doubler detector

$4.72

SKU: 33022237941 Category:

Description

  • Brand Name: MOKCUM
  • Certification: RoHS
  • DIY Supplies: ELECTRICAL
  • Origin: CN(Origin)
  • Measuring Range: Maximum input: 20dBm(burning power)
  • Display Type: Digital Only
  • Dimensions: 33*15*6.5mm
  • Operating Temperature: -40~85 Celsius
  • Model Number: voltage doubler detector
  • Work Humidity: 0%~95%RH
  • Working Frequency: 0.1-3200MHz.

Description:

This product uses a voltage doubler detector (consisting of two reverse microwave diodes), 1 time sensitive than single-tube detector(about 6dB), High sensitivity (typical -30dBm, or even to -40dBm).

Parameter:
1>.Maximum input: 20dBm(burning power)
2>.Detection output: The default is positive
3>.Work Temperature:-40℃~85℃
4>.Work Humidity:0%~95%RH
5>.Size:33*15*6.5mm

Features:
1>.100% brand new and high quality.
2>.Adopt a voltage doubler detector, more sensible.
3>.Maximum input: 20dBm(burning power). Detection output is positive.
4>.Working Frequency: 0.1-3200MHz.
5>.RC Filter: R = 10K, C = 1nF(two elements in parallel output ports).

Note: If you want to lower operating frequency, you can increase the capacitor of the output, if you want fast response, then need to reduce capacity, it is a contradiction that can be configured according to your needs

Package:
1piece RF Envelope Detector Discharge Signal Detection
