Description

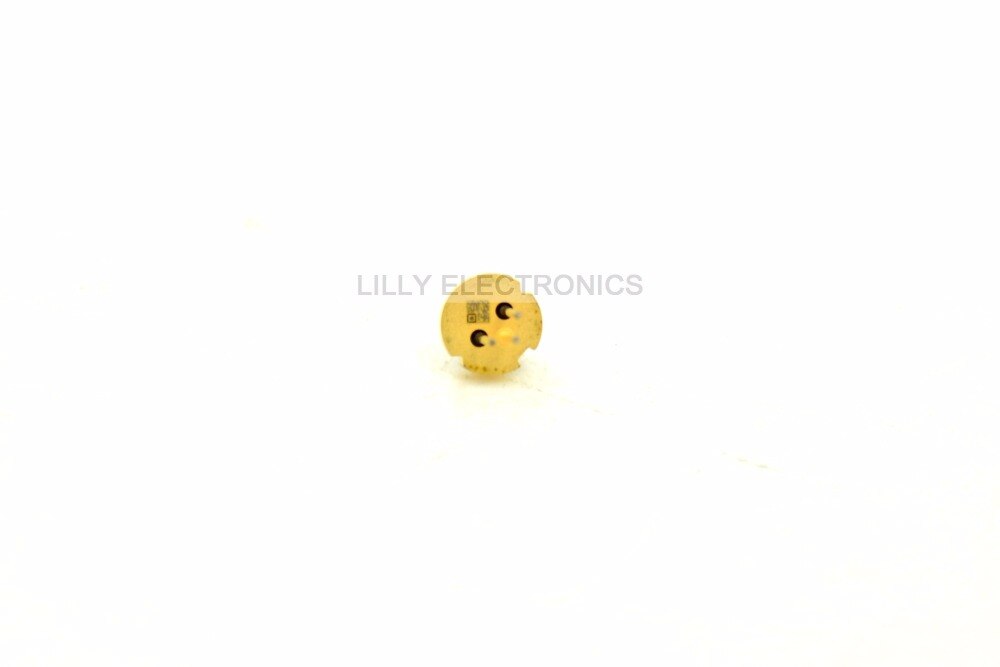

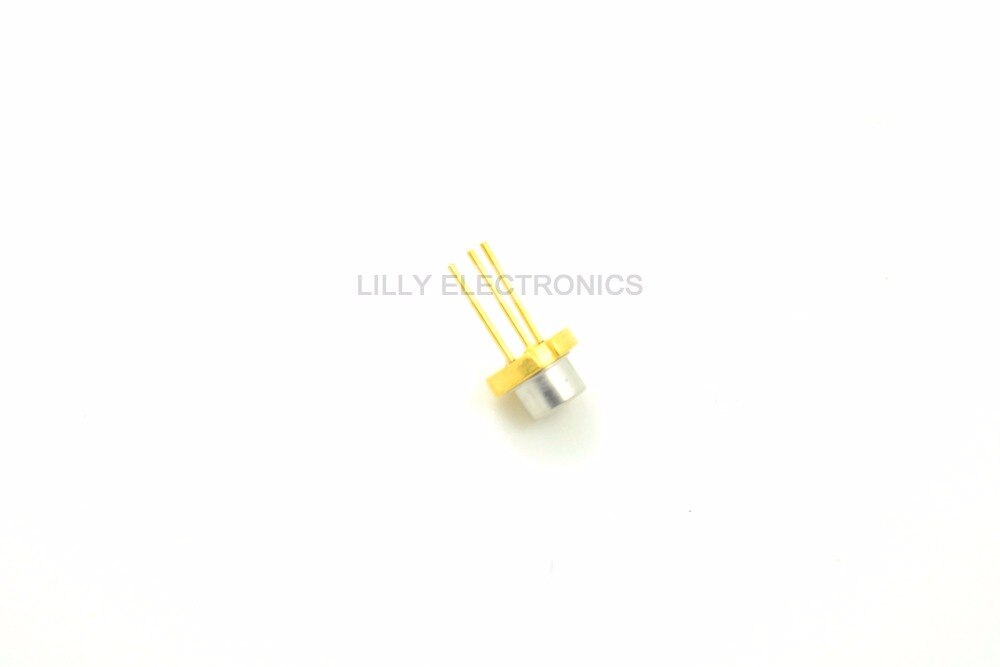

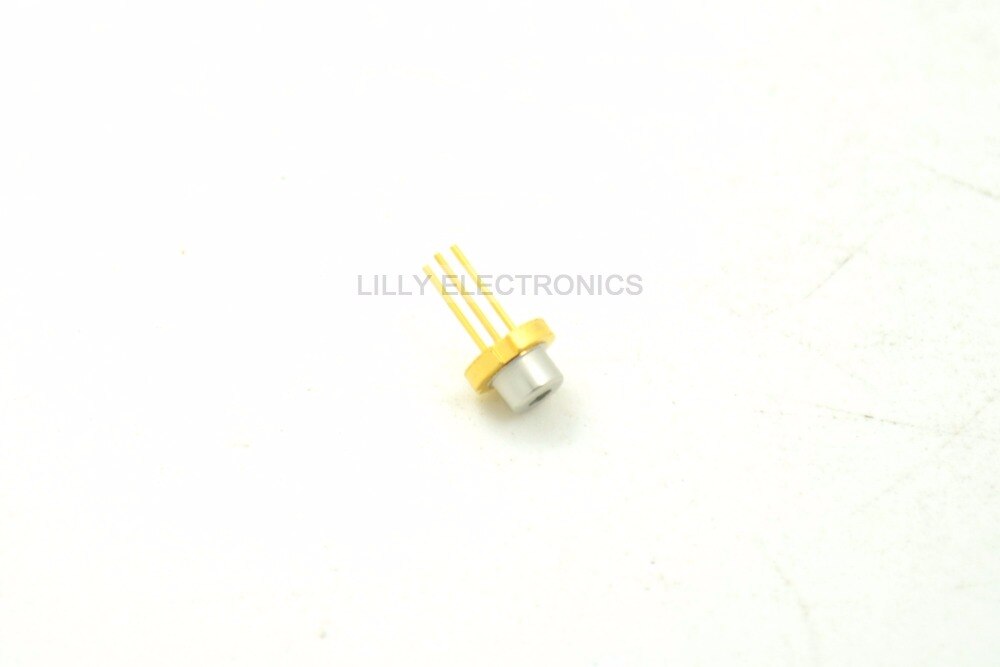

Red Diodes 650nm 658nm 20mw Laser Diode TO-18 LD N type with PD
Features: .
Features:
Dimension: 5.6mm
Package: TO-18
Life:> 6000 hours
Wavelength: 650nm / ± 5nm
Output power: 20mW
Operating voltage: DC = 2.2V
Operating current: I <20mA
Operating Temperature: -10 degrees ~ +50 degrees
Storage temperature: -40 degrees ~ +80 degrees
Detail:
.
.
The laser diode is and precise and sensitive optical instrument. Before carrying on some laser DIY activities, please read about the technical information first and protect your eyes before laser ray. Be sure the operator has experience in optics DIY or testing. and Don’t operate when the power is connected.
Please ask us for the datesheet of the LD.
Package:
1*Red Diodes 650nm 658nm 20mw Laser Diode TO-18 LD N type with PD
