Description

Specification:

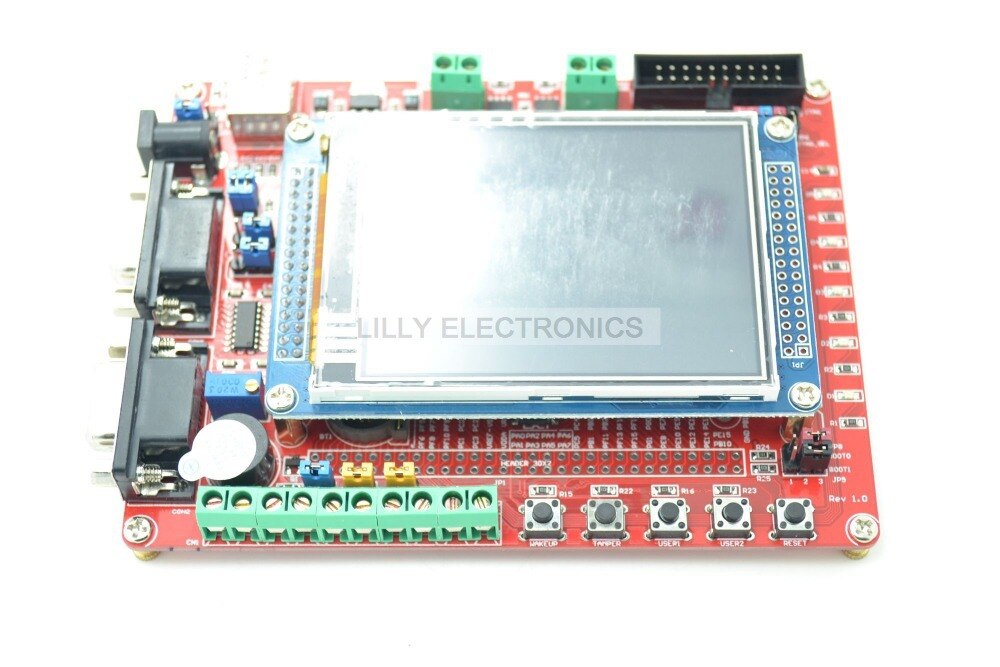

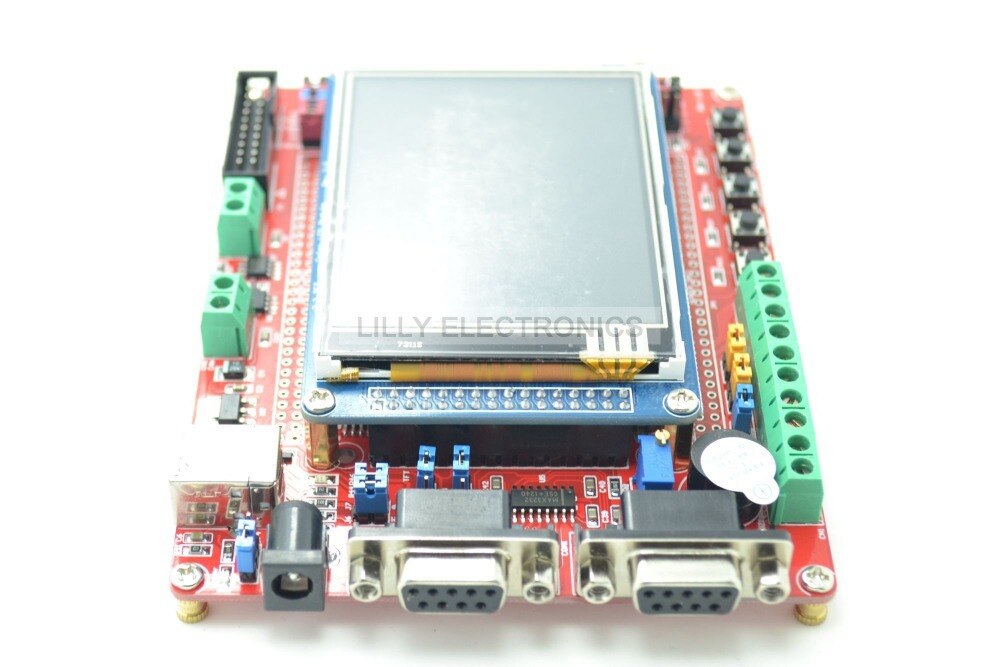

STM32F103RBT6 Core Board +1.6 “TFT Module ARM Cortex-M3

Board resources:

1. CPU: STM32F103ZET6; (LQFP144 feet, 512K flash integrated on-chip, 64KRAM, 12Bit A / D, D / A; PWM, CAN, USB, SDIO, FSMC and other resources)

2. Outside board expansion 512K SRAM, 2M NOR FLASH (board supports a maximum 1024k SRAM, 16M of NOR FLASH) to meet the large capacity data acquisition, processing and analysis requirements

3. Outside board expansion 128M NAND FLASH meet rich color images stored on the data table storage, file management and other applications

4. With 2.8-inch TFT color touch screen module or 3.2-inch TFT color touch screen module (selected by the user, sold separately), FSMC control, configure the color module TSC2046 touch controller that supports an SD card (SPI mode) can be used to store picture, supporting a AT45DBxxx the DATA FLASH (can be used for storage store, reserved for customer self-welding)

5. One-Way CAN communication interface, the driver chip SN65VHD230

6. Two-way RS232 interface

7. One-way RS485 communication interface

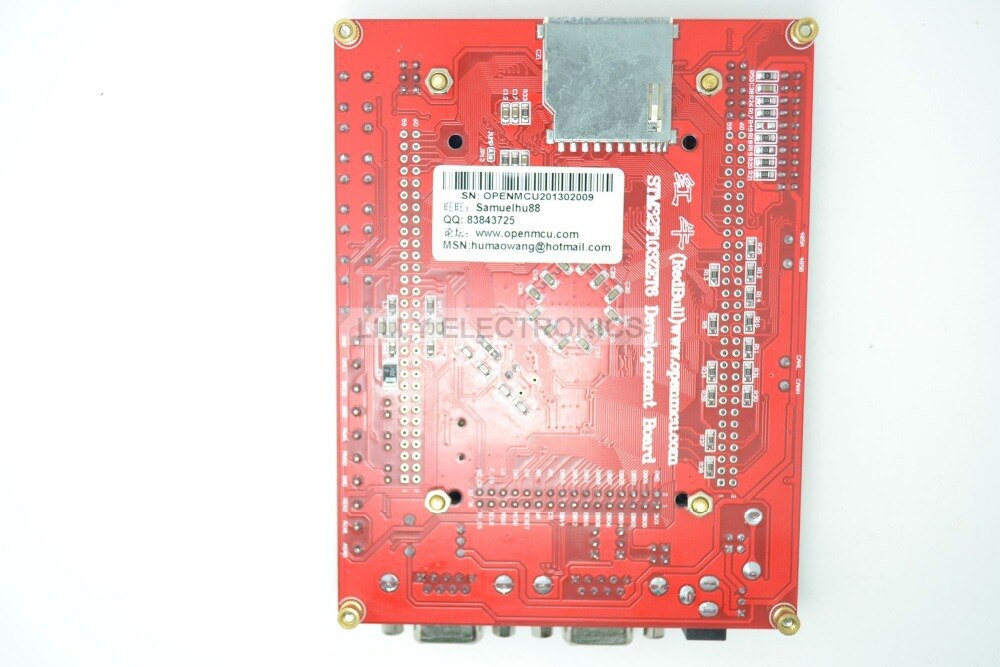

8.1x SD card SDIO control

9.1x I2C memory interface, standard 24LC02 (EEPROM)

10.1x SPI memory interface, AT45DB161D or 45PE16V (DATA FLASH)

11. One-way adjustment potentiometer ADC input

12. Three-way leads to ADC input terminals

13. Two-way PWM output terminal leads

14. Two-way leads to DAC output terminals

15. 1x buzzer, 5x user LED lights, 1x power indicator light, 1x USB communication indicator, 4x user keys, 1x system reset button

16. Power supply selection jumper, support for external 5V power supply, USB power supply or JLINK

17. Board Size: 13CM X 10CM

18. All I / O port through 2.54MM standard pitch leads to facilitate the secondary development.

Rich routines, not only functional modules MDK-board test Source: LED lights into the water six examples, RTC, buttons, PWM, buzzer, USB, SD card, ADC, DAC, 12C, RS232, RS485 pass, CAN , touch screen test, TFT LCD screen test, Ethernet test procedures, camera test program ….. there are also transplant success UCOS2, UCGUI several routines, can be directly used in industrial equipment or handheld instruments in the human-machine interface design, making your product to get rid of the monotony of black and white, but into the colorful world! inspire your design inspiration!

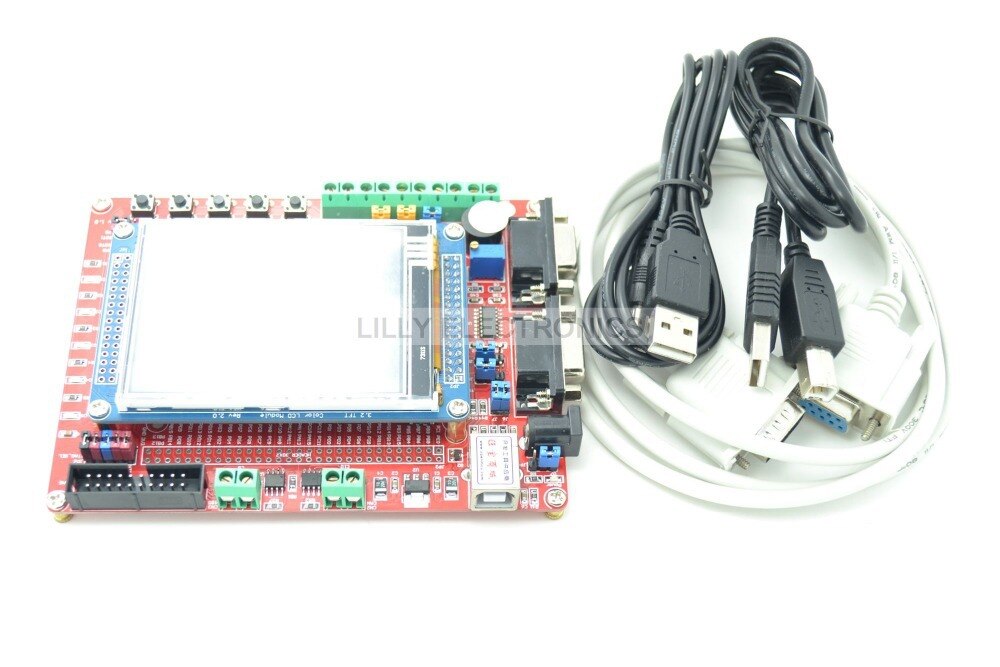

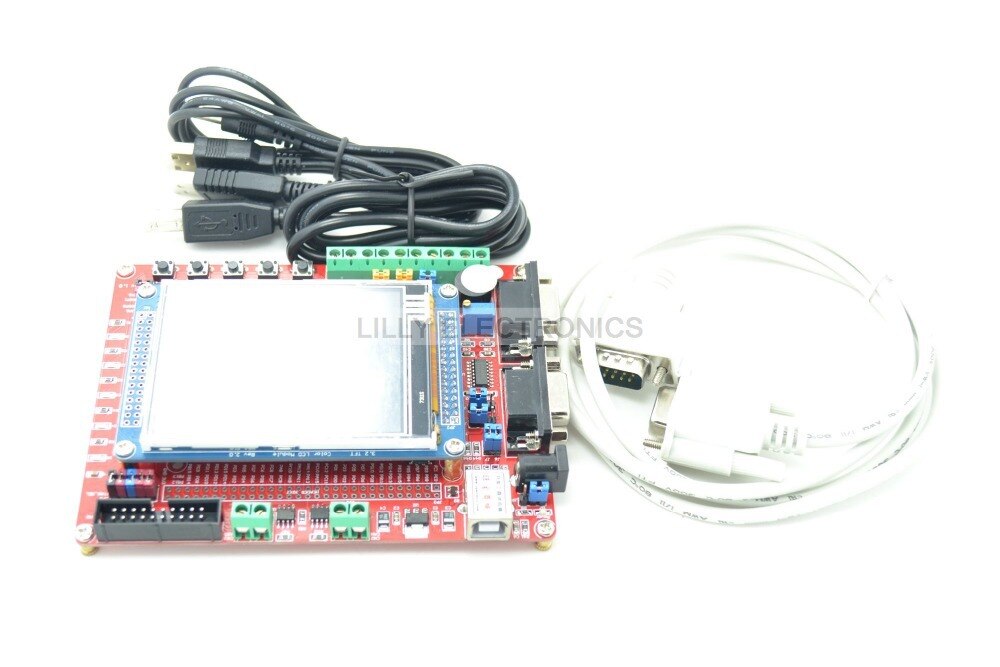

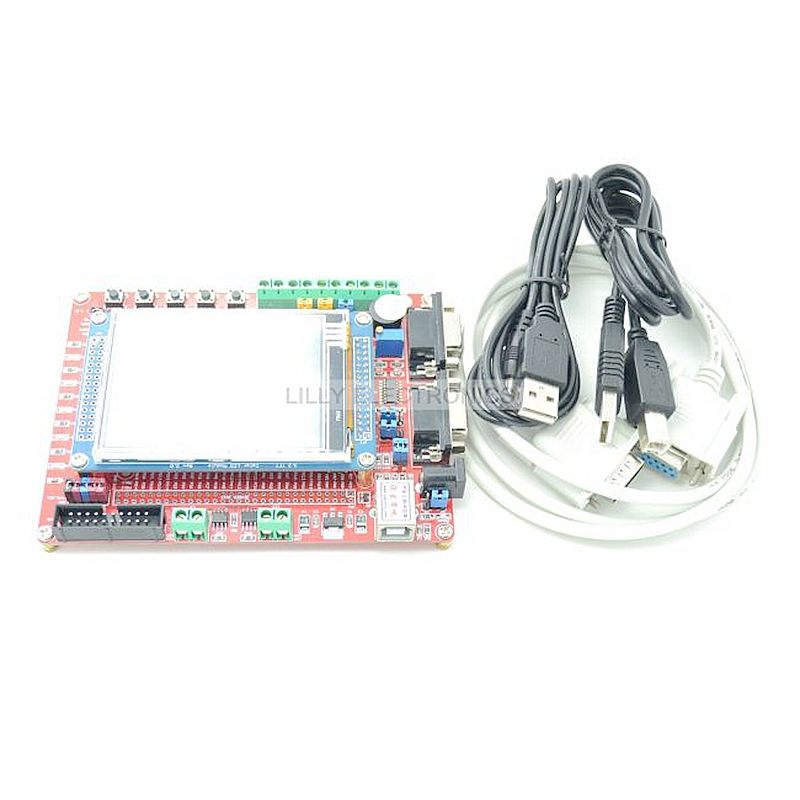

Package:

1x Red-Bull development board (ARM Cortex-M3-end preferred)

1x 3.2 inch color TFT with touch module <a>

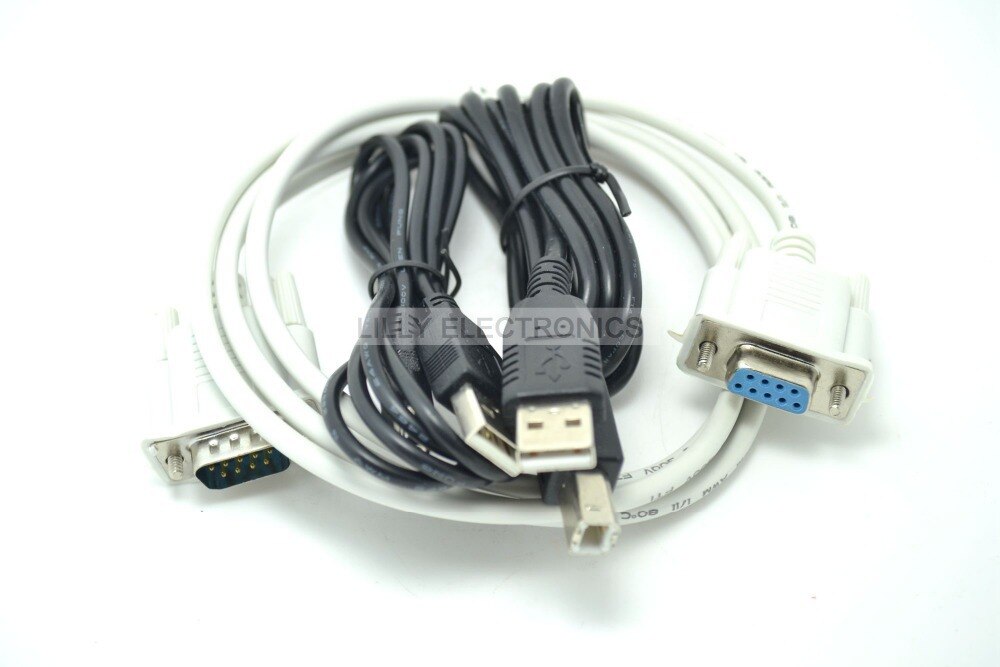

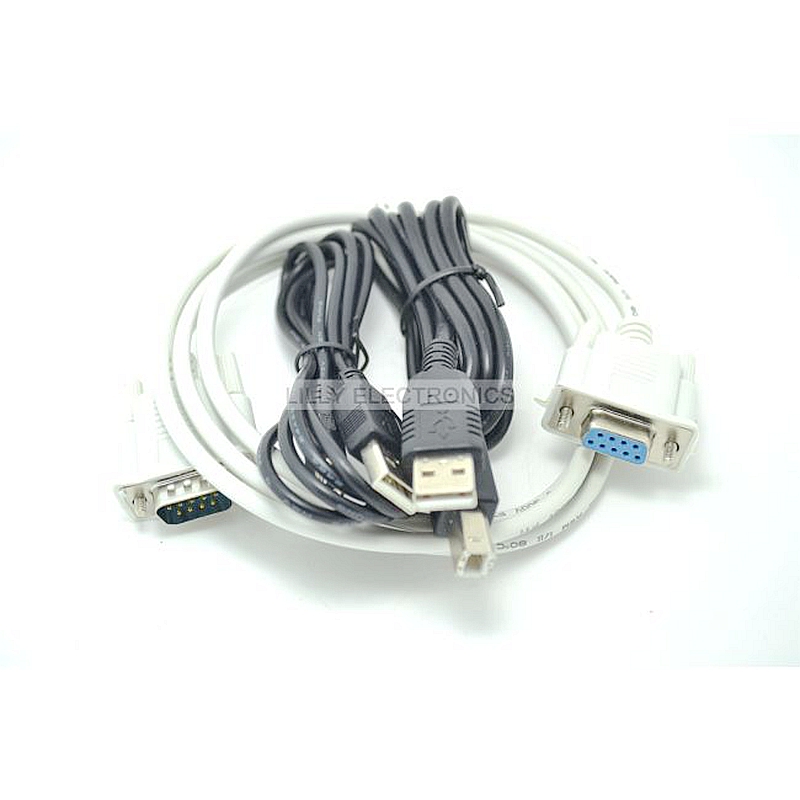

1x USB copper cable

1x Serial download cable

1x CD ROM discs
