Wuhan best service MAX/Raycus/CO2 laser source for laser marking machine with good price

Product description

20W~3000W laser source Q-switched pulsed fiber lasers have high peak power, high pulse energy and optional output beam size. They are widely used in marking, precision drilling and engraving on non-metal and high reflection metals.

Such as gold, silver, aluminum and stainless steel etc.. Compared with traditional lasers, Max’ Q-switched fiber lasers have lower cost and more stable performance in these applications.

The key components of the lasers are developed and manufactured in house to ensure the lasers’ reliability and uniformity. With more than 10000 lasers installed in the field, the reliability has been well proved.

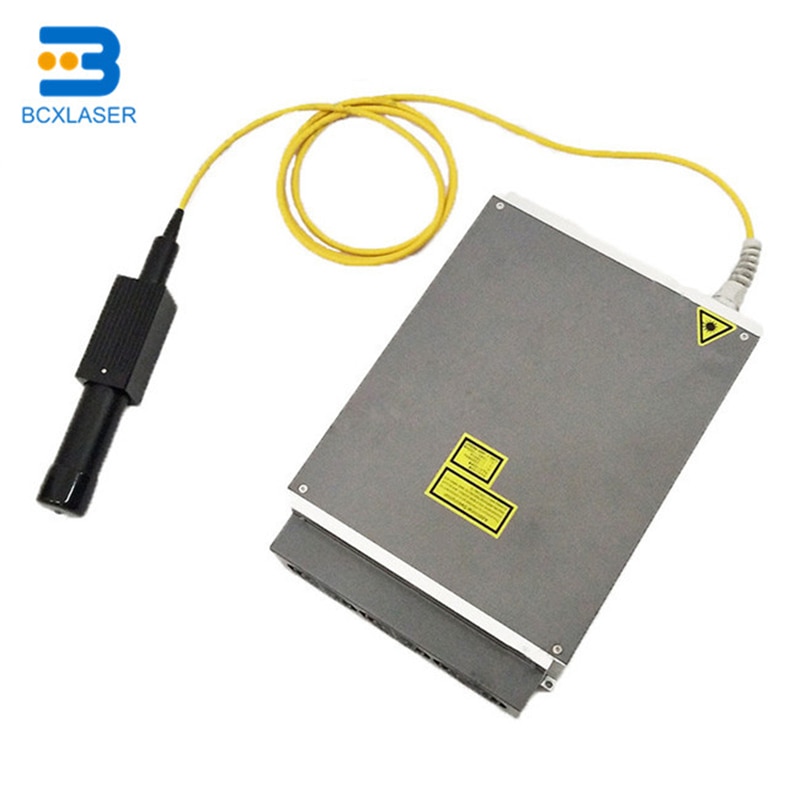

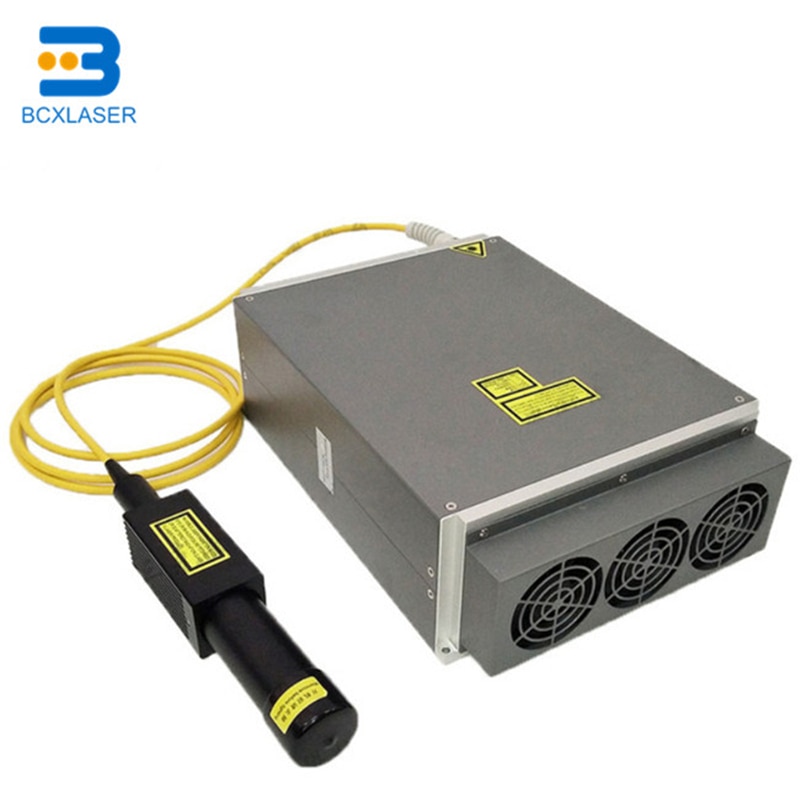

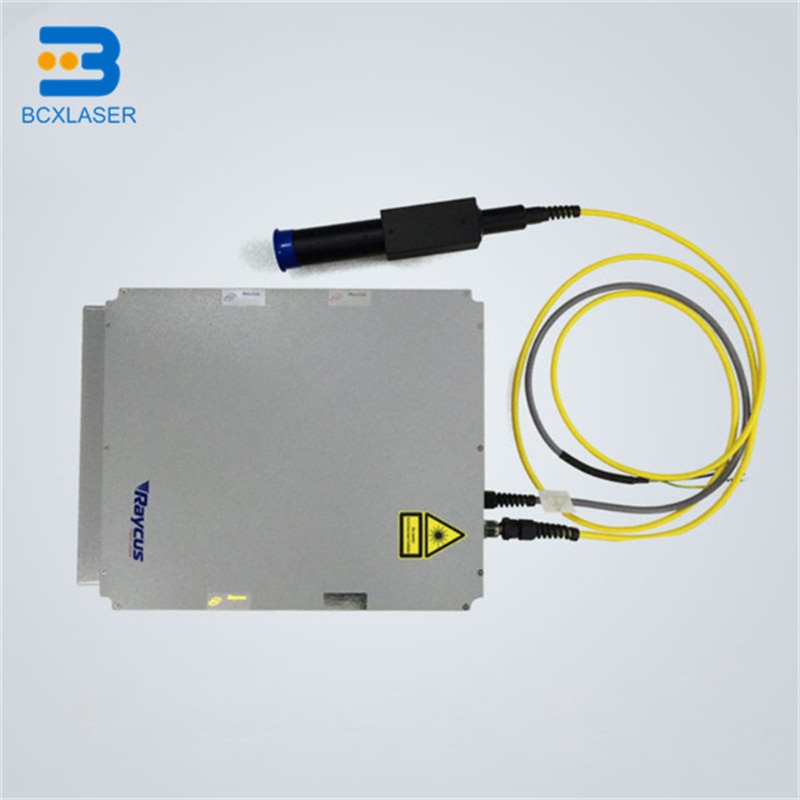

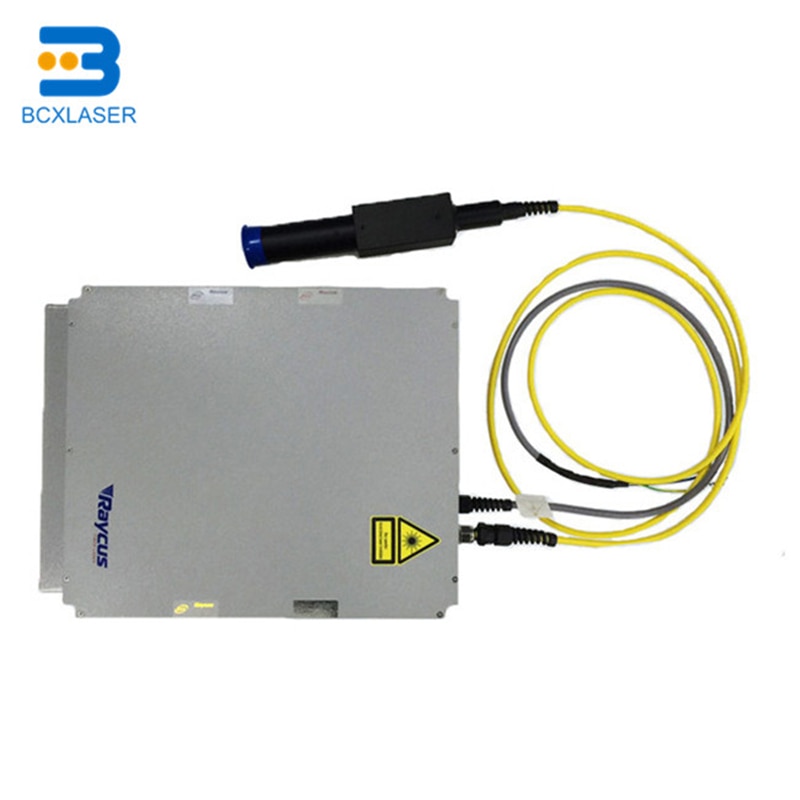

Detailed images

Advantages

1.Smaller focus spot, cutting line finer, more productive, better processing quality

2.2 times of same power laser cutting machine
3.Adopt the world’s top fiber laser, with stable performance and service life of key components of is up to 100,000 hours
4.High electro-optical conversion efficiency
5.Lower cost: the machine power consumption is only 20-30% of similar CO2 laser cutting machine
6.Extreme low maintenance cost: no laser working gas, optical fiber transmission, without reflection lens, can save lots of maintenance cost
7.Optical fiber transmission, do not need to adjust the light path

8.Super flexible light effect: small size, compact structure, optical fiber transmission, it makes flexible manufacturing requirements more easy to reach.

Parameter

Technical parameter	10w	20w	30w
Central wavelength(nm)	1055~1070	1055~1070	1055~1070
Polarization	Random	Random	Random
Nominal average output power (W)	9.5~10.5	19.5~20.5	29.5~31
pulse energy(mJ)	0.5~0.6	0.8~1	0.8~1
Typical beam quality(M2)	<1.4	<1.8	<1.8
Beam diameter(mm)	6~8	6~9	6~9
Pulse repetition rate(kHz)	22-80	22-80	22-80

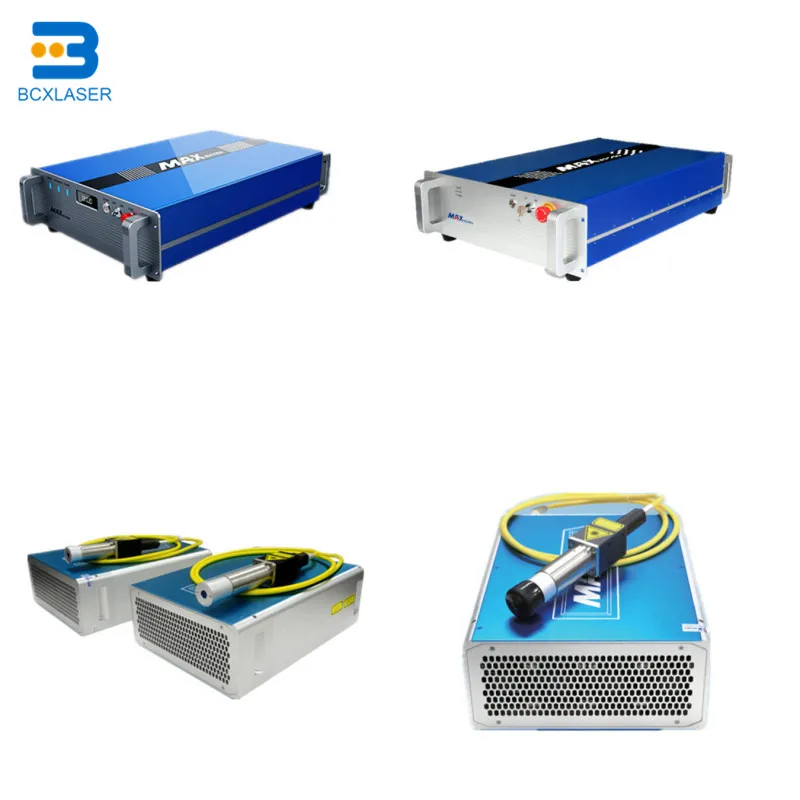

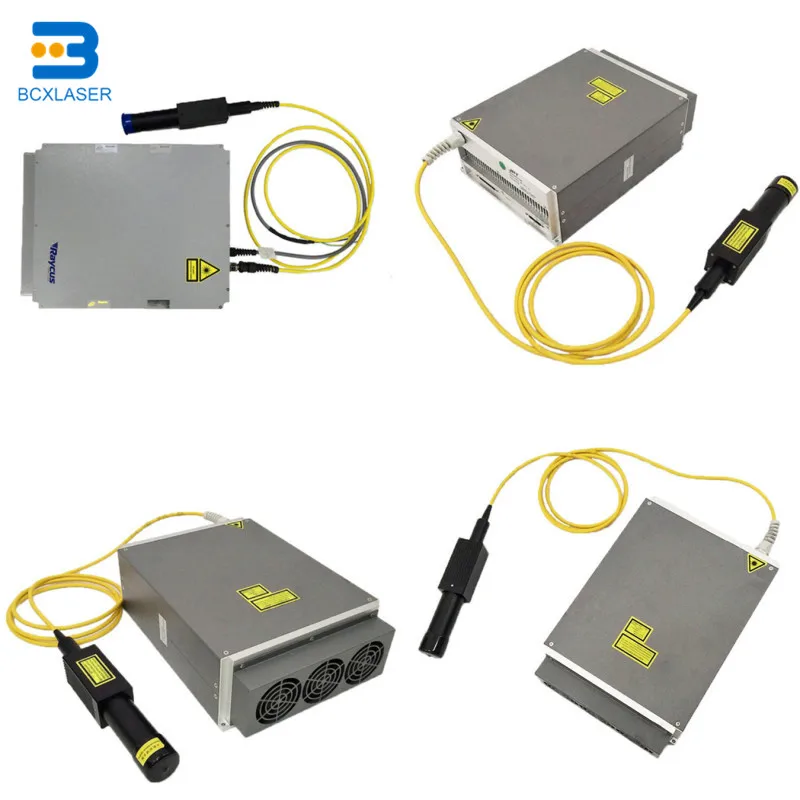

About product range

We provide different laser power laser source, including Raycus/Max/IPG/CO2 laser source.

We have fiber laser source applied to fiber laser machine,power range 20W-300W.

CO2 laser source used in fiber laser marking machine also available.

Except small power laser source,big power laser source,300W-3000W laser source is in our product list.

About laser source price

Different power ,different price!

As laser source is the most important part of laser machine,laser source price occupy the most part of laser machine.

Detailed price,pls contact services.

About brand

Fiber laser source,we take raycus,maxphotonics,ipg,superlaser into our range.

CO2 laser source,we have rofin,chinese domestic laser generator.

FAQ:

1. Do you have the manual of machine?

Yes,we can provide manual,CD software and video to help you operate the machine expertly.

2. What is the mainly consumables of the machine?

The mainly consumbles are the laser tube and the lens and mirrors. So we always suggest our clients to purchase one more for standby.

3. How to choose machine?

Please tell me what’s the material do you need to process,materia thickness and size, I will help you choose the best suitable machine.

4. What about MOQ?

No MOQ limit , If you choose us, we hope to grow together with you, then we can get bigger and bigger.

5. Trade company or manufacturer?

We are manufacturer, warm welcome to visit our factory!
